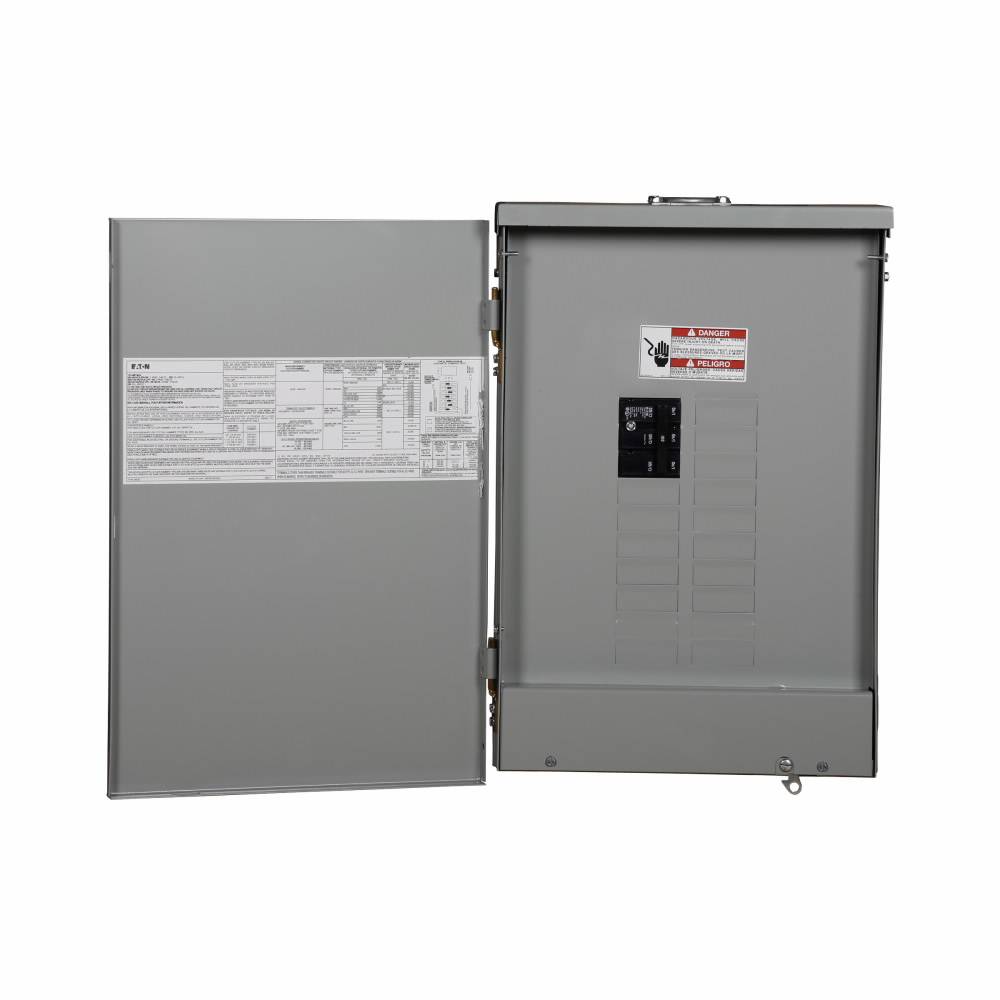

EATON 3BR1224B100R 3-Phase Main Circuit Breaker Load Center, 208Y/120/240 VAC, 100 A, 10 kA Interrupt

Short Description

Loadcenters are enclosures specifically designed to house the branch circuit breakers and wiring required to distribute power to individual circuits. They contain either a main breaker when used at the service entrance point or a main lug when used as a sub-panel to add circuits to existing service. The main breaker protects the main entire panel and can be used as a service disconnect. The branch breakers protect the wires leading to individual electrical loads such as fixtures and outlets.

EATON Main Circuit Breaker Load Center, 3-Phase, 208Y/120/240 VAC, 100 A, 10 kA Interrupt, 24 Circuits, BR Breaker, 4-Wire Wiring Configuration, 12 Spaces, 4 to 1/0 AWG Wire, NEMA 3R, NEMA C1R Enclosure Box, Metal Housing, 5.19 in L x 14.31 in W x 21 in H
MFG #: 3BR1224B100R

EECO #: CH3BR1224B100R

Brand: Eaton
UPC #: 786676440158
Attributes
Features
Documents
Product Information
Attributes
UNSPSC
39121101
Wire Size
4 to 1/0
Application
Conventional Energy Generation, Renewable Energy and Alternative Energy Generation and Marine Vessels and Equipment, Type BR Breakers, Power Distribution, Commercial, CI and Hyper Converged Applications
Enclosure Type
NEMA 3R
Voltage Rating
208Y/120/240
Housing Material
Metal
Type
3-Phase
Includes
Cover
Warranty
10 years
Dimensions
5.19 in L x 14.31 in W x 21 in H
Breaker Type
BR
Amperage Rating
100
Number of Circuits
24
Features
  • BR loadcenters have standard tin plated aluminum bus with a limited availability of copper bus
  • Raintight boxes are manufactured from galvanized steel, then finished using an electrostatic powder coated, baked urethane paint process
  • Flexible neutral design
  • Tangential main knockout eliminates the need for conduit offsets which permits faster, easier installation
  • Single key hole mounting
  • Factory pre-attached neutral bonding strap
  • No feed-through lugs
  • NEMA 3R rainproof enclosure
  • Aluminum busbar
  • Without feed-through lugs
