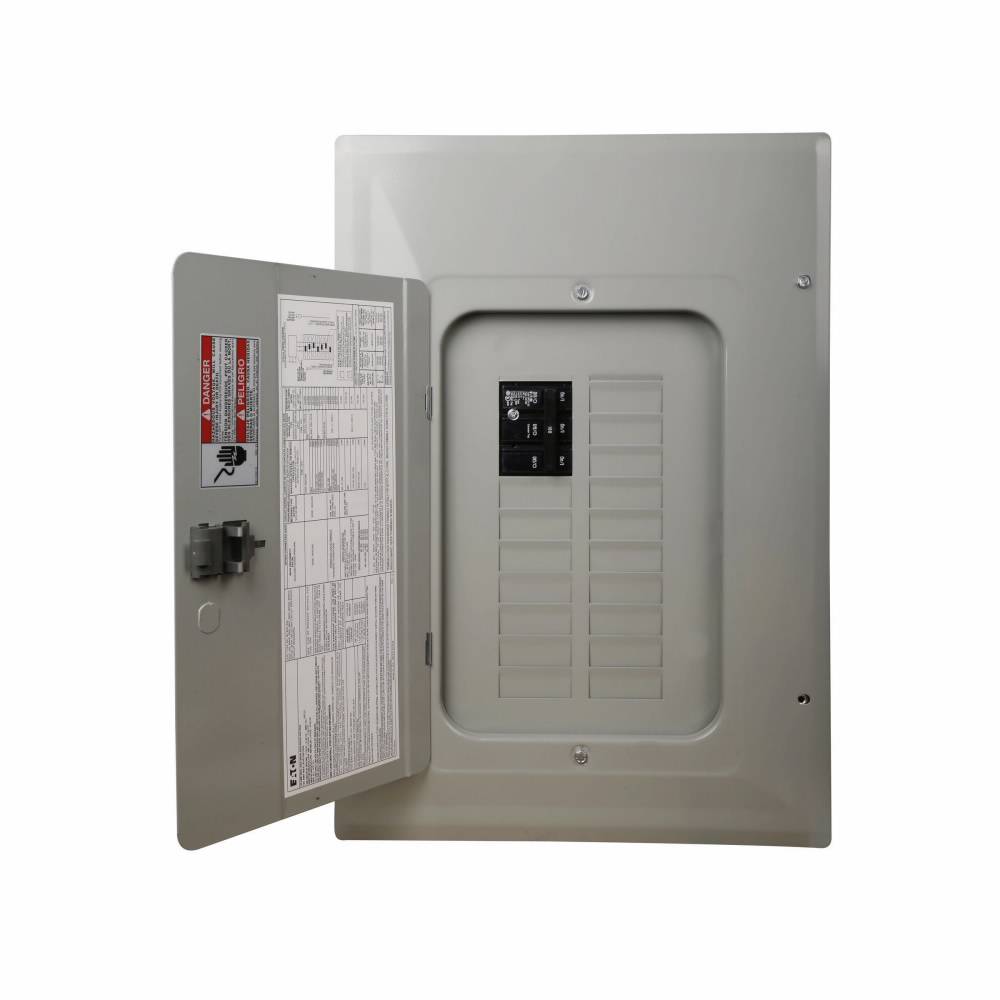

EATON 3BR1224B100 3-Phase Main Circuit Breaker Load Center, 208Y/120/240 VAC, 100 A, 10 kA Interrupt

Short Description

Loadcenters are enclosures specifically designed to house the branch circuit breakers and wiring required to distribute power to individual circuits. They contain either a main breaker when used at the service entrance point or a main lug when used as a sub-panel to add circuits to existing service. The main breaker protects the main entire panel and can be used as a service disconnect. The branch breakers protect the wires leading to individual electrical loads such as fixtures and outlets.

EATON Main Circuit Breaker Load Center, 3-Phase, 208Y/120/240 VAC, 100 A, 10 kA Interrupt, 24 Circuits, BR Breaker, 4-Wire Wiring Configuration, 12 Spaces, 4 to 1/0 AWG Wire, Flush Mounting, NEMA 1 Enclosure, NEMA C1 Enclosure Box, Galvanized Steel Housing Material, 3.88 in L x 14.31 in W x 21 in H Dimensions

MFG #: 3BR1224B100

EECO #: CH3BR1224B100

Brand: Eaton
UPC #: 786676440103
Attributes
Features
Documents
Product Information
Attributes
UNSPSC
39121101
Approval
UL
Wire Size
4 to 1/0
Application
Conventional Energy Generation, Renewable Energy and Alternative Energy - Generation and Marine Vessels and Equipment, Type BR Breakers, Power Distribution, Commercial, Datacenters - IT Space, CI and Hyper Converged Applications
Bus Material
Tin Plated Aluminum
Neutral Type
Insulated/Bondable Split
Feed Location
Top/Bottom
Mounting Type
Flush
Current Rating
100 Amp
Enclosure Type
NEMA 1
Voltage Rating
208Y/120/240
Breaker Mounting
Plug-On
Housing Material
Galvanized Steel
Interrupting Rating
10 Kiloamp
Size
14.31 Inch Width x 3.88 Inch Depth x 21 Inch Height
Type
3-Phase
Includes
Cover
Warranty
10 years
Dimensions
3.88 in L x 14.31 in W x 21 in H
Breaker Type
BR
Main Wire Size
14 to 1/0 AWG (Copper/Aluminum)
Amperage Rating
100
Main Breaker Type
BR
Number of Circuits
24
Circuit Configuration
3-Phase 4-Wire
Maximum Number of Spaces
(12) 1 Inch
Enclosure Size Designation
C1
Maximum Number of Circuits
24
Features
  • BR loadcenters have standard tin plated aluminum bus with a limited availability of copper bus
  • Raintight boxes are manufactured from galvanized steel, then finished using an electrostatic powder coated, baked urethane paint process
  • Flexible neutral design
  • Tangential main knockout
  • Single key hole mounting
  • Factory pre-attached neutral bonding strap
  • No feed-thorough lugs
  • Aluminum bus housing
  • Without feed-through lugs
