EATON 38150060 1-Channel Cube Shaft Encoder, For Use With PLC and Counter, 60 Pulse per Revolution, Aluminum, Black Oxide

NOTICE: This item has been flagged as discontinued. Limited stock may be available. Please note that this item is subject to removal from your order if it is unfulfillable.
Short Description

You use the counters, ratemeters, hour meters and other specific control & display products everyday to control single-purpose machinery and monitor process parameters in complex control schemes. These products are a perfect fit for processes where measurement needs to be controlled or displayed. Used as machine control in smaller applications, or as displays for specific parameters in larger, PLC-controlled equipment, Eaton's Specific Control & Display products are the answer to your monitoring, measurement, control and display needs.

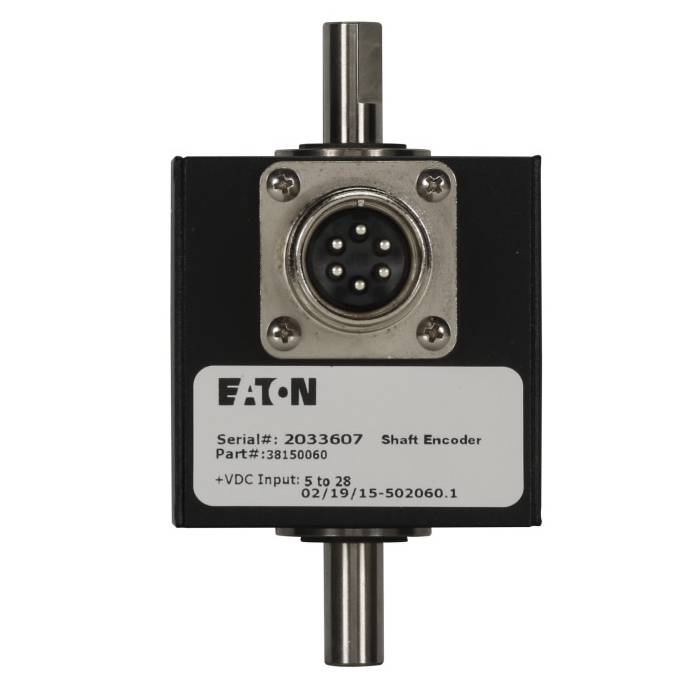

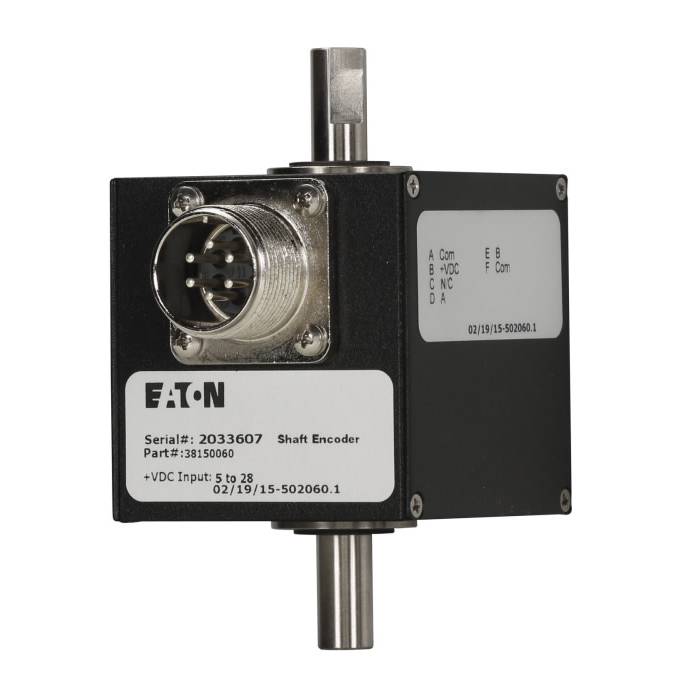

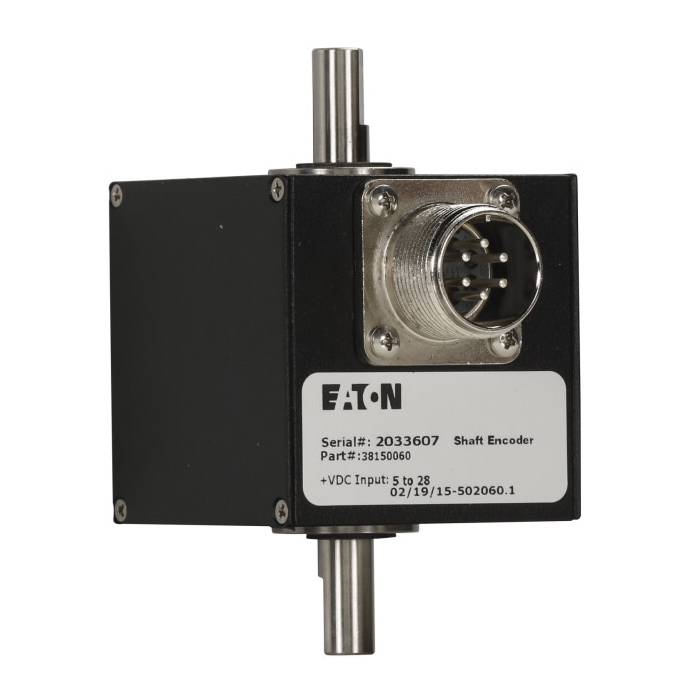

EATON Cube Shaft Encoder, 1-Channel, Series: 3815, For Use With: PLC and Counter, 60 Pulse per Revolution, Aluminum, Anodized, Black Oxide, 3-1/2 in L x 4-1/2 in W x 3-1/2 in H
MFG #: 38150060

EECO #: CH38150060

Brand: Eaton
UPC #: 782114010952
Discontinued
Attributes
Features
Documents
Product Information
Attributes
Color
Black Oxide
Finish
Anodized
UNSPSC
39121527
Material
Aluminum
Type
1-Channel
Series
3815
Warranty
1 year
Dimensions
3-1/2 in L x 4-1/2 in W x 3-1/2 in H
Specifications
60 Pulse per Revolution
Suitable For Use With
PLC and Counter
Features
  • Tapped holes for face or base mounting
  • Military style connector
  • 9 to 16 VDC input power 60 mA maximum at 16 VDC, 2% ripple
  • NPN transistor output, 250 mA sinking capacity
  • Square wave output (50 to 50 duty cycle)
  • Single channel and quadrature models
  • 3/8 in (9.5 mm) double ended shaft
  • ABEC three double sealed ball bearings
  • Current sinking transistor with 1.5 K Ohm pull-up output type
  • 32 to 167 deg F operating temperature
  • 6000 rpm max shaft speed, clockwise or counter clockwise shaft rotation
  • MS-3102E-14S-6P connector
