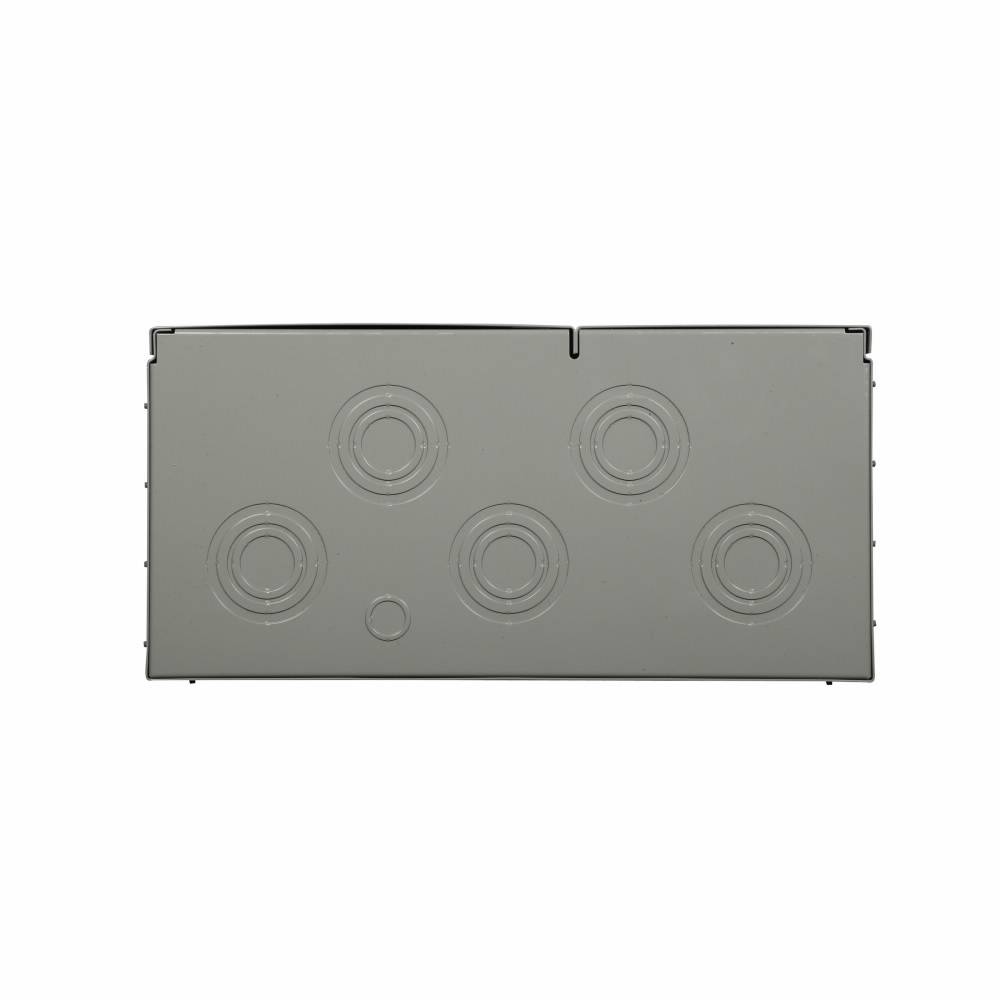

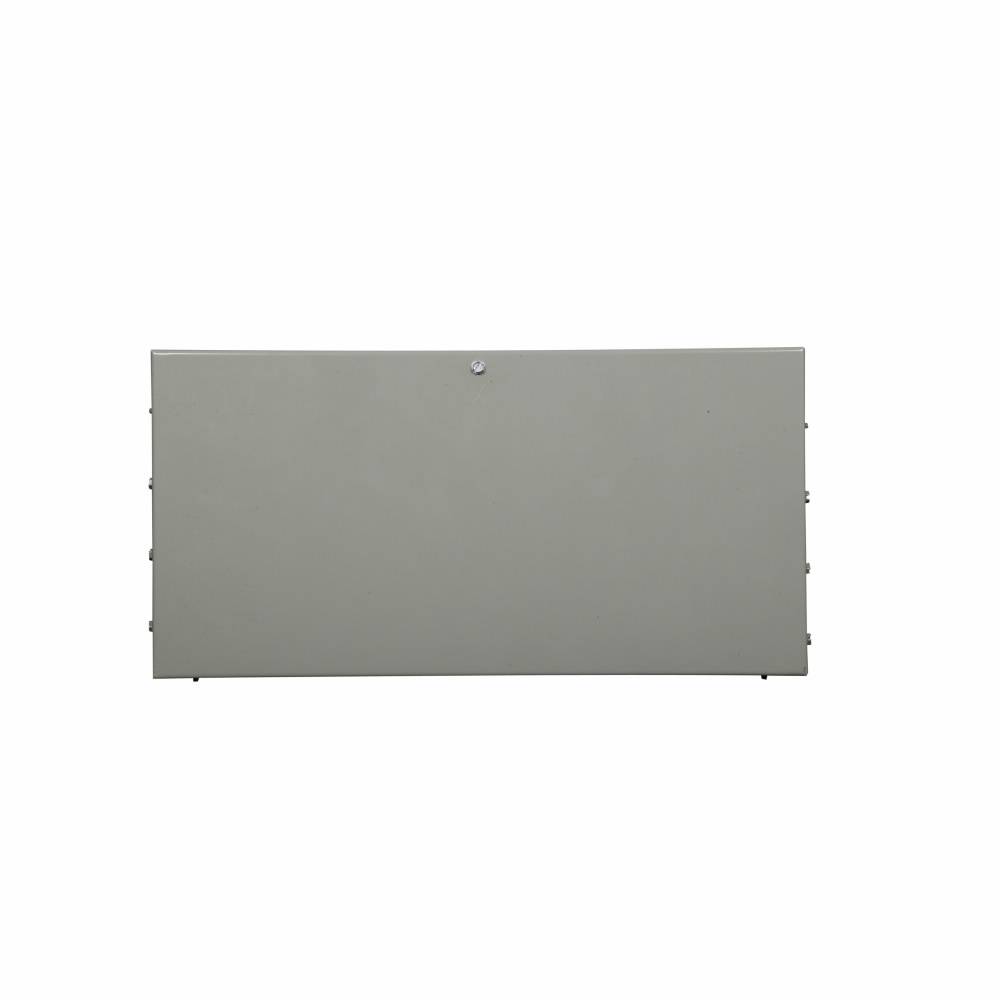

EATON 35MM220R12 5-Jaw 2-Socket Meter Stack Module, 120/240 VAC, 200 A, 1/3 ph Phase, 3 Wires, NEMA 3R Enclosure

Short Description

EATON commercial meter stacks consist of four horizontal cross buses that are mechanically and electrically built to bolt up to mains and residential stacks. These devices are primarily used in light commercial applications such as strip malls, office complexes and industrial parks. Some stacks contain meter blocks with test bypass and jaw release. Others use meter sockets with test bypass feature (meets EUSERC electrical requirements).

EATON Meter Stack Module, 5-Jaw 2-Socket, 120/240 VAC, 200 A, 1/3 ph ph, 3 Wires, 100 kA Short Circuit, Bus Bar Connection, Plug-In Mounting, NEMA 3R Enclosure, 18-1/4 in L x 8-3/4 in W x 11 in D Dimensions
MFG #: 35MM220R12

EECO #: CH35MM220R12

Brand: Eaton
UPC #: 786849052966
Attributes
Features
Documents
Product Information
Attributes
Phase
1/3
UNSPSC
39121102
Application
Commercial, Power Distribution, Indoor/Outdoor, Residential and Facilities Applications
Mounting Type
Plug-In
Enclosure Type
NEMA 3R
Voltage Rating
120/240
Connection Type
Bus Bar
Number of Wires
3
Type
5-Jaw 2-Socket
Warranty
1 year
Dimensions
18-1/4 in L x 8-3/4 in W x 11 in D
Amperage Rating
200
Features
  • Meter socket and tenant main breaker or wireway sections are separated by a solid metal barrier to guard unmetered bus against power theft
  • Two designs can be interconnected with all other commercial metering as well as with residential devices which makes installation faster and more flexible
  • Suitable for use as service entrance equipment, which means no need to purchase more equipment or use add-ons
  • Able to be mounted with 1 mm/3 mm modules and thus will bolt together in many different arrangements, giving greater flexibility
  • Separate covers allow easy access to tenant breaker and wireway section, permit work on breakers or in wireway without disturbing meters or meter covers
  • Combination indoor outdoor enclosures with removable top cap, bottom plate and backplate for field installed knockouts (all blank plates) allow for flexible and easy installation
  • Interrupt rating depends on selected main circuit breaker
  • Each socket is a 5-terminal block with lever bypass and jaw release
  • Short circuit ratings up to 100 A RMS symmetrical depending upon the kA rating of installed main tenant circuit breakers and main device
  • 35 mm stacks are 3-phases in, 1-phase OUT design
  • For use with EHD2, CCV2_X, CCVH2_X, CVS2_XMM, CV2_XMM and CVH2_XMM bolt-on type main tenant breaker
  • 1200 a main aluminum bus ampacity
  • 3-phases in and 1-phase OUT design
