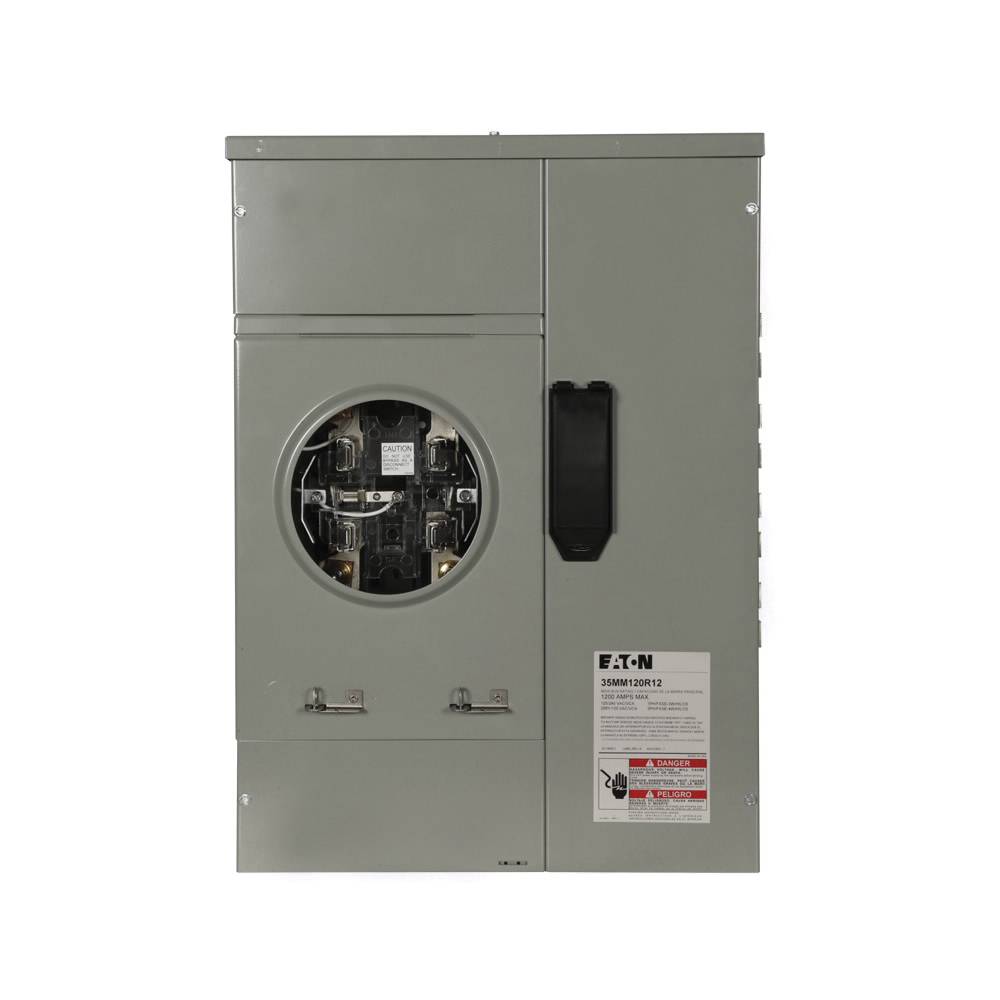

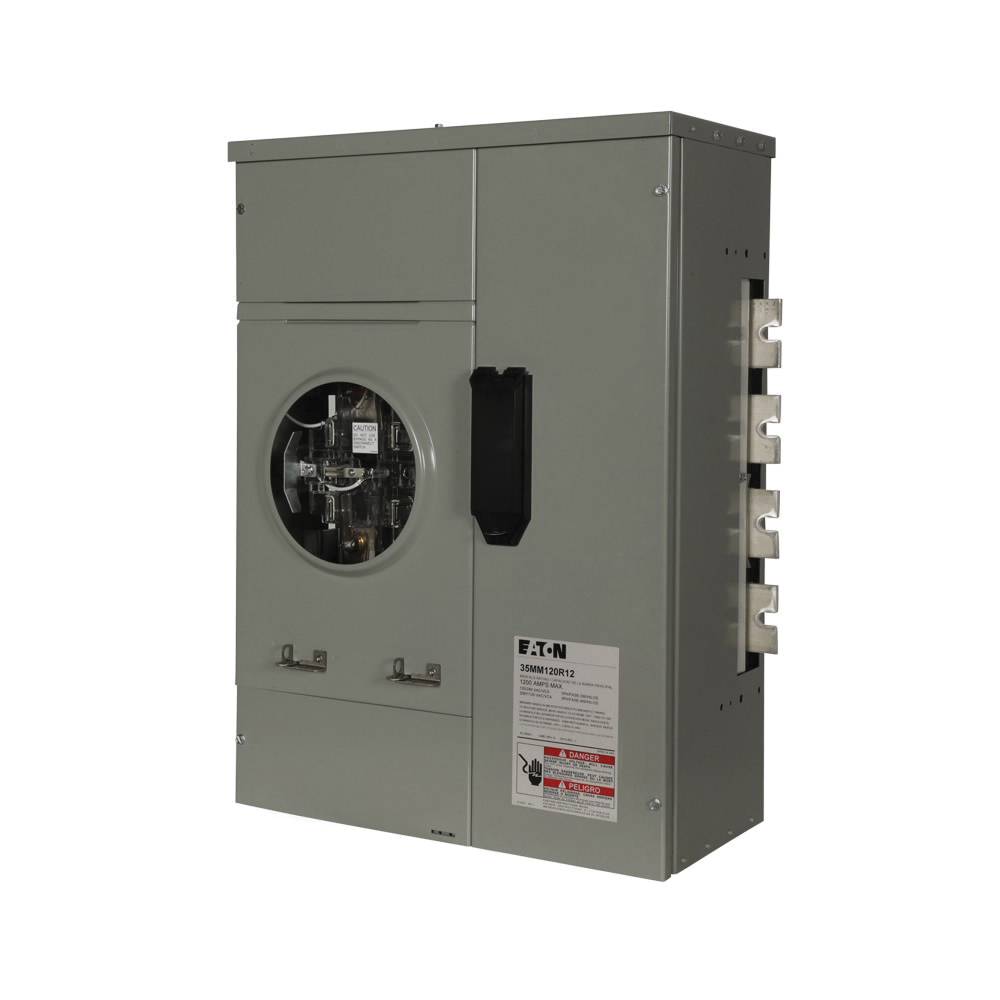

EATON 35MM140R1240225 Meter Stack, 400 A Plug-In Socket, Bottom/Back/Top Feed, 120/240 VAC, 1200 A Bus

Short Description

EATON commercial meter stacks are primarily used in light commercial applications such as strip malls, office complexes and industrial parks. Like the residential stacks (1 MM and 3MM) these devices can be ordered with any main device (MTB, MCB, MFS or BPS) for a main disconnect or electrical protection.

EATON Meter Stack, Series: 35MM, Plug-In Socket, Bottom/Back/Top Feed, 120/240 VAC, 1200 A Bus, 400 A Socket, 1 Meter Socket, 1/3 ph, Ringless Socket Cover Style, 5 Socket Jaws, Tenant Main Circuit Breaker, NEMA 3R Enclosure, 18.25 in L x 8.75 in W x 25.38 in H Dimensions
MFG #: 35MM140R1240225

EECO #: CH35MM140R1240225

Brand: Eaton
UPC #: 786689212896
Attributes
Features
Documents
Product Information
Attributes
Phase
1/3
UNSPSC
39121102
Application
Commercial Applications
Enclosure Type
NEMA 3R
Voltage Rating
120/240
Series
35MM
Includes
400 A Tenant Breaker
Dimensions
18.25 in L x 8.75 in W x 25.38 in H
Socket Type
Plug-In
Breaker Type
Tenant Main Circuit
Features
  • Each socket is a 5 terminal block with lever bypass and jaw release
  • Provision for 2-pole main tenant breakers (circuit breakers not included)
  • Each individual socket can be phase balanced in the field to the desired lines (A-B, B-C or A-C)
  • Indoor/outdoor construction
  • Main tenant feeders can exit top, bottom or back
  • If being used in outdoor application and exiting the top, mount Myer type hubs on rainproof cap
  • Short circuit ratings up to 100 A rms symmetrical depending upon the kAIC rating of installed main tenant circuit breakers and main device
  • Non-EUSERC areas
  • 3-phase In/1-phase Out
