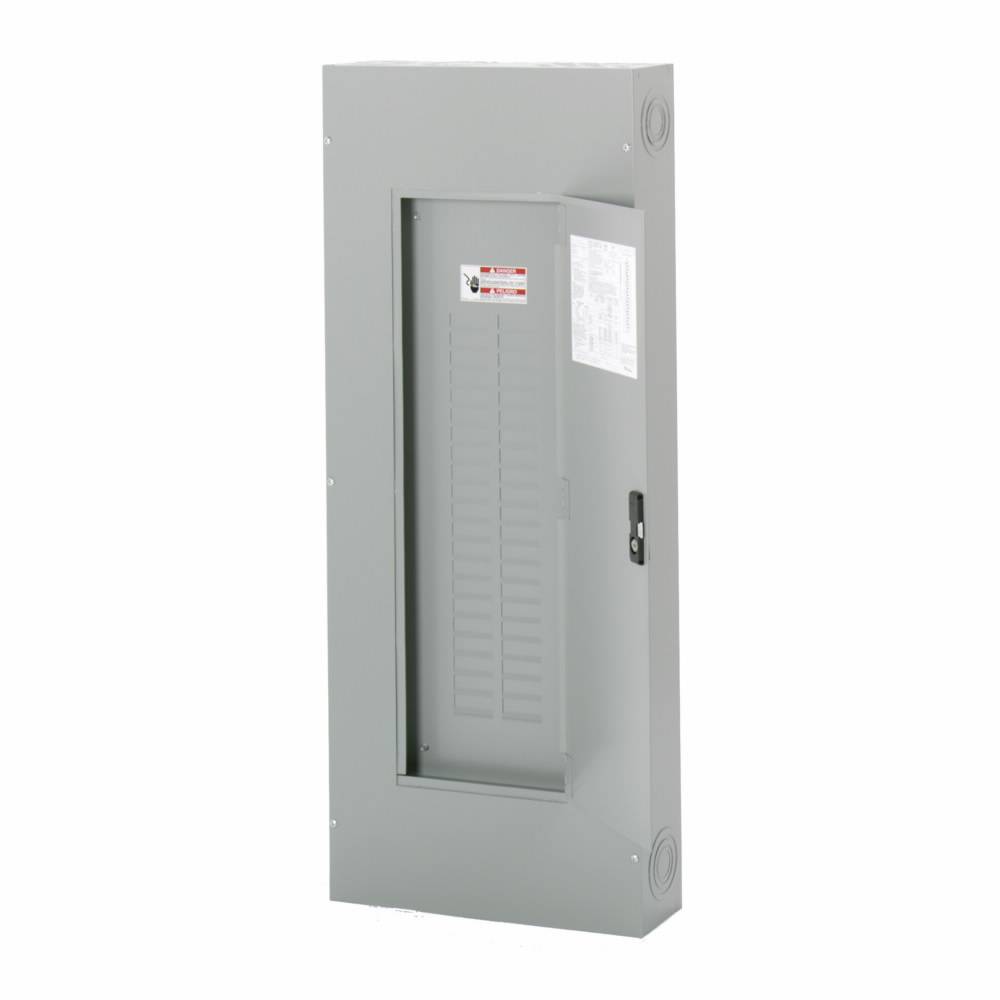

EATON 34242EFN 3-Phase Main Lug Loadcenter, 120/208Y/240 VAC, 600 A, 42 Poles
Share Share Print Print
Eaton

EATON 34242EFN 3-Phase Main Lug Loadcenter, 120/208Y/240 VAC, 600 A, 42 Poles

Short Description

Specially designed for easy installation, Eaton's BR 1-inch load centers house the branch circuit breakers and the wiring required to distribute power to individual circuits. They serve as main breaker for service entrances or as main lug when adding circuits to existing service. The main breaker protects the entire panel and can be used as a service disconnect. The branch breakers protect the wires leading to individual electrical loads such as fixtures and outlets.

EATON Main Lug Loadcenter, 3-Phase, 120/208Y/240 VAC, 600 A, 42 Pole, 42 Circuits, BR Breaker, 42 Spaces, 2 AWG to 500 kcmil Wire, NEMA 1, NEMA 22 Enclosure Box, 16.22 in L x 6.31 in W x 54 in H
MFG #: 34242EFN

EECO #: CH34242EFN

Brand: Eaton
UPC #: 786676308625
Attributes
Features
Documents
Product Information
Attributes
UNSPSC
39121101
Wire Size
2 AWG to 500 kcmil
Application
Electrical Assemblies, Panels and OEMs Applications
Enclosure Type
NEMA 1
Voltage Rating
120/208Y/240
Type
3-Phase
Includes
Cover
Warranty
10 years
Dimensions
16.22 in L x 6.31 in W x 54 in H
Breaker Type
BR
Amperage Rating
600
Number of Circuits
42
Features
  • (2) 2 AWG to 500 kcmil copper/aluminum wire size
