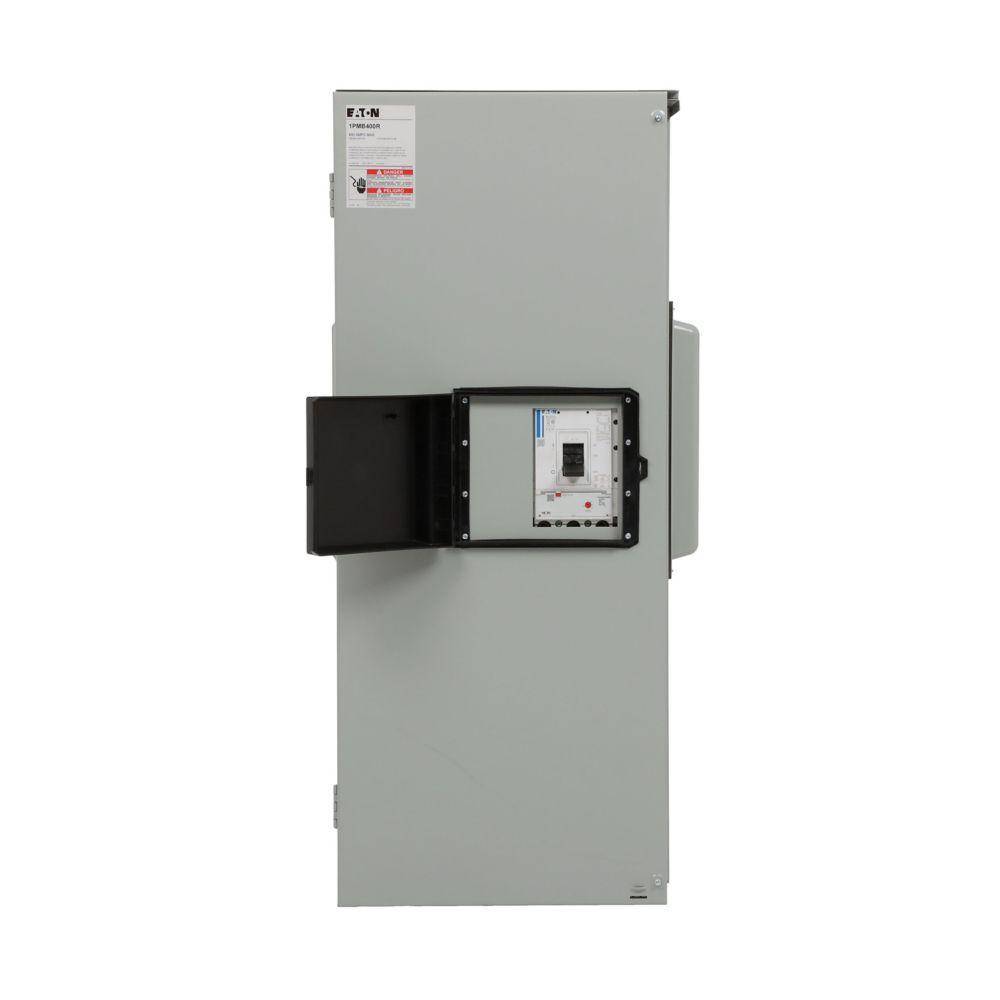

EATON 1PMB400R PMB Service Module Main Circuit Breaker, 120 to 240 V, 400 A, 1 Phase , NEMA 3R Enclosure
Share Share Print Print
Eaton

EATON 1PMB400R PMB Service Module Main Circuit Breaker, 120 to 240 V, 400 A, 1 Phase , NEMA 3R Enclosure

Short Description

Eaton's main service modules are part of Gangable Metering, which consists of a main service module used in conjunction with meter stacks to make a custom metering lineup. Gangable metering is used in large condominiums, strip malls or other applications where more than six units are metered.

EATON, 1PMB400R, Main Circuit Breaker, Service Module, Series: PMB, 120 to 240 V, 400 A, 1 pH ph, 3 Wire Terminal, NEMA 3R Enclosure, 51.5 in H x 22.54 in W x 13.78 in D Dimensions
MFG #: 1PMB400R

EECO #: CH1PMB400R

Brand: Eaton
Attributes
Features
Documents
Product Information
Attributes
Phase
1
UNSPSC
39121102
Application
For Electrical Assemblies, Panels and EOEMs
Terminal Type
3 Wire
Enclosure Type
NEMA 3R
Voltage Rating
120 to 240
Type
Service Module
Series
PMB
Dimensions
51.5 in H x 22.54 in W x 13.78 in D
Amperage Rating
400
Features
  • Power Defense breaker with secondary injection testing capability provides savings
  • Service entrance meter mains with surge provide ARMS as standard product offering for 1000 A and above
  • Knockouts provided in bottom endwall of enclosures, which saves time and money on installation
  • Metering modules may be bolted to one or both sides of the main device, which allows flexibility in installation
  • Eaton's gangable metering provides flexibility and customization for light commercial applications
