Eaton

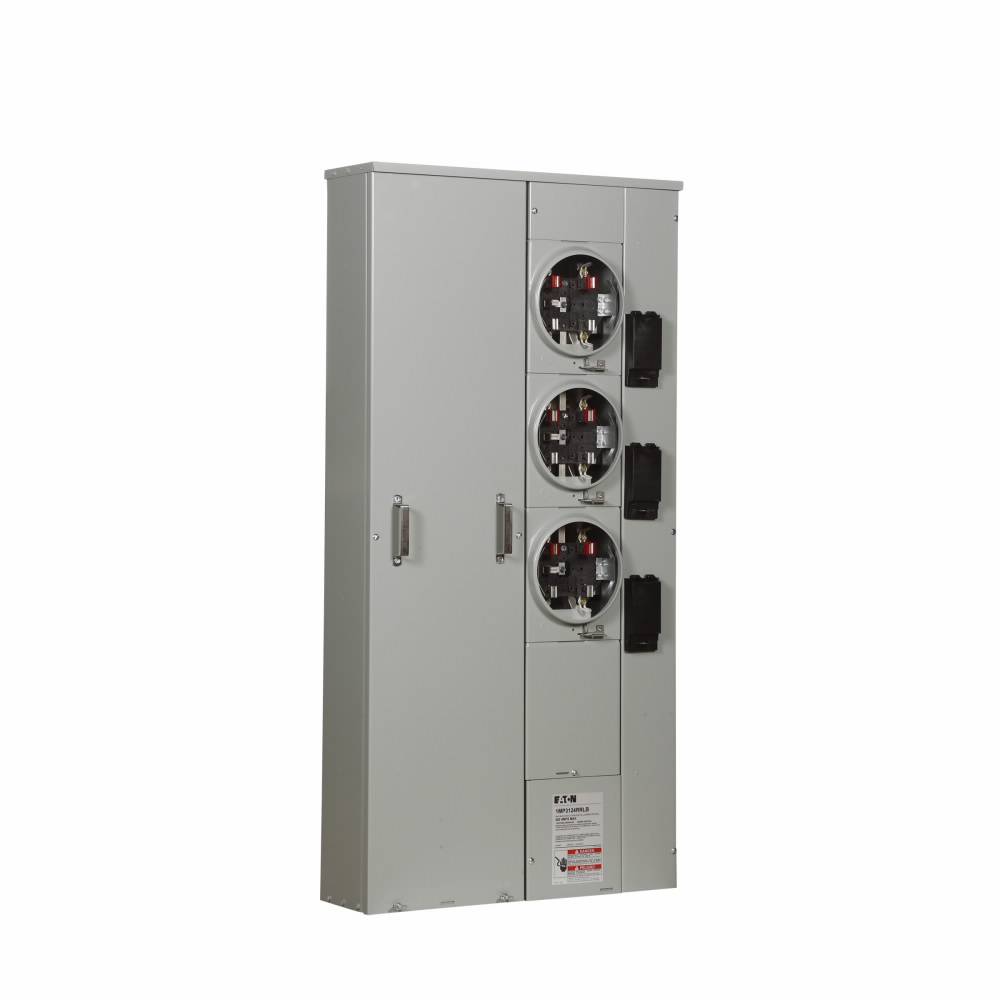

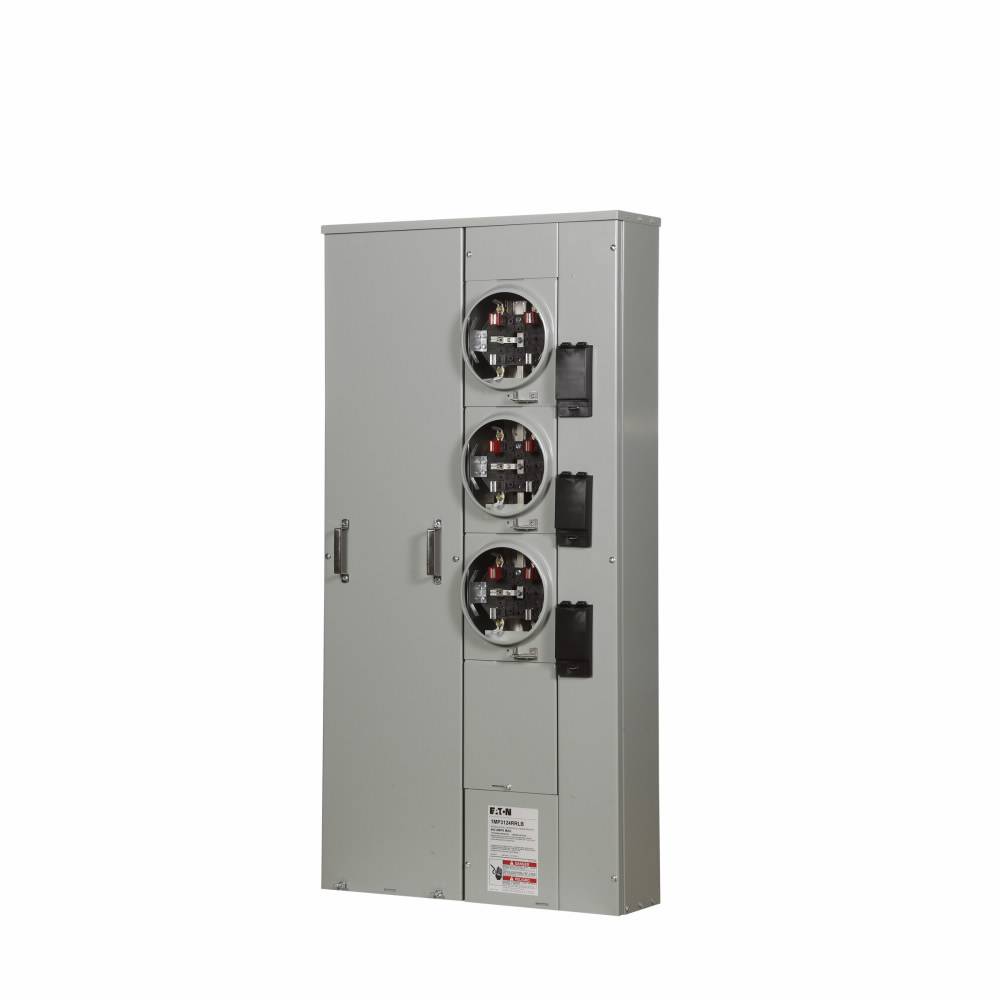

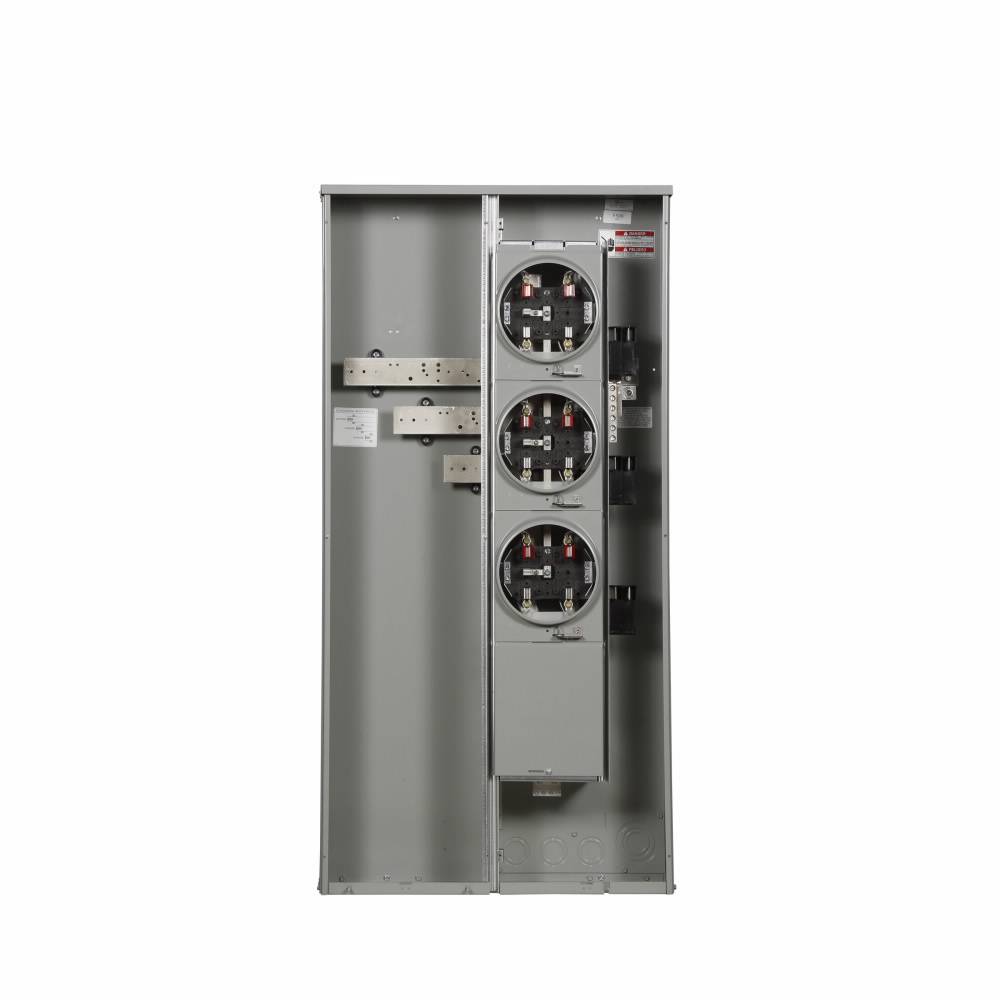

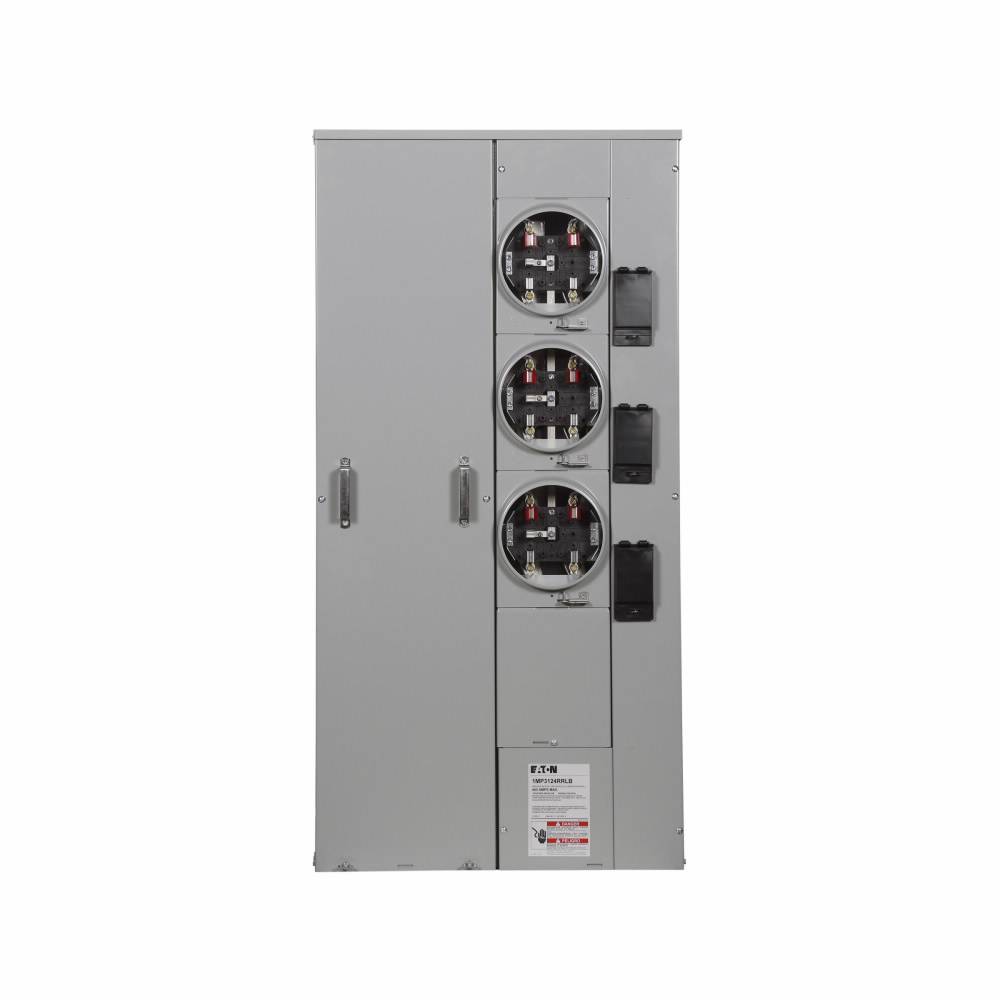

EATON 1MP3124RRLBT Group Metering Meter Pack With Horn Bypass, 125 A Self-Contained Socket, Underground Feed, 120/240 VAC, 400 A Bus

Short Description

EATON meter packs or all in one, allow multi-tenant metering in a single location and thus provide a space and installation cost savings for residential and light commercial applications. Ideal for garden apartments, small condominiums and town houses where 6 or less units are metered through 1-centrally located meter pack.

EATON Meter Pack, Group Metering, Self-Contained Socket, Underground Feed, 120/240 VAC, 400 A Bus, 125 A Socket, 3 Meter Sockets, 1 ph, Ringless Socket Cover Style, 5 Socket Jaws, BR/BRH/BRHH/BRX2 Breaker, NEMA 1/3R Enclosure, Surface Mounting, 38 in L x 36 in W x 8 in H Dimensions
MFG #: 1MP3124RRLBT

EECO #: CH1MP3124RRLBT

Brand: Eaton
UPC #: 782116338696
Attributes
Features
Documents
Product Information
Attributes
Phase
1
UNSPSC
39121102
Application
Electrical Assemblies, Panels, EOEMs, Residential, Light Commercial, Garden Apartments, Small Condominiums, Townhouses, Indoor and Outdoor Applications
Mounting Type
Surface
Enclosure Type
NEMA 1/3R
Voltage Rating
120/240
Type
Group Metering
Warranty
1 year
Dimensions
38 in L x 36 in W x 8 in H
Socket Type
Self-Contained
Breaker Type
BR/BRH/BRHH/BRX2
Features
  • EATON 1MP units are self-contained (main terminal box included) for installations requiring up to six meter socket positions in a single enclosure
  • Units are not gangable with any other metering device
  • Series rating up to 100 kAIC
  • Bondable neutral
  • Provision for 2-pole breaker
  • Underground feed incoming standard with overhead feed available on select hubs
  • Raceway provisions
