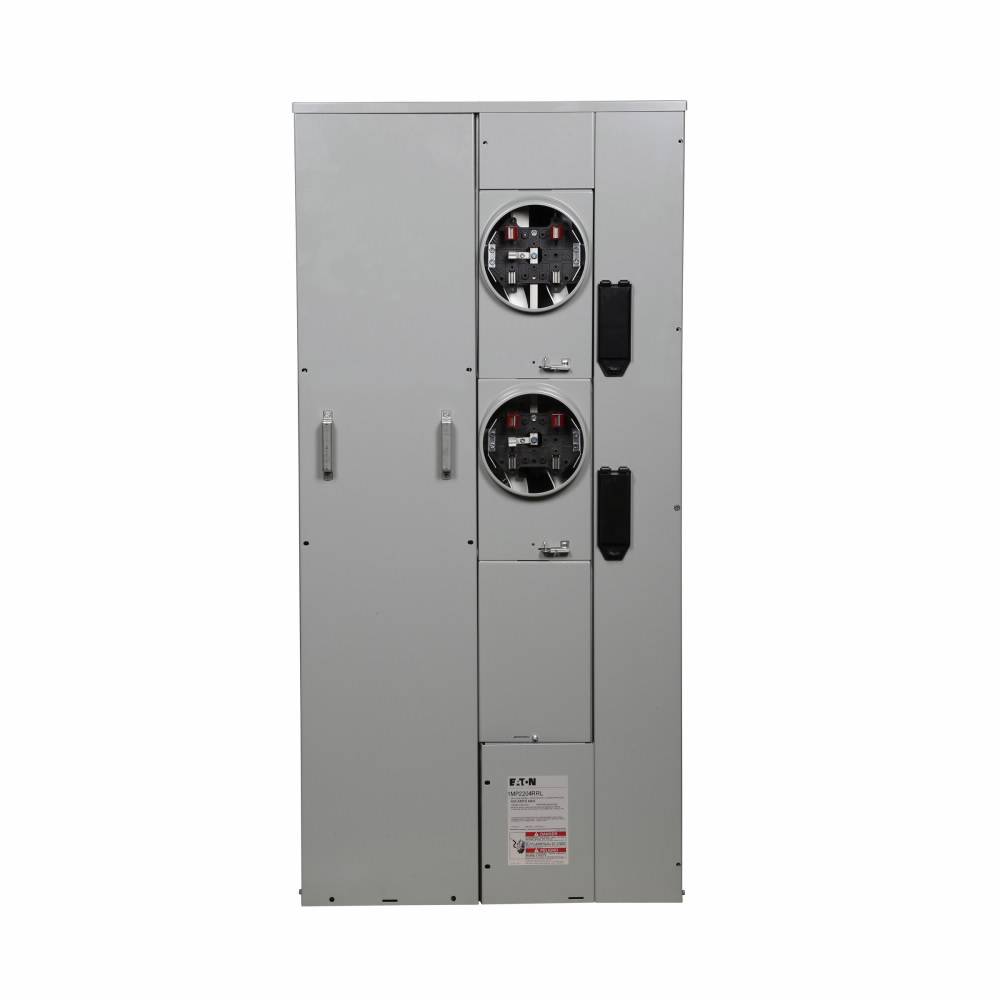

EATON 1MP2204RRLC 3-Wire Group Metering Meter Pack, 200 A Self-Contained Socket, Underground Feed, 120/240 VAC, 400 A Bus

Short Description

EATON's meter packs or all-in-ones, allow multi-tenant metering in a single location and thus provide a space and installation cost savings for residential and light commercial applications. Ideal for garden apartments, small condominiums and townhouses where six or less units are metered through one centrally located meter pack.

EATON Meter Pack, 3-Wire Group Metering, Self-Contained Socket, Underground Feed, 120/240 VAC, 400 A Bus, 200 A Socket, 2 Meter Sockets, 1 ph, 1/0 AWG to 300 kcmil, 14 to 2/0 AWG Wire, Ringless Socket Cover Style, 5 Socket Jaws, Terminal Box Main Lugs, CCV2-X/CCVH2-X/CVS2-XMM/CV2-XMM/CVH2-XMM Breaker, NEMA 1/3R Enclosure, Surface Mounting, 44 in L x 27 in W x 9 in H
MFG #: 1MP2204RRLC

EECO #: CH1MP2204RRLC

Brand: Eaton
UPC #: 782114990070
Attributes
Features
Documents
Product Information
Attributes
Phase
1
UNSPSC
39121102
Wire Size
1/0 AWG to 300 kcmil, 14 to 2/0 AWG
Application
Electrical Assemblies, Panels, EOEMs, Residential, Light Commercial, Garden Apartments, Small Condominiums, Townhouses and Indoor/Outdoor Applications
Mounting Type
Surface
Enclosure Type
NEMA 1/3R
Voltage Rating
120/240
Type
3-Wire Group Metering
Includes
Main Terminal Box
Warranty
1 year
Dimensions
44 in L x 27 in W x 9 in H
Socket Type
Self-Contained
Breaker Type
CCV2-X/CCVH2-X/CVS2-XMM/CV2-XMM/CVH2-XMM
Features
  • Units are self-contained (main terminal box included for installations requiring up to 6 m socket positions in a single enclosure)
  • Units are not gangable with any other metering device
  • Series rating up to 100 kA
  • Bondable neutral
  • Provision for 2-pole breaker
