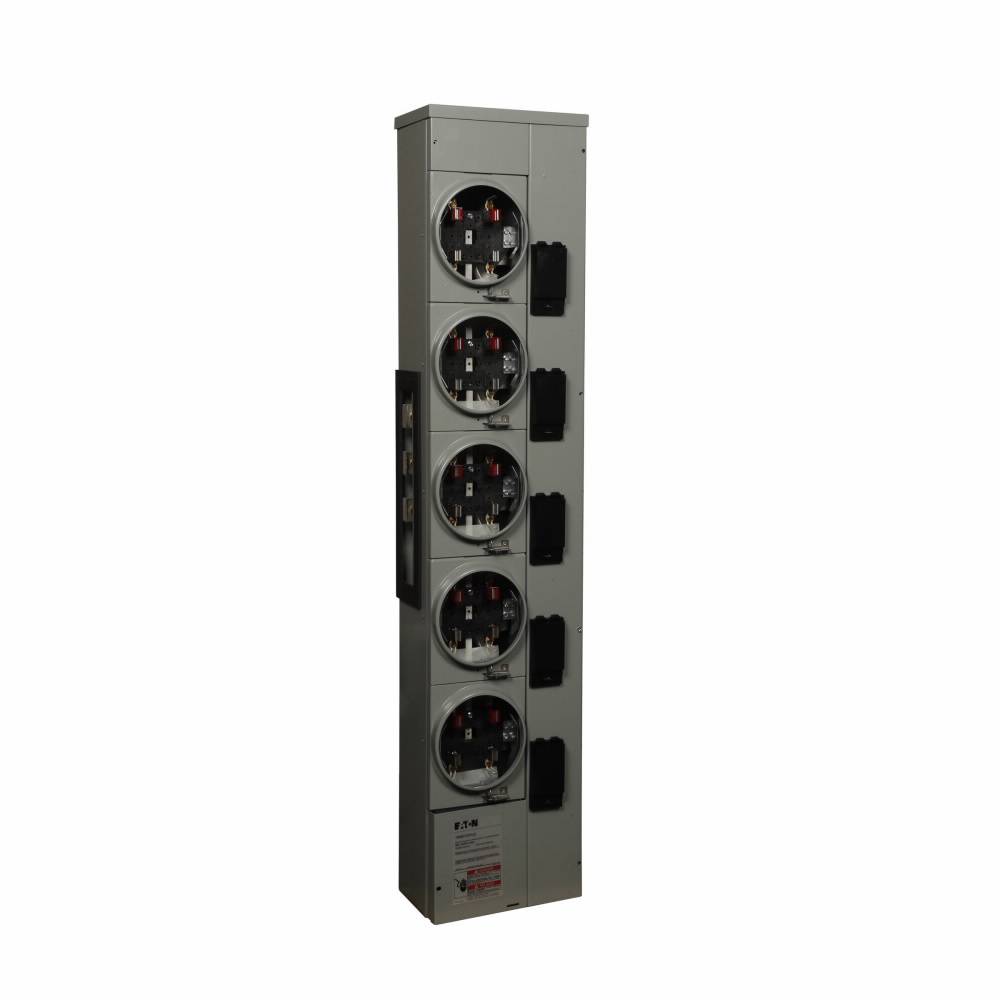

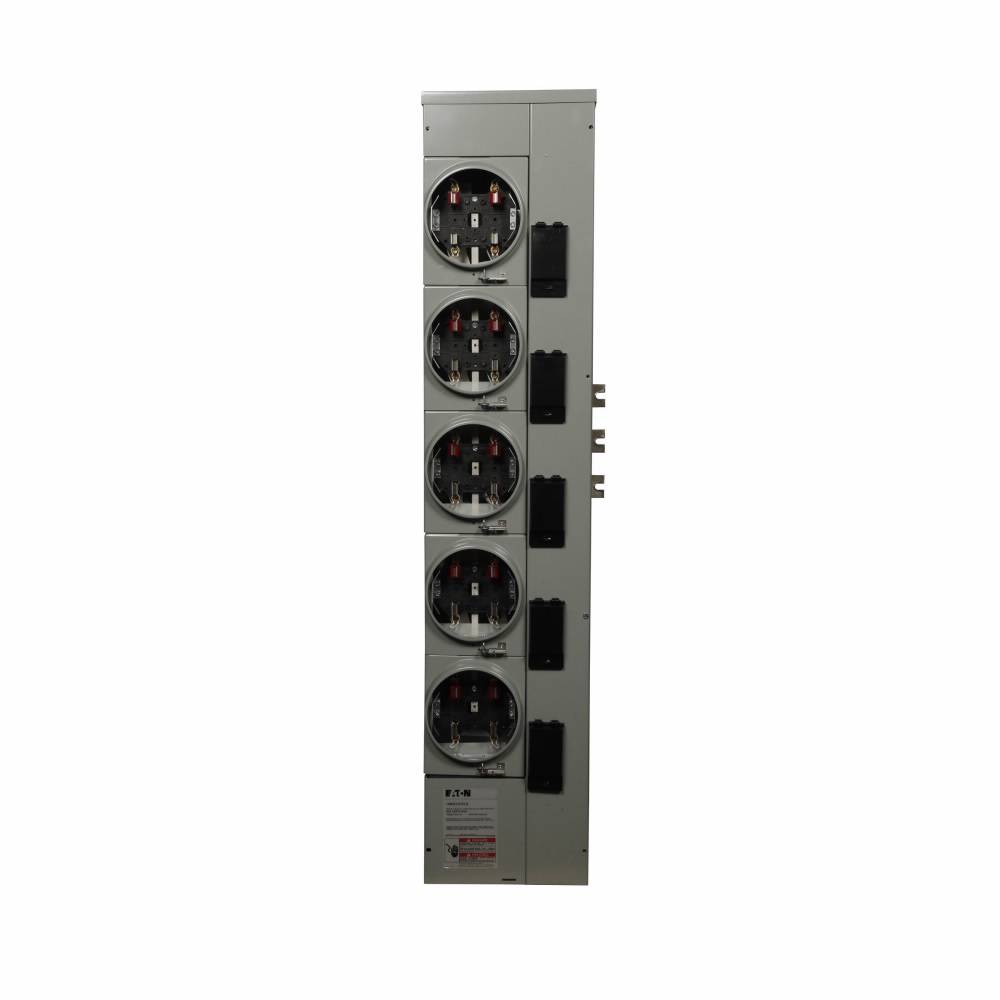

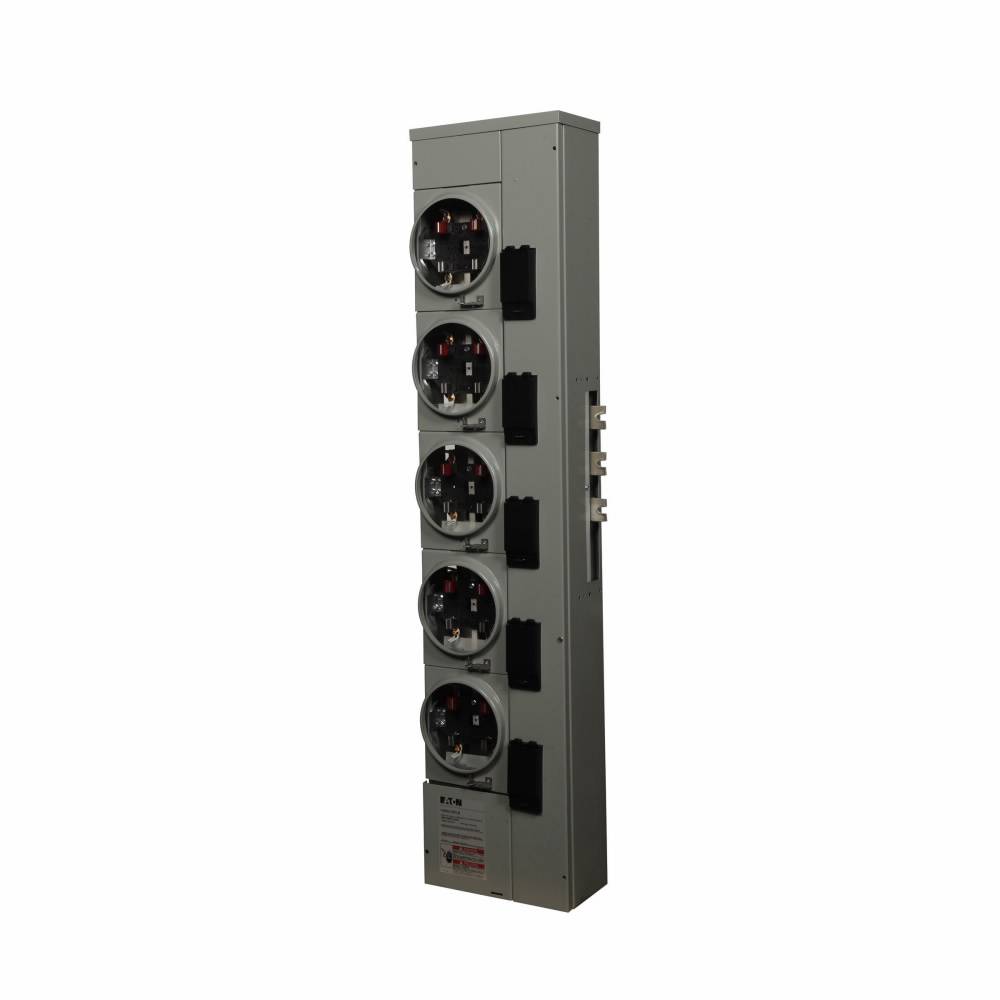

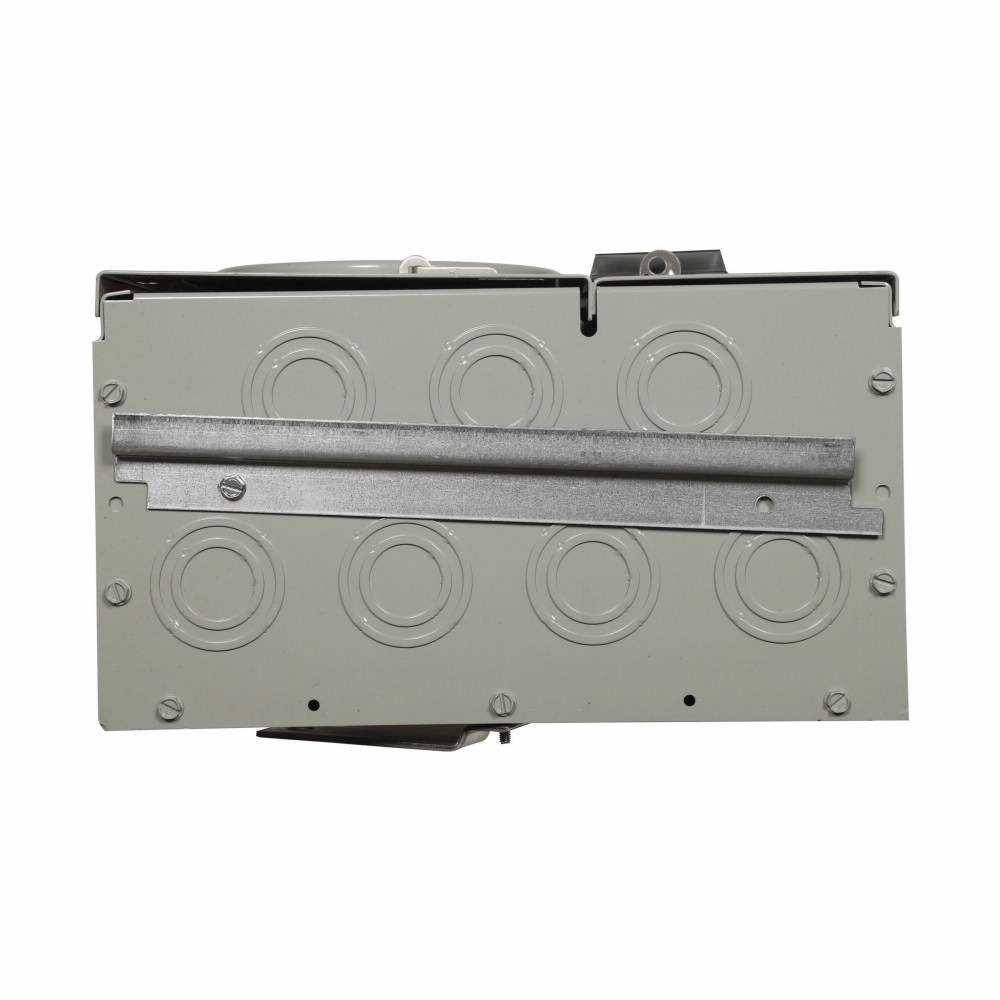

EATON 1MM512RRLBC 5-Socket 4-Jaw B-C Phase Multiple Metering Meter Stack Module, 120/240 VAC, 125 A, 1 ph Phase, 3 Wires

Short Description

Residential meter stacks are a modular metering solution typically installed at residential apartment complexes, duplexes, and more. They allow for as many sockets as needed to fit the particular application. Order with any main device (MTB, MCB, MFS or BPS) for main disconnect or electrical protection.

EATON Meter Stack Module, 5-Socket 4-Jaw B-C Phase Multiple Metering, 120/240 VAC, 125 A, 1 ph ph, 3 Wires, 6 to 2/0 AWG, 14 to 2 AWG Wire, 100 kA Short Circuit, Bus Bar Connection, Galvanized Steel, Rail Mounting, 12.26 in L x 7.01 in W x 57.5 in H Dimensions
MFG #: 1MM512RRLBC

EECO #: CH1MM512RRLBC

Brand: Eaton
UPC #: 782114990001
Attributes
Features
Documents
Product Information
Attributes
Phase
1
UNSPSC
39121102
Material
Galvanized Steel
Wire Size
6 to 2/0 AWG, 14 to 2 AWG
Application
Electrical Assemblies, Panels, EOEMs, Outdoor and Residential Applications
Mounting Type
Rail
Voltage Rating
120/240
Connection Type
Bus Bar
Number of Wires
3
Type
5-Socket 4-Jaw B-C Phase Multiple Metering
Includes
Neutral, Ground Bar and Raintight Cap
Warranty
1 year
Dimensions
12.26 in L x 7.01 in W x 57.5 in H
Amperage Rating
125
Features
  • Meter socket and tenant main breaker or wireway sections are separated by a solid metal barrier to guard unmetered bus against power theft
  • A convenient termination for neutral conductors is in the wireway of each module
  • Non-removable barrier encloses the 800 A horizontal aluminum bus passing through tenant breaker section
  • Factory installed in side gutter, a standard feature that's moveable to the top or bottom gutter
  • Knockouts are tangential in bottom endwall
  • Rust inhibiting phosphate primer and gray baked enamel superior finish
  • Unique meter socket base is installed without any fasteners reducing chances for hot spots, easily replaceable and improves connection to vertical bus
  • Mains and modules slip together quickly and smoothly with front accessible captive bolts securing the juncture without removing socket interiors or bus access plate
  • Separate covers allow easy access to tenant breaker and wireway section, permit work on breakers or in wireway without disturbing meters or meter covers
  • One-piece vertical busbar from phase balancing joints to meter socket eliminating any chance for hot spots
  • Mechanically and electrically built to bolt up with main service modules and commercial modular metering stacks
  • 6 to 2/0 AWG aluminum/copper branch neutral and 14 to 2 AWG aluminum/copper equipment ground bar
