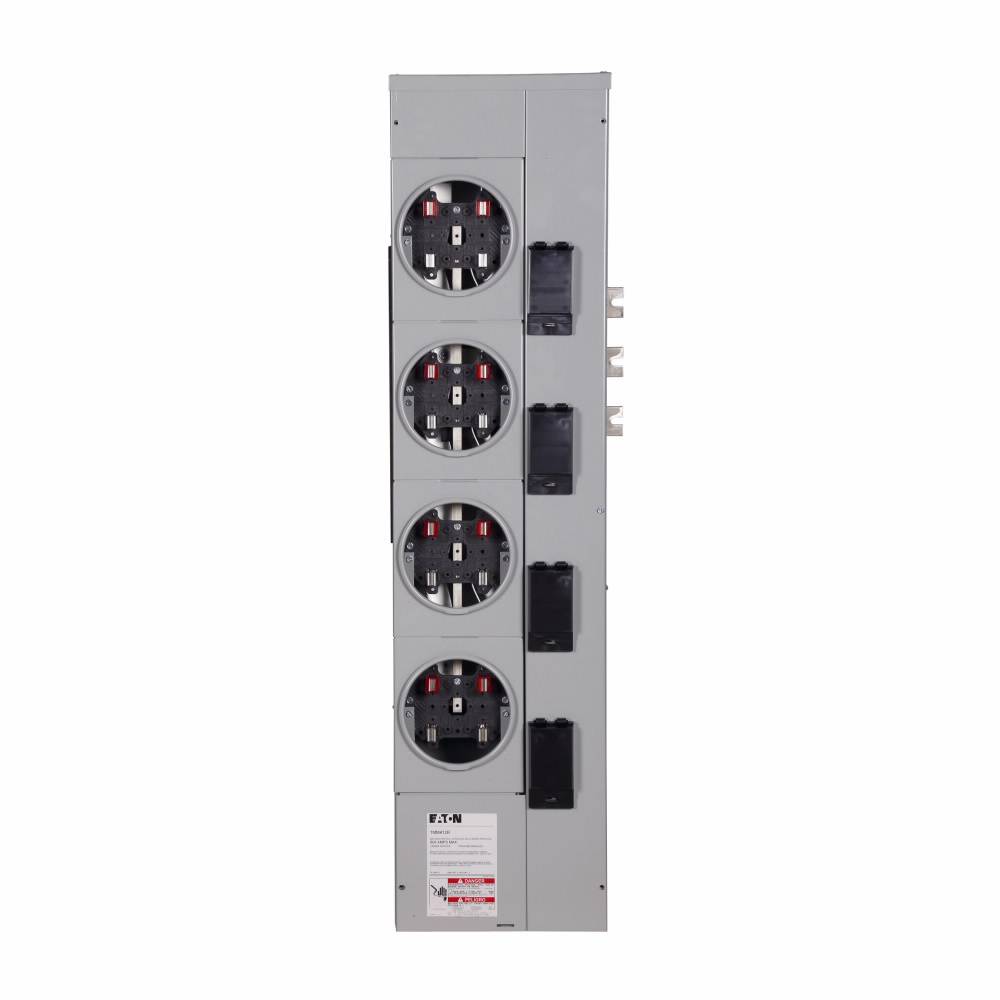

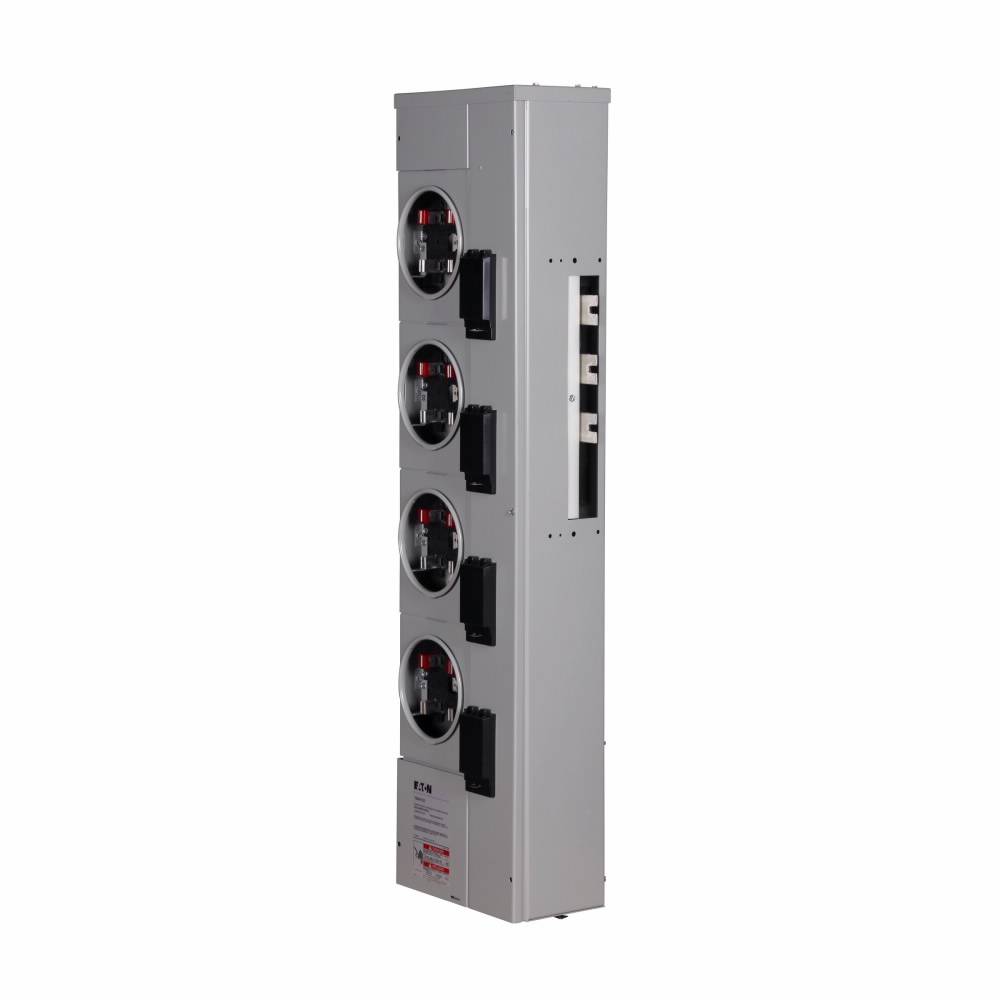

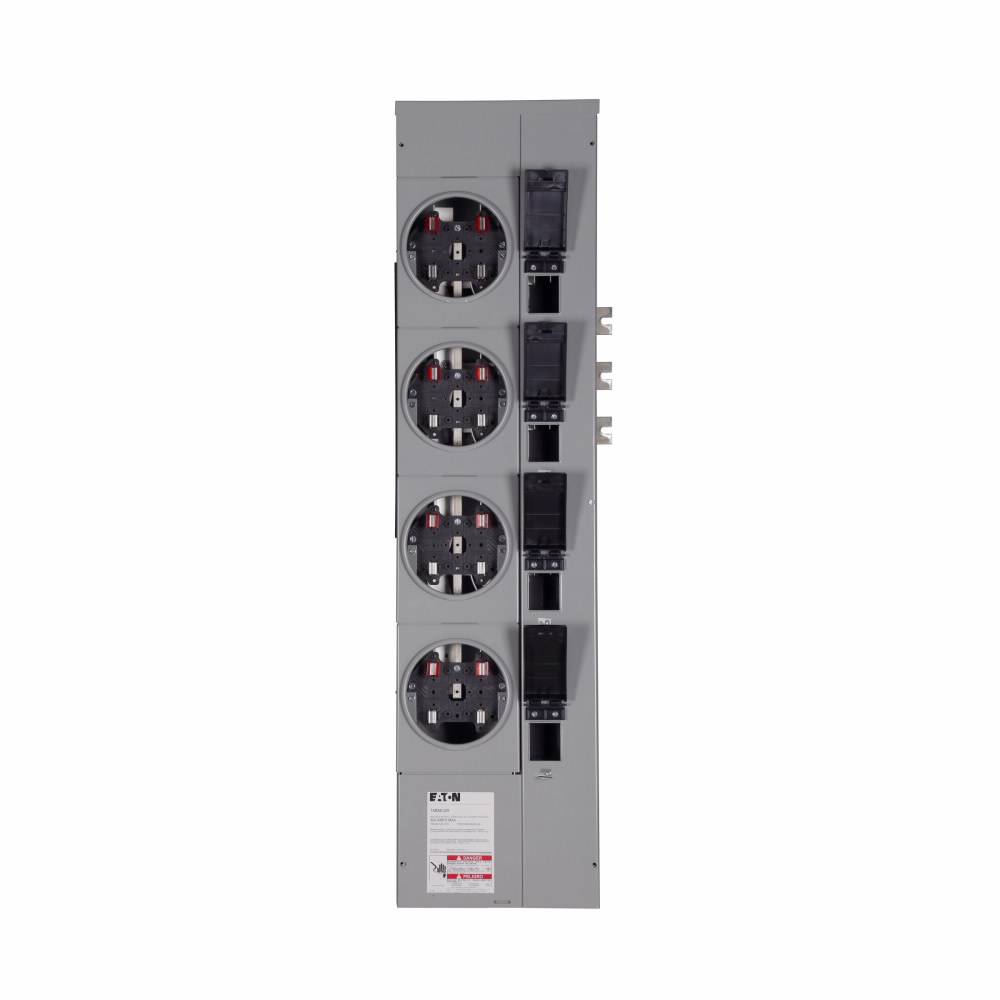

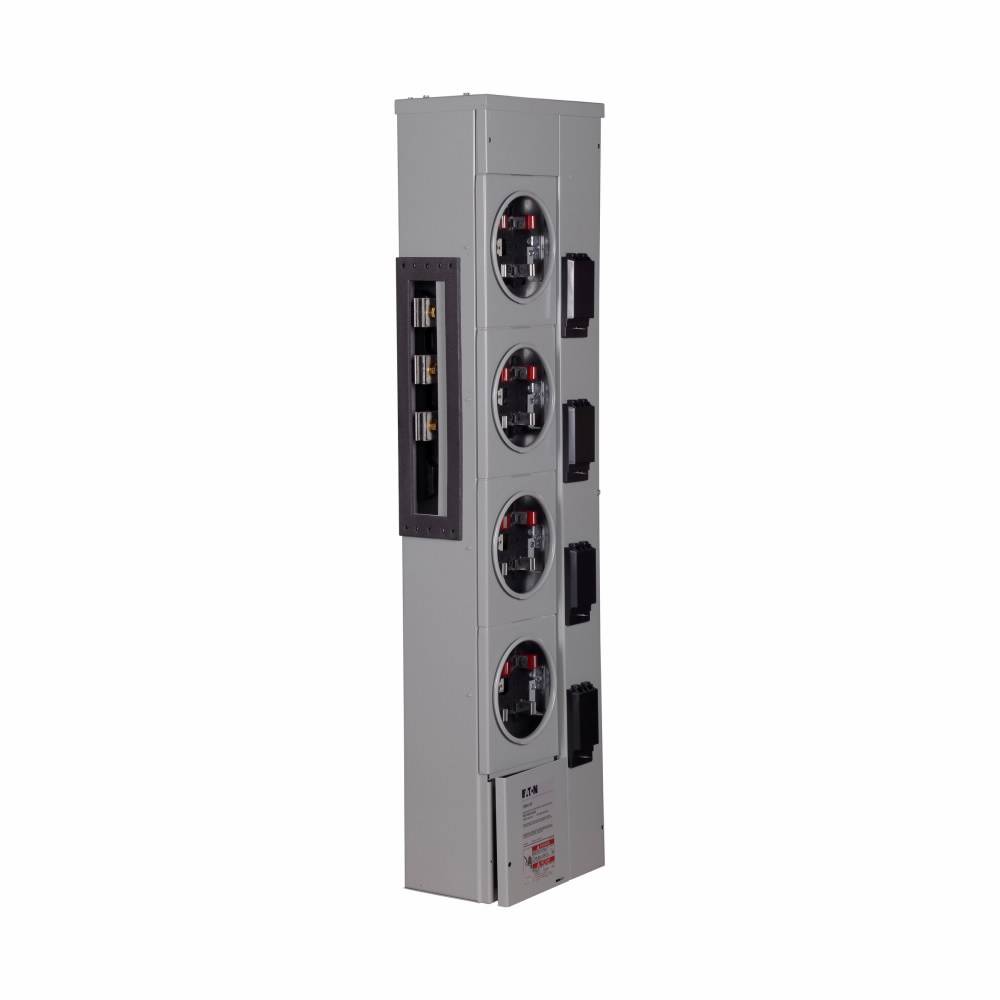

EATON 1MM412R 4-Socket Multiple Metering Meter Stack Module, 120/240 VAC, 125 A, 1 ph Phase, 4 Wires, NEMA 3R Enclosure

Short Description

As with meter packs, modular metering is typically installed at residential apartment complexes, duplexes, triplexes. However, modular metering allows for as many sockets as needed to fit the particular application. EATON residential meter stacks (1 mm and 3 mm stacks) can be ordered with any main device (MTB, MCB, MFS or BPS) for main disconnect or electrical protection.

EATON Meter Stack Module, 4-Socket Multiple Metering, 120/240 VAC, 125 A, 1 ph ph, 4 Wires, 100 kA Short Circuit, Bus Bar Connection, Galvanized Steel, Plug-On Mounting, NEMA 3R Enclosure, 7.01 in L x 12.26 in W x 48.5 in H Dimensions
MFG #: 1MM412R

EECO #: CH1MM412R

Brand: Eaton
UPC #: 786849051907
Attributes
Features
Documents
Product Information
Attributes
Phase
1
UNSPSC
39121102
Material
Galvanized Steel
Application
Residential, Power Distribution, Outdoor, Electrical Assemblies, Panels and EOEMs Applications
Mounting Type
Plug-On
Enclosure Type
NEMA 3R
Voltage Rating
120/240
Connection Type
Bus Bar
Number of Wires
4
Type
4-Socket Multiple Metering
Warranty
1 year
Dimensions
7.01 in L x 12.26 in W x 48.5 in H
Amperage Rating
125
Features
  • Meter socket and tenant main breaker or wireway sections are separated by a solid metal barrier to guard unmetered bus against power theft
  • A convenient termination for neutral conductors is in the wireway of each module
  • Enclosures are made of galvanized steel construction and include rust inhibiting phosphate primer and gray baked enamel for long term durability
  • Meter socket base is installed without any fasteners, reducing chances for hot spots
  • Separate covers allow easy access to tenant breaker and wireway section, permit work on breakers or in wireway without disturbing meters or meter covers
  • For use with BR2, BRH2, BRHH2 and BRX2, plug-on type main tenant breaker
  • Interrupt rating depends on selected main circuit breaker
  • Short circuit ratings up to 100 A RMS symmetrical depending upon the kAIC rating of installed main tenant circuit breakers and main device
  • Mechanically and electrically built to bolt up with main service modules and residential modular metering stacks
  • Standard 800 A aluminum bus
