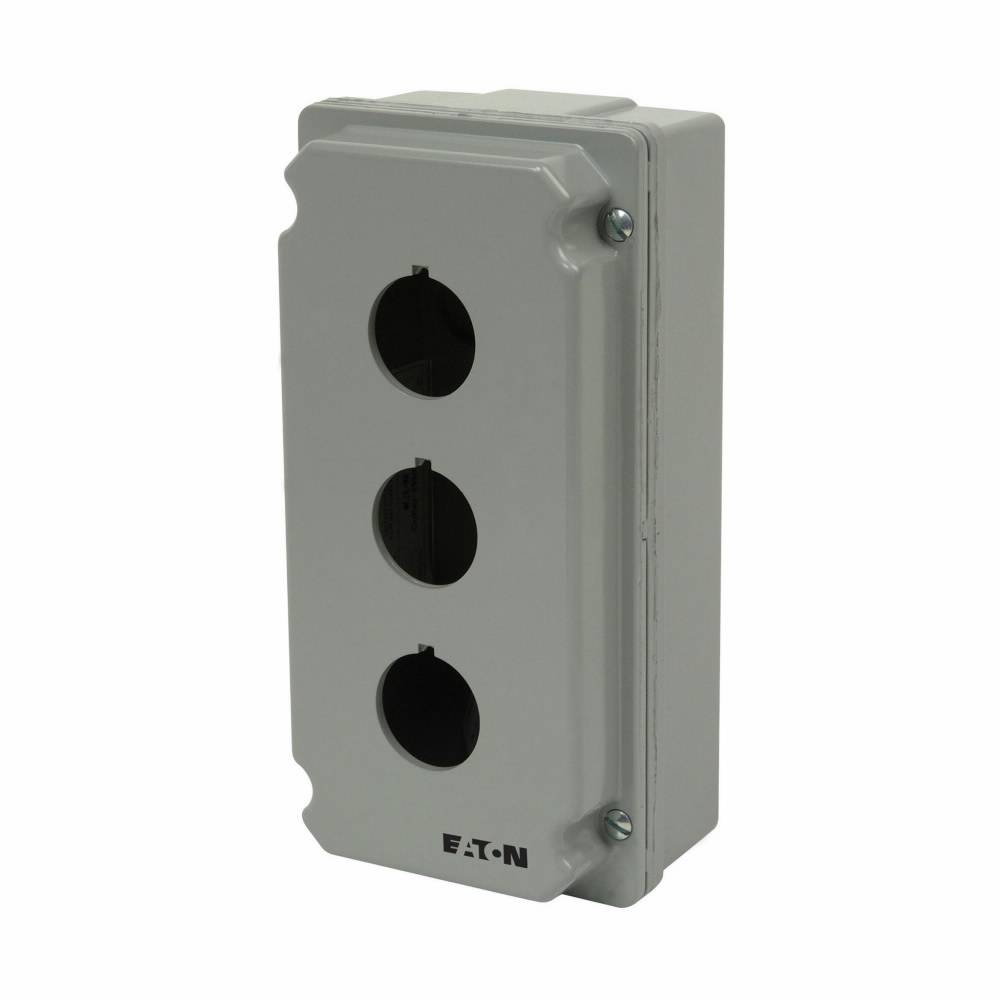

EATON 10250TN13 3-Element Heavy Duty Oiltight/Watertight Pushbutton Enclosure, 8.1 in L x 4.4 in W x 4.1 in D, 3 Outlets, NEMA 4/4X/12/13, Die Cast Zinc

Short Description

Eaton 10250T pushbutton family offers a complete range of 30.5 mm operators including illuminated and non-illuminated illumination pushbuttons selector switches, E-stops and indicating lights. The line features a zinc die cast construction with chrome plated housing and mounting nut.

EATON Pushbutton Enclosure, 3-Element Heavy Duty Oiltight/Watertight, Series: 10250T, 8.1 in Length, 4.4 in Width, 4.1 in Depth, NEMA 4/4X/12/13, 3 Outlet, Surface Mounting, Die Cast Zinc

MFG #: 10250TN13

EECO #: CH10250TN13

Brand: Eaton
UPC #: 782113204611
Attributes
Features
Documents
Product Information
Attributes
Length
8.1
UNSPSC
39121565
Approval
UL, CSA, CE
Material
Die Cast Zinc
Application
Automation and Logic Control Equipment Applications
Nema Rating
NEMA 4/4X/12/13
Mounting Type
Surface
Device Hole Size
30.5 Millimeter Diameter
Mounting
Surface
Number of Outlets
3.0000
Device Hole Location
1-Row Vertical
Number of Device Holes
3
Type
3-Element Heavy Duty Oiltight/Watertight
Depth
4.1
Width
4.4
Height
7.75 Inch
Series
10250T
Features
  • Heavy duty zinc die cast construction
  • Enclosed silver contacts with reliability nibs
  • Diaphragm seals with drainage holes
  • Grounding nibs on the operator casing
  • Reliability nibs improve contact reliability even under dry circuit and fine dust conditions
  • Drainage holes prevent buildup of liquid inside the operator which can prevent operation in freezing environments
  • Grounding nibs bite through paint and other coatings to provide secure ground
  • Slow make and break contact operation (positive opening NC contacts) for improved safety
  • All cast enclosures can be converted to base mounting of contact blocks, when used with E30 pushbuttons only the one element enclosure can be used
