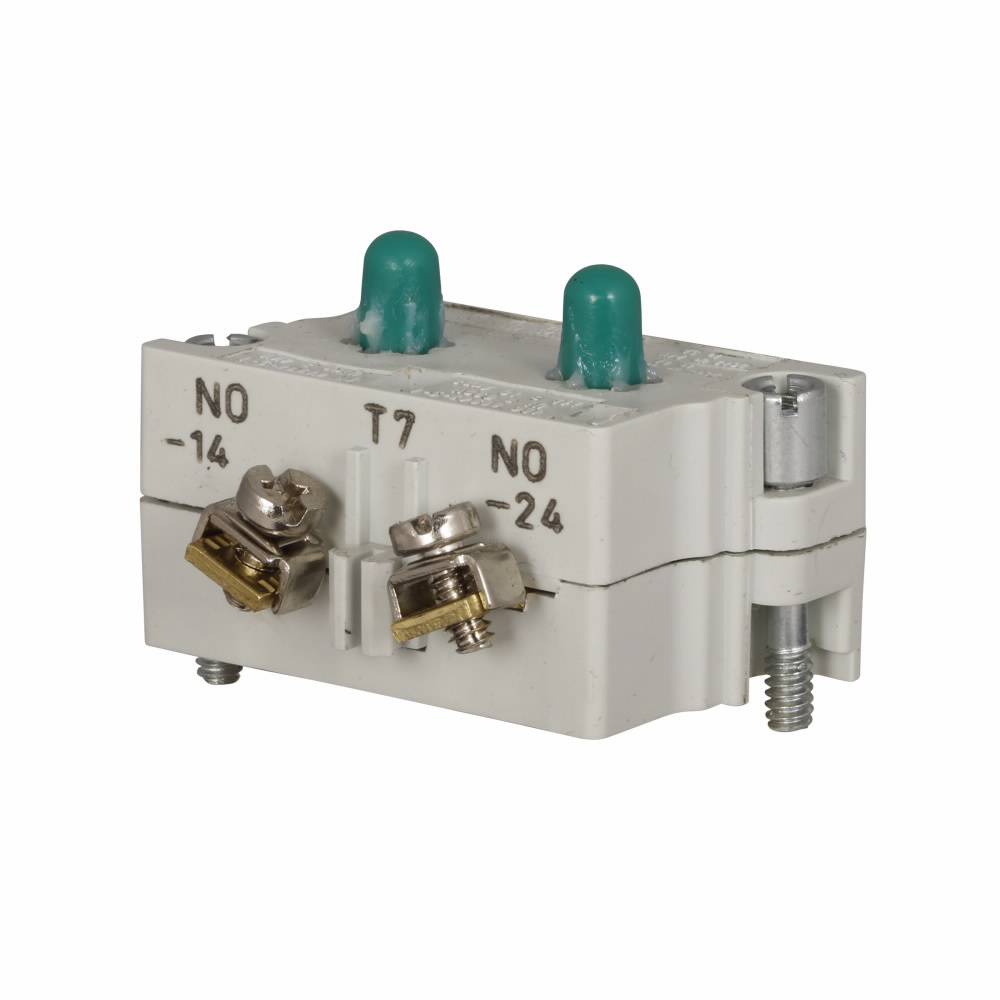

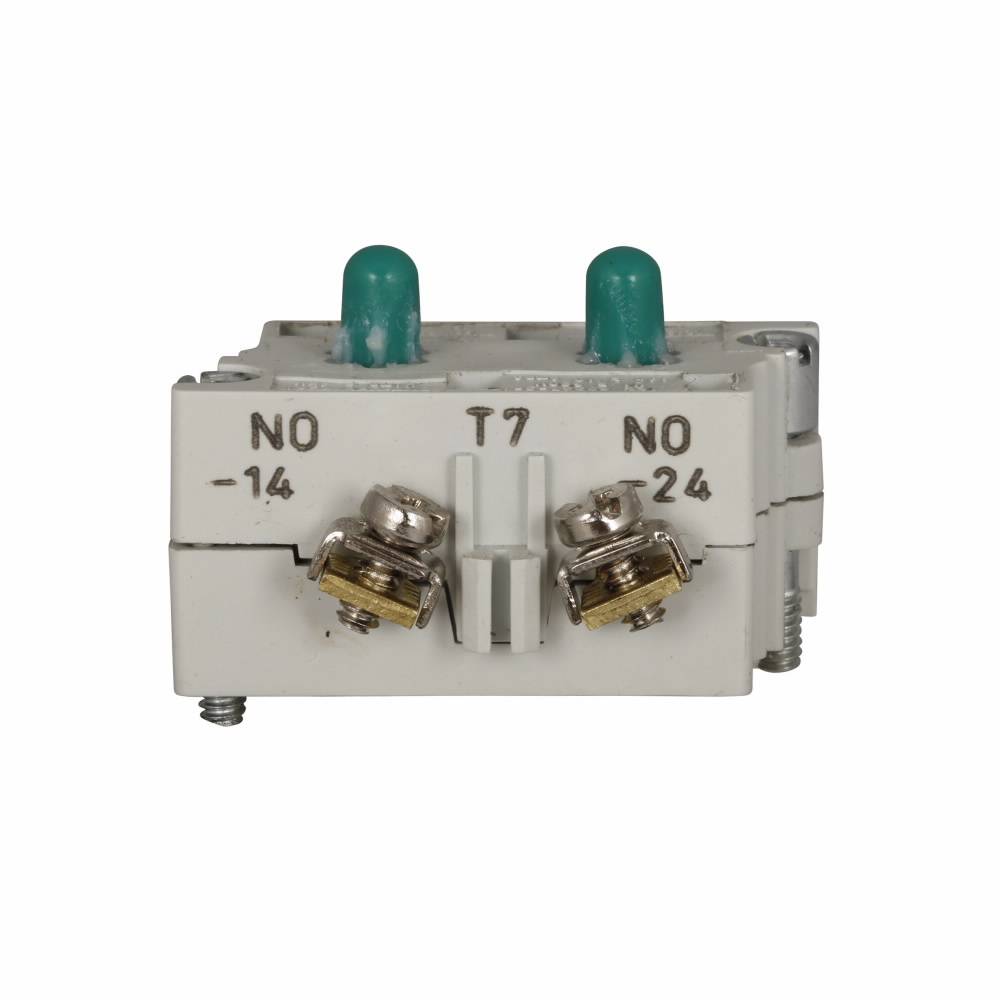

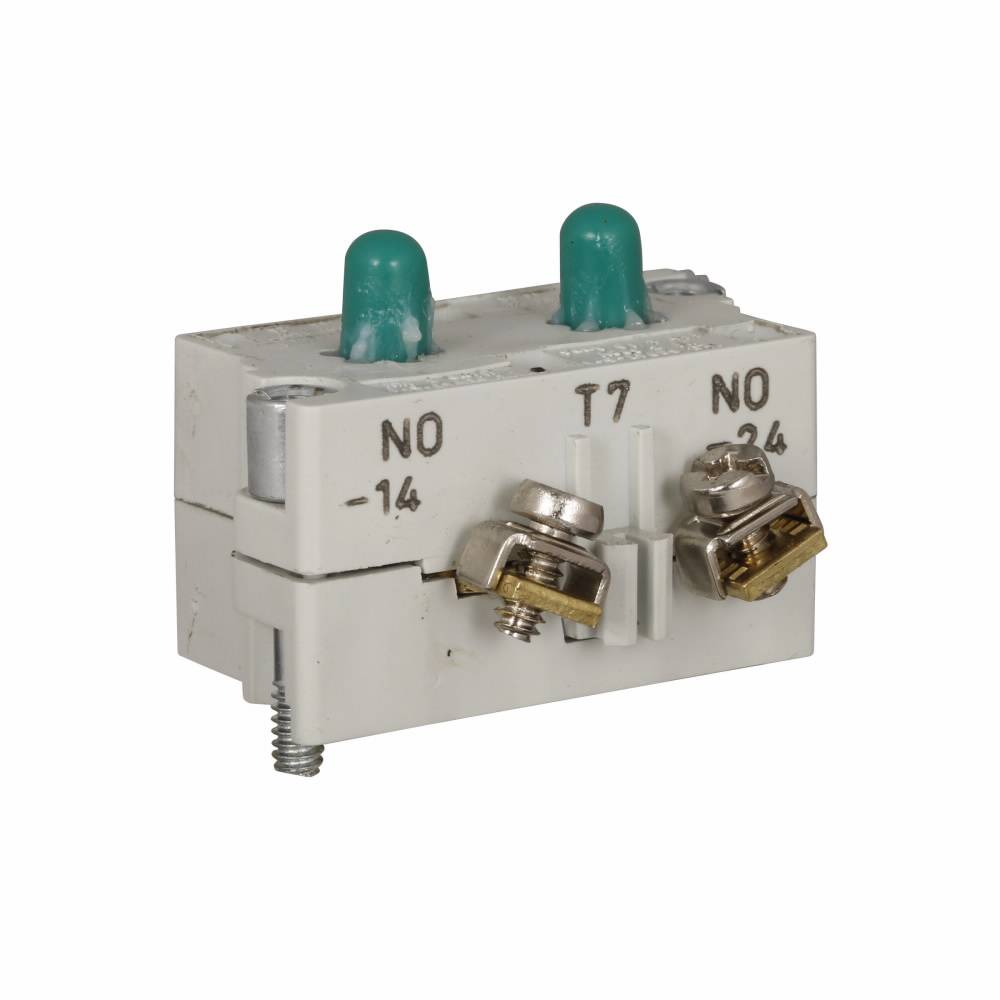

EATON 10250T7EC Heavy Duty Logic Level Contact Block, 30.5 mm, 2NO Contact, 0.5 A at 120 VAC/VDC Contact, Palladium Contact, Amber
EATON 10250T7EC Heavy Duty Logic Level Contact Block, 30.5 mm, 2NO Contact, 0.5 A at 120 VAC/VDC Contact, Palladium Contact, Amber
EATON 10250T7EC Heavy Duty Logic Level Contact Block, 30.5 mm, 2NO Contact, 0.5 A at 120 VAC/VDC Contact, Palladium Contact, Amber
EATON 10250T7EC Heavy Duty Logic Level Contact Block, 30.5 mm, 2NO Contact, 0.5 A at 120 VAC/VDC Contact, Palladium Contact, Amber
EATON 10250T7EC Heavy Duty Logic Level Contact Block, 30.5 mm, 2NO Contact, 0.5 A at 120 VAC/VDC Contact, Palladium Contact, Amber
EATON 10250T7EC Heavy Duty Logic Level Contact Block, 30.5 mm, 2NO Contact, 0.5 A at 120 VAC/VDC Contact, Palladium Contact, Amber
Share Share Print Print
Eaton

EATON 10250T7EC Heavy Duty Logic Level Contact Block, 30.5 mm, 2NO Contact, 0.5 A at 120 VAC/VDC Contact, Palladium Contact, Amber

Short Description

EATON's 10250T line of 30.5 mm pushbuttons features a heavy duty zinc die-cast construction. Reliability nibs improve contact reliability even under dry circuit and fine dust conditions. In addition, drainage holes prevent the buildup of liquid inside the operator, which can prevent operation in freezing environments.

EATON Contact Block, Heavy Duty Logic Level, Series: 10250T, 30.5 mm Size, 2NO Contact Configuration, 0.5 A at 120 VAC/VDC Contact, Palladium Contact, Pushbutton Operator, NEMA 3/3R/4/4X/12/13 NEMA Rating, IP65 Enclosure, Saddle Clamp Terminal, Surface Mounting, Die-Cast Zinc, Amber, 1.9 in L x 1.2 in W x 2.2 in H Dimensions
MFG #: 10250T7EC

EECO #: CH10250T7EC

Brand: Eaton
UPC #: 782116419098
Attributes
Features
Documents
Product Information
Attributes
Color
Amber
UNSPSC
39121522
Material
Die-Cast Zinc
Application
Stationary Machinery, Equipment Outside Factory and Other Applications
Mounting Type
Surface
Operator Type
Pushbutton
Terminal Type
Saddle Clamp
Contact Rating
0.5 A at 120 VAC/VDC
Enclosure Type
IP65
Contact Configuration
2NO
Size
30.5
Type
Heavy Duty Logic Level
Series
10250T
Warranty
1 year
Dimensions
1.9 in L x 1.2 in W x 2.2 in H
Contact Material
Palladium
Features
  • Contact blocks feature enclosed silver contacts with pointed reliability nibs
  • To ensure reliable switching, these nibs bite through oxide, which can form on silver contacts, eliminating the need for expensive logic level blocks for most applications
