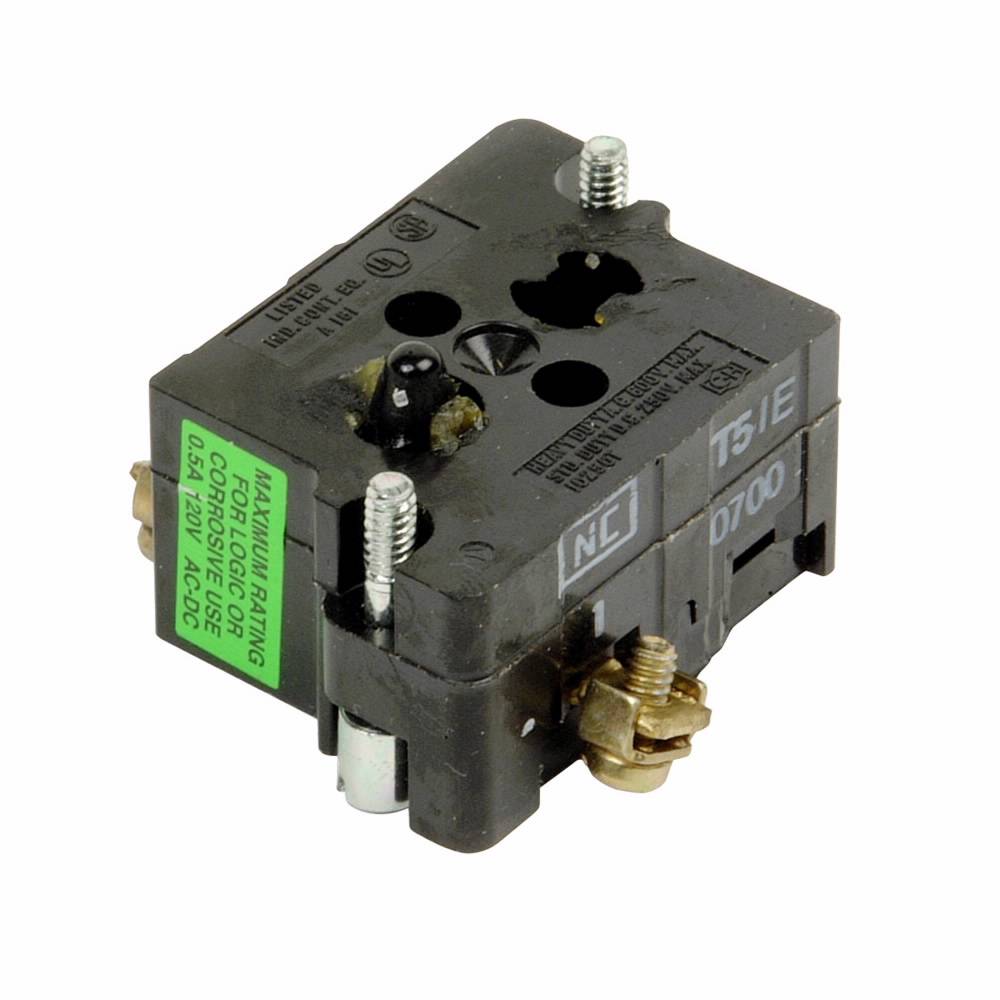

EATON 10250T51E Heavy Duty Logic Level Contact Block, 30.5 mm, 1NC Contact, 0.5 A at 120 VAC/VDC Contact, Palladium Contact, Momentary Action, Gray
Share Share Print Print
Eaton

EATON 10250T51E Heavy Duty Logic Level Contact Block, 30.5 mm, 1NC Contact, 0.5 A at 120 VAC/VDC Contact, Palladium Contact, Momentary Action, Gray

Short Description

Eaton's 10250T line of 30.5 mm pushbuttons features a heavy duty zinc Die-Cast construction. Reliability nibs improve contact reliability even under dry circuit and fine dust conditions. In addition, drainage holes prevent the buildup of liquid inside the operator, which can prevent operation in freezing environments.

EATON Contact Block, Heavy Duty Logic Level, Series: 10250T, 30.5 mm Size, 1NC Contact Configuration, 0.5 A at 120 VAC/VDC Contact, Palladium Contact, Momentary Action, Thermoplastic Block, Pushbutton Operator, NEMA 3/3R/4/4X/12/13 NEMA Rating, IP65 Enclosure, Pressure Terminal, 6-Stack Mounting, Die-Cast Zinc, Gray, 2.1 in L x 2 in W x 1.2 in H Dimensions
MFG #: 10250T51E

EECO #: CH10250T51E

Brand: Eaton
UPC #: 782113392165
Attributes
Features
Documents
Product Information
Attributes
Color
Gray
UNSPSC
39122221
Material
Die-Cast Zinc
Application
For automation and logic control equipment applications
Mounting Type
6-Stack
Operator Type
Pushbutton
Terminal Type
Pressure
Contact Rating
0.5 A at 120 VAC/VDC
Enclosure Type
IP65
Contact Configuration
1NC
Size
30.5
Type
Heavy Duty Logic Level
Series
10250T
Warranty
1 year
Dimensions
2.1 in L x 2 in W x 1.2 in H
Contact Material
Palladium
Features
  • Contact blocks feature enclosed silver contacts with pointed reliability nibs
  • To ensure reliable switching, these nibs bite through oxide, which can form on silver contacts, eliminating the need for expensive logic level blocks for most applications
  • Stack up to 6-blocks (6-circuits) unless otherwise noted
  • For use with Eaton 10250T 30 mm pushbuttons and indicating lights
  • Contact block is a logic level contact block with black plungers, inert palladium knife blade contacts, black opaque housing and pressure plate terminals
