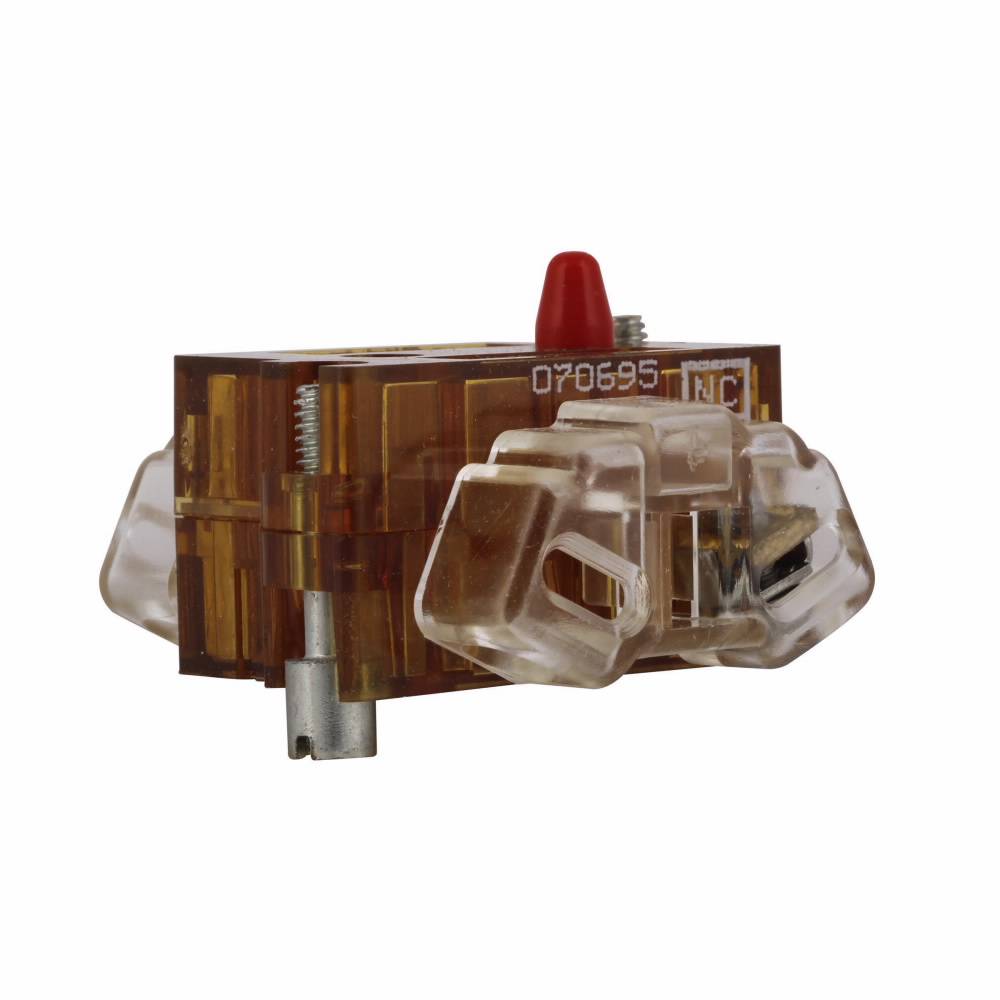

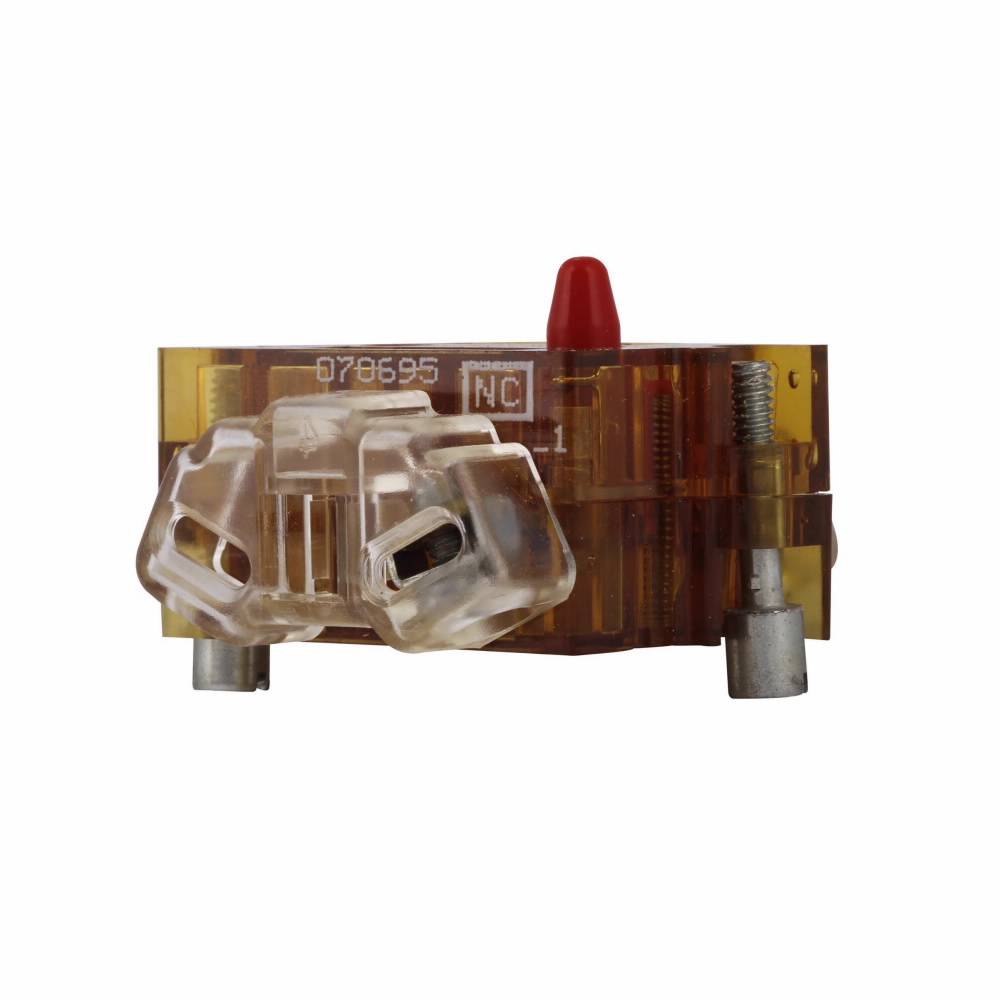

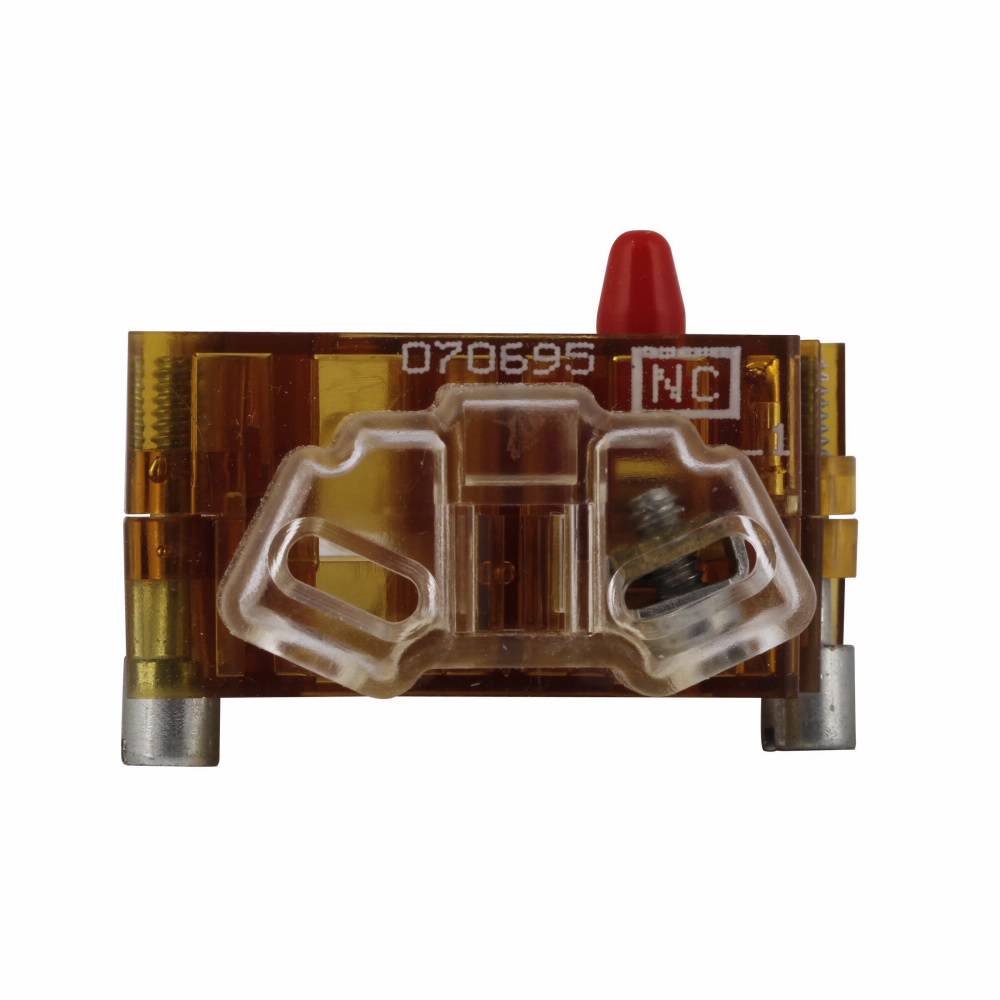

EATON 10250T51C Heavy Duty Oil/Watertight Standard Contact Block, 30.5 mm, 1NC Contact, 10 A at 600 VAC Contact, Silver Contact, Amber

Short Description

EATON's 10250T line of 30.5 mm pushbuttons features a heavy duty zinc die-cast construction. Reliability nibs improve contact reliability even under dry circuit and fine dust conditions. In addition, drainage holes prevent the buildup of liquid inside the operator, which can prevent operation in freezing environments.

EATON Contact Block, Heavy Duty Oil/Watertight Standard, Series: 10250T, 30.5 mm Size, 1NC Contact Configuration, 10 A at 600 VAC Contact, Silver Contact, Thermoplastic Block, Pushbutton Operator, NEMA 3/3R/4/4X/12/13 NEMA Rating, IP65 Enclosure, Pressure Terminal, Surface Mounting, Die-Cast Zinc, Amber, 1.9 in L x 1.3 in W x 2.2 in H Dimensions
MFG #: 10250T51C

EECO #: CH10250T51C

Brand: Eaton
UPC #: 782114121429
Attributes
Features
Documents
Product Information
Attributes
Color
Amber
UNSPSC
39122216
Material
Die-Cast Zinc
Application
Stationary Machinery, Equipment Outside Factory and Other Applications
Mounting Type
Surface
Operator Type
Pushbutton
Terminal Type
Pressure
Contact Rating
10 A at 600 VAC
Enclosure Type
IP65
Contact Configuration
1NC
Size
30.5
Type
Heavy Duty Oil/Watertight Standard
Series
10250T
Warranty
1 year
Dimensions
1.9 in L x 1.3 in W x 2.2 in H
Contact Material
Silver
Features
  • Contact blocks feature enclosed silver contacts with pointed reliability nibs
  • To ensure reliable switching, these nibs bite through oxide, which can form on silver contacts, eliminating the need for expensive logic level blocks for most applications
