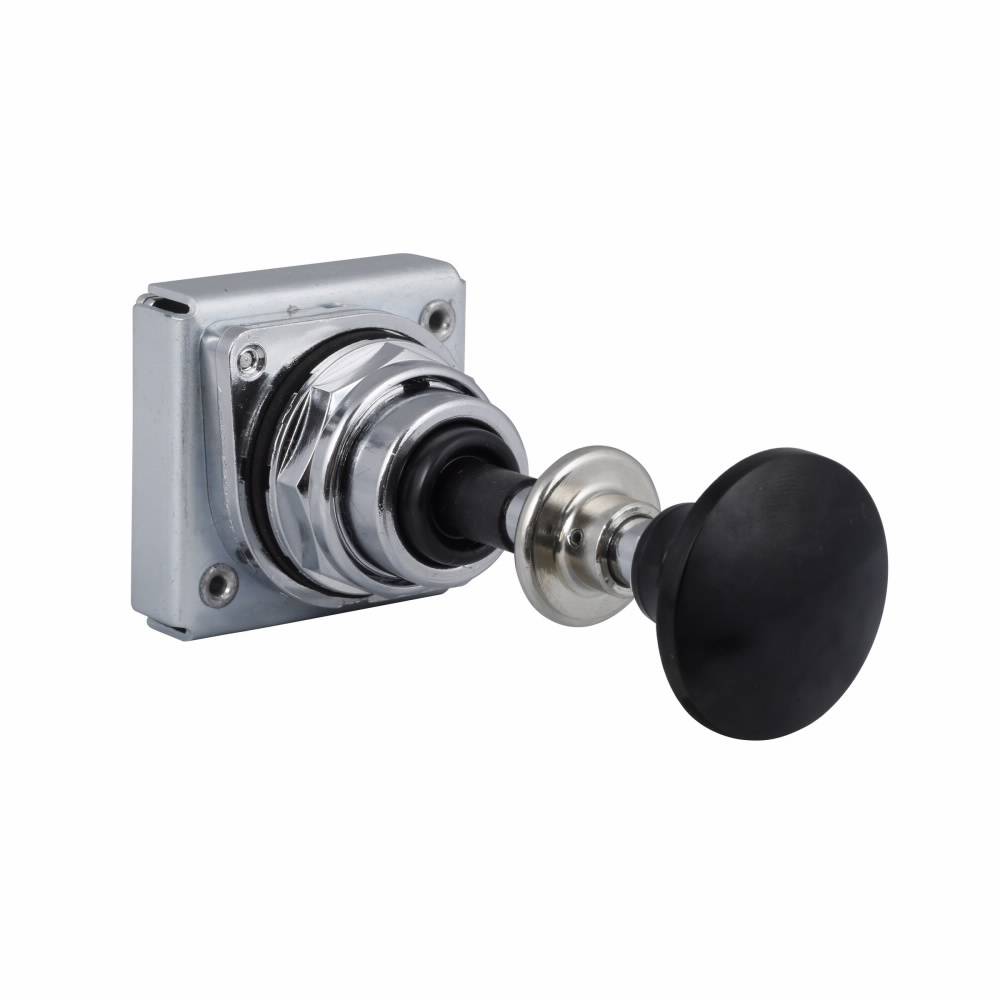

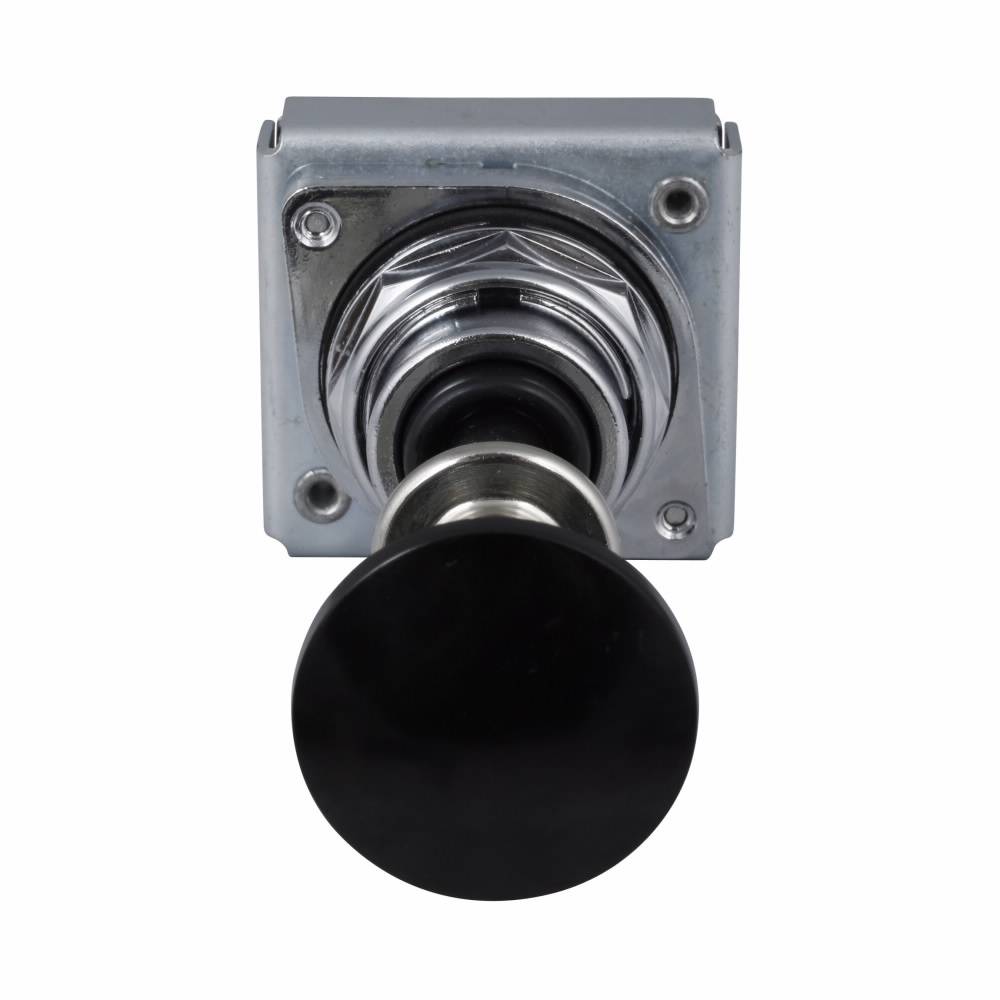

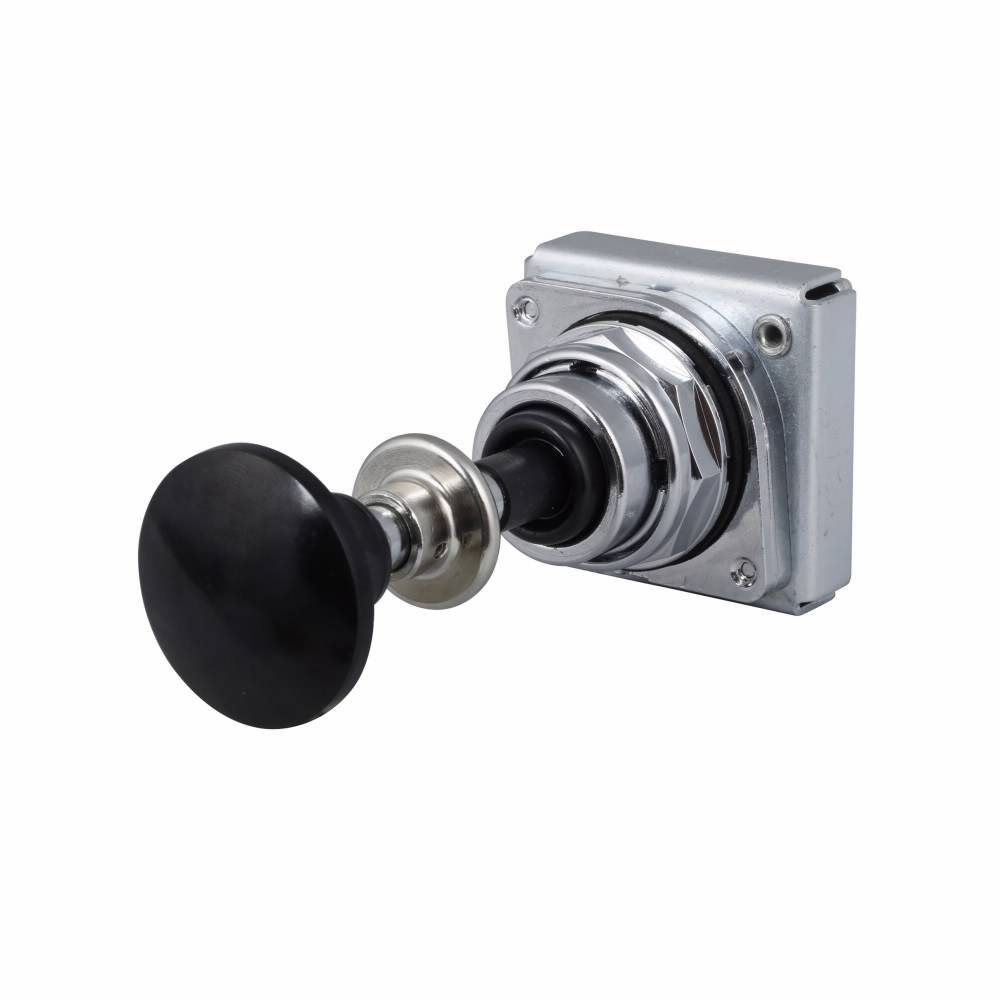

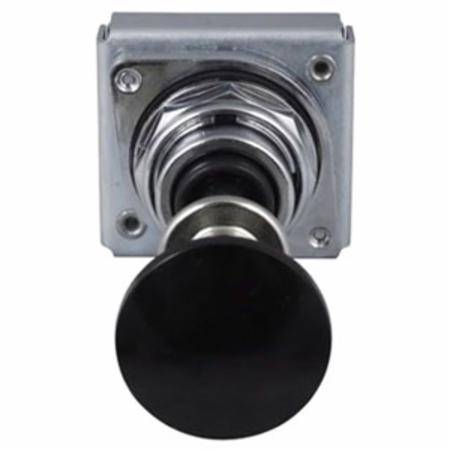

EATON 10250T452 Heavy Duty Oiltight/Watertight Joystick Operator, 30.5 mm, 3NO-4NC Contact, 2 Positions, Black

Short Description

30.5 MM, 2-Position, Momentary Up/Momentary Down, Round, Joystick Operator

EATON Joystick Operator, Heavy Duty Oiltight/Watertight, Series: 10250T, 30.5 mm Size, 3NO-4NC Contact Configuration, Momentary Contact Mode, 2 Positions, NEMA 3/3R/4/4X/12/13 Enclosure, 140 deg F, Black

MFG #: 10250T452

EECO #: CH10250T452

Brand: Eaton
UPC #: 782113125459
Attributes
Features
Documents
Product Information
Attributes
Color
Black
UNSPSC
39122227
Application
Automation and Logic Control Equipment, Electrical Assemblies, Panels and EOEMs Applications
Enclosure Type
NEMA 3/3R/4/4X/12/13
Enclosure
NEMA 3/3R/4/4X/12/13, IP65
Temperature Rating
140
Number Of Positions
2
Contact Configuration
3NO-4NC
Size
30.5
Type
Heavy Duty Oiltight/Watertight
Series
10250T
Operation Type
Momentary Up/Momentary Down
Features
  • The device mounts in the standard 30.5 mm mounting hole
  • Allow sufficient panel space for lever movement
  • The maximum travel of the knob operator (full up to full down) is 2.2 in (24 deg) momentary
  • 2-1/2 in (30 deg) maintained, but ample space for lever operation must be allowed
  • These operators are field convertible from momentary to maintained operation or vice versa
  • The use of NC contacts is preferred because they provide positive drive contact opening and a direct relationship between lever movement and affected terminal, up movement affects the top terminals
  • Momentary up and down
  • Without overcurrent latch
CUTHMRE03342_V7T1_217_V7T1_218
EATCORE34532_1
Qty Unit price
Ea
1 $362.71

Slqt
1 $362.71

Stpk
1 $362.71

Unit
1 $362.71
