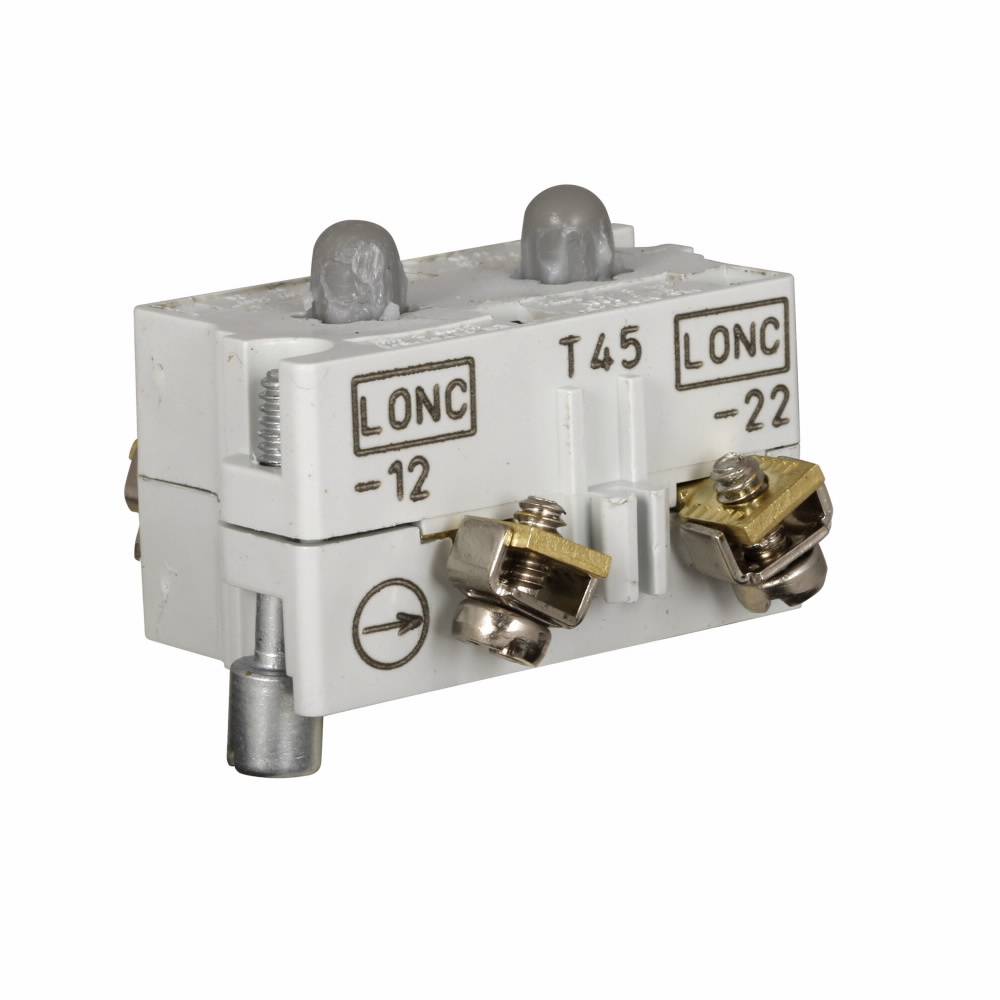

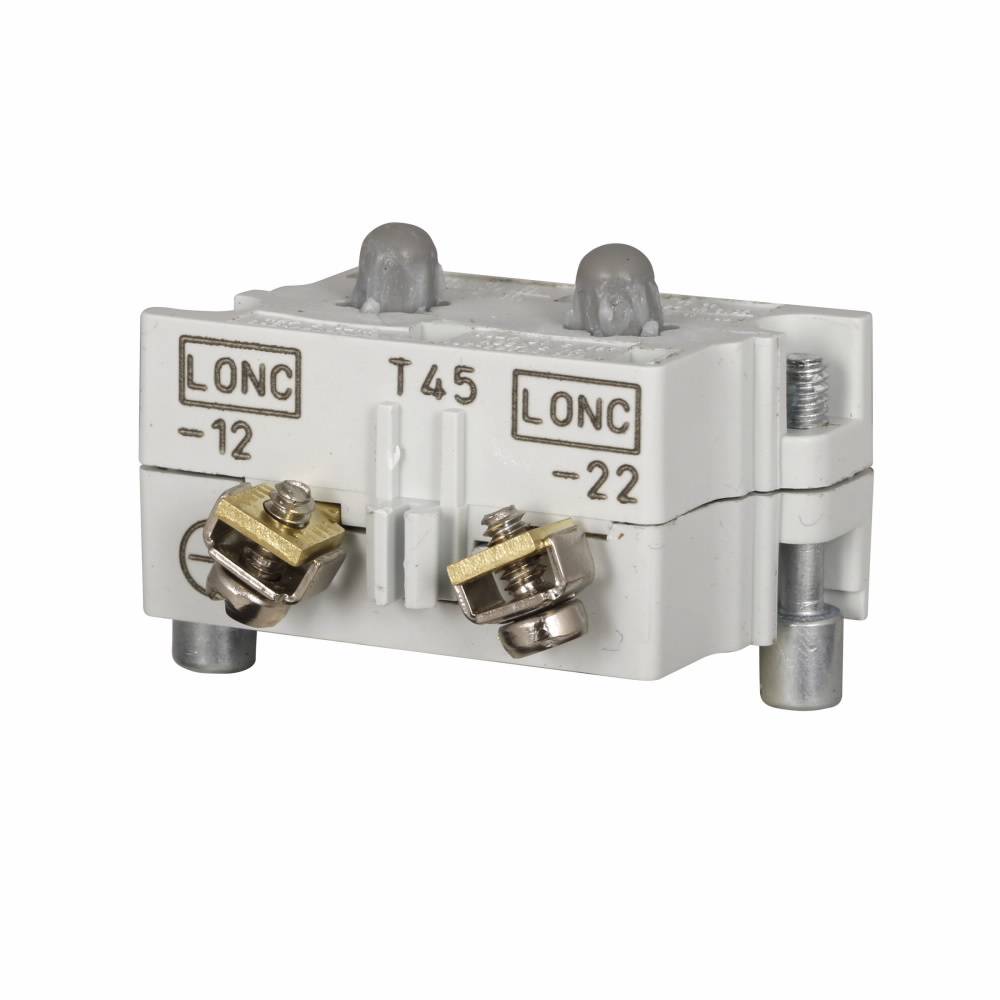

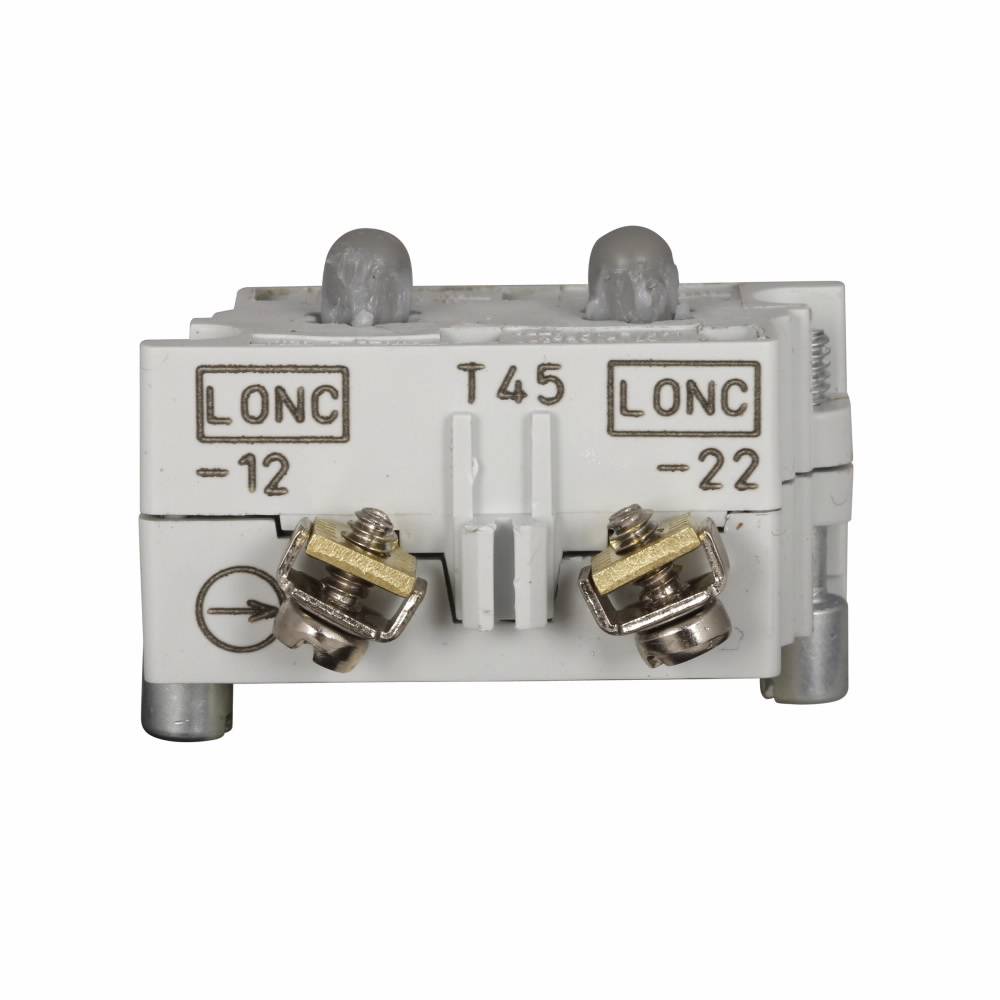

EATON 10250T45 Heavy Duty Special Function Contact Block With Strut Clip, 30.5 mm, 2NC Contact, 10 A at 600 VAC, 5 A at 250 VDC Contact, Silver Contact, Black

Short Description

Eaton's 10250T line of 30.5 mm pushbuttons features a heavy duty zinc Die-Cast construction. Reliability nibs improve contact reliability even under dry circuit and fine dust conditions. In addition, drainage holes prevent the buildup of liquid inside the operator, which can prevent operation in freezing environments.

EATON Contact Block, Heavy Duty Special Function, Series: 10250T, 30.5 mm Size, 2NC Contact Configuration, 10 A at 600 VAC, 5 A at 250 VDC Contact, Silver Contact, Thermoplastic Block, Pushbutton Operator, NEMA 3/3R/4/4X/12/13 NEMA Rating, IP65 Enclosure, Pressure Terminal, 6-Stack Mounting, Die-Cast Zinc, Black, 2.1 in L x 1.9 in W x 1.3 in H Dimensions

MFG #: 10250T45

EECO #: CH10250T45

Brand: Eaton
UPC #: 782113205274
Attributes
Features
Documents
Product Information
Attributes
Color
Black
UNSPSC
39122221
Material
Die-Cast Zinc
Application
For automation and logic control equipment applications
Mounting Type
6-Stack
Operator Type
Pushbutton
Terminal Type
Pressure
Contact Rating
10 A at 600 VAC, 5 A at 250 VDC
Enclosure Type
IP65
Contact Configuration
2NC
Size
30.5
Type
Heavy Duty Special Function
Series
10250T
Warranty
1 year
Dimensions
2.1 in L x 1.9 in W x 1.3 in H
Contact Material
Silver
Features
  • Contact blocks feature enclosed silver contacts with pointed reliability nibs
  • Stack up to 6-blocks unless otherwise noted
  • For use with Eaton 10250T 30 mm pushbuttons and indicating lights
  • Special function contact blocks are not suitable for use with roto push operators, 3-position push-pull operators or 4-position selector switches
