Eaton

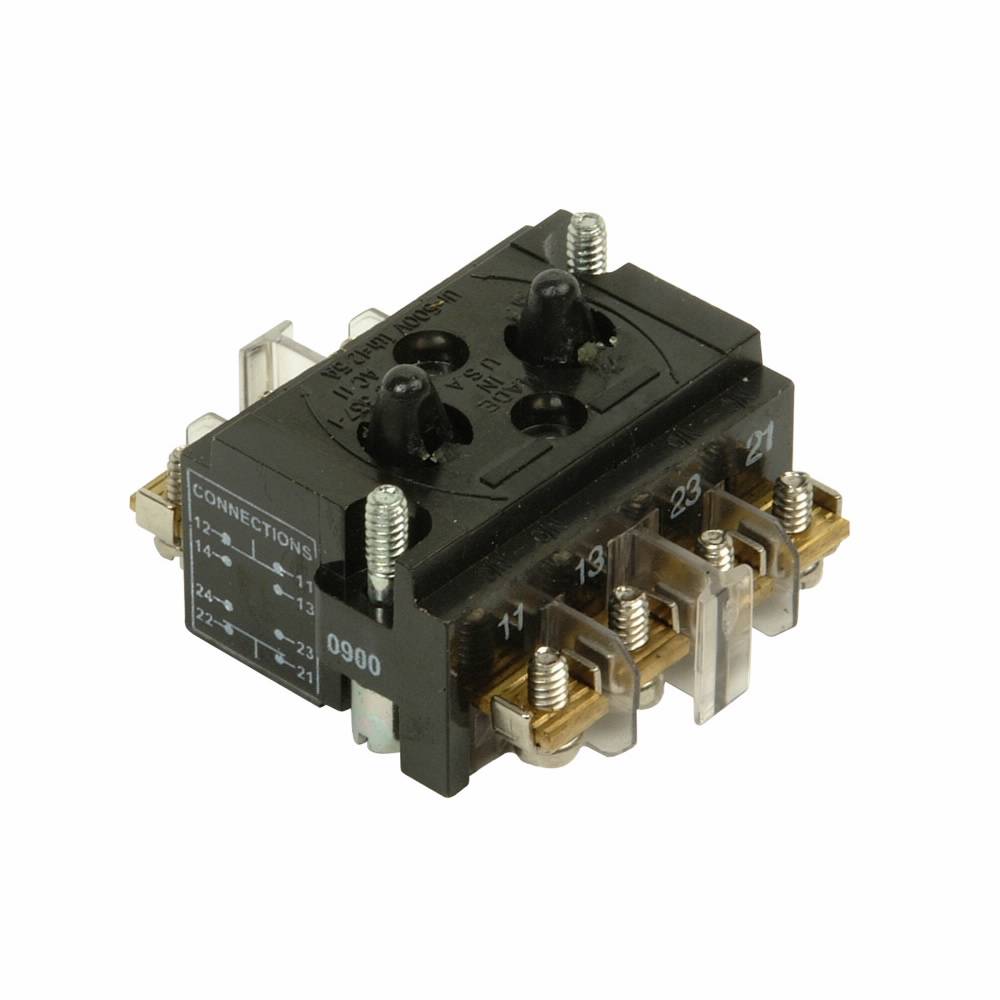

EATON 10250T44 Heavy Duty Standard Contact Block, 30.5 mm, 2NO-2NC Contact, 10 A at 600 VAC, 5 A at 250 VDC Contact, Silver Contact, Gray

Short Description

Eaton's 10250T line of 30.5 mm pushbuttons features a heavy duty zinc Die-Cast construction. Reliability nibs improve contact reliability even under dry circuit and fine dust conditions. In addition, drainage holes prevent the buildup of liquid inside the operator, which can prevent operation in freezing environments.

EATON Contact Block, Heavy Duty Standard, Series: 10250T, 30.5 mm Size, 2NO-2NC Contact Configuration, 10 A at 600 VAC, 5 A at 250 VDC Contact, Silver Contact, Thermoplastic Block, Pushbutton Operator, NEMA 3/3R/4/4X/12/13 NEMA Rating, IP65 Enclosure, Pressure Terminal, 4-Stack Mounting, Die-Cast Zinc, Gray, 2 in L x 2 in W x 2.3 in H Dimensions

MFG #: 10250T44

EECO #: CH10250T44

Brand: Eaton
UPC #: 782113208275
Attributes
Features
Documents
Product Information
Attributes
Color
Gray
UNSPSC
39122221
Material
Die-Cast Zinc
Application
For automation and logic control equipment applications
Mounting Type
4-Stack
Operator Type
Pushbutton
Terminal Type
Pressure
Contact Rating
10 A at 600 VAC, 5 A at 250 VDC
Enclosure Type
IP65
Mounting
4 Stack
Contact Configuration
2NO/2NC
Size
30.5
Type
Heavy Duty Standard
Series
10250T
Warranty
1 year
Dimensions
2 in L x 2 in W x 2.3 in H
Accessory Type
Contact Blocks
Contact Material
Silver
Features
  • Contact blocks feature enclosed silver contacts with pointed reliability nibs
  • To ensure reliable switching, these nibs bite through oxide, which can form on silver contacts, eliminating the need for expensive logic level blocks for most applications
  • Four circuits in single block depth, rated 300V max
  • Not for use on selector switch or roto push
  • Stack up to 4-blocks unless otherwise noted
  • For use with Eaton 10250T 30 mm pushbuttons and indicating lights
