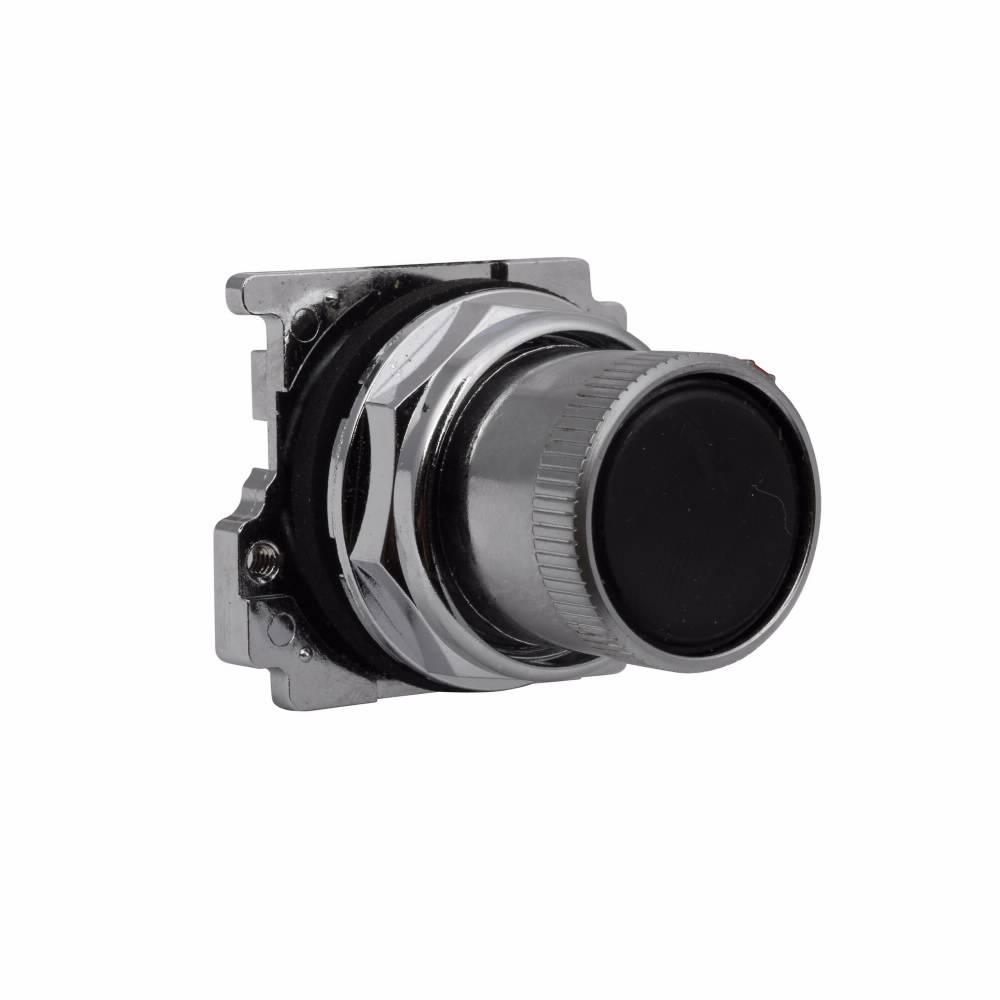

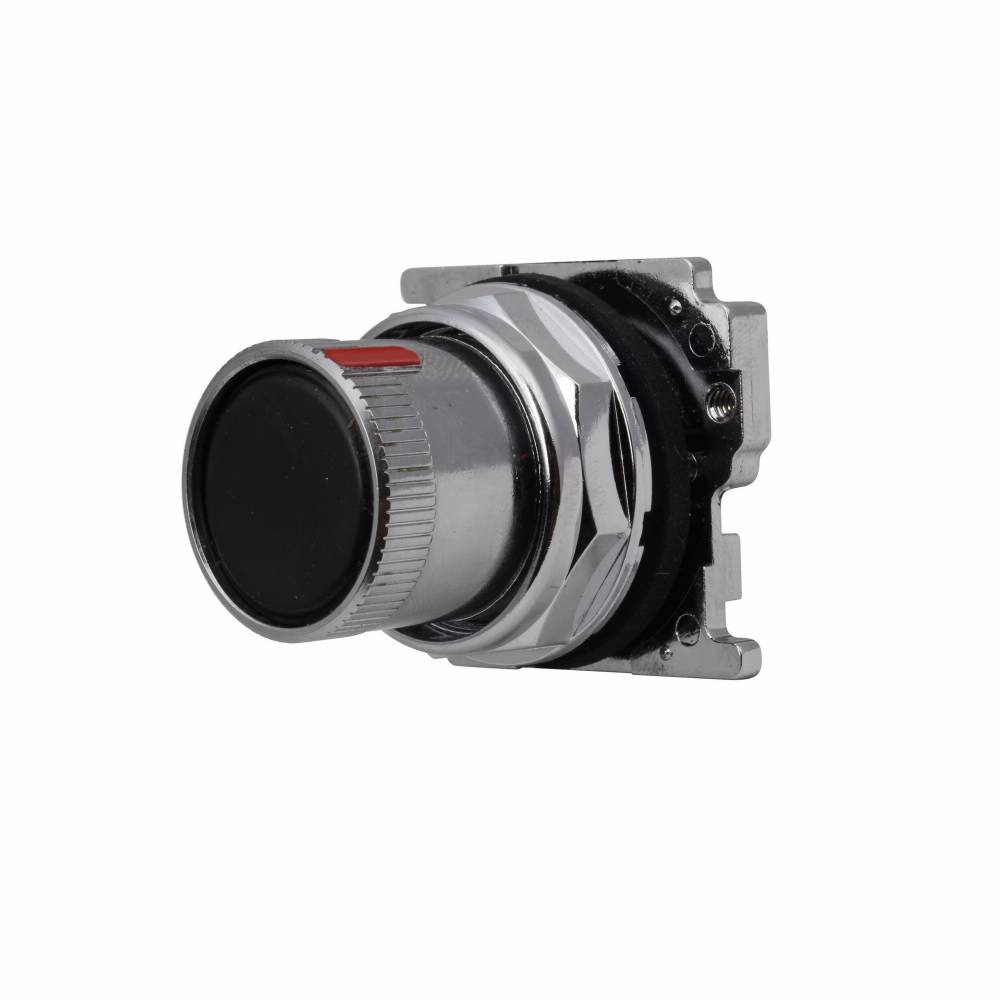

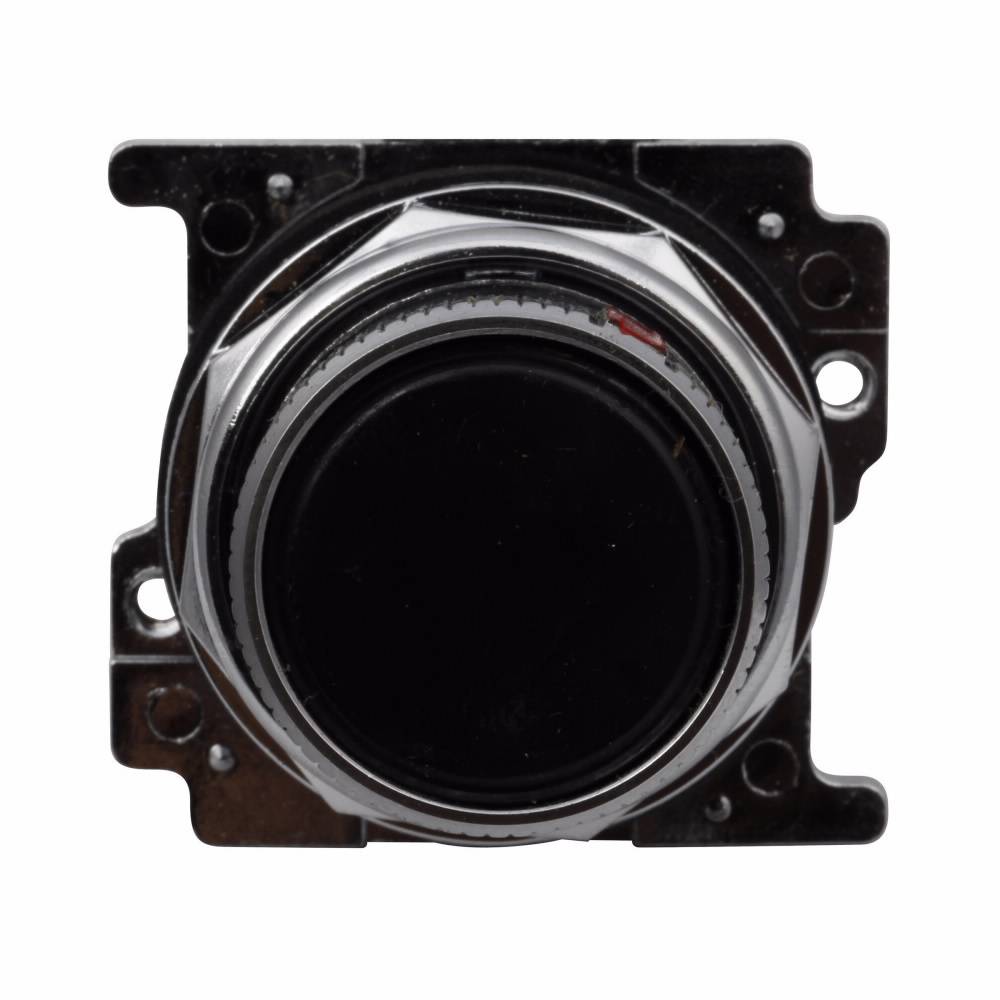

EATON 10250T2411 Heavy Duty Oil/Watertight Cam 1 Roto-Push Operator, 2 Positions, Vertical Mount, 120 VAC/VDC

Short Description

The 30.5 mm pushbutton line features a die-cast zinc construction with polished chrome housing and mounting nut. The same durable construction is also available with the corrosive-resistant E34 line of pushbuttons.

EATON Roto-Push Operator, Heavy Duty Oil/Watertight Cam 1, Series: 10250T, 30.5 mm Size, 10 A at 600 VAC, 5 A at 250 VDC Contact, 2 Positions, Flush Button Operator, 120 VAC/VDC, NEMA 3/3R/4/4X/12/13/IP65 Enclosure, Saddle Clamp Terminal, Vertical Mounting, 1 to 150 deg F, Die-Cast Zinc, Polished Chrome, Black

MFG #: 10250T2411

EECO #: CH10250T2411

Brand: Eaton
UPC #: 782113226576
Attributes
Features
Documents
Product Information
Attributes
Color
Black
Finish
Polished Chrome
UNSPSC
39122216
Material
Die-Cast Zinc
Application
Material Handling, Metal Forming, Heavy Industrials, Oil/Gas and Mining Applications
Mounting Type
Vertical
Operator Type
Flush Button
Terminal Type
Saddle Clamp
Contact Rating
10 A at 600 VAC, 5 A at 250 VDC
Enclosure Type
NEMA 3/3R/4/4X/12/13/IP65
Voltage Rating
120
Temperature Rating
1 to 150
Size
30.5
Type
Heavy Duty Oil/Watertight Cam 1
Series
10250T
Warranty
1 year
Features
  • Heavy duty die-cast zinc construction
  • Enclosed silver contacts with reliability nibs
  • Diaphragm seals with drainage holes
  • Grounding nibs on the operator casing
  • Reliability nibs improve contact reliability even under dry circuit and fine dust conditions
  • Drainage holes prevent build-up of liquid inside the operator which can prevent operation in freezing environments
  • Grounding nibs bit through paint and other coatings to provide secure ground
