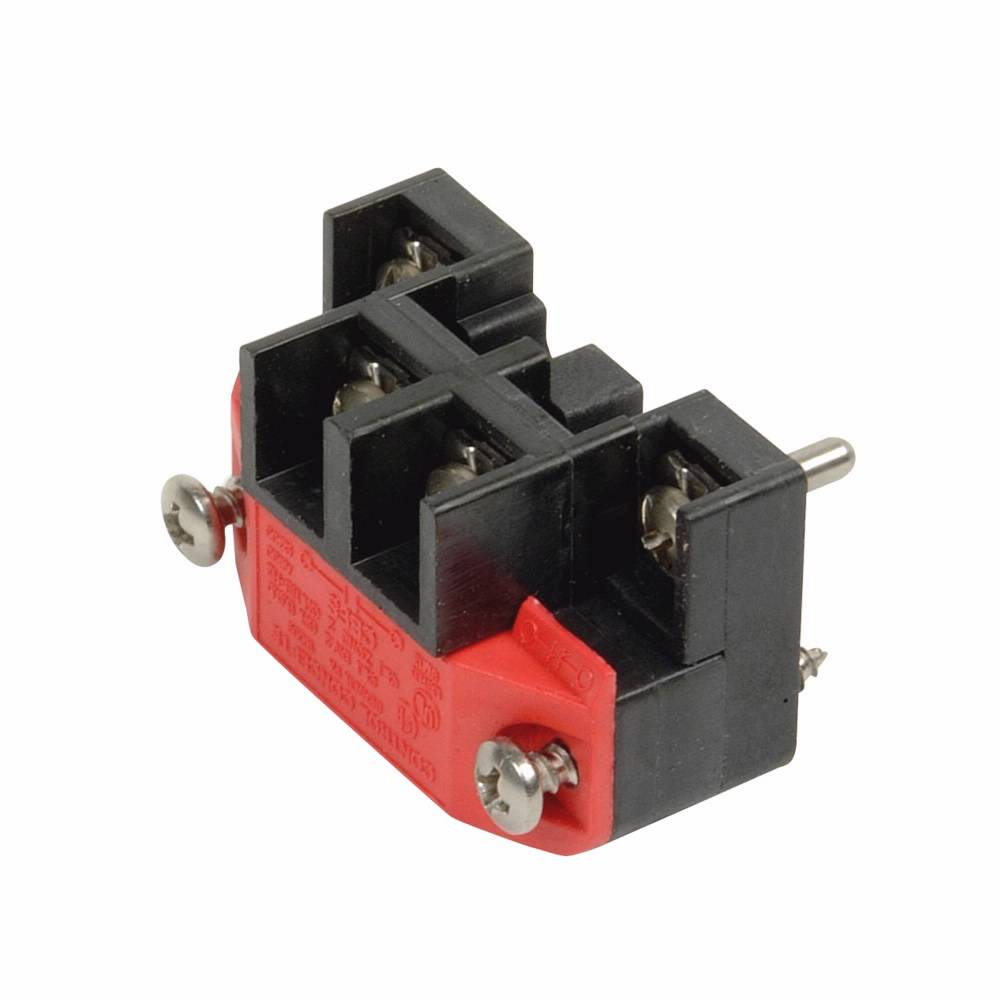

EATON 10250T1H Factory Sealed Heavy Duty Special Function Contact Block With Short Range Lexan Lens and Diode, 30.5 mm, 1NC-1NO Contact, 10 A at 600 VAC, 2.5 A at 250 VDC Contact, Silver Contact
Share Share Print Print
Eaton

EATON 10250T1H Factory Sealed Heavy Duty Special Function Contact Block With Short Range Lexan Lens and Diode, 30.5 mm, 1NC-1NO Contact, 10 A at 600 VAC, 2.5 A at 250 VDC Contact, Silver Contact

Short Description

Eaton's 10250T line of 30.5 mm pushbuttons features a heavy duty zinc Die-Cast construction. Reliability nibs improve contact reliability even under dry circuit and fine dust conditions. In addition, drainage holes prevent the buildup of liquid inside the operator, which can prevent operation in freezing environments.

EATON Contact Block, Factory Sealed Heavy Duty Special Function, Series: 10250T, 30.5 mm Size, 1NC-1NO Contact Configuration, 10 A at 600 VAC, 2.5 A at 250 VDC Contact, Silver Contact, Thermoplastic Block, Pushbutton Operator, IP2X Enclosure, Saddle Clamp Terminal, Die-Cast Zinc, 1 in L x 2 in W x 2 in H Dimensions
MFG #: 10250T1H

EECO #: CH10250T1H

Brand: Eaton
UPC #: 782114397343
Attributes
Features
Documents
Product Information
Attributes
UNSPSC
39122221
Material
Die-Cast Zinc
Operator Type
Pushbutton
Terminal Type
Saddle Clamp
Contact Rating
10 A at 600 VAC, 2.5 A at 250 VDC
Enclosure Type
IP2X
Contact Configuration
1NC/1NO
Size
30.5
Type
Factory Sealed Heavy Duty Special Function
Series
10250T
Warranty
1 year
Dimensions
1 in L x 2 in W x 2 in H
Contact Material
Silver
Features
  • Contact blocks feature enclosed silver contacts with pointed reliability nibs
  • To ensure reliable switching, these nibs bite through oxide, which can form on silver contacts, eliminating the need for expensive logic level blocks for most applications
