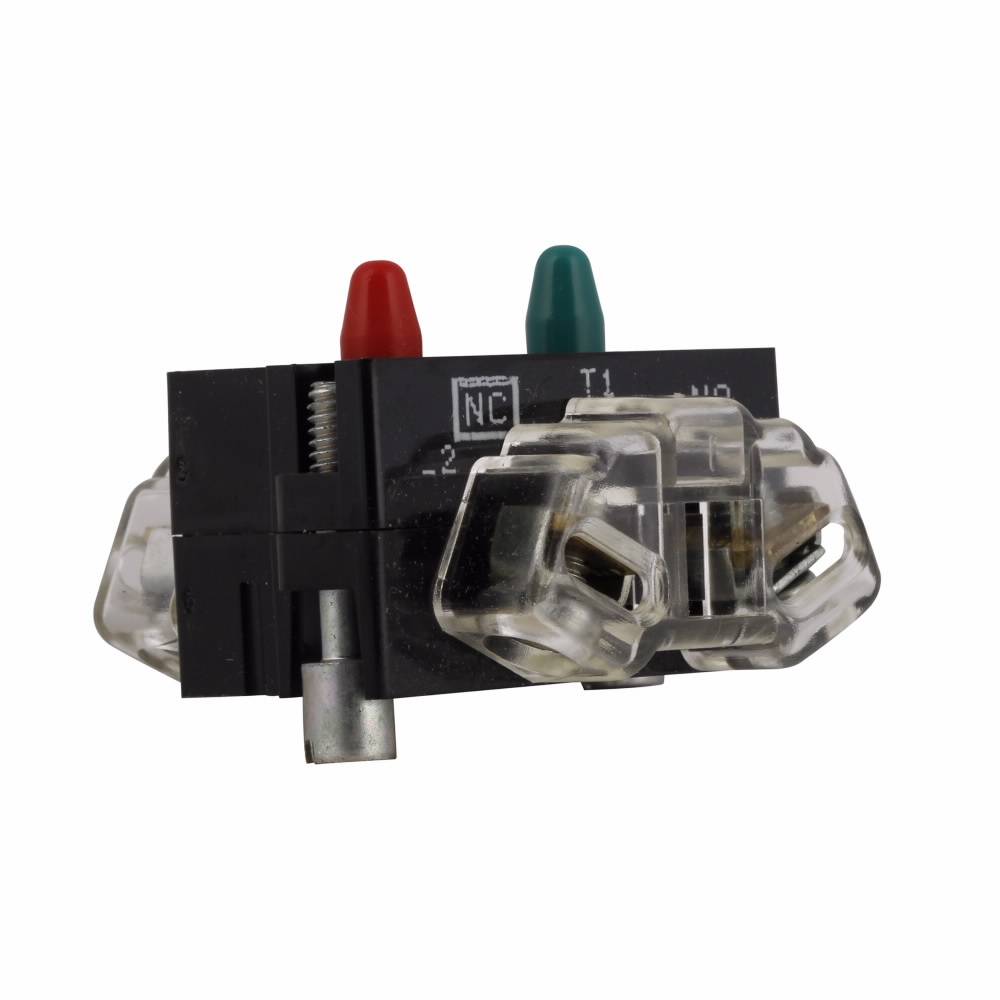

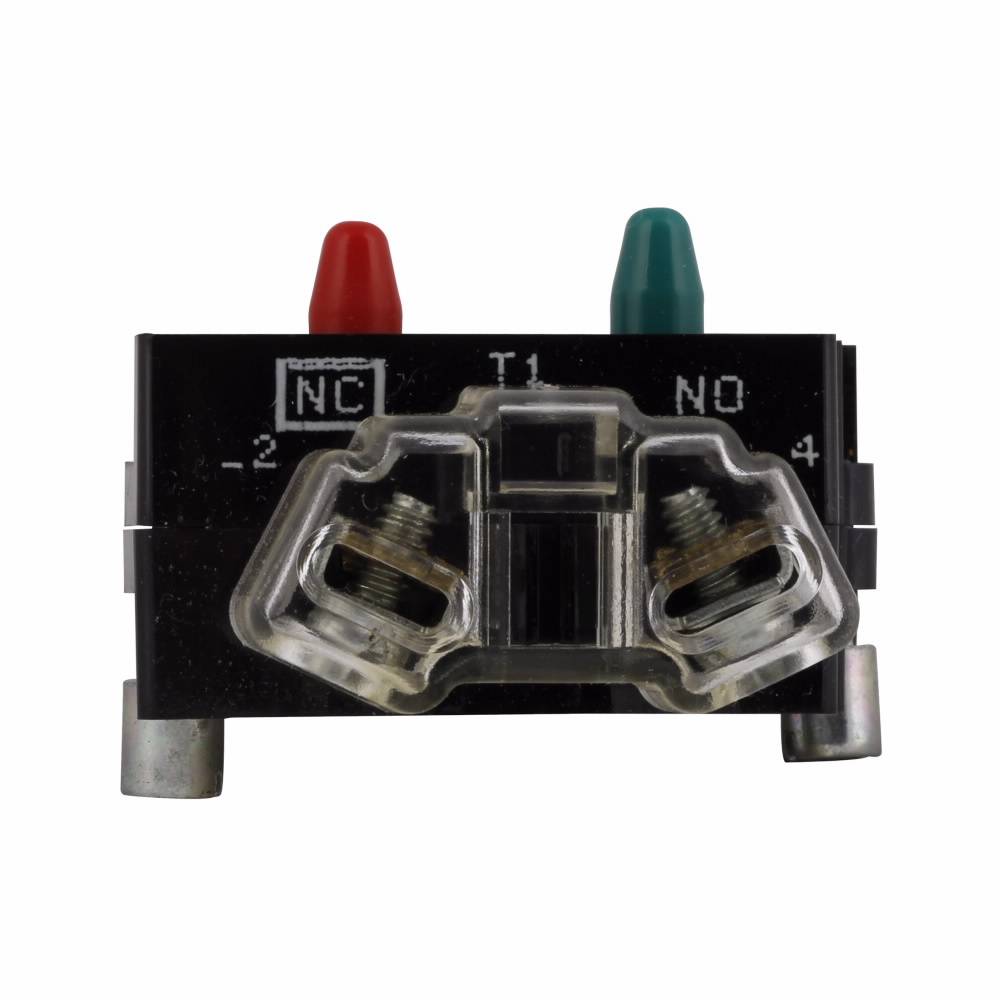

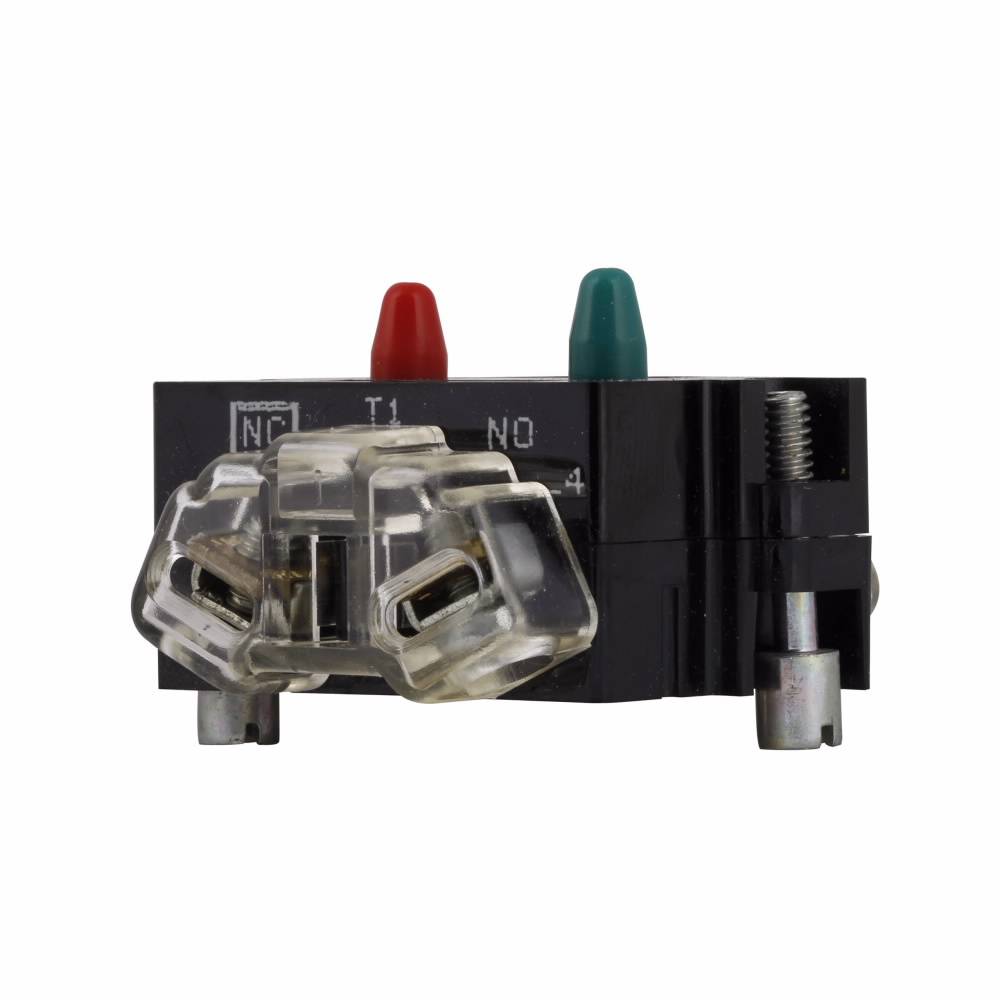

EATON 10250T1EP Low VOC Multi-Purpose Contact Block, 30.5 mm, 1NO-1NC Contact, 0.5 A at 120 VAC/VDC Contact, Palladium Contact, Gray

Short Description

EATON's 10250T line of 30.5 mm pushbuttons features a heavy duty zinc die-cast construction. Reliability nibs improve contact reliability even under dry circuit and fine dust conditions. In addition, drainage holes prevent the buildup of liquid inside the operator, which can prevent operation in freezing environments.

EATON Contact Block, Low VOC Multi-Purpose, Series: 10250T, 30.5 mm Size, 1NO-1NC Contact Configuration, 0.5 A at 120 VAC/VDC Contact, Palladium Contact, Pushbutton Operator, NEMA 3/3R/4/4X/12/13 NEMA Rating, IP65 Enclosure, Pressure Terminal, Surface Mounting, Die-Cast Zinc, Gray, 1.9 in L x 1.2 in W x 2.2 in H Dimensions
MFG #: 10250T1EP

EECO #: CH10250T1EP

Brand: Eaton
UPC #: 782116418497
Attributes
Features
Documents
Product Information
Attributes
Color
Gray
UNSPSC
39121545
Material
Die-Cast Zinc
Application
Stationary Machinery, Equipment Outside Factory and Other Applications
Mounting Type
Surface
Operator Type
Pushbutton
Terminal Type
Pressure
Contact Rating
0.5 A at 120 VAC/VDC
Enclosure Type
IP65
Contact Configuration
1NO+1NC
Size
30.5
Type
Low VOC Multi-Purpose
Series
10250T
Warranty
1 year
Dimensions
1.9 in L x 1.2 in W x 2.2 in H
Contact Material
Palladium
Features
  • Contact blocks feature enclosed silver contacts with pointed reliability nibs
  • To ensure reliable switching, these nibs bite through oxide, which can form on silver contacts, eliminating the need for expensive logic level blocks for most applications
  • Finger proof shroud
