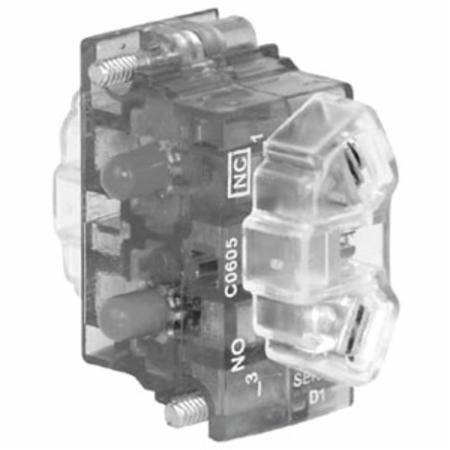

EATON 10250T1A Heavy Duty Contact Block, 30.5 mm, 1NO-1NC Contact, 10 A at 600 VAC Contact, Silver Contact
EATON 10250T1A Heavy Duty Contact Block, 30.5 mm, 1NO-1NC Contact, 10 A at 600 VAC Contact, Silver Contact
EATON 10250T1A Heavy Duty Contact Block, 30.5 mm, 1NO-1NC Contact, 10 A at 600 VAC Contact, Silver Contact
EATON 10250T1A Heavy Duty Contact Block, 30.5 mm, 1NO-1NC Contact, 10 A at 600 VAC Contact, Silver Contact
EATON 10250T1A Heavy Duty Contact Block, 30.5 mm, 1NO-1NC Contact, 10 A at 600 VAC Contact, Silver Contact
EATON 10250T1A Heavy Duty Contact Block, 30.5 mm, 1NO-1NC Contact, 10 A at 600 VAC Contact, Silver Contact
EATON 10250T1A Heavy Duty Contact Block, 30.5 mm, 1NO-1NC Contact, 10 A at 600 VAC Contact, Silver Contact
EATON 10250T1A Heavy Duty Contact Block, 30.5 mm, 1NO-1NC Contact, 10 A at 600 VAC Contact, Silver Contact
Share Share Print Print
Eaton

EATON 10250T1A Heavy Duty Contact Block, 30.5 mm, 1NO-1NC Contact, 10 A at 600 VAC Contact, Silver Contact

Short Description

EATON's 10250T line of 30.5 mm pushbuttons features a heavy duty zinc die-cast construction. Reliability nibs improve contact reliability even under dry circuit and fine dust conditions. In addition, drainage holes prevent the buildup of liquid inside the operator, which can prevent operation in freezing environments.

EATON Contact Block, Heavy Duty, Series: 10250T, 30.5 mm Size, 1NO-1NC Contact Configuration, 10 A at 600 VAC Contact, Silver Contact, Pushbutton Operator, NEMA 3/3R/4/4X/12/13 NEMA Rating, IP65 Enclosure, Saddle Clamp Terminal, Surface Mounting, Die-Cast Zinc, 3.3 in L x 2.2 in W x 2.2 in H Dimensions

MFG #: 10250T1A

EECO #: CH10250T1A

Brand: Eaton
UPC #: 782114958421
Attributes
Features
Documents
Product Information
Attributes
Color
Gray
UNSPSC
39121522
Material
Die-Cast Zinc
Application
Stationary Machinery, Equipment Outside Factory, Electrical Assemblies, Panels and EOEMs Applications
Mounting Type
Surface
Operator Type
Pushbutton
Terminal Type
Saddle Clamp
Contact Rating
10 A at 600 VAC
Enclosure Type
IP65
Mounting
6 Stack
Contact Configuration
1NO+1NC
Size
30.5
Type
Heavy Duty
Series
10250T
Warranty
1 year
Dimensions
3.3 in L x 2.2 in W x 2.2 in H
Accessory Type
Contact Blocks
Contact Material
Silver
Features
  • Contact blocks feature enclosed silver contacts with pointed reliability nibs
  • To ensure reliable switching, these nibs bite through oxide, which can form on silver contacts, eliminating the need for expensive logic level blocks for most applications
