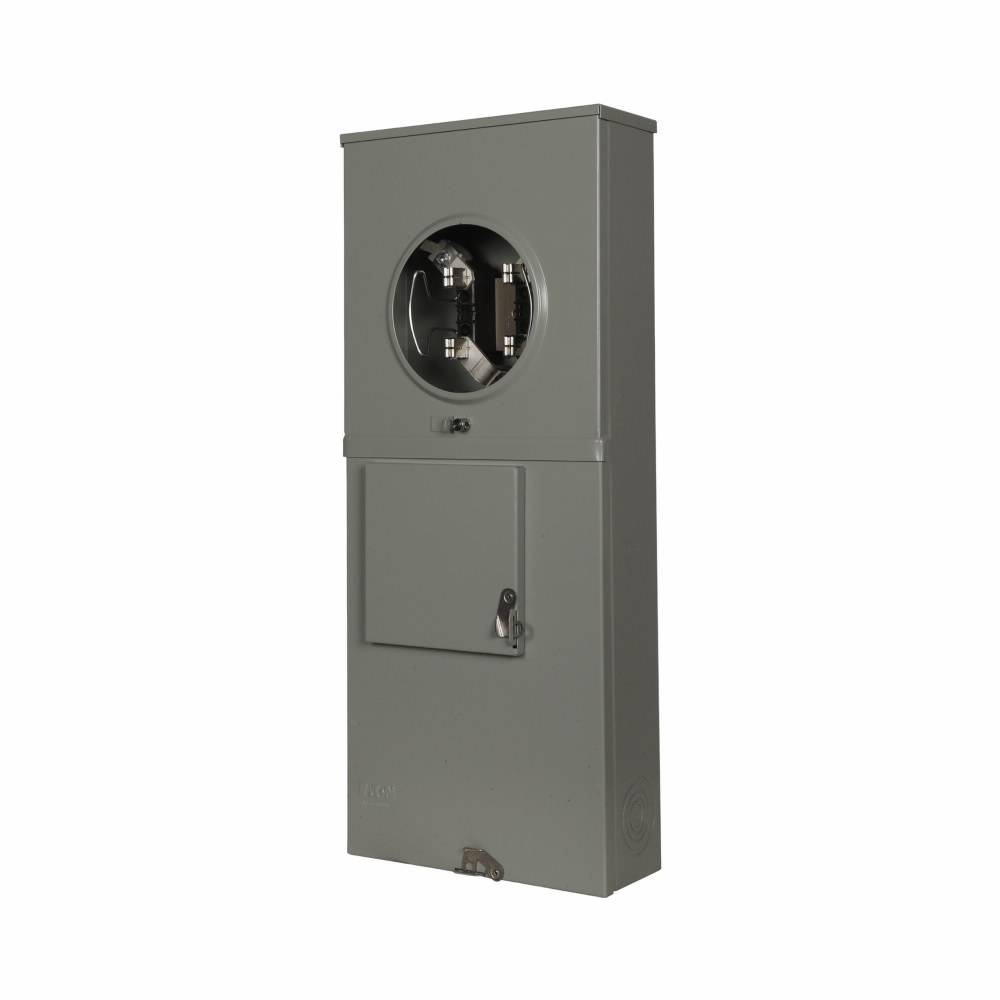

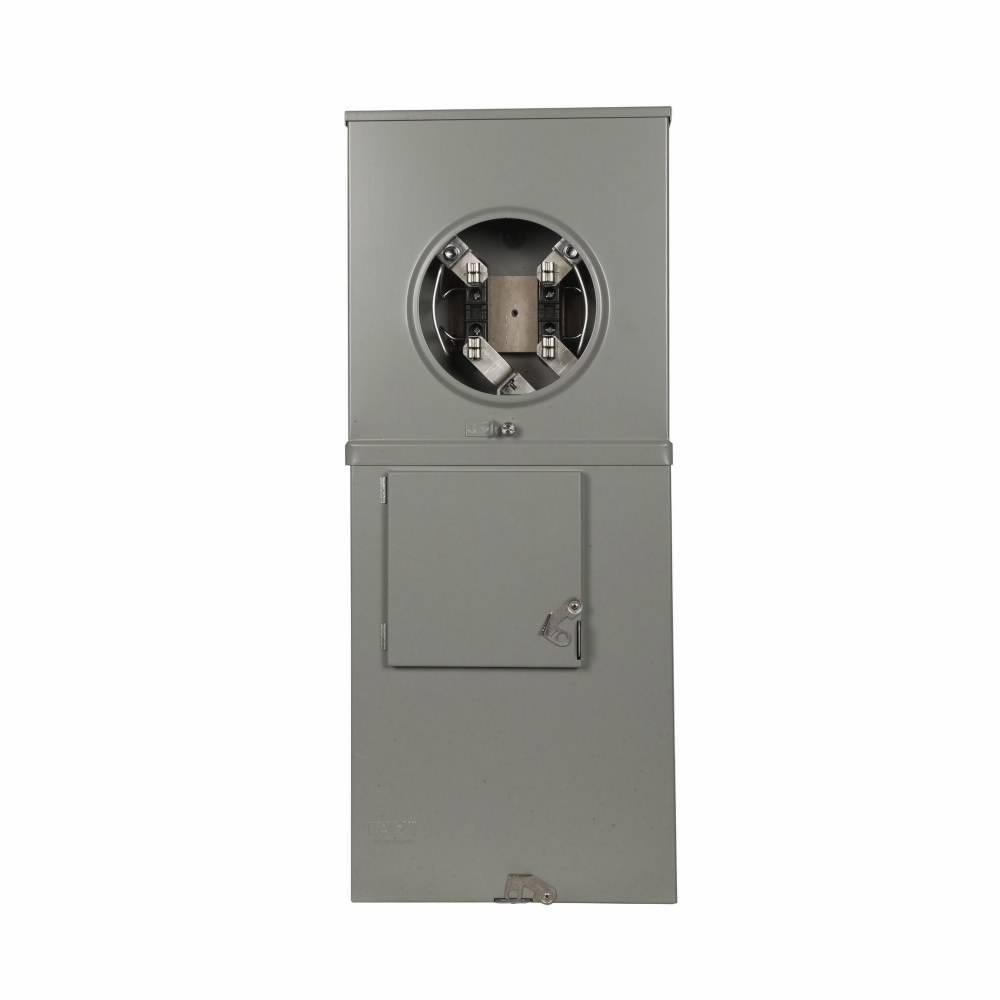

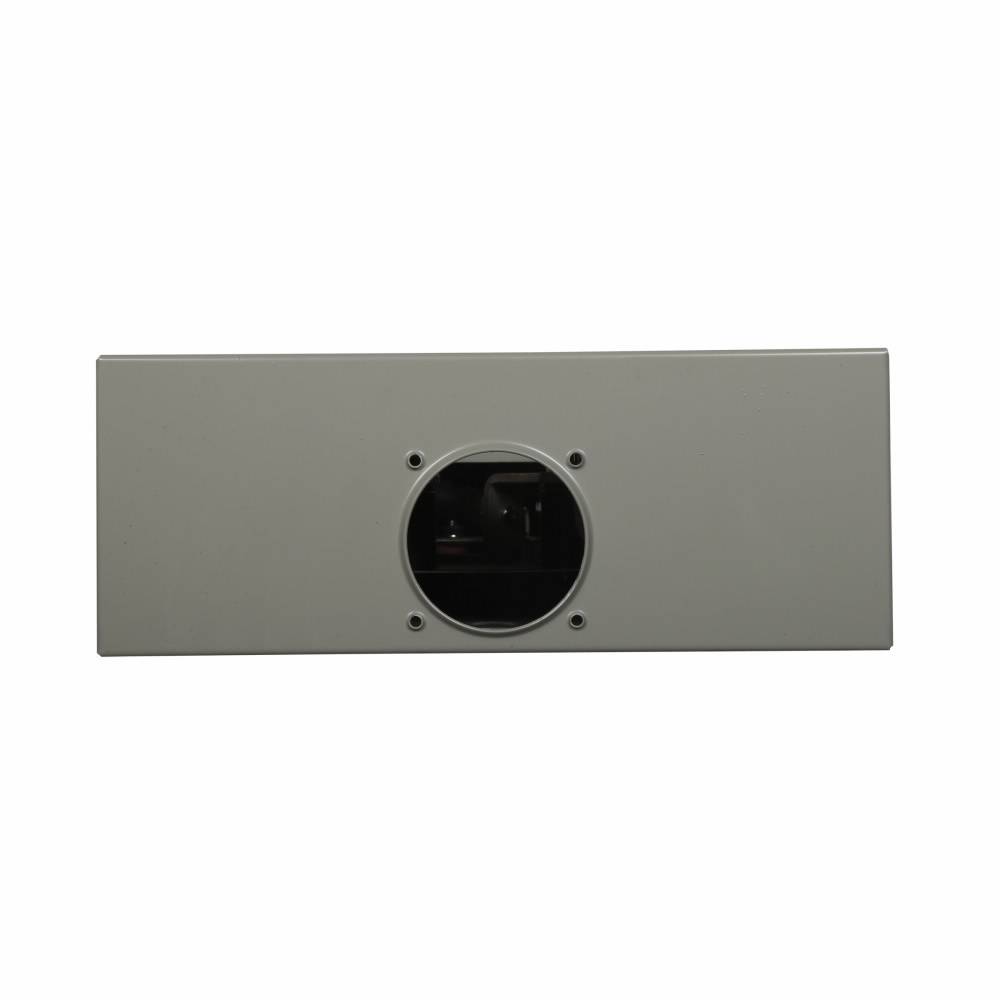

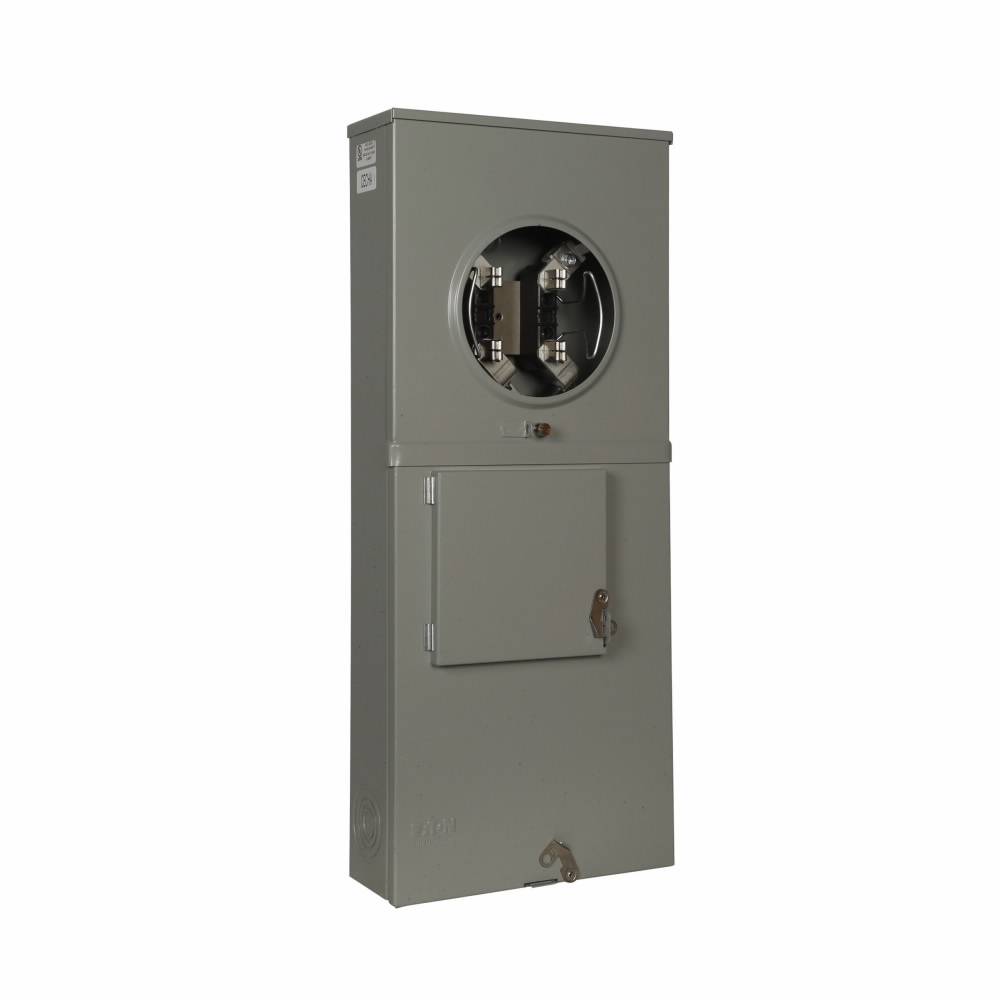

EATON Cutler-Hammer 1009582CH 3-Wire 1-Position Commercial/Residential Service Single Meter Socket With Horn Bypass, 240 VAC, 200 A, 1 Phase

Short Description

EATON line of 1-position, self contained meter sockets house the utilities electrical watt hour meters in residential and commercial buildings. Choose from the widest range of utility approved sockets in the industry, including 100 to 320 A units and designs such as ring less, bypass and more.

EATON Cutler-Hammer Single Meter Socket, 3-Wire 1-Position Commercial/Residential Service, 240 VAC, 200 A, 1 ph, Overhead Feed, 5 Jaws, 8 to 2/0 AWG Wire, Open Hub, 3-5/16 in Hub, Ringless Cover, Line/Load Terminal, 4.37 in L x 12 in W x 29.37 in H Dimensions
MFG #: 1009582CH

EECO #: CH1009582CH

Brand: Eaton
UPC #: 786685021157
Attributes
Features
Documents
Product Information
Attributes
Phase
1
UNSPSC
39121102
Hub Size
3-5/16
Wire Size
8 to 2/0
Application
Residential Buildings Applications
Terminal Type
Line/Load
Voltage Rating
240
Type
3-Wire 1-Position Commercial/Residential Service
Hub Type
Open
Warranty
1 year
Cover Type
Ringless
Dimensions
4.37 in L x 12 in W x 29.37 in H
Amperage Rating
200
Features
  • Block assembly base exceeds 400 in-lb of torque, which provides durability under the most extreme installation circumstances
  • 1-piece, die-run enclosure
  • High visibility EATON name embossed on cover

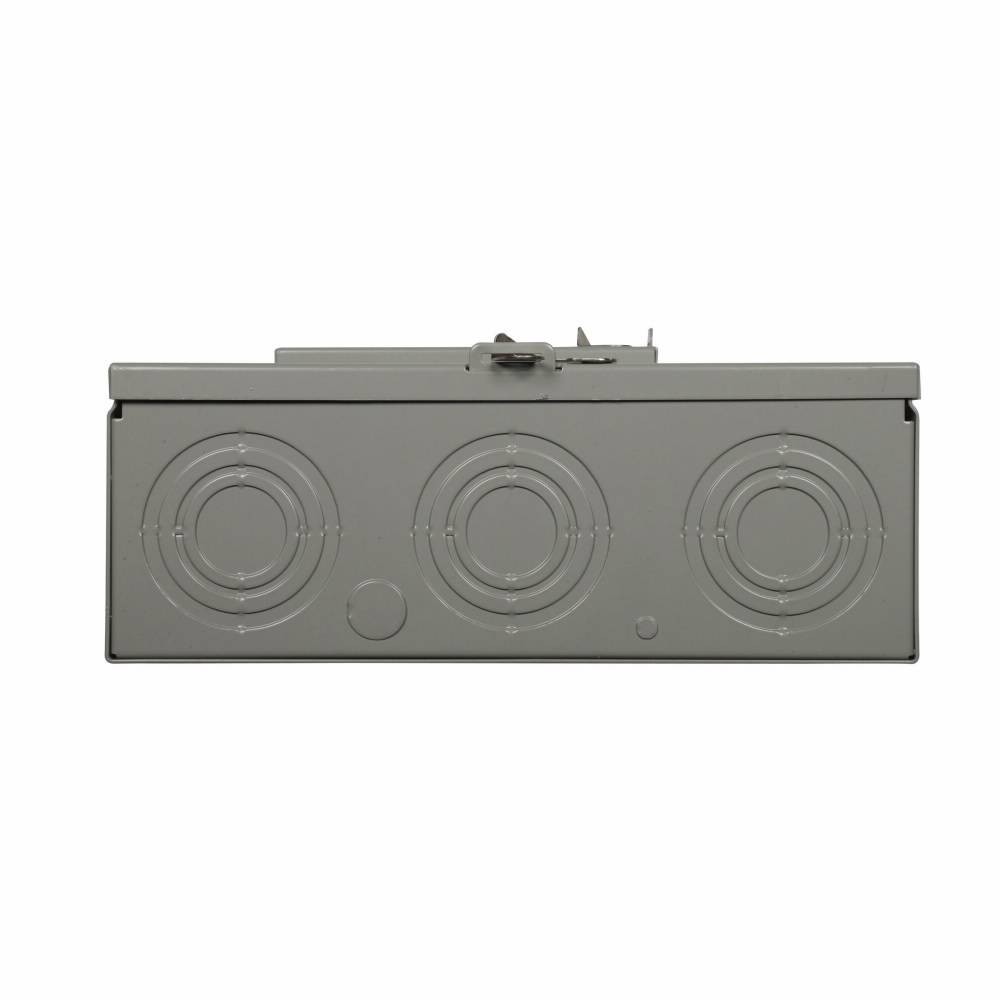

  • Knockouts are installer friendly
  • Oversized 7/8 in Dia, heavy duty, steel lug screws
  • Slide nuts are captive
  • Horn bypass kit is field installable by changing out slide nut
  • Integral triplex or quadplex ground extruded in neutral lug
  • 100% plated bridge with 4-point mounting
  • KAIC rating up to 200 kAIC rating with specified overcurrent protection devices
  • Provides a complete EATON residential solution
  • Copper plated alloy jaws with reinforcing spring
  • 8 to 2/0 AWG line/load
