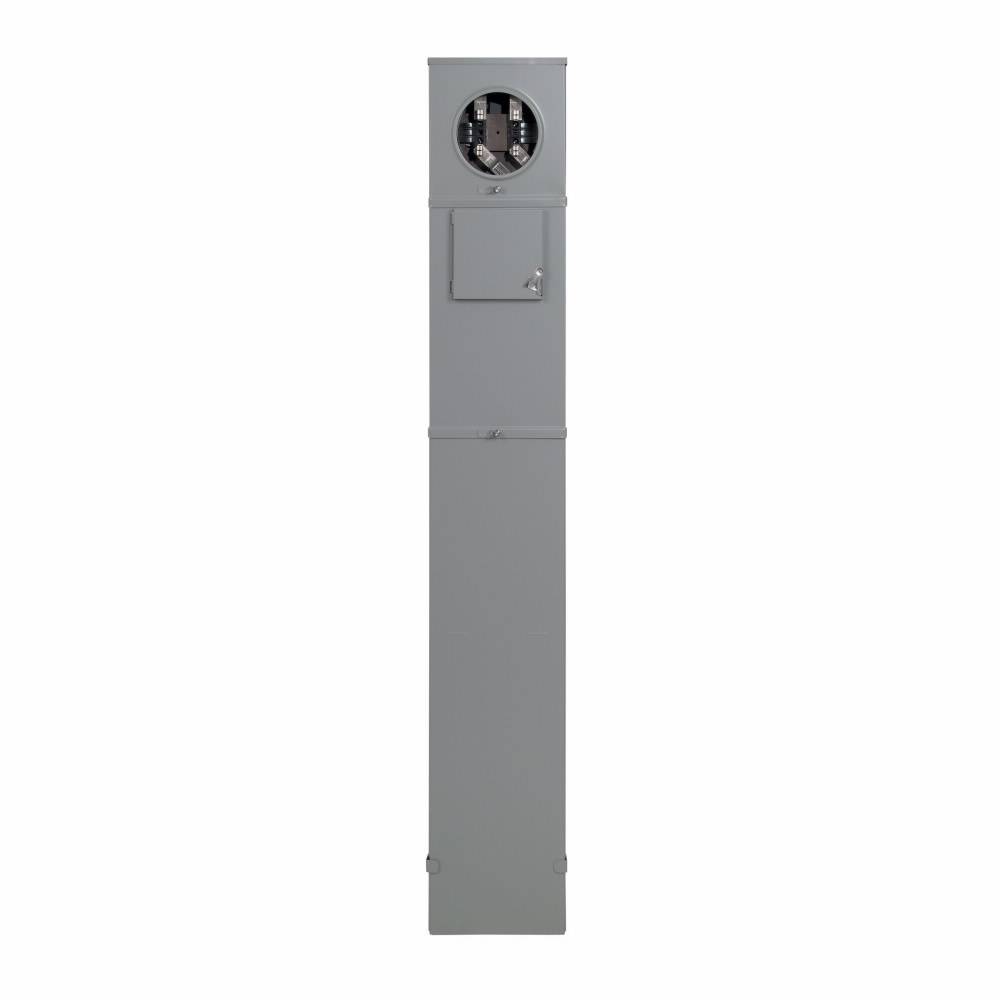

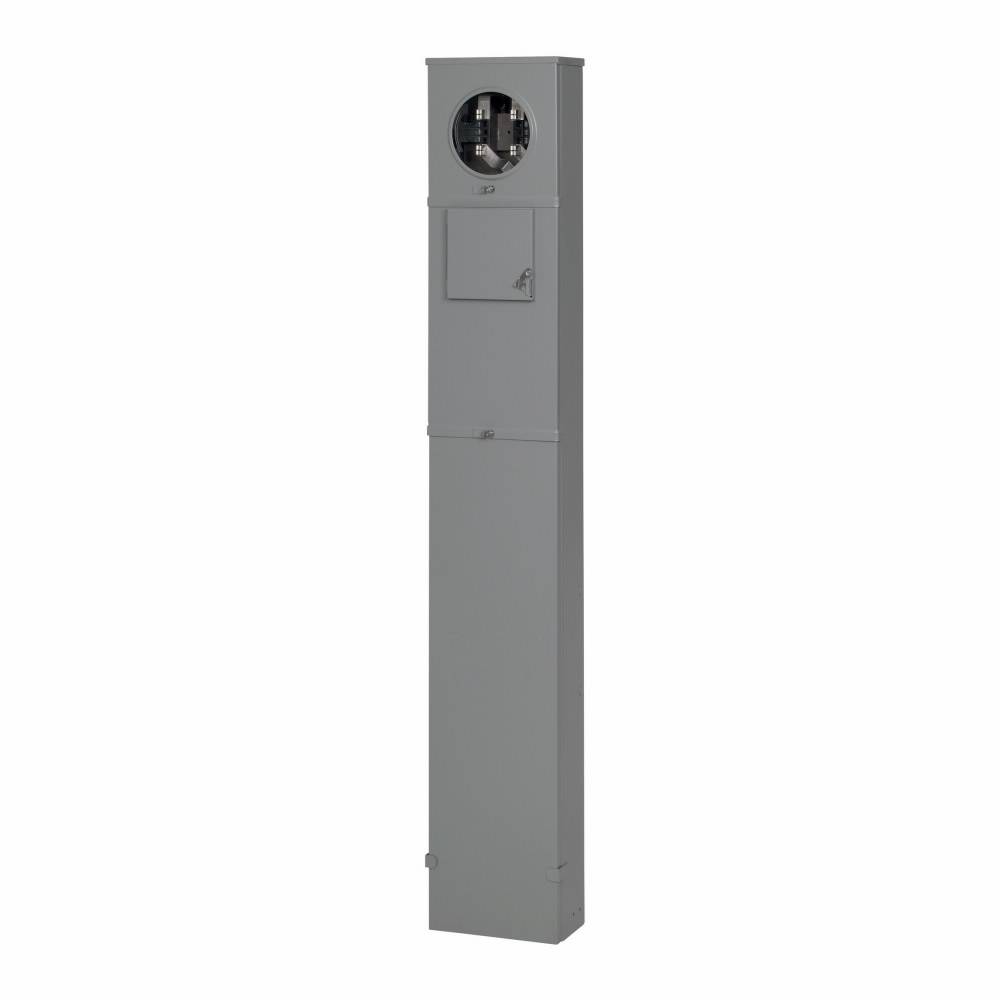

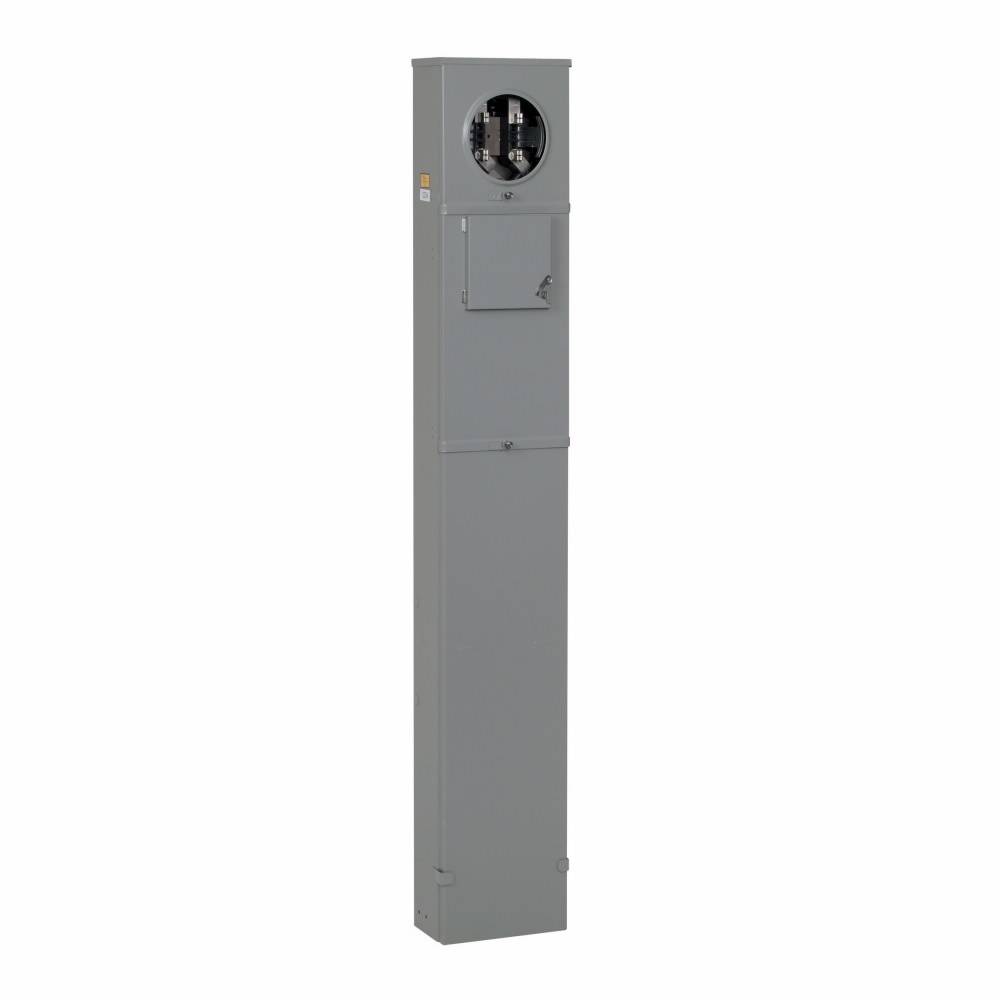

EATON 1008846CH Horn Bypass Meter Socket With Main Breaker, 240 VAC, 200 A, 1 Phase

Short Description

EATON line of single position, self-contained meter sockets house the utilities electrical watt hour meters in residential and commercial buildings. Choose from the widest range of utility approved sockets in the industry, including 100 to 320 A units and designs such as ring less, bypass, and more.

EATON Meter Socket, Horn Bypass, 240 VAC, 200 A, 1 ph, Bottom Feed, 4 Jaws, 6 AWG to 350 kcmil Wire, Solid Top Hub, Ringless Cover, 6 in L x 11 in W x 70 in H Dimensions
MFG #: 1008846CH

EECO #: CH1008846CH

Brand: Eaton
UPC #: 782116144150
Attributes
Features
Documents
Product Information
Attributes
Phase
1
UNSPSC
39121102
Wire Size
6 AWG to 350 kcmil
Application
Power Distribution, Commercial, Residential Buildings and Facilities Applications
Voltage Rating
240
Type
Horn Bypass
Hub Type
Solid Top
Warranty
1 year
Cover Type
Ringless
Dimensions
6 in L x 11 in W x 70 in H
Amperage Rating
200
Features
  • Type: Horn Bypass Meter Socket
  • Voltage: 240 VAC
  • Current Rating: 200 A
  • Phase: Single Phase (1 ph)
  • Feed Type: Bottom Feed
  • Jaws: 4 Jaws
  • Wire Capacity: 6 AWG to 350 kcmil
  • Hub: Solid Top Hub
  • Cover: Ringless Cover
  • Dimensions: 6 in L x 11 in W x 70 in H
