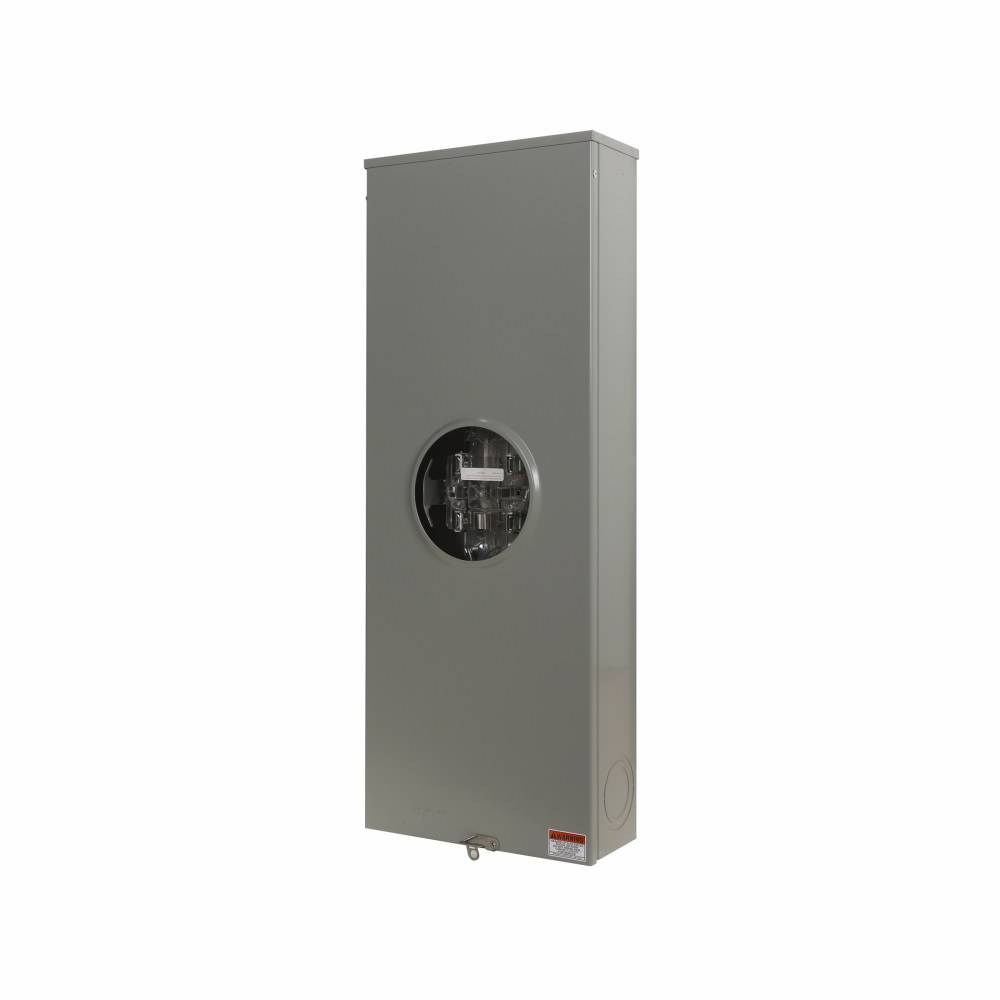

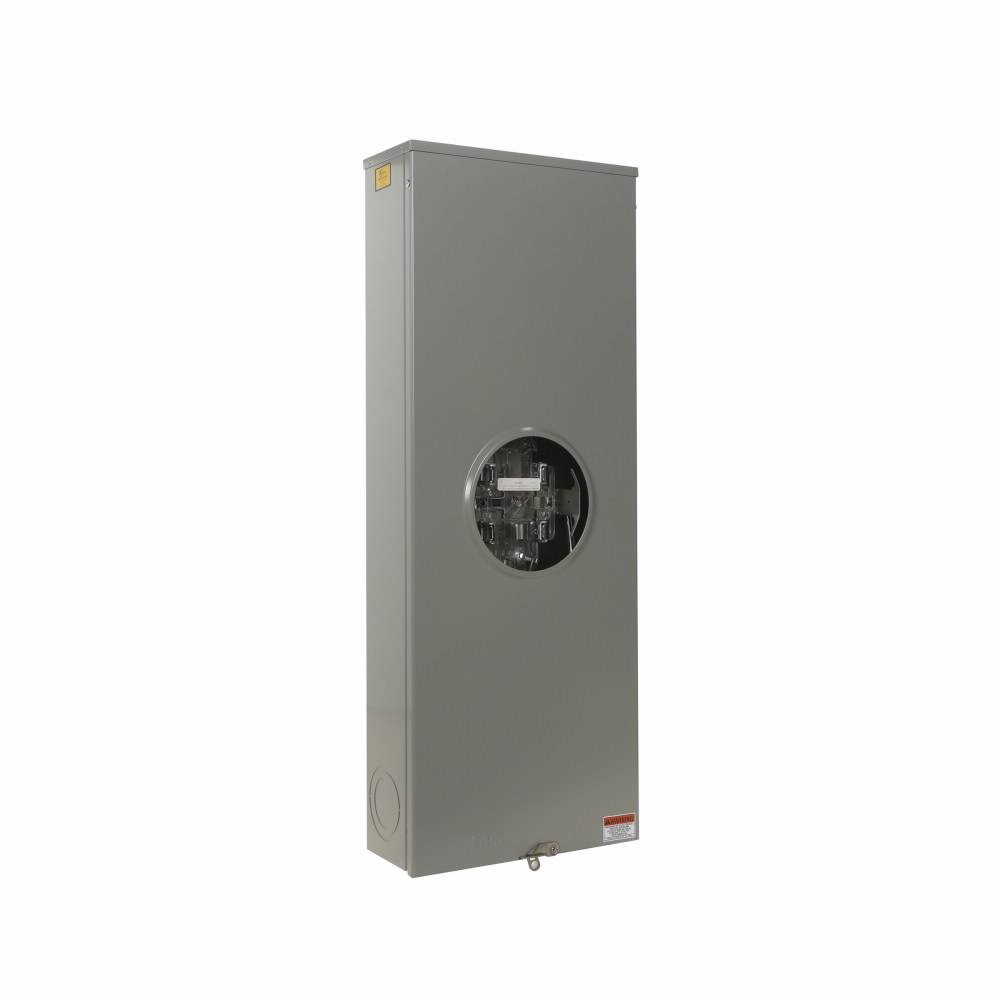

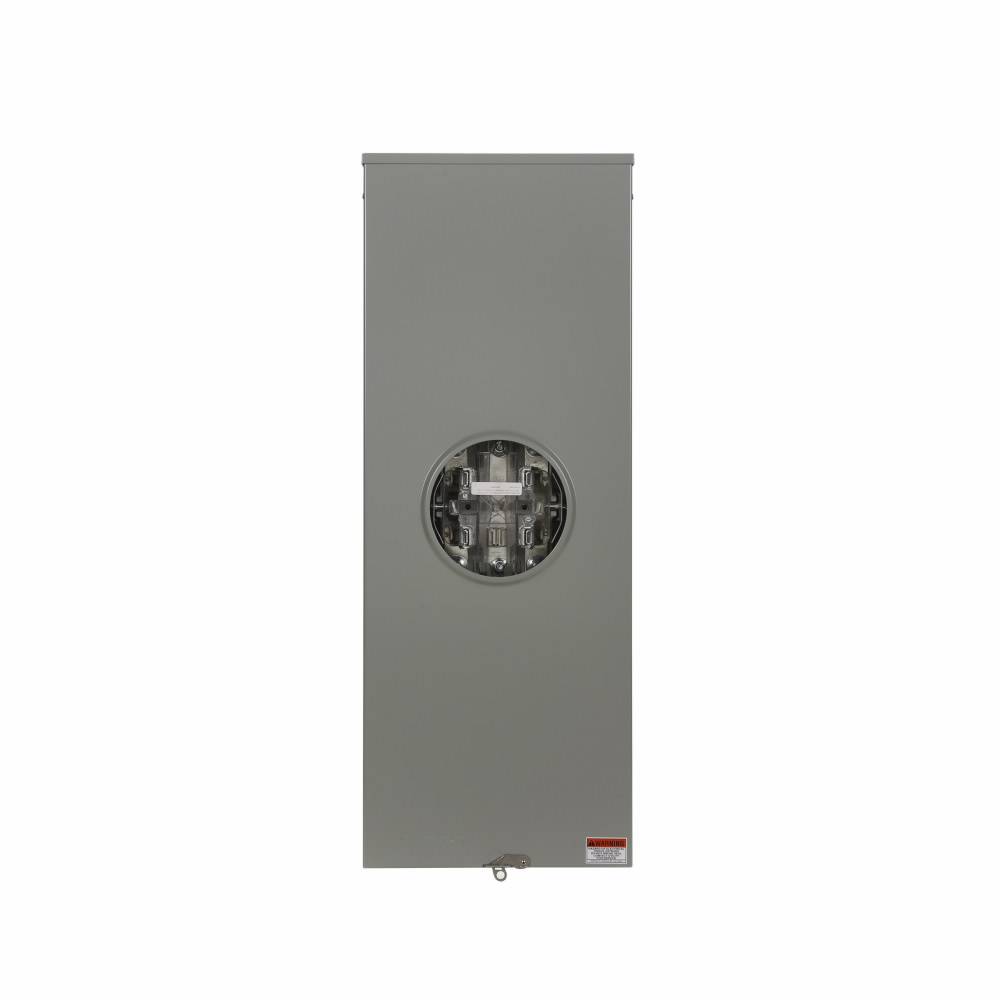

EATON Cutler-Hammer 1008792CH 3-Wire 1-Position Commercial Service Meter Socket With Lever Bypass, 600 VAC, 320 A, 1/3 Phase

Short Description

EATON line of 1-position, self-contained meter sockets house the utilities electrical watt hour meters in residential and commercial buildings. Choose from the widest range of utility approved sockets in the industry, including 100 to 320 A units and designs such as ring less, bypass, and more.

EATON Cutler-Hammer Meter Socket, 3-Wire 1-Position Commercial Service, 600 VAC, 320 A, 1/3 ph, Overhead/Underground Feed, 5 Jaws, 3/8 in Wire, Open Hub, 5 x 5 in Hub, Ringless Cover, Line/Load Terminal, 4.94 in L x 13 in W x 34.5 in H Dimensions
MFG #: 1008792CH

EECO #: CH1008792CH

Brand: Eaton
UPC #: 782116143955
Attributes
Features
Documents
Product Information
Attributes
Phase
1/3
UNSPSC
39121102
Hub Size
5 x 5
Wire Size
3/8
Application
Residential Buildings and Facilities Applications
Terminal Type
Line/Load
Voltage Rating
600
Type
3-Wire 1-Position Commercial Service
Hub Type
Open
Warranty
1 year
Cover Type
Ringless
Dimensions
4.94 in L x 13 in W x 34.5 in H
Amperage Rating
320
Features
  • Block assembly base exceeds 400 in-lb of torque
  • 1-piece, die run enclosure
  • High visibility eaton name embossed on cover

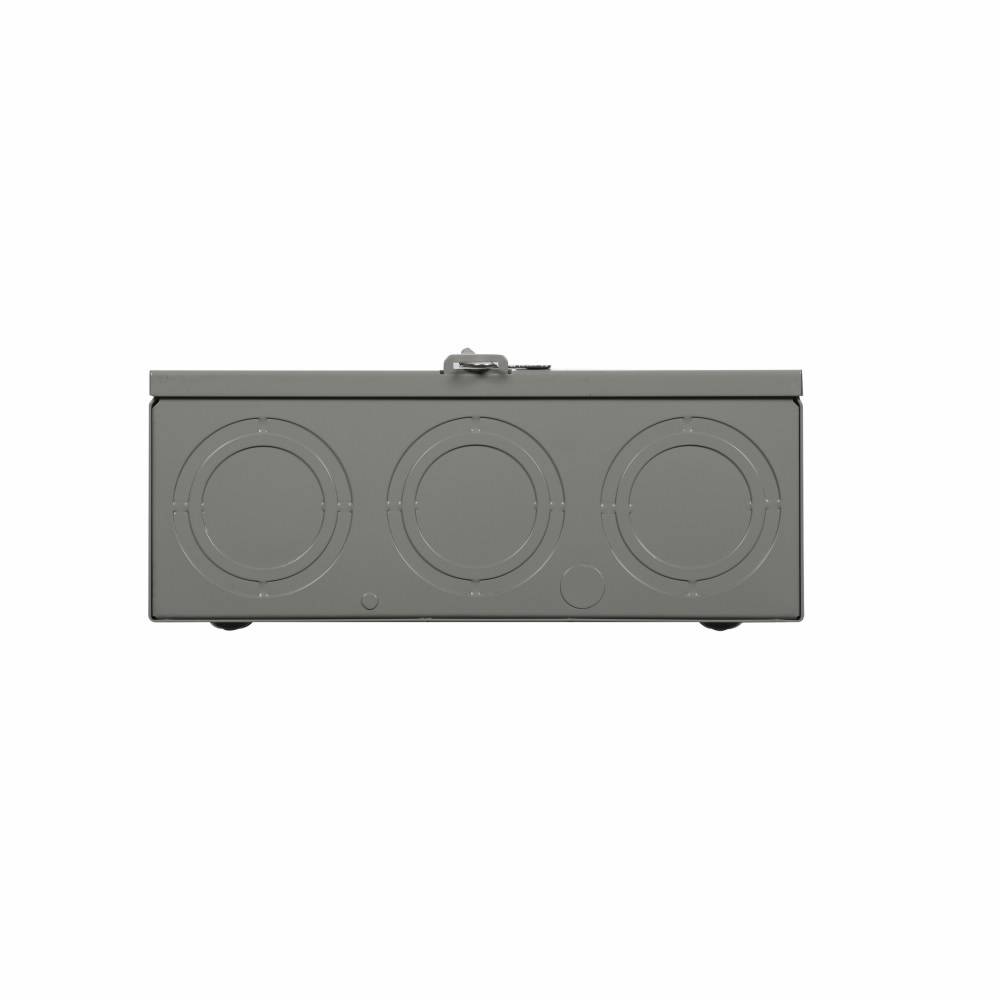

  • Knockouts are installer friendly
  • Oversized 7/8 in Dia, heavy duty, steel lug screws
  • Slide nuts are captive
  • Integral triplex or quadplex ground extruded in neutral lug
  • 100% plated bridge with 4-point mounting
  • KAIC rating up to 200 kAIC rating with specified overcurrent protection devices
  • Provides a complete eaton residential solution
  • Copper plated alloy jaws with reinforcing spring
  • 3/8 in stud line/load
