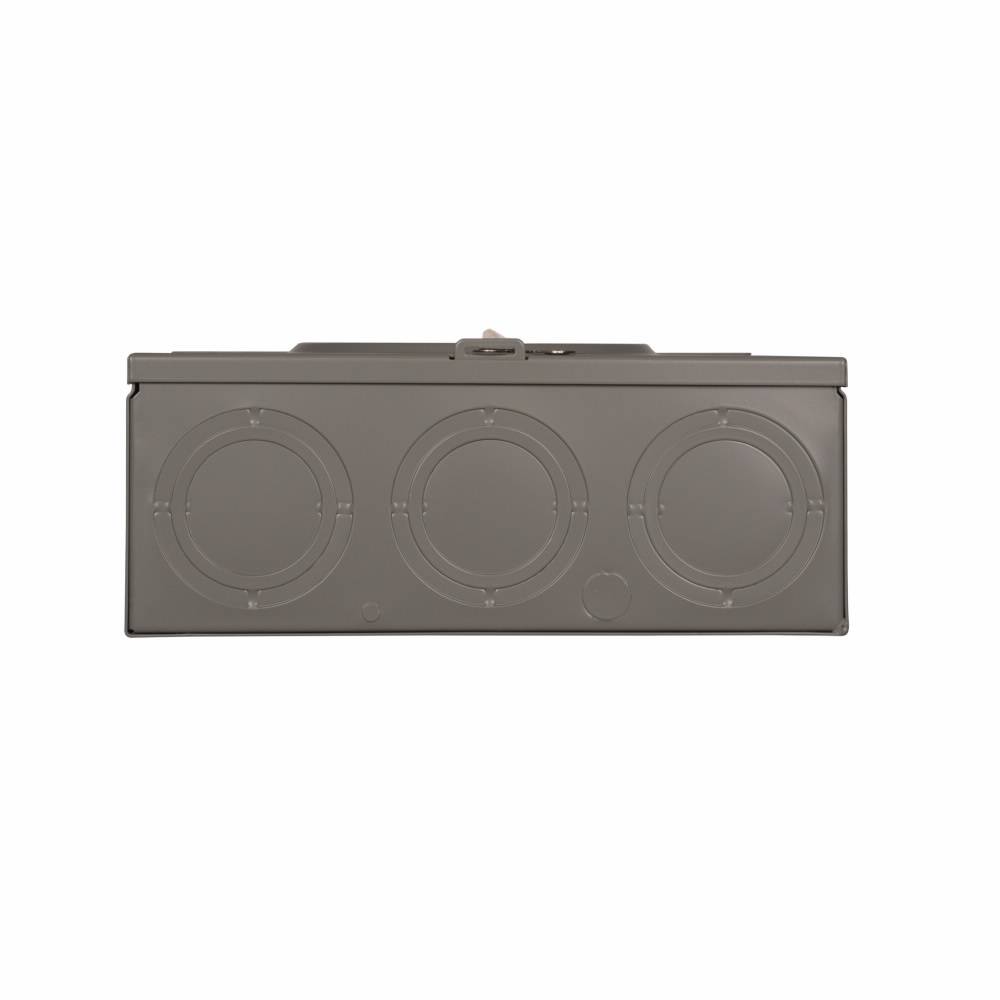

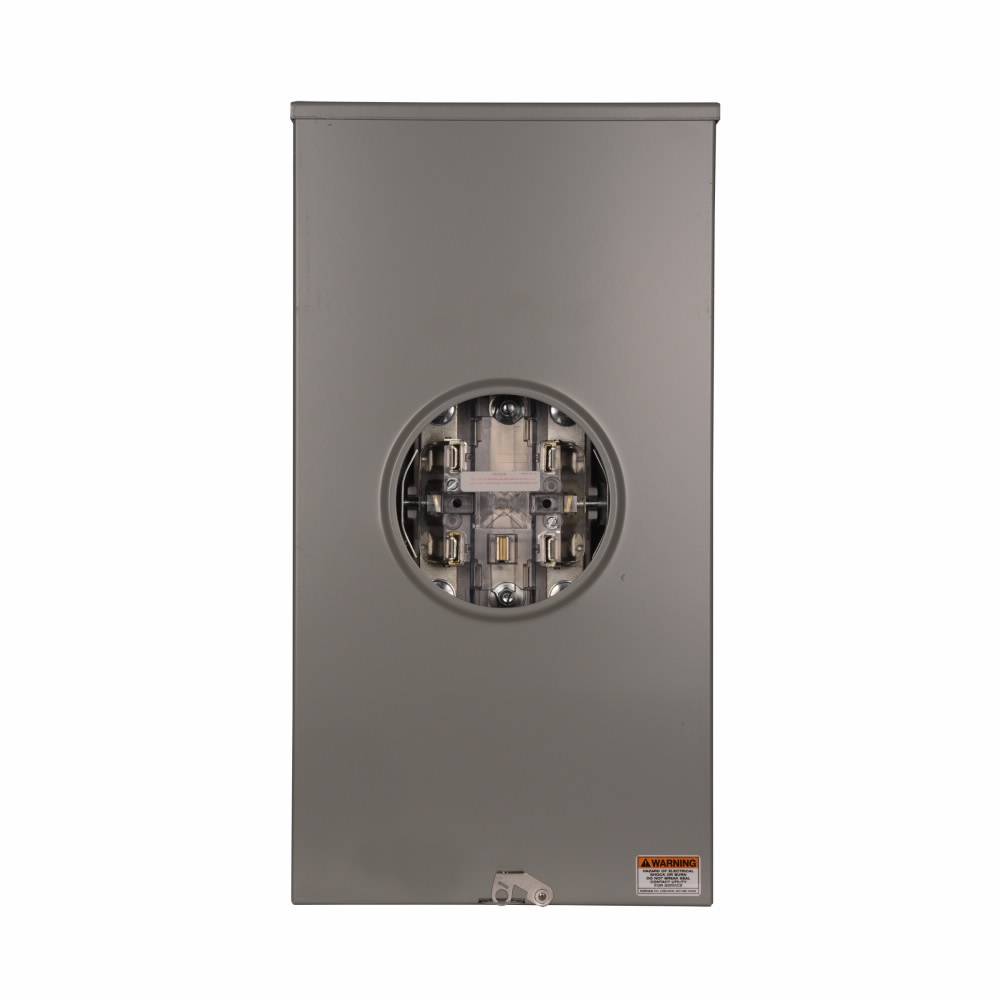

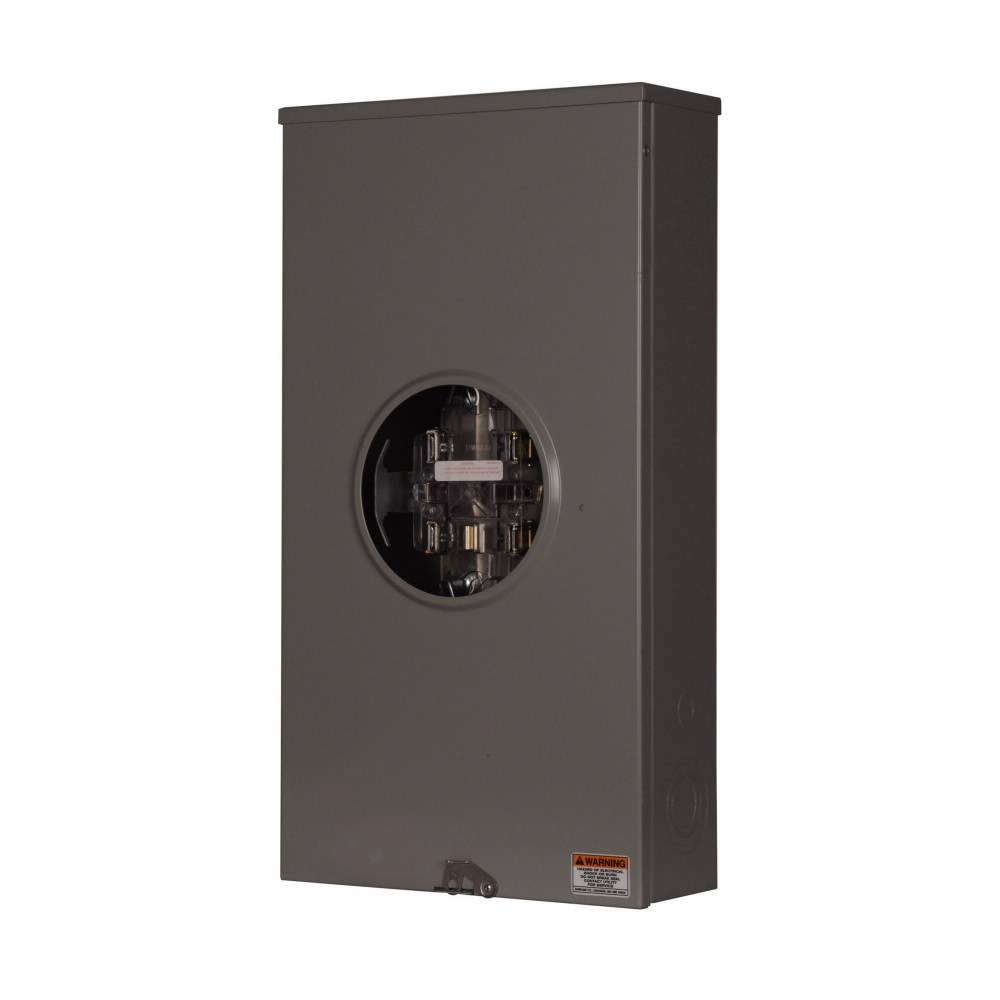

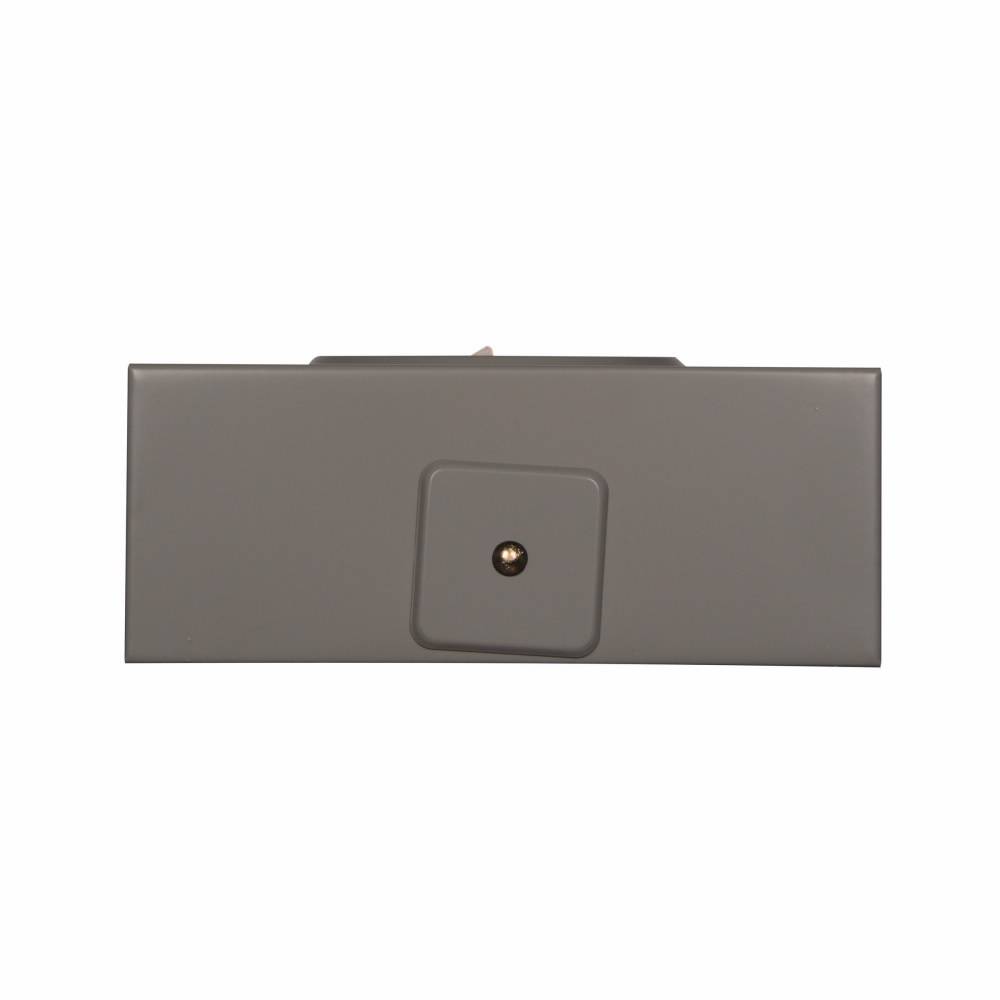

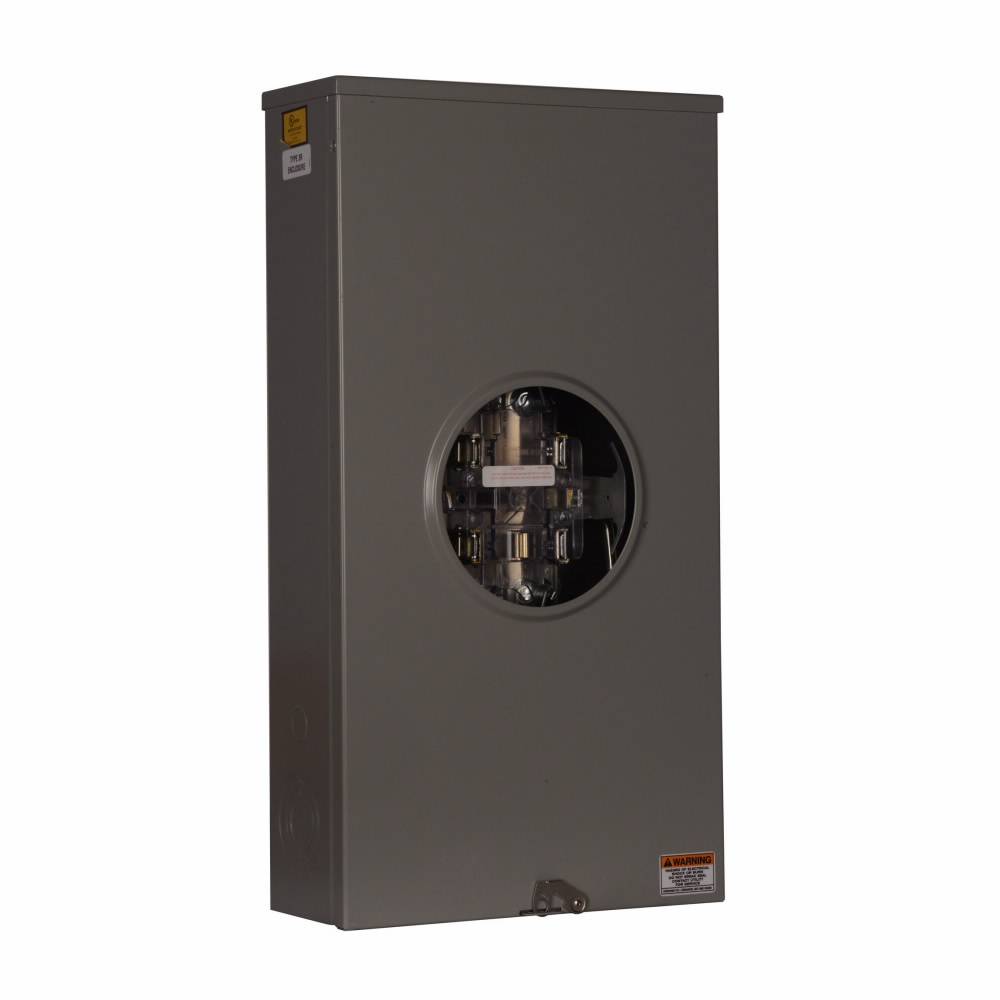

EATON Cutler-Hammer 1008632CH 3-Wire 1-Position Commercial Service Single Meter Socket With Lever Bypass, 600 VAC, 200 A, 1/3 Phase

Short Description

EATON line of 1-position, self contained meter sockets house the utilities electrical watt hour meters in residential and commercial buildings. Choose from the widest range of utility approved sockets in the industry, including 100 to 320 A units and designs such as ring less, bypass and more.

EATON Cutler-Hammer Single Meter Socket, 3-Wire 1-Position Commercial Service, 600 VAC, 200 A, 1/3 ph, Overhead/Underground Feed, 5 Jaws, Coverplate Hub, 3-5/16 in Hub, Ringless Cover, 4.93 in L x 13 in W x 24.68 in H Dimensions
MFG #: 1008632CH

EECO #: CH1008632CH

Brand: Eaton
UPC #: 782116061167
Attributes
Features
Documents
Product Information
Attributes
Phase
1/3
UNSPSC
39121102
Hub Size
3-5/16
Application
Residential Buildings Applications
Voltage Rating
600
Type
3-Wire 1-Position Commercial Service
Hub Type
Coverplate
Warranty
1 year
Cover Type
Ringless
Dimensions
4.93 in L x 13 in W x 24.68 in H
Amperage Rating
200
Features
  • Block assembly base exceeds 400 in-lb of torque, which provides durability under the most extreme installation circumstances
  • 1-piece, die-run enclosure
  • High visibility EATON name embossed on cover
  • Knockouts are installer friendly
  • Oversized 7/8 in Dia, heavy duty, steel lug screws
  • Slide nuts are captive
  • Integral triplex or quadplex ground extruded in neutral lug
  • 100% plated bridge with 4-point mounting
  • KAIC rating up to 200 kAIC rating with specified overcurrent protection devices
  • Provides a complete EATON residential solution
  • Copper plated alloy jaws with reinforcing spring
