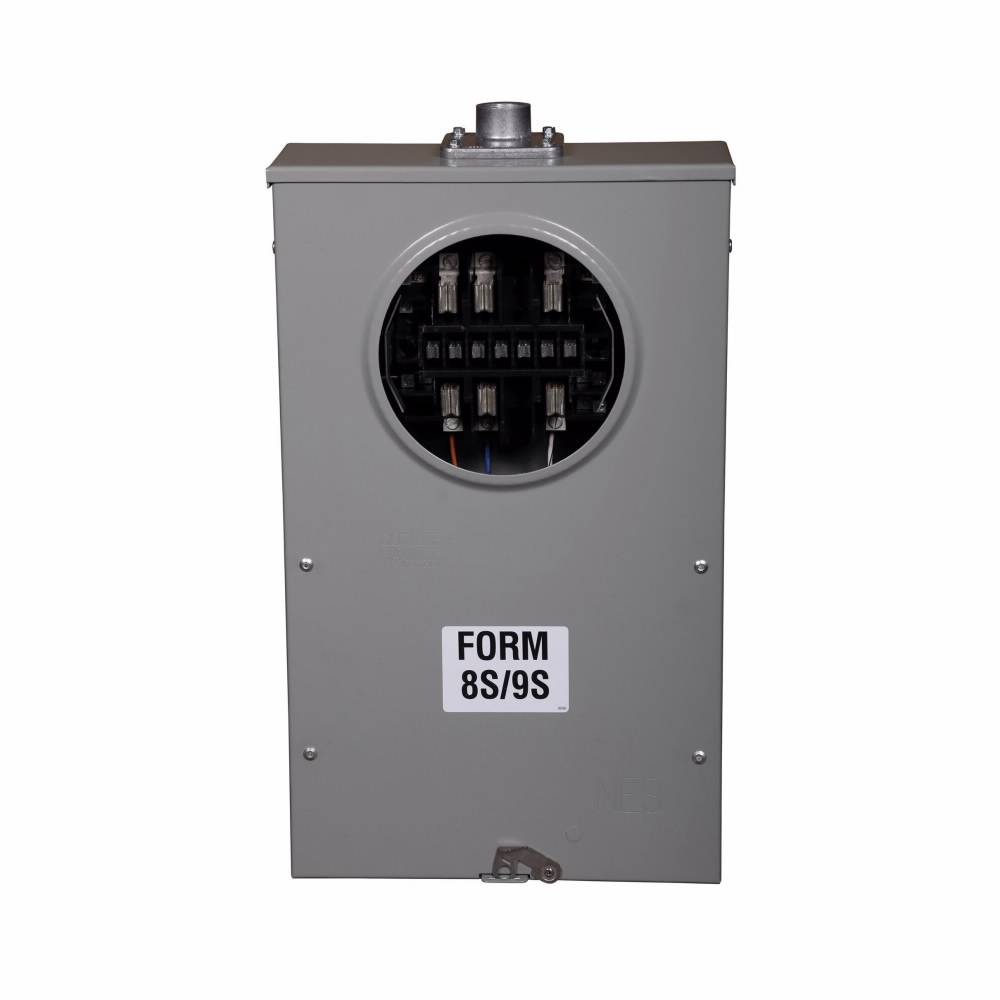

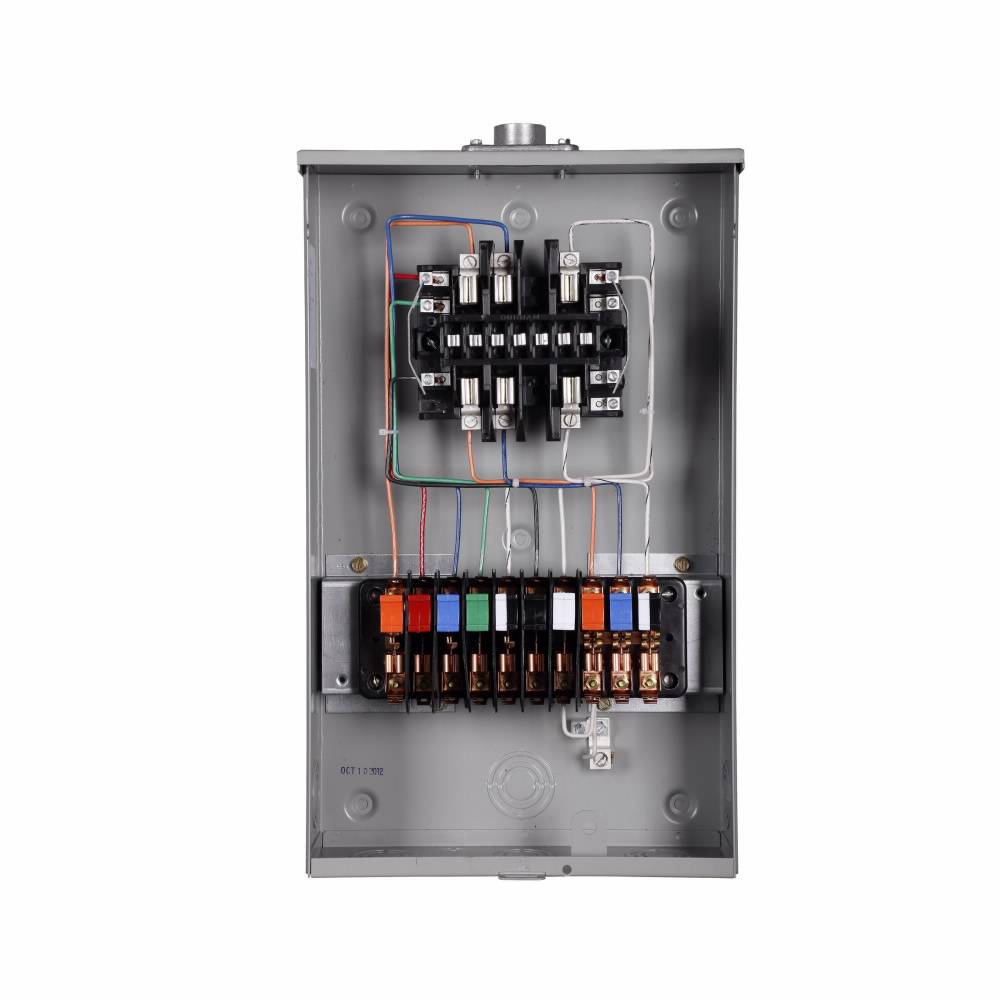

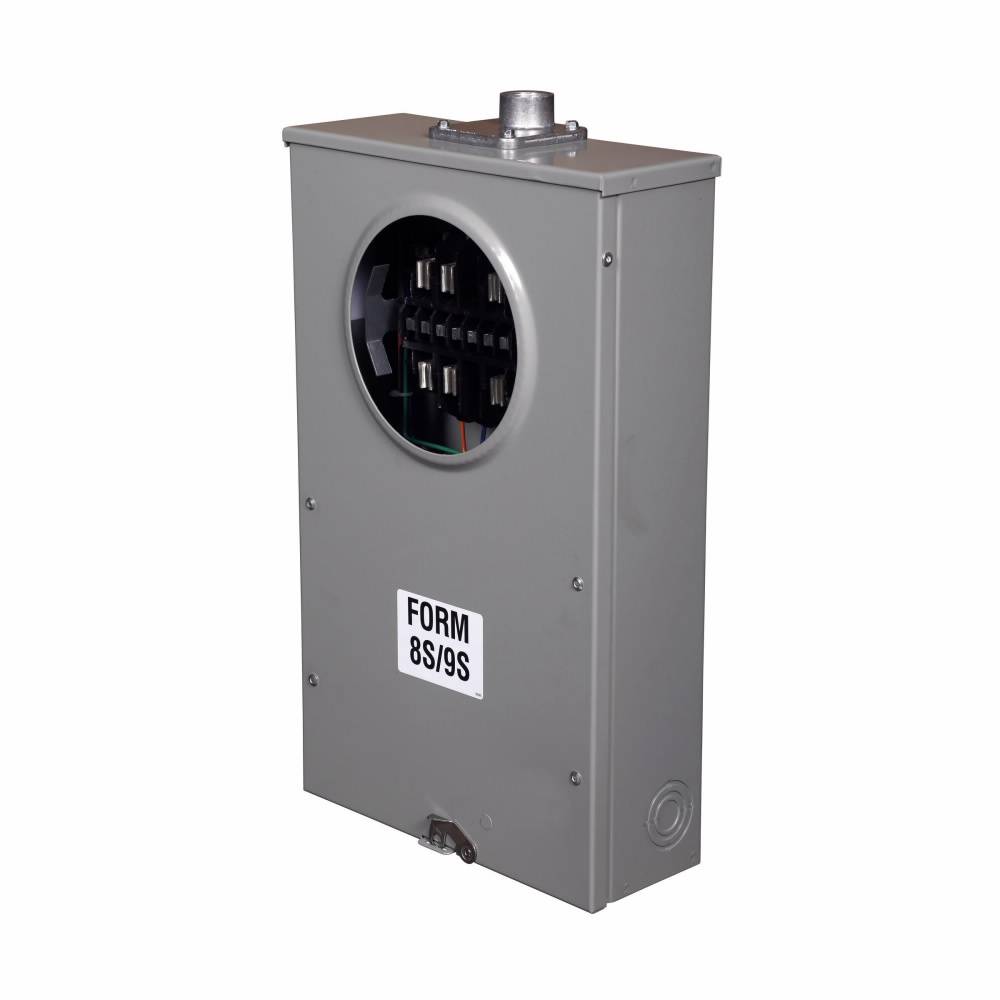

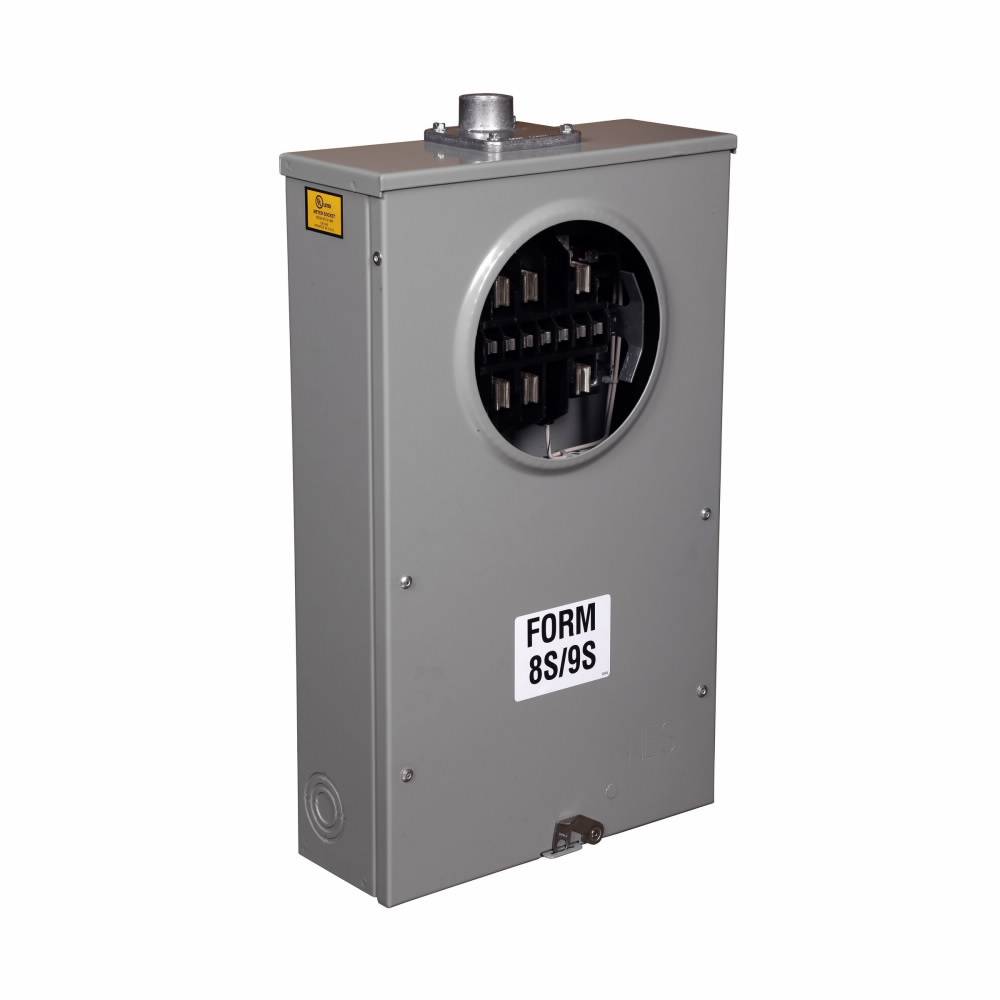

EATON 1008539CH 1-Position 3-Wire Lever Bypass Instrument Rated Meter Socket, 600 VAC, 320 A, 1 ph Phase

Short Description

EATON's line-of single position, self-contained meter sockets house the utilities electrical watthour meters in residential and commercial buildings. Choose from the widest range of utility approved sockets in the industry, including 100 to 320 A units and designs such as ring less, bypass and more.

EATON Meter Socket, 1-Position 3-Wire Lever Bypass Instrument Rated, 600 VAC, 320 A, 1 ph, Bottom/Underground Feed, 4 Jaws, 4 AWG to 600 kcmil Wire, Solid Top, Ringless Cover, 4.93 in L x 13 in W x 34.5 in H
MFG #: 1008539CH

EECO #: CH1008539CH

Brand: Eaton
UPC #: 782116127979
Attributes
Features
Documents
Product Information
Attributes
Phase
1
UNSPSC
39121102
Wire Size
4 AWG to 600 kcmil
Application
Instrument Rated Socket, Residential Buildings and Facilities Applications
Voltage Rating
600
Type
1-Position 3-Wire Lever Bypass Instrument Rated
Hub Type
Solid Top
Includes
Anti-Inver Clip
Warranty
1 year
Cover Type
Ringless
Dimensions
4.93 in L x 13 in W x 34.5 in H
Amperage Rating
320
Features
  • Block assembly base exceeds 400 in-lb of torque provides durability under the most extreme installation circumstances
  • One-piece, die-run enclosure eliminates tampering and extends product life
  • High visibility EATON name embossed on cover
  • Knockouts are installer friendly, labor savings, less time needed for removing knockouts
  • Oversized 7/8 in Dia, heavy duty, steel lug screws stronger connection component facilitates a reliable wire termination
  • Slide nuts are captive allow for ease in installation of conductors and eliminates lost components
  • Horn bypass kit is field installable by changing out slide nut, integral triplex or quadplex ground extruded in neutral lugless inventory required and field modifications are simple
  • One-piece for terminating incoming/outgoing neutral conductors, which increases integrity of connections
  • 100% plated bridge with four point mounting, zinc chromate plated to provide superior corrosion resistance
  • Rating up to 200 kA interrupt rating with specified overcurrent protection devices
  • Provides a complete EATON residential solution
  • Copper plated alloy jaws with reinforcing spring
  • Steel reinforcing springs used in all socket jaws to maintain electrical connections
