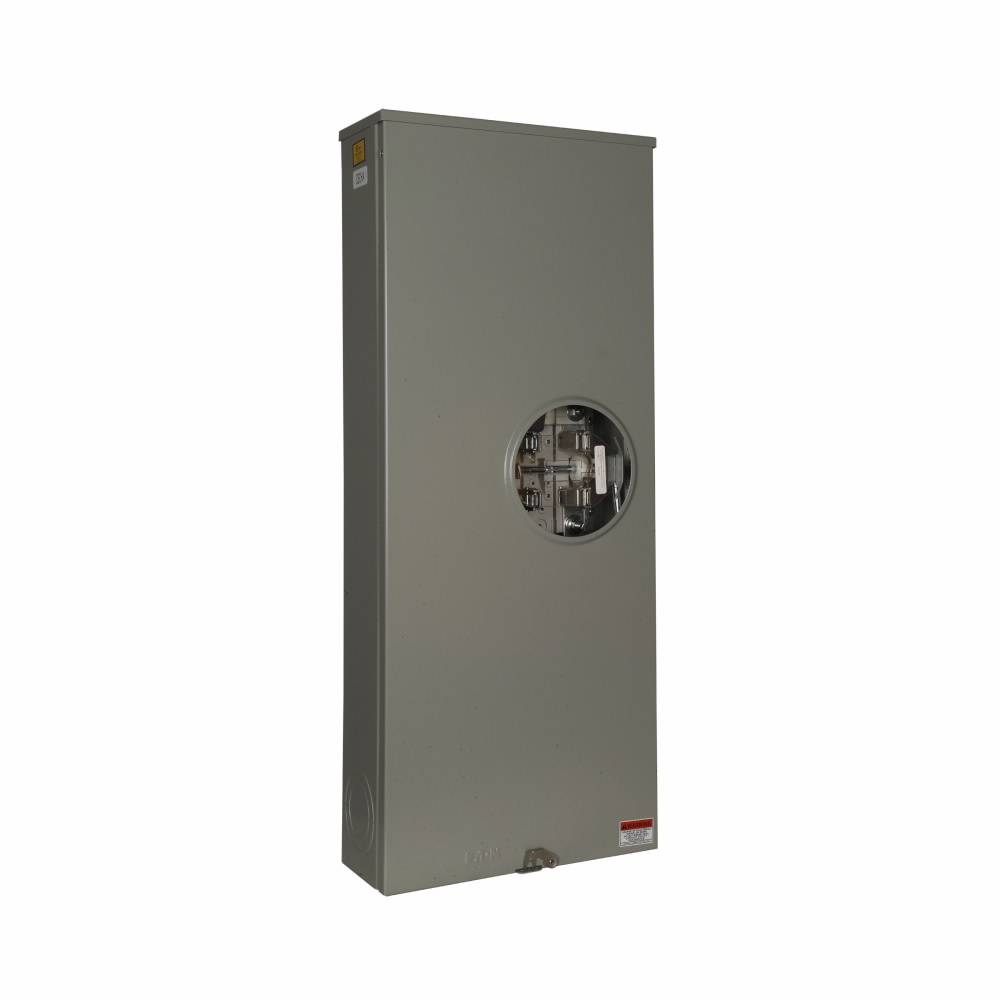

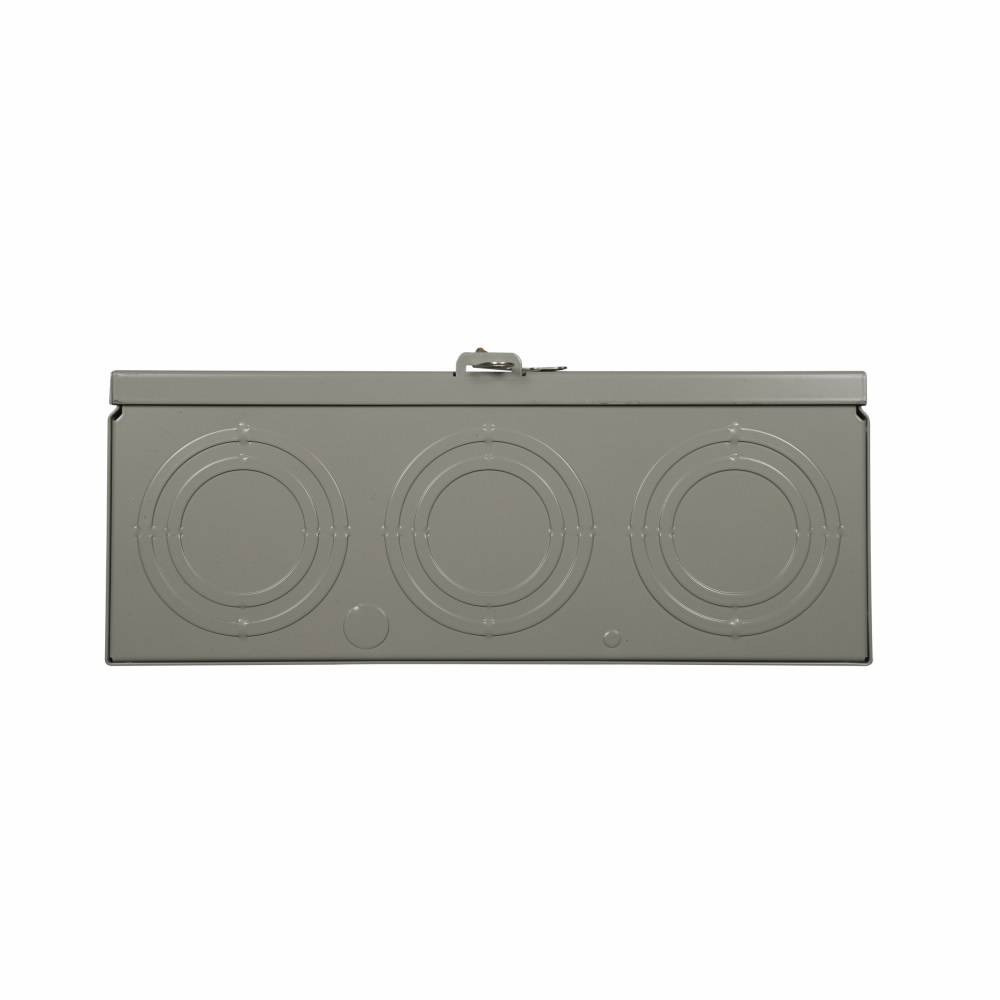

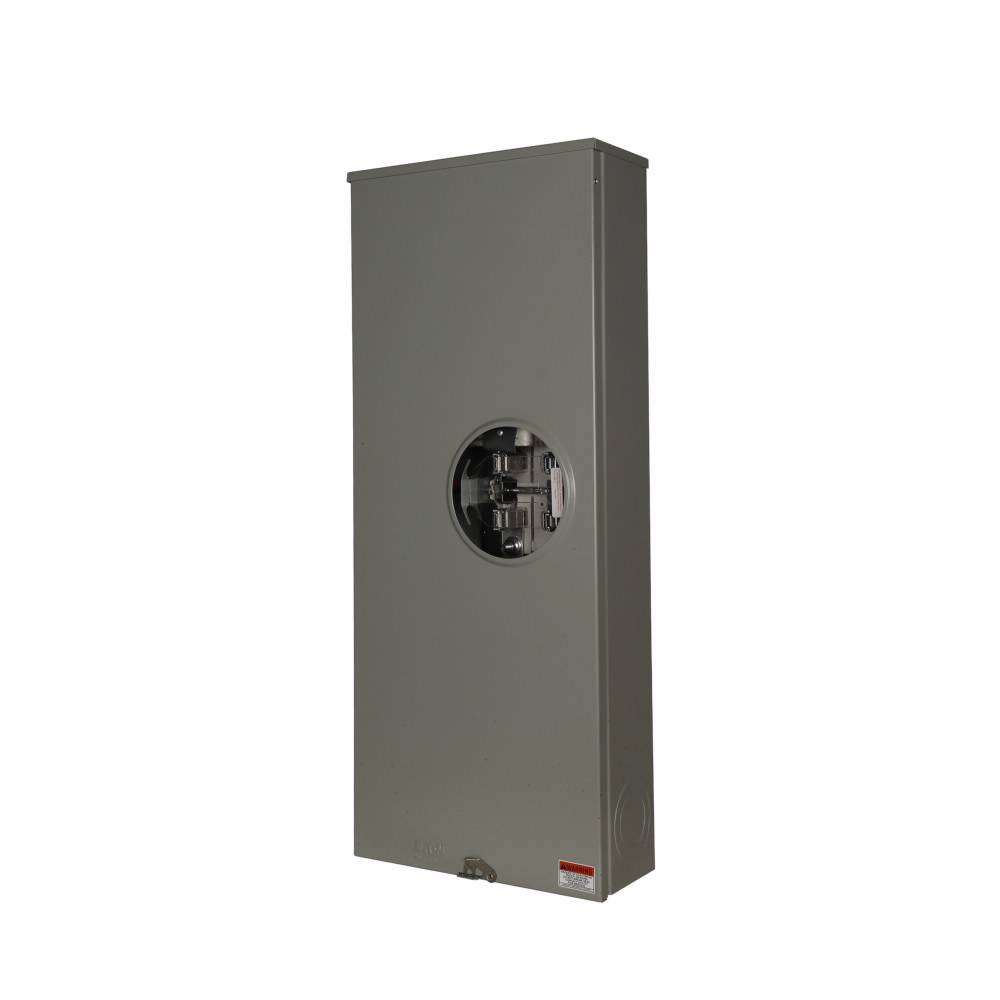

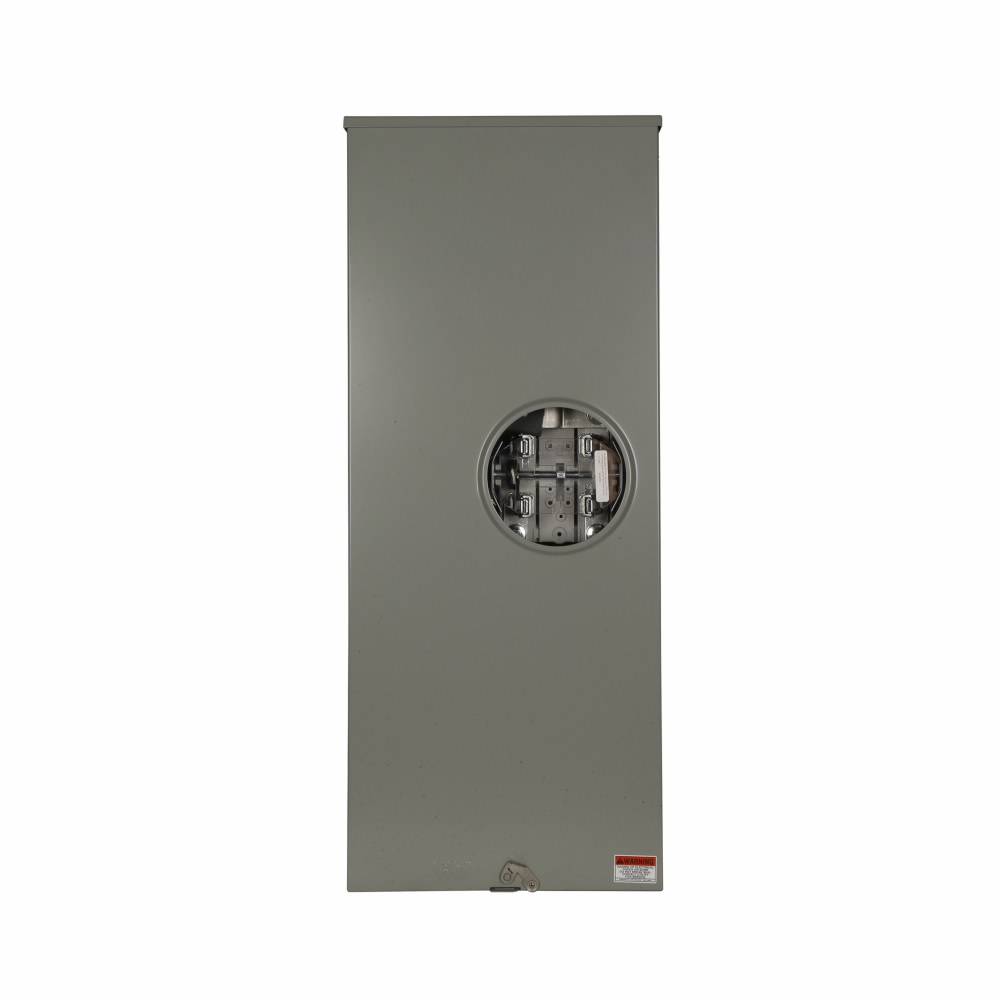

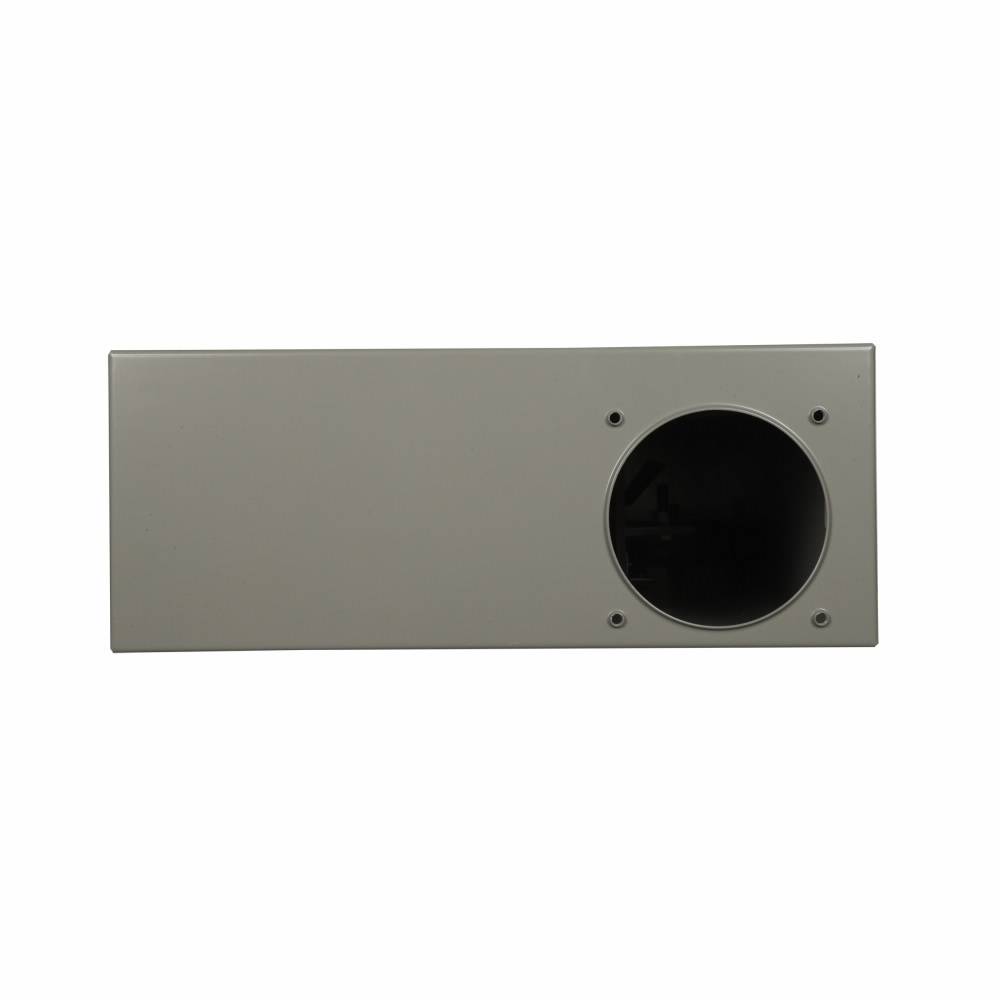

EATON 1007672CH 1-Position 3-Wire Lever Bypass Meter Socket, 600 VAC, 320 A, 1 ph Phase

Short Description

EATON's line-of single position, self-contained meter sockets house the utilities electrical watthour meters in residential and commercial buildings. Choose from the widest range of utility approved sockets in the industry, including 100 to 320 A units and designs such as ring less, bypass and more.

EATON Meter Socket, 1-Position 3-Wire Lever Bypass, 600 VAC, 320 A, 1 ph, Overhead/Underground Feed, 4 Jaws, 3/8 in Wire, Open, 5 x 5 in Hub, Ringless Cover, Stud Terminal, 5.69 in L x 15 in W x 36.63 in H
MFG #: 1007672CH

EECO #: CH1007672CH

Brand: Eaton
UPC #: 782116061204
Attributes
Features
Documents
Product Information
Attributes
Phase
1
UNSPSC
39121102
Hub Size
5 x 5
Wire Size
3/8
Application
Residential Buildings, Facilities and Commercial Applications
Terminal Type
Stud
Voltage Rating
600
Type
1-Position 3-Wire Lever Bypass
Hub Type
Open
Warranty
1 year
Cover Type
Ringless
Dimensions
5.69 in L x 15 in W x 36.63 in H
Amperage Rating
320
Features
  • Block assembly base exceeds 400 in-lb of torque provides durability under the most extreme installation circumstances
  • One-piece, die-run enclosure eliminates tampering and extends product life
  • High visibility EATON name embossed on cover
  • Knockouts are installer friendly, labor savings, less time needed for removing knockouts
  • Oversized 7/8 in Dia, heavy duty, steel lug screws stronger connection component facilitates a reliable wire termination
  • Slide nuts are captive allow for ease in installation of conductors and eliminates lost components
  • Horn bypass kit is field installable by changing out slide nut, integral triplex or quadplex ground extruded in neutral lugless inventory required and field modifications are simple
  • One-piece for terminating incoming/outgoing neutral conductors, which increases integrity of connections
  • 100% plated bridge with four point mounting, zinc chromate plated to provide superior corrosion resistance
  • Rating up to 200 kA interrupt rating with specified overcurrent protection devices
  • Provides a complete EATON residential solution
  • Copper plated alloy jaws with reinforcing spring
  • Steel reinforcing springs used in all socket jaws to maintain electrical connections
