EATON 1007003CCH 1-Position 4-Wire Instrument Rated Meter Socket, 600 VAC, 20 A, 3 ph Phase

Short Description

EATON's line-of single position, self-contained meter sockets house the utilities electrical watthour meters in residential and commercial buildings. Choose from the widest range of utility approved sockets in the industry, including 100 to 320 A units and designs such as ring less, bypass and more.

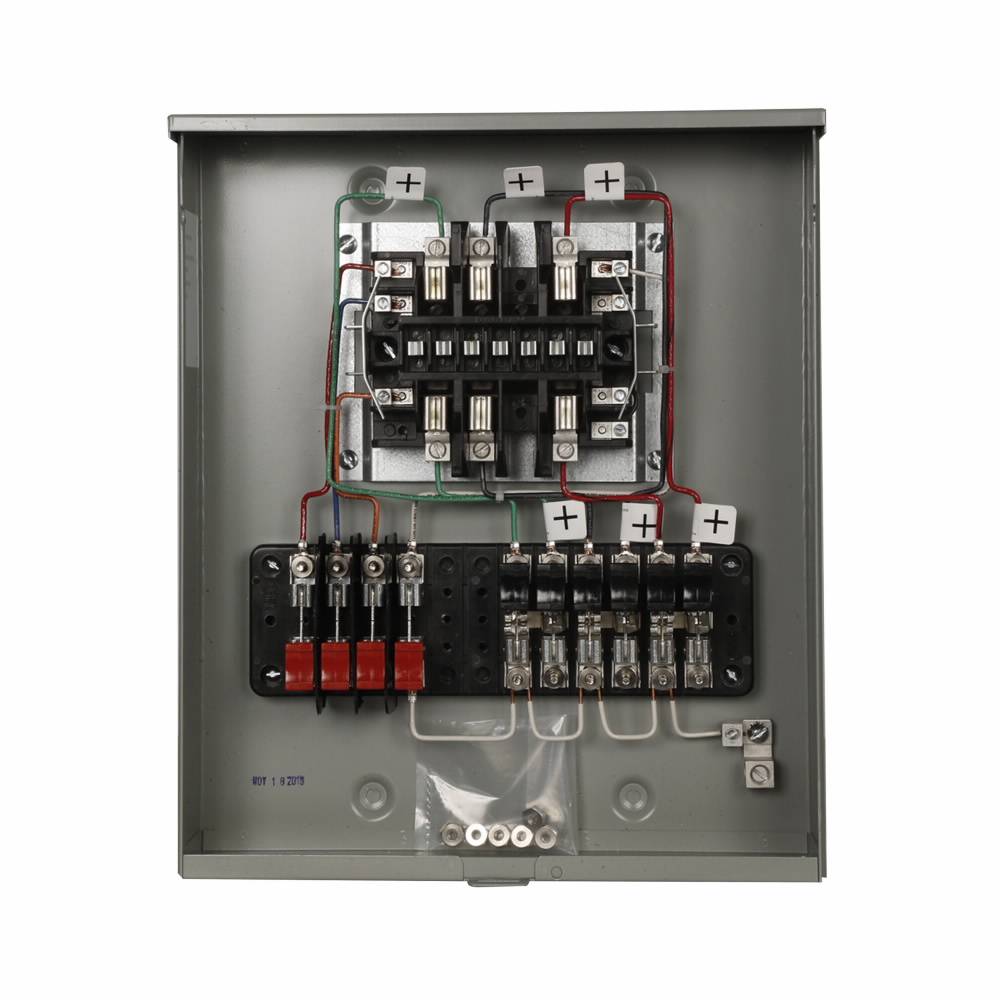

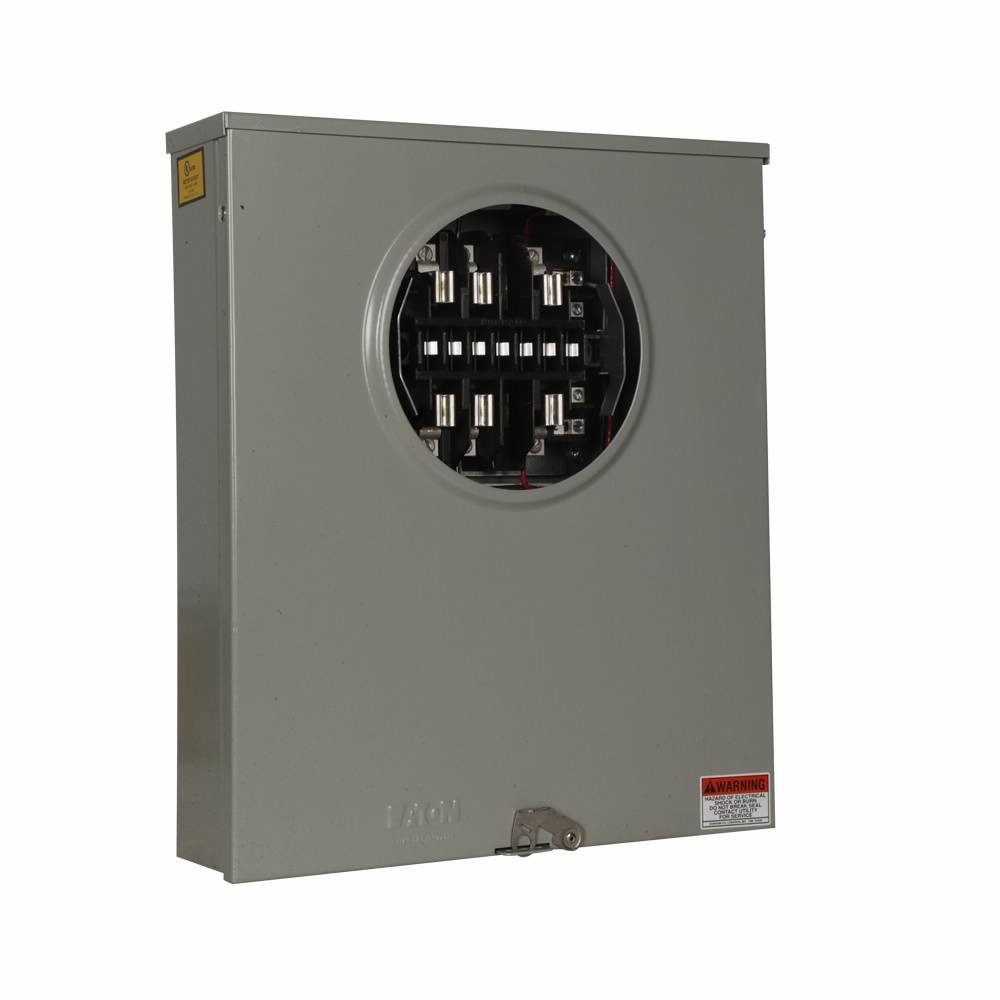

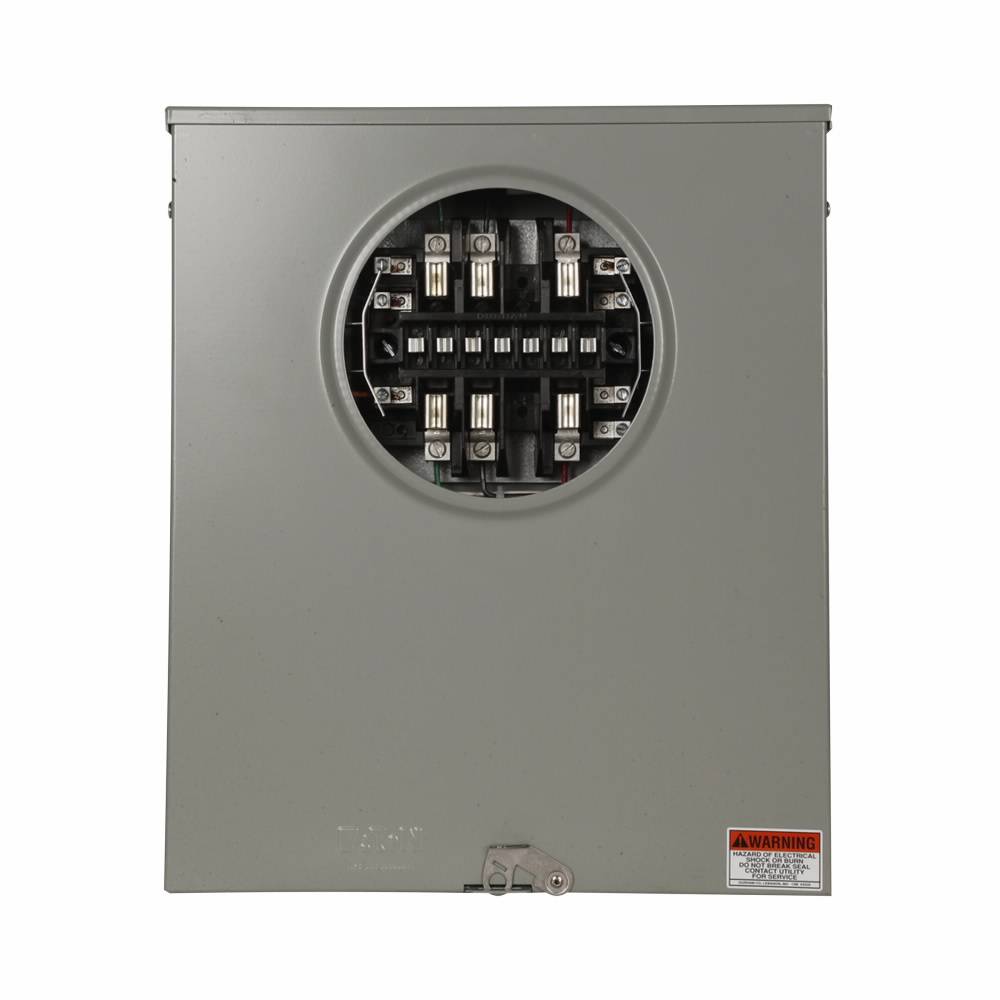

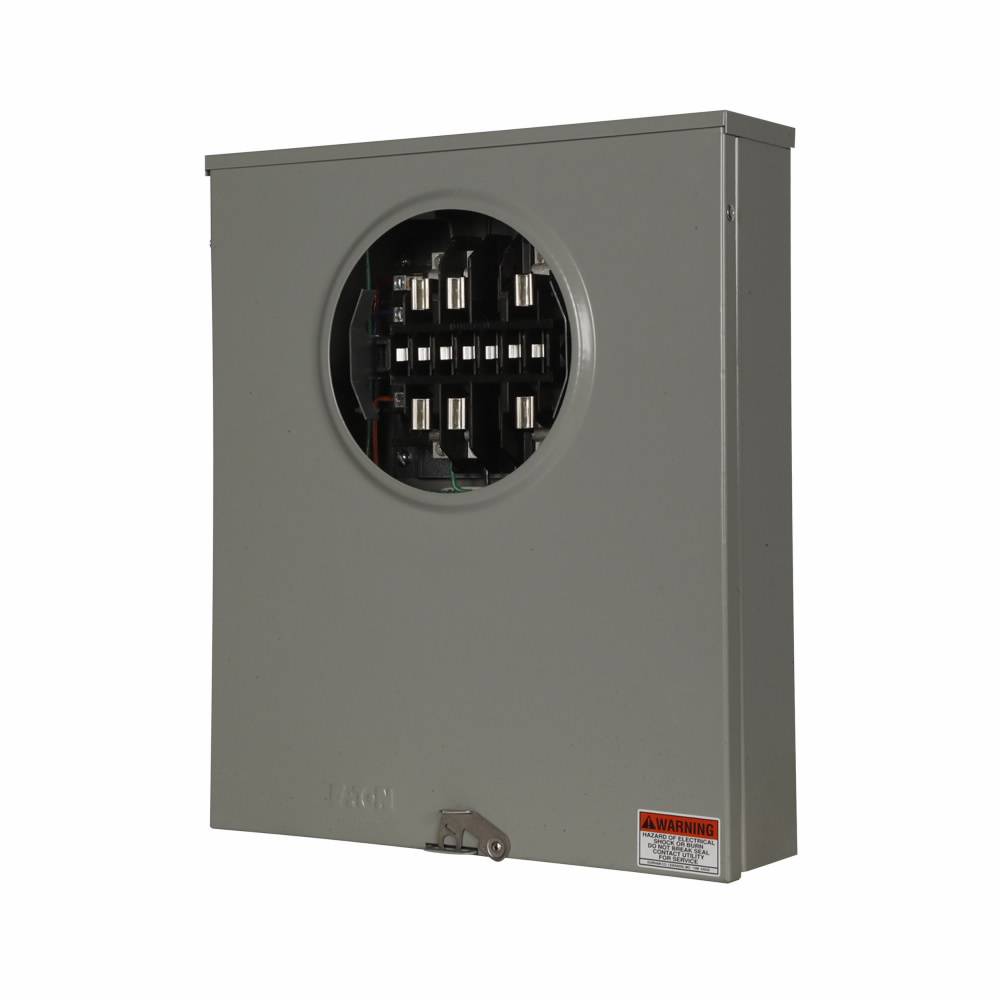

EATON Meter Socket, 1-Position 4-Wire Instrument Rated, 600 VAC, 20 A, 3 ph, Solid Bottom/Top Feed, 13 Jaws, Solid Top, 3-1/2 in L x 14 in W x 16-1/2 in H
MFG #: 1007003CCH

EECO #: CH1007003CCH

Brand: Eaton
UPC #: 786685226699
Attributes
Features
Documents
Product Information
Attributes
Phase
3
UNSPSC
39121102
Application
Residential Buildings and Facilities Applications
Voltage Rating
600
Type
1-Position 4-Wire Instrument Rated
Hub Type
Solid Top
Includes
Factory Wired Test Switch
Warranty
1 year
Dimensions
3-1/2 in L x 14 in W x 16-1/2 in H
Amperage Rating
20
Features
  • Block assembly base exceeds 400 in-lb of torque provides durability under the most extreme installation circumstances
  • One-piece, die-run enclosure eliminates tampering and extends product life
  • High visibility EATON name embossed on cover
  • Knockouts are installer friendly, labor savings, less time needed for removing knockouts
  • Oversized 7/8 in Dia, heavy duty, steel lug screws stronger connection component facilitates a reliable wire termination
  • Slide nuts are captive allow for ease in installation of conductors and eliminates lost components
  • Horn bypass kit is field installable by changing out slide nut, integral triplex or quadplex ground extruded in neutral lugless inventory required and field modifications are simple
  • One-piece for terminating incoming/outgoing neutral conductors, which increases integrity of connections
  • 100% plated bridge with four point mounting, zinc chromate plated to provide superior corrosion resistance
  • Rating up to 200 kA interrupt rating with specified overcurrent protection devices
  • Provides a complete EATON residential solution
  • Copper plated alloy jaws with reinforcing spring
  • Steel reinforcing springs used in all socket jaws to maintain electrical connections
