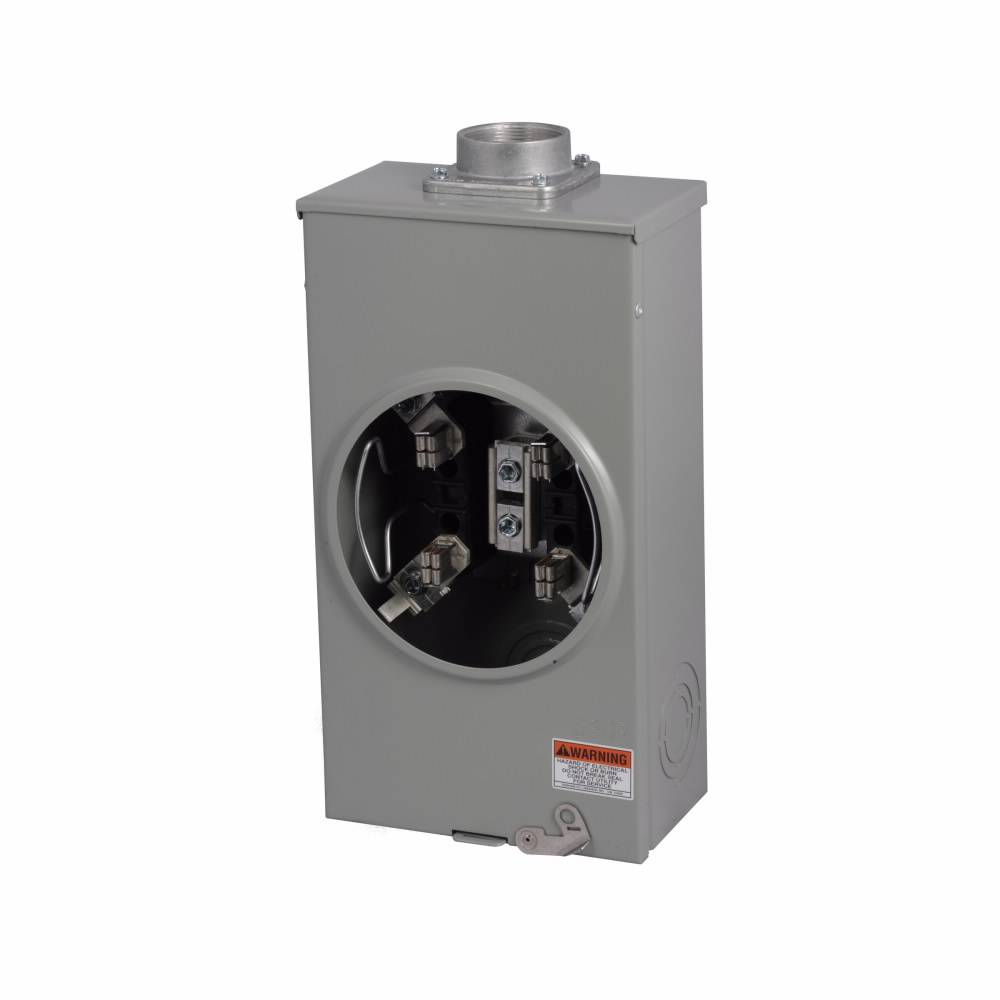

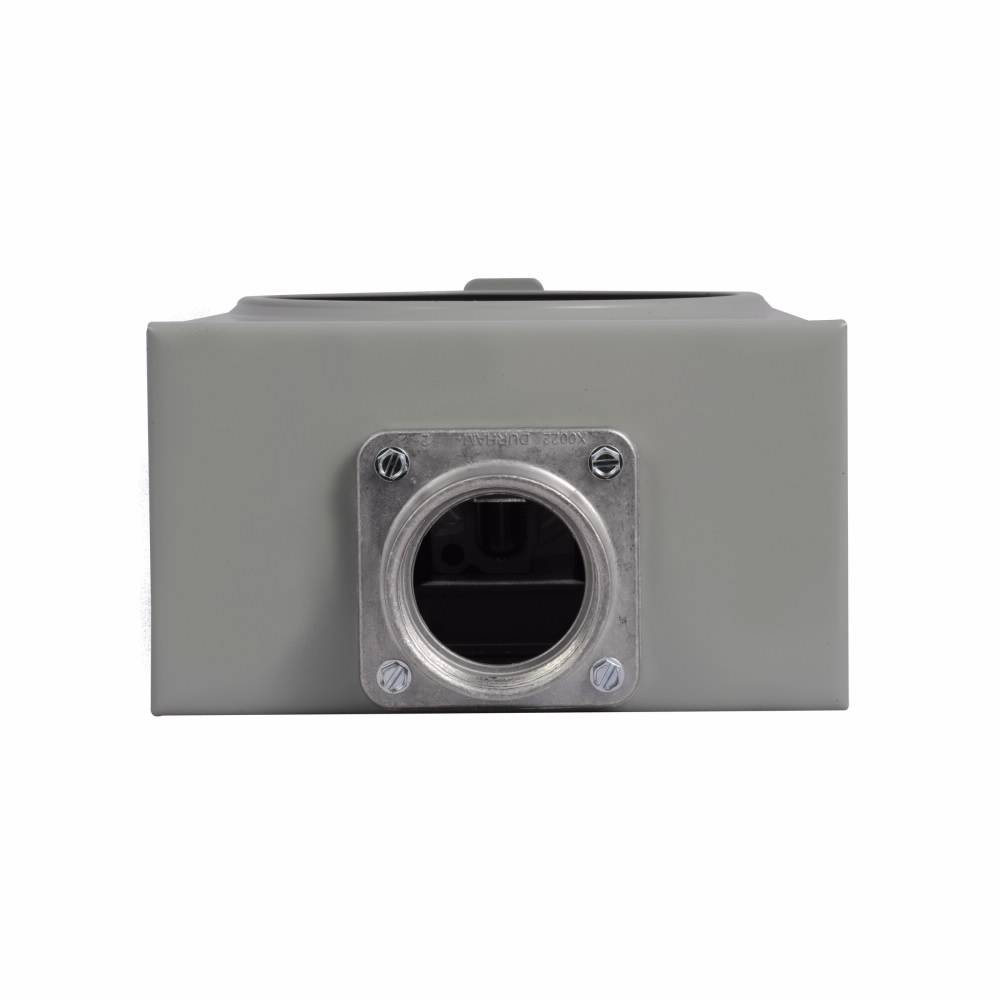

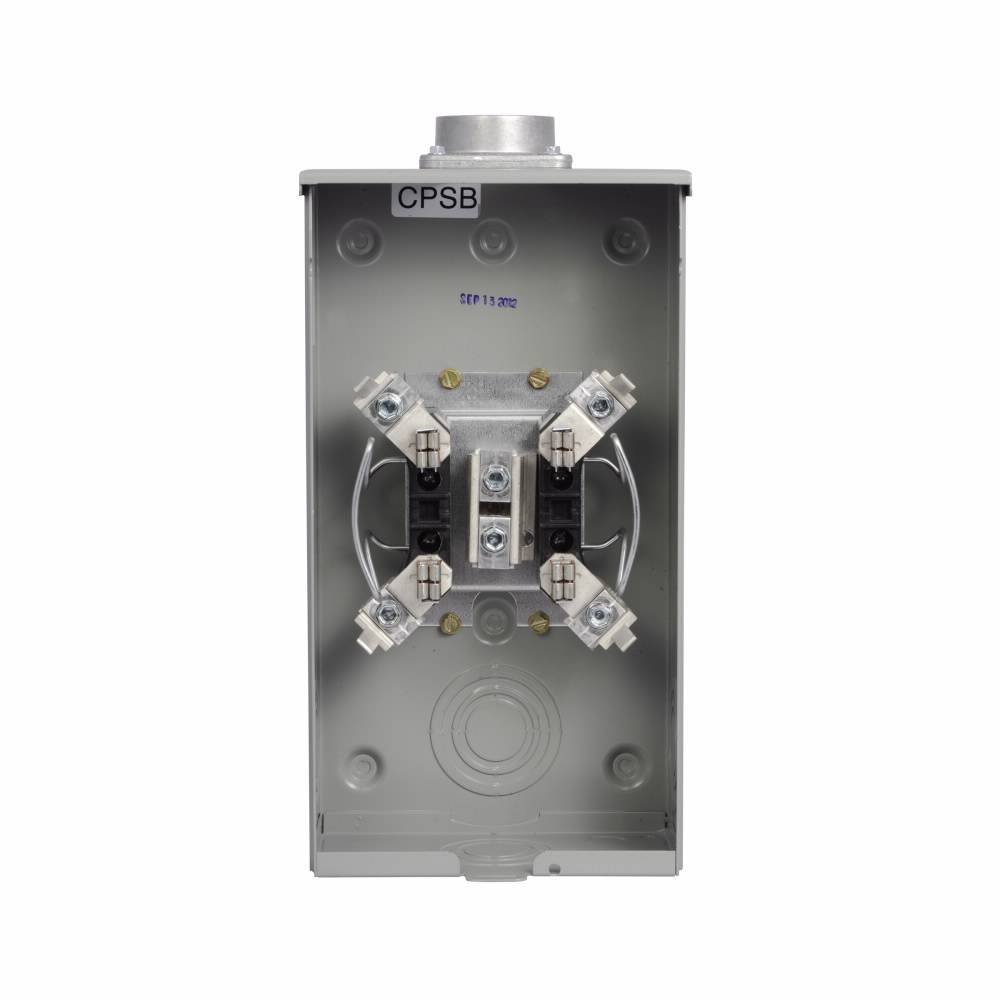

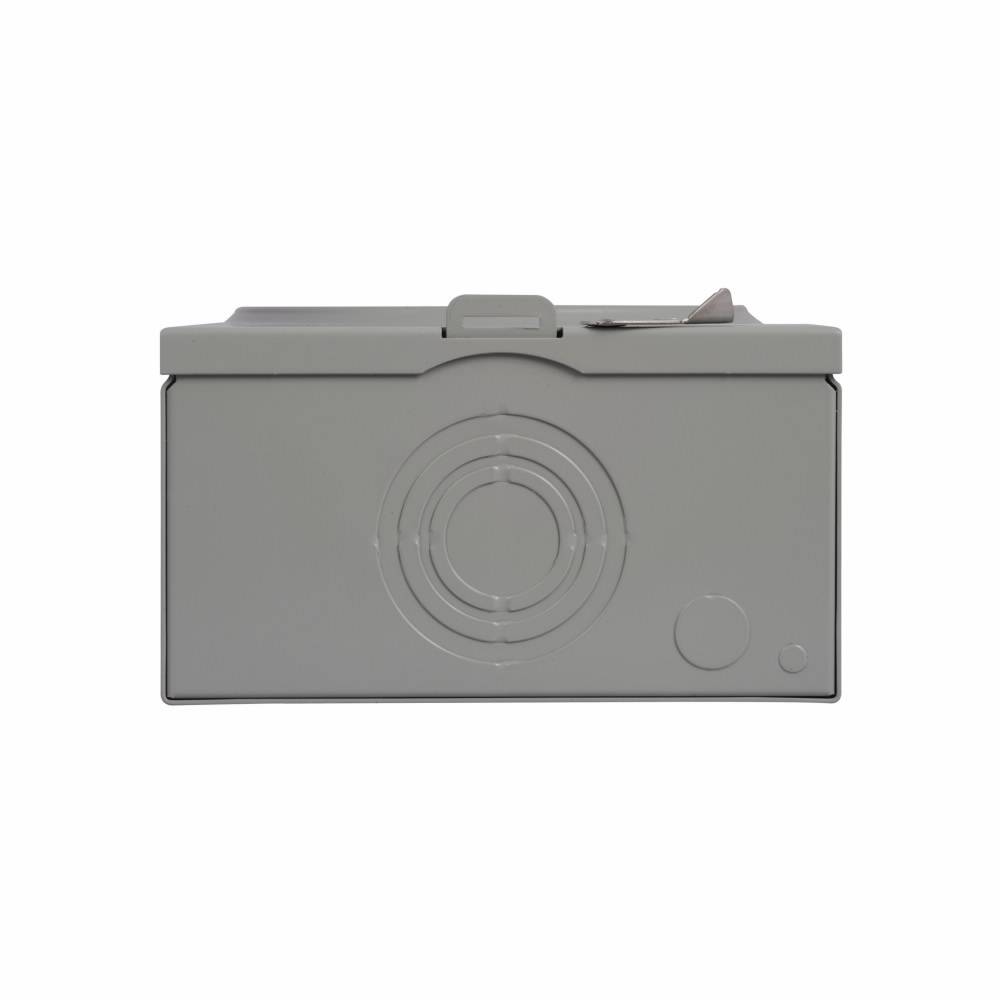

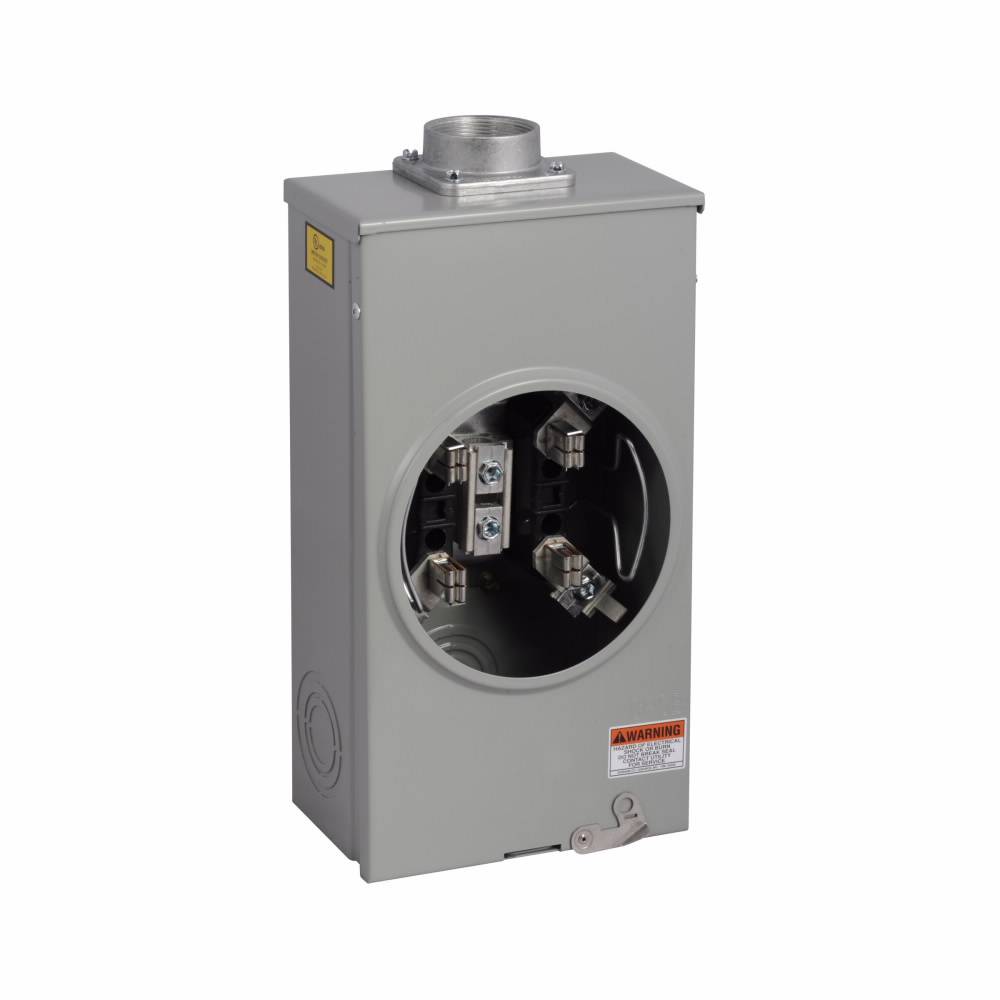

EATON Cutler-Hammer 1004455BCH 3-Wire 1-Position Residential Service Single Meter Socket With Horn Bypass, 600 VAC, 200 A, 1 Phase

Short Description

EATON line of 1-position, self contained meter sockets house the utilities electrical watt hour meters in residential and commercial buildings. Choose from the widest range of utility approved sockets in the industry, including 100 to 320 A units and designs such as ring less, bypass and more.

EATON Cutler-Hammer Single Meter Socket, 3-Wire 1-Position Residential Service, 600 VAC, 200 A, 1, Overhead/Underground Feed, 4 Jaws, 8 AWG to 250 kcmil Wire, Bolted-On Hub, 2 in Hub, Ringless Cover, Line/Load Terminal, 4.38 in L x 8 in W x 15 in H
MFG #: 1004455BCH

EECO #: CH1004455BCH

Brand: Eaton
UPC #: 786685160214
Attributes
Features
Documents
Product Information
Attributes
Phase
1
UNSPSC
39121102
Hub Size
2
Wire Size
8 AWG to 250 kcmil
Application
Residential Buildings Applications
Terminal Type
Line/Load
Voltage Rating
600
Type
3-Wire 1-Position Residential Service
Hub Type
Bolted-On
Warranty
1 year
Cover Type
Ringless
Dimensions
4.38 in L x 8 in W x 15 in H
Amperage Rating
200
Features
  • Block assembly base exceeds 400 in-lb of torque, which provides durability under the most extreme installation circumstances
  • 1-piece, die-run enclosure
  • High visibility EATON name embossed on cover
  • Knockouts are installer friendly
  • Oversized 7/8 in Dia, heavy duty, steel lug screws
  • Slide nuts are captive
  • Horn bypass kit is field installable by changing out slide nut
  • Integral triplex or quadplex ground extruded in neutral lug
  • 100% plated bridge with 4-point mounting
  • KAIC rating up to 200 kAIC rating with specified overcurrent protection devices
  • Provides a complete EATON residential solution
  • Copper plated alloy jaws with reinforcing spring
  • 8 AWG to 250 kcmil line/load
