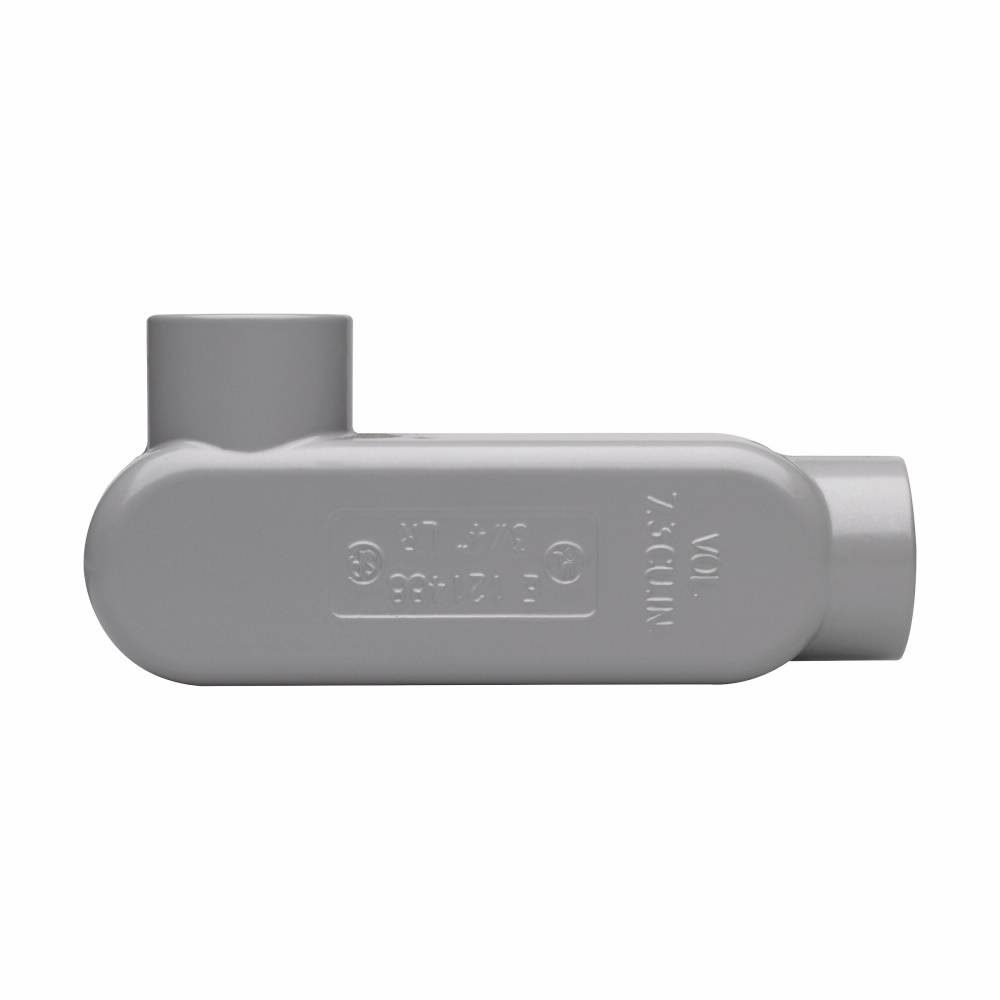

Crouse-Hinds Condulet® LR35 5 Series Type LR Corrosion-Resistant Conduit Outlet Body, 1 in Hub, 5 Form, 12.2 cu-in Capacity, Die Cast Copper-Free Aluminum, Epoxy Powder Coated

NOTICE: This item has been flagged as discontinued. Limited stock may be available. Please note that this item is subject to removal from your order if it is unfulfillable.
Short Description

Eaton Crouse-Hinds Division Series 5 die cast copper-free aluminum conduit bodies, covers and gaskets are available for use with rigid or EMT conduit (with set screw). Conduit bodies are available in trade sizes 1/2 to 4 in, in the most popular conduit body shapes (C, LB, LL, LR, T) and 1/2 to 2 in TB and X shapes. The Series 5 family is available as components or pre-packaged in various configurations as a SnapPack assembly. In addition, Series 5 is completely interchangeable with other manufacturers.

Crouse-Hinds Condulet® Conduit Outlet Body, Type LR Corrosion-Resistant, Series: 5 Series, 1 in Hub, 2 Hubs, 12.2 cu-in Capacity, 5 Form, Thread/Set Screw Connection, Die Cast Copper-Free Aluminum, Epoxy Powder Coated, Gray, 5.94 in L x 2.51 in W x 1.9 in H Dimensions

MFG #: LR35

EECO #: CBLR35

Brand: Crouse-Hinds
UPC #: 784564140135
Discontinued
Attributes
Features
Documents
Product Information
Attributes
Color
Gray
Finish
Epoxy Powder Coated
UNSPSC
39131708
Used On
IMC/Rigid Conduit
Approval
UL, CUL
Hub Size
1
Material
Die Cast Copper-Free Aluminum
Application
For providing openings for making splices and taps in conductors and connecting conduit sections, rigid/IMC conduit, commercial, institutional buildings, structures commercial and other applications
Hub Location
90 Degree
Installation
Set Screw, Threaded
Mounting Type
Surface
Number of Hubs
2
Connection Type
Thread/Set Screw
Enclosure
NEMA 4
Size
5.94 Inch Length x1.9 Inch Width x 2.51 Inch Height
Type
Type LR Corrosion-Resistant
Style
LR
Series
5 Series
Capacity
12.2
Includes
Hubs and Tri Head Set Screws
Warranty
12 months
Cover Type
Natural Finished Aluminum, Screw-On
Dimensions
5.94 in L x 2.51 in W x 1.9 in H
Features
  • Die cast copper-free aluminum construction is lightweight and corrosion-resistant for long reliable service
  • Epoxy powder coat finish provides additional corrosion-resistance and an aesthetically pleasing appearance
  • Conduit bodies are supplied with threaded hubs for use with rigid/IMC conduit or as a combination body
  • Combination bodies are supplied with tri-head set screws (Slotted, Phillips®, Robertson) for use with EMT or rigid/IMC conduit on trade sizes 1/2 to 2 in
  • Perforated center gasket that can be easily removed, if desired
