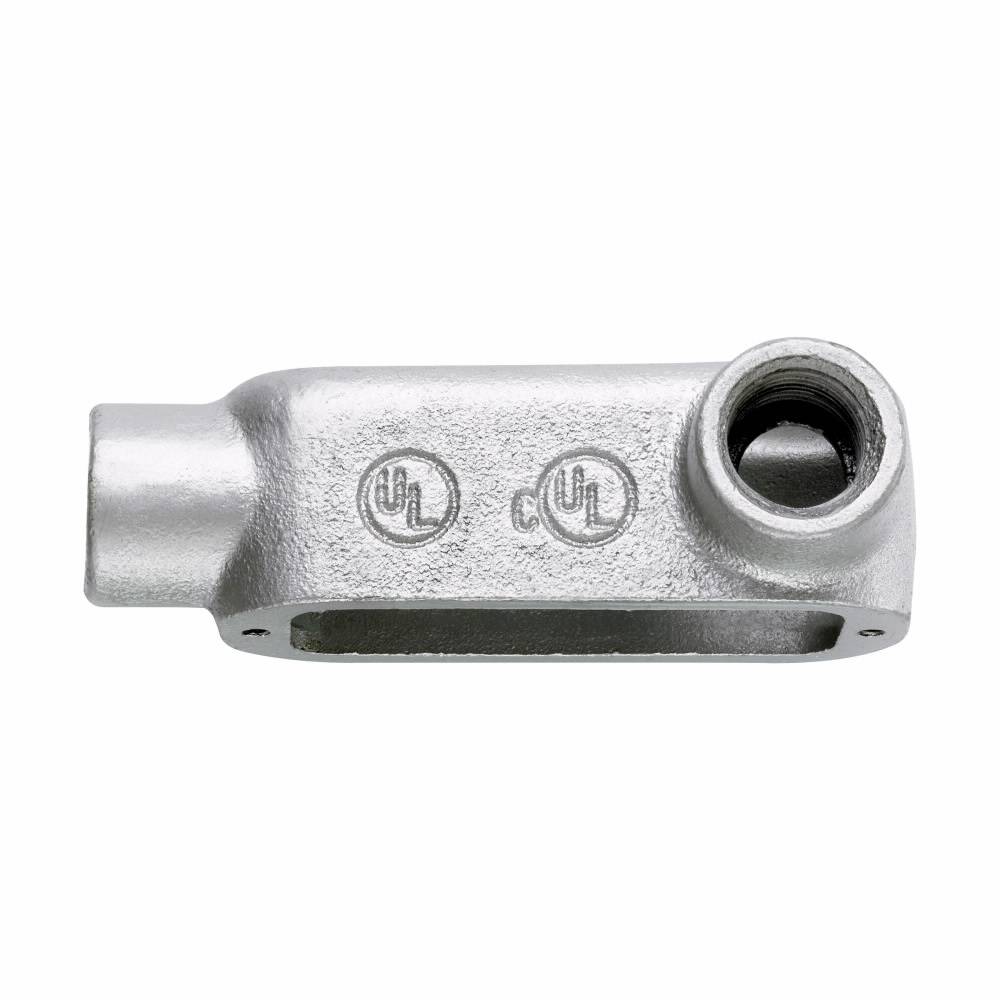

Crouse-Hinds Condulet® LR200M Type LR Conduit Outlet Body, 2 in Hub, 5 Form, 68 cu-in Capacity, Malleable Iron, Electro-Galvanized/Aluminum Acrylic Painted
Share Share Print Print
Eaton

Crouse-Hinds Condulet® LR200M Type LR Conduit Outlet Body, 2 in Hub, 5 Form, 68 cu-in Capacity, Malleable Iron, Electro-Galvanized/Aluminum Acrylic Painted

Short Description

Form 5 malleable iron conduit bodies, covers and gaskets from Eaton Crouse-Hinds Division are used in conduit systems to act as pull outlets for conductors being installed, provide openings for making splices and taps in conductors, make 90 deg bends in conduit runs and provide access to conductors for maintenance and future system changes. Form 5 conduit bodies are manufactured in trade sizes 1/2 to 4 in and are interchangeable with Appleton Form 35 conduit bodies. They are also available with a hot dip galvanized finish for added corrosion protection against road salt and other harsh environmental factors.

Crouse-Hinds Condulet® Conduit Outlet Body, Type LR, 2 in Hub, 2 Hubs, 68 cu-in Capacity, 5 Form, Thread Connection, Malleable Iron, Electro-Galvanized/Aluminum Acrylic Painted, 10.5 in L x 4.12 in W x 3.31 in H Dimensions

MFG #: LR200M

EECO #: CBLR200M

Brand: Crouse-Hinds
UPC #: 782274756080
Attributes
Features
Documents
Product Information
Attributes
Finish
Electro-Galvanized/Aluminum Acrylic Painted
UNSPSC
39131708
Hub Size
2
Material
Malleable Iron
Application
For providing openings for making splices and taps in conductors, connecting conduit sections, rigid conduit, commercial, institutional buildings, structures commercial and other applications
Number of Hubs
2
Connection Type
Thread
Type
Type LR
Capacity
68
Warranty
12 months
Dimensions
10.5 in L x 4.12 in W x 3.31 in H
Features
  • Interchangeable with Appleton® form 35 and O-Z/Gedney® malleable iron conduit outlet bodies
  • Act as pull outlets for conductor being installed
  • Smooth and rounded integral bushing for protection of wire insulation
  • Malleable iron construction provides high impact-resistance and durability
  • Zinc electroplate and aluminum acrylic paint finish for corrosion-resistance and durability
  • Solid neoprene natural finish gaskets may be converted to open type by pulling out perforated center section
  • Domed sheet steel electro-galvanized covers provide additional cubic capacity
  • Stainless steel self-retaining cover screw
  • New integral gasket sheet steel covers - NEMA 4 rated
  • Provide taps for branch conduit run, make 90 deg bends in conduit run
  • Provide access to conductor for maintenance and future system changes
  • (3) 4/0 AWG XHHW maximum number of conductor
  • Right side access opening
