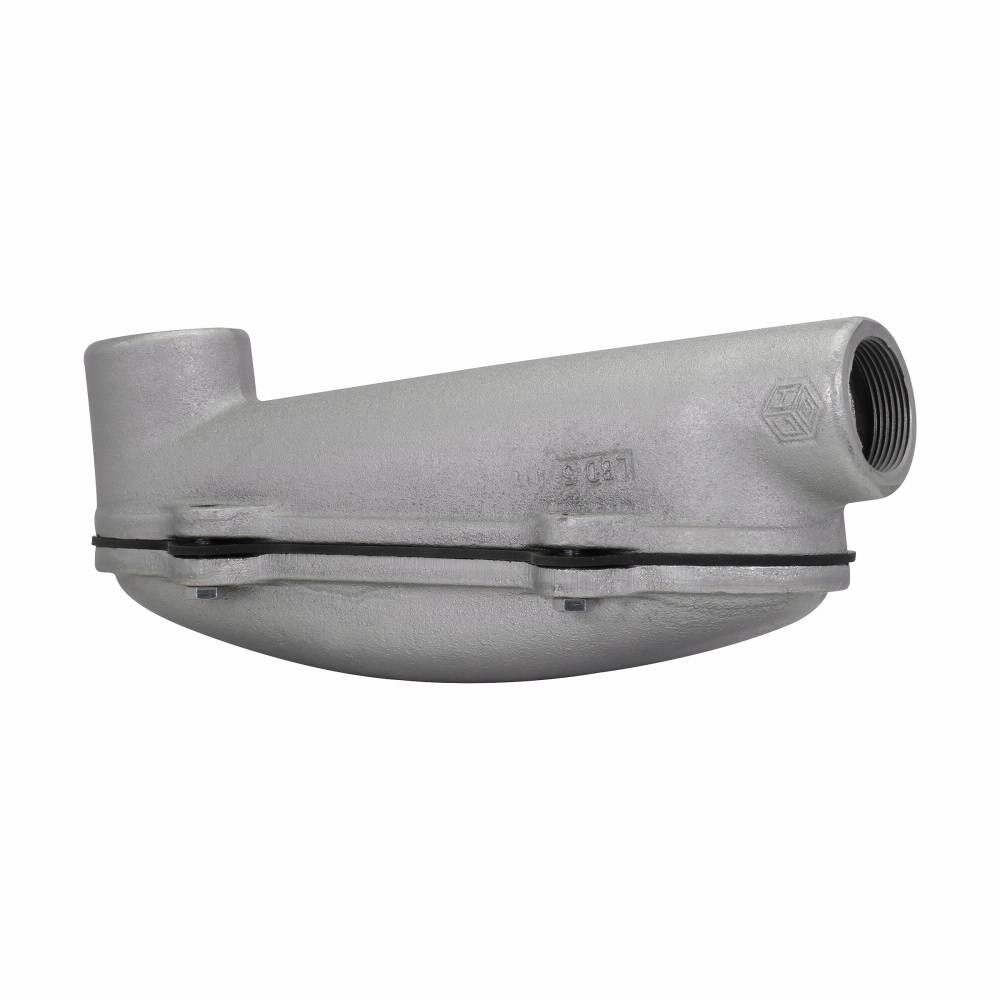

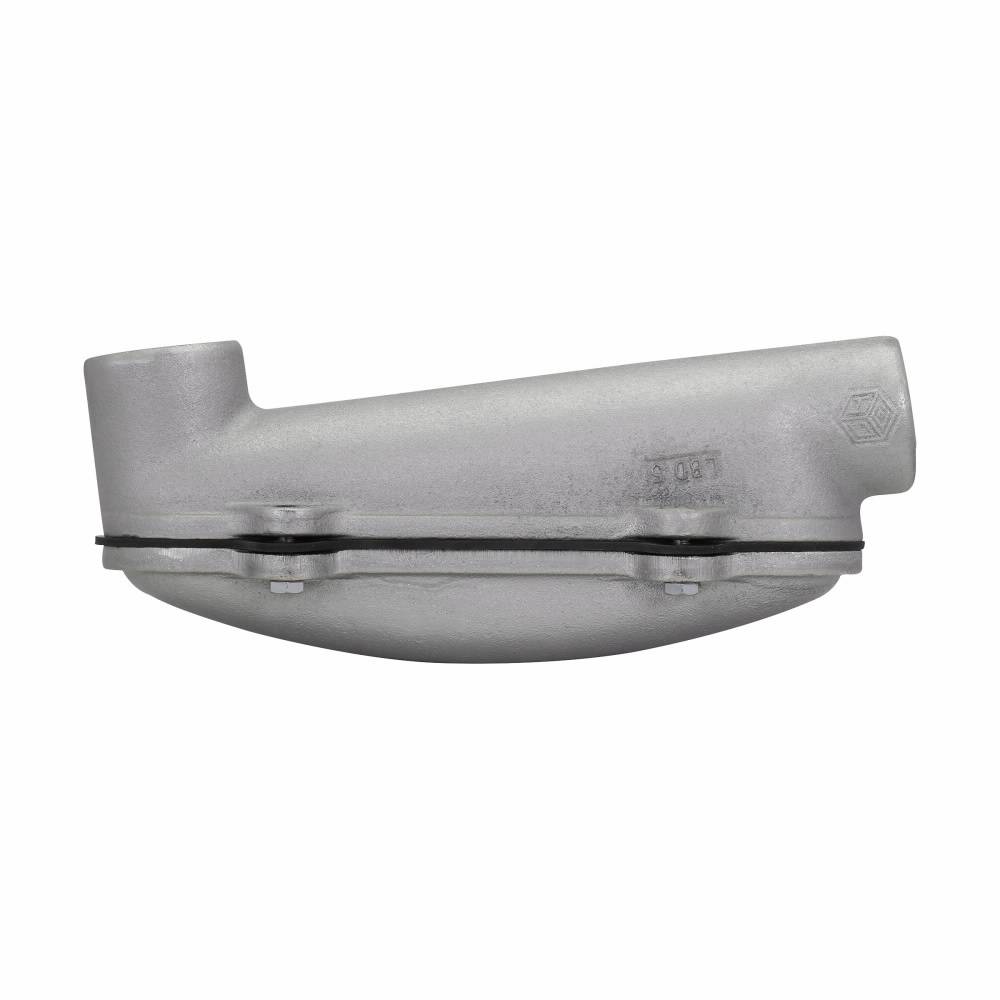

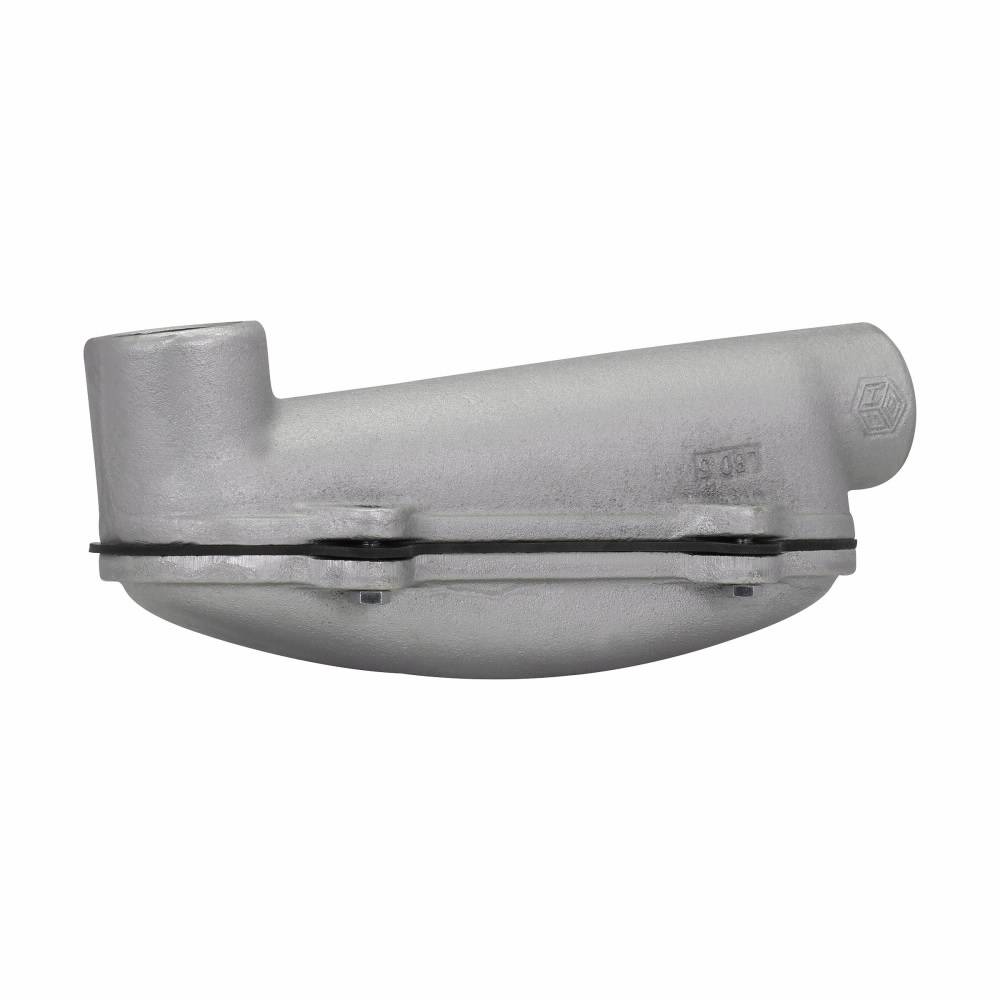

EATON Crouse-Hinds Condulet® LBD8800 Type LBD Mogul Conduit Body With Cover and Neoprene Gasket, 3 in Hub, Copper-Free Aluminum, Aluminum Acrylic Painted/Electro-Galvanized

NOTICE: This item has been flagged as discontinued. Limited stock may be available. Please note that this item is subject to removal from your order if it is unfulfillable.
Short Description

Crouse-Hinds series mogul bodies are installed in conduit systems to act as pull outlets for conductors that are stiff due to large size or type of insulation. Mogul bodies provide longer openings needed when pulling large conductors and prevent sharp bends and kinks during installation. Mogul conduit bodies are manufactured in trade sizes 1/2 to 6 in and are available in Feraloy iron alloy and copper-free aluminum. Our iron alloy bodies are available with a hot dip galvanized finish for added corrosion protection against road salt and other harsh environmental factors.

EATON Crouse-Hinds Condulet® Mogul Conduit Body, Type LBD, 3 in Hub, 2 Hubs, Threaded/Set Screw, Copper-Free Aluminum, Aluminum Acrylic Painted/Electro-Galvanized, 19-11/16 in L x 5-5/8 in W x 9-9/16 in H

MFG #: LBD8800

EECO #: CBLBD8800

Brand: Crouse-Hinds
UPC #: 782274518800
Discontinued
Attributes
Features
Documents
Product Information
Attributes
Finish
Aluminum Acrylic Painted/Electro-Galvanized
UNSPSC
39131708
Used On
Rigid Conduit
Approval
UL 514B, CSA C22.2
Hub Size
3
Material
Copper-Free Aluminum
Form Type
Mogul
Application
For 90 deg bends in rigid conduit to act as pull outlets for conductors that are stiff due to large size or type of insulation, provide for conduit service entrance to buildings, industry facilities and factories applications
Hub Location
90 Degree
Installation
Threaded
Access Opening
Back
Number of Hubs
2
Connection Type
Threaded/Set Screw
Size
19.6875 Inch Lengthx 5.625 Inch Width x 9.5625 Inch Height
Type
Type LBD
Style
LBD
Capacity
212
Warranty
Limited
Cover Type
Electrogalvanized Aluminum Acrylic Painted Feraloy Iron Alloy
Dimensions
19-11/16 in L x 5-5/8 in W x 9-9/16 in H
Features
  • Cover openings on an angle, permitting conductors to be pulled straight through hubs from either direction
  • Domed covers to permit easy conductor bends
  • Taper tapped hubs with integral bushings
