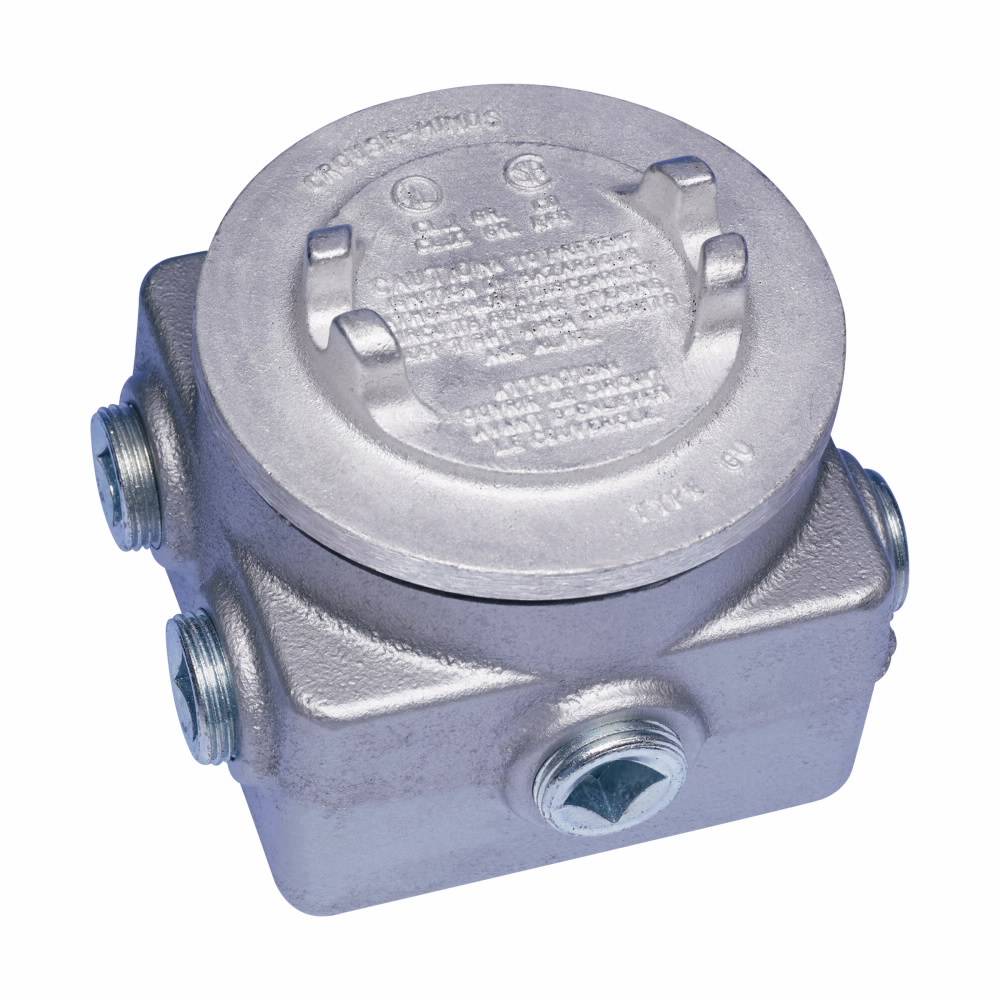

EATON Crouse-Hinds GUP214 Dust-Ignitionproof Explosionproof Raintight Junction Box, 4-1/8 in H x 4-1/8 in W x 2-3/4 in D, NEMA 4, Feraloy® Iron Alloy
EATON Crouse-Hinds GUP214 Dust-Ignitionproof Explosionproof Raintight Junction Box, 4-1/8 in H x 4-1/8 in W x 2-3/4 in D, NEMA 4, Feraloy® Iron Alloy
EATON Crouse-Hinds GUP214 Dust-Ignitionproof Explosionproof Raintight Junction Box, 4-1/8 in H x 4-1/8 in W x 2-3/4 in D, NEMA 4, Feraloy® Iron Alloy
EATON Crouse-Hinds GUP214 Dust-Ignitionproof Explosionproof Raintight Junction Box, 4-1/8 in H x 4-1/8 in W x 2-3/4 in D, NEMA 4, Feraloy® Iron Alloy
Share Share Print Print
Eaton

EATON Crouse-Hinds GUP214 Dust-Ignitionproof Explosionproof Raintight Junction Box, 4-1/8 in H x 4-1/8 in W x 2-3/4 in D, NEMA 4, Feraloy® Iron Alloy

NOTICE: This item has been flagged as discontinued. Limited stock may be available. Please note that this item is subject to removal from your order if it is unfulfillable.
Short Description

Compact in size, Crouse-Hinds series GUP explosionproof junction boxes are used in threaded rigid conduit systems in hazardous areas to function as a junction or pull box. They are ideal where space is limited, such as in gasoline pumps.

EATON Crouse-Hinds Junction Box, Dust-Ignitionproof Explosionproof Raintight, Series: GUP, 4-1/8 in Height, 4-1/8 in Width, 2-3/4 in Depth, NEMA 4, Feraloy® Iron Alloy, Electro-Galvanized/Aluminum Acrylic Painted

MFG #: GUP214

EECO #: CBGUP214

Brand: Crouse-Hinds
UPC #: 782274477305
Discontinued
Attributes
Features
Documents
Product Information
Attributes
Finish
Electro-Galvanized/Aluminum Acrylic Painted
UNSPSC
39121332
Approval
UL 1203, CSA C22.2
Hub Size
3/4 Inch (Bottom, Side), 3/4 Inch (Top)
Material
Feraloy® Iron Alloy
Application
Indoor/Outdoor, Power Distribution and Control Applications
Nema Rating
Class I Div 1 and 2 Group C D, Class II Div 1 Group E F G, Class II Div 2 Group F G, Class III
Hub Location
(2) Top, (2) Bottom, (1) Side
Body Material
Feraloy Iron Alloy
Type
Dust-Ignitionproof Explosionproof Raintight
Depth
2-3/4
Width
4-1/8
Height
4-1/8
Series
GUP
Capacity
29
Includes
7-3/4 in Pipe Plugs, (4) 3/4 in Back Hub, (2) 3/4 in Bottom Hub, (1) 3/4 in Side Hub and (2) 3/4 in Top Hub
Warranty
Limited
Cover Type
Threaded
Body Finish
Electrogalvanized Aluminum Acrylic Painted
Cover Finish
Natural
Cover Material
Copper-Free Aluminum
Features
  • Compact design for mounting in areas with limited space
  • Neoprene O-ring gasket in cover provides UL type 4 watertight rating for enclosure
  • Internal green ground screw provided to terminate ground wire
  • Raised ears on cover to assist in cover tightening and removal
  • Body has 29 cu-in wiring capacity
