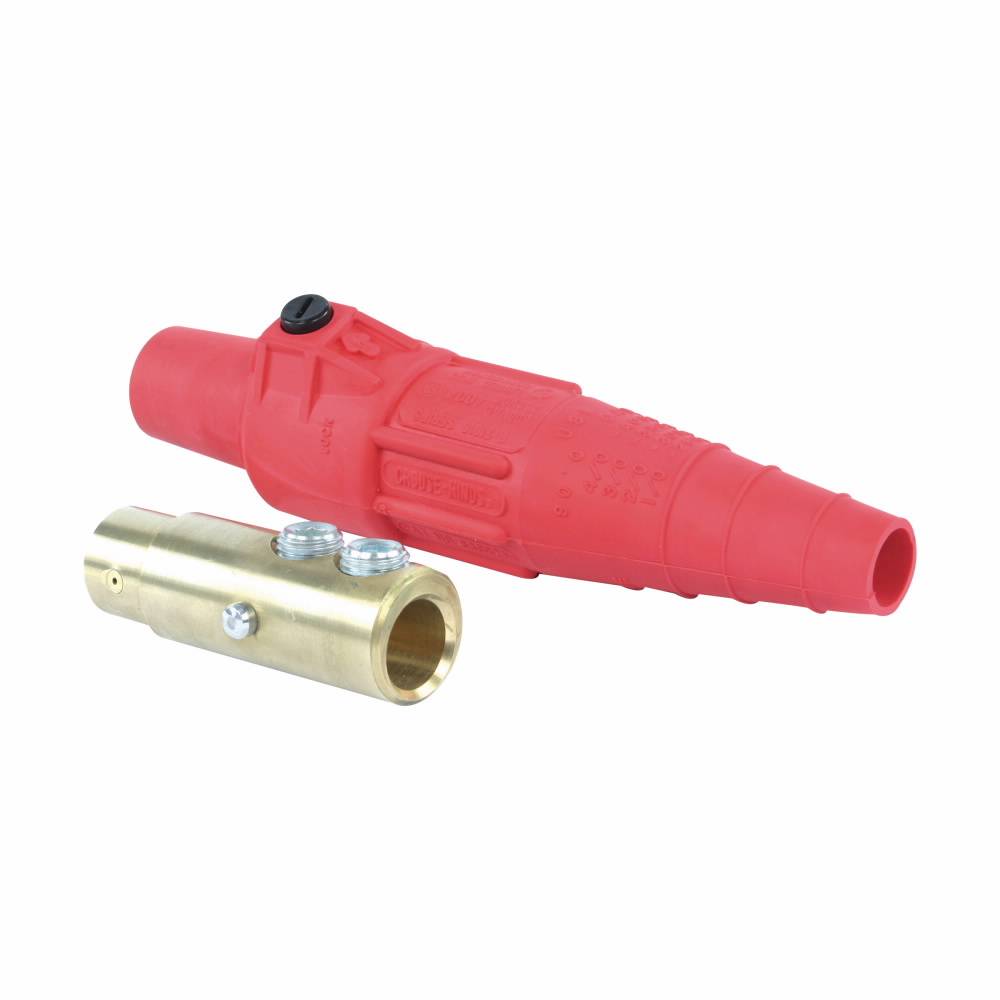

Crouse-Hinds Cam-Lok™ E-Z1016-8388 J Series E-Z1016 Female Non-Vulcanized Single Pole Plug, 600 VAC/VDC, 400 A, 2 to 4/0 AWG Wire, Double Set Screw Connection, NEMA 3R/4 NEMA Rating
Share Share Print Print
Eaton

Crouse-Hinds Cam-Lok™ E-Z1016-8388 J Series E-Z1016 Female Non-Vulcanized Single Pole Plug, 600 VAC/VDC, 400 A, 2 to 4/0 AWG Wire, Double Set Screw Connection, NEMA 3R/4 NEMA Rating

NOTICE: This item has been flagged as discontinued. Limited stock may be available. Please note that this item is subject to removal from your order if it is unfulfillable.
Short Description

The Cam-Lok™ J series from Eaton Crouse-Hinds Division provides the means to quickly connect and disconnect power systems safely. Cam-Lok™ is the industry'standard for motors, generators, indoor and outdoor lighting distribution panels and numerous other power applications.

Crouse-Hinds Cam-Lok™ Single Pole Plug, Female Non-Vulcanized, Series: J Series E-Z1016, 600 VAC/VDC, 400 A, 2 to 4/0 AWG Wire, Double Set Screw Connection, Brass Contact, TPE Housing Material, NEMA 3R/4 NEMA Rating, -40 to 105 deg C, Yellow, 1.49 in Dia x 7.26 in L Dimensions
MFG #: E-Z1016-8388

EECO #: CBEZ10168388

Brand: Crouse-Hinds
UPC #: 662275120762
Discontinued
Attributes
Features
Documents
Product Information
Attributes
Color
Yellow
UNSPSC
39121406
Wire Size
2 to 4/0
Application
Industrial Facilities and Factories, Facility, Power Distribution, Control, Quick Disconnect Power Systems, Indoor and Outdoor Applications
Voltage Rating
600
Connection Type
Double Set Screw
Housing Material
TPE
Temperature Rating
-40 to 105
Type
Female Non-Vulcanized
Series
J Series E-Z1016
Includes
E-Z200075-61 Insulator and A200641-1 Contact
Dimensions
1.49 in Dia x 7.26 in L
Amperage Rating
400
Contact Material
Brass
Features
  • Double cam principle provides a positive vibration-proof connection
  • Self-compensating for wear
  • No moving contact surfaces, eliminating arching or burning of contact
  • Superior electro-mechanical connection
  • Locked contact will withstand a pulling force of 1000 lb
  • 1/3 in of a turn assures a high pressure contact approaching 600 lb/sq-in, providing minimum-resistance
  • Contacts carefully machined from a high conductivity brass to a smooth sliding fit and easy locking action
  • Watertight non-vulcanized elastomeric insulators molded from colorfast material, color-coded for easy phase identification
  • Recessed contact protected by insulating jacket that extends beyond contact ends for safety
  • Integrated strain relief system features a retaining wire that prevents cable jacket pull-away and bare conductor exposure
  • Features a high strength, molded-in place locking ring to capture and secure the insulator to the contact
  • E - Z assembly and disassembly requires no tool needed
