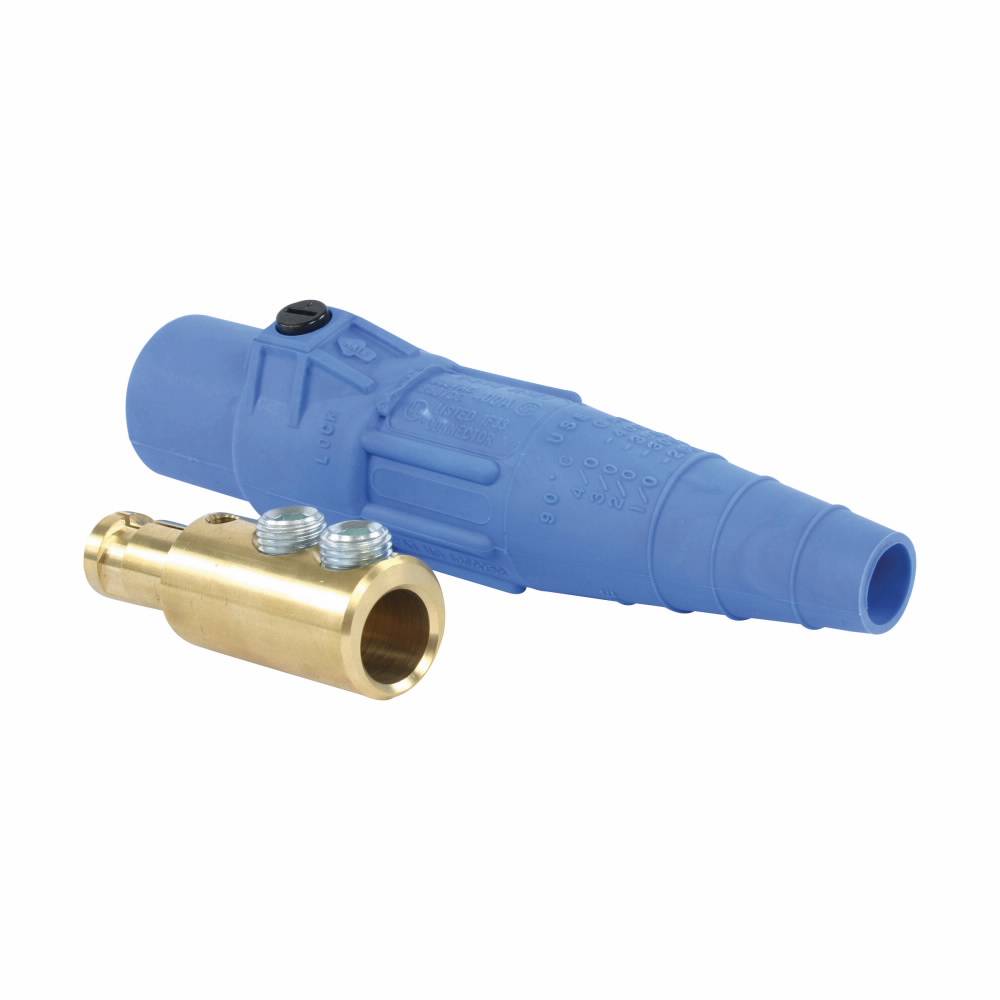

EATON Crouse-Hinds Cam-Lok™ E-Z1016-8363 J Series 1-Pole Non-Vulcanized Male Plug, 600 VAC/VDC, 400 A, 2 to 4/0 AWG Wire, Double Setscrew Connection, NEMA 3R/4 NEMA Rating
Share Share Print Print
Eaton

EATON Crouse-Hinds Cam-Lok™ E-Z1016-8363 J Series 1-Pole Non-Vulcanized Male Plug, 600 VAC/VDC, 400 A, 2 to 4/0 AWG Wire, Double Setscrew Connection, NEMA 3R/4 NEMA Rating

NOTICE: This item has been flagged as discontinued. Limited stock may be available. Please note that this item is subject to removal from your order if it is unfulfillable.
Short Description

The Cam-Lok J series from Eaton's Crouse-Hinds Division provides the means to quickly connect and disconnect power systems safely. Cam-Lok is the industry standard for motors, generators, indoor and outdoor lighting distribution panels, and numerous other power applications.

EATON Crouse-Hinds Cam-Lok™ Non-Vulcanized Male Plug, 1-Pole, Series: J Series E-Z1016, 600 VAC/VDC, 400 A, 2 to 4/0 AWG Wire, Double Setscrew Connection, Brass Contact, TPE Housing Material, NEMA 3R/4 NEMA Rating, -40 to 105 deg C, Yellow, 1.49 in Dia x 7.14 in L Dimensions
MFG #: E-Z1016-8363

EECO #: CBEZ10168363

Brand: Crouse-Hinds
UPC #: 662275120601
Discontinued
Attributes
Features
Documents
Product Information
Attributes
Color
Yellow
UNSPSC
39121406
Wire Size
2 to 4/0
Application
Industrial Facilities, Factories Facility, Power Distribution and Control, Quick Disconnect Power Systems Indoor, Outdoor
Voltage Rating
600
Connection Type
Double Setscrew
Housing Material
TPE
Temperature Rating
-40 to 105
Type
1-Pole
Series
J Series E-Z1016
Includes
E-Z200074-61 Insulator and A200639-1 Contact
Dimensions
1.49 in Dia x 7.14 in L
Amperage Rating
400
Contact Material
Brass
Features
  • E-Z assembly and disassembly - no tools needed
  • Double cam principle provides a positive, vibration proof connection
  • Self-compensating for wear
  • No moving contact surfaces, eliminating arcing or burning of contacts
  • Superior electromechanical connections
  • Locked contacts will withstand a pulling force of 1000 lb
  • 1/3 of a turn assures a high pressure contact approaching 600 lb/sq-in providing minimum resistance
  • Contacts carefully machined from a high conductivity brass to provide a smooth sliding fit and easy locking action
  • Watertight elastomeric insulators molded from colorfast material, color coded for easy phase identification
  • Recessed contacts protected by insulating jacket that extends beyond contact ends for safety
  • Integrated strain relief system features a retaining wire that prevents cable jacket pull-away and bare conductor exposure
  • Plugs feature a high strength, molded-in-place locking ring to capture and secure the insulator to the contact
