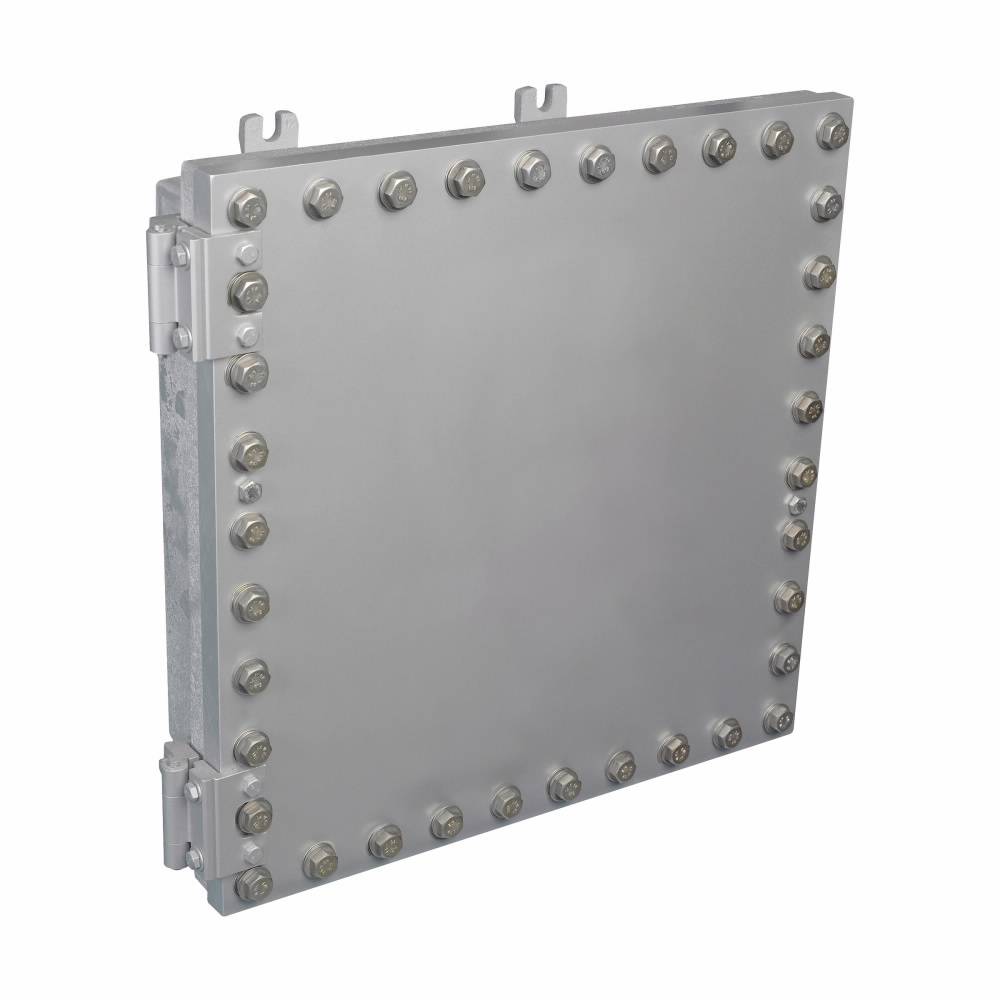

Crouse-Hinds EJB602212 Style C Dust-Ignitionproof Explosionproof Raintight Non-Insulated Junction Box, 22 in W x 12 in D, NEMA 3/3R/4/4X/7B/7C/7D/9E/9F/9G/IP66 NEMA Rating, Copper-Free Aluminum
Crouse-Hinds EJB602212 Style C Dust-Ignitionproof Explosionproof Raintight Non-Insulated Junction Box, 22 in W x 12 in D, NEMA 3/3R/4/4X/7B/7C/7D/9E/9F/9G/IP66 NEMA Rating, Copper-Free Aluminum
Crouse-Hinds EJB602212 Style C Dust-Ignitionproof Explosionproof Raintight Non-Insulated Junction Box, 22 in W x 12 in D, NEMA 3/3R/4/4X/7B/7C/7D/9E/9F/9G/IP66 NEMA Rating, Copper-Free Aluminum
Crouse-Hinds EJB602212 Style C Dust-Ignitionproof Explosionproof Raintight Non-Insulated Junction Box, 22 in W x 12 in D, NEMA 3/3R/4/4X/7B/7C/7D/9E/9F/9G/IP66 NEMA Rating, Copper-Free Aluminum
Share Share Print Print
Eaton

Crouse-Hinds EJB602212 Style C Dust-Ignitionproof Explosionproof Raintight Non-Insulated Junction Box, 22 in W x 12 in D, NEMA 3/3R/4/4X/7B/7C/7D/9E/9F/9G/IP66 NEMA Rating, Copper-Free Aluminum

NOTICE: This item has been flagged as discontinued. Limited stock may be available. Please note that this item is subject to removal from your order if it is unfulfillable.
Short Description

Crouse-Hinds series EJB Series Explosion proof Enclosures are designed for hazardous locations to be used as a junction or pull box, to provide enclosures for slices and taps and for housing terminal blocks, relays and other electrical devices. EJB Enclosures are globally certified for use in worldwide applications. They are listed for Class I, Division 1 and Class II, Division 1 hazardous areas and they also have IECEx and ATEX certifications.

Crouse-Hinds Junction Box, Style C Dust-Ignitionproof Explosionproof Raintight Non-Insulated, Series: EJB, 22 in Width, 12 in Depth, NEMA 3/3R/4/4X/7B/7C/7D/9E/9F/9G/IP66 NEMA Rating, Lock: Cover Bolt, Detachable Feet Mounting, Copper-Free Aluminum, Natural, Gray

MFG #: EJB602212

EECO #: CBEJB602212

Brand: Crouse-Hinds
UPC #: 782274882727
Discontinued
Attributes
Features
Documents
Product Information
Attributes
Color
Gray
Shape
Square
Finish
Natural
UNSPSC
39121314
Material
Copper-Free Aluminum
Application
For used in threaded rigid conduit systems in hazardous locations, industrial facilities and factories, facility, power distribution and control applications
Mounting Type
Detachable Feet
Enclosure Type
NEMA 3/4/7/9
Type
Style C Dust-Ignitionproof Explosionproof Raintight Non-Insulated
Depth
12
Width
22
Series
EJB
Warranty
12 months
Dimensions
29 in W X 14-1/4 in D X 70 in H
Features
  • Style C boxes provided with aluminum plate cover as standard, allowing for field addition of cover device holes
  • Stainless steel cover bolts
  • Ground joint cover opening provides maximum opening for pulling wires or mounting equipment
  • Walls of bodies may be drilled and tapped for conduit entries as shown in listing
  • Stud bolts in diagonally opposite corners of body aid in aligning cover to body during installation
  • All style C bodies are provided with captive, triple lead, quick release hex head stainless steel bolts with spring loaded action which provides clear indication that cover bolts are fully retracted from the body
  • External flange design wide unobstructed cover opening provides a completely accessible interior for wiring and electrical equipment
  • Square corners of enclosure body provide maximum interior space and area for conduit openings
  • Internal grounding lug provides a means to ground enclosed equipment
  • Special neoprene cover gasket provides a watertight seal to meet NEMA 4 requirements and provides superior protection for enclosed equipment against water/corrosion
  • Enclosures are machined for field installed mounting plate
  • Detachable mounting feet provide mounting flexibility no need to replace enclosure if mounting feet are broken
  • Enclosures are machined to accept field installed hinges
  • Captive triple-lead quick-release hex head stainless steel bolts
  • Without hinge
