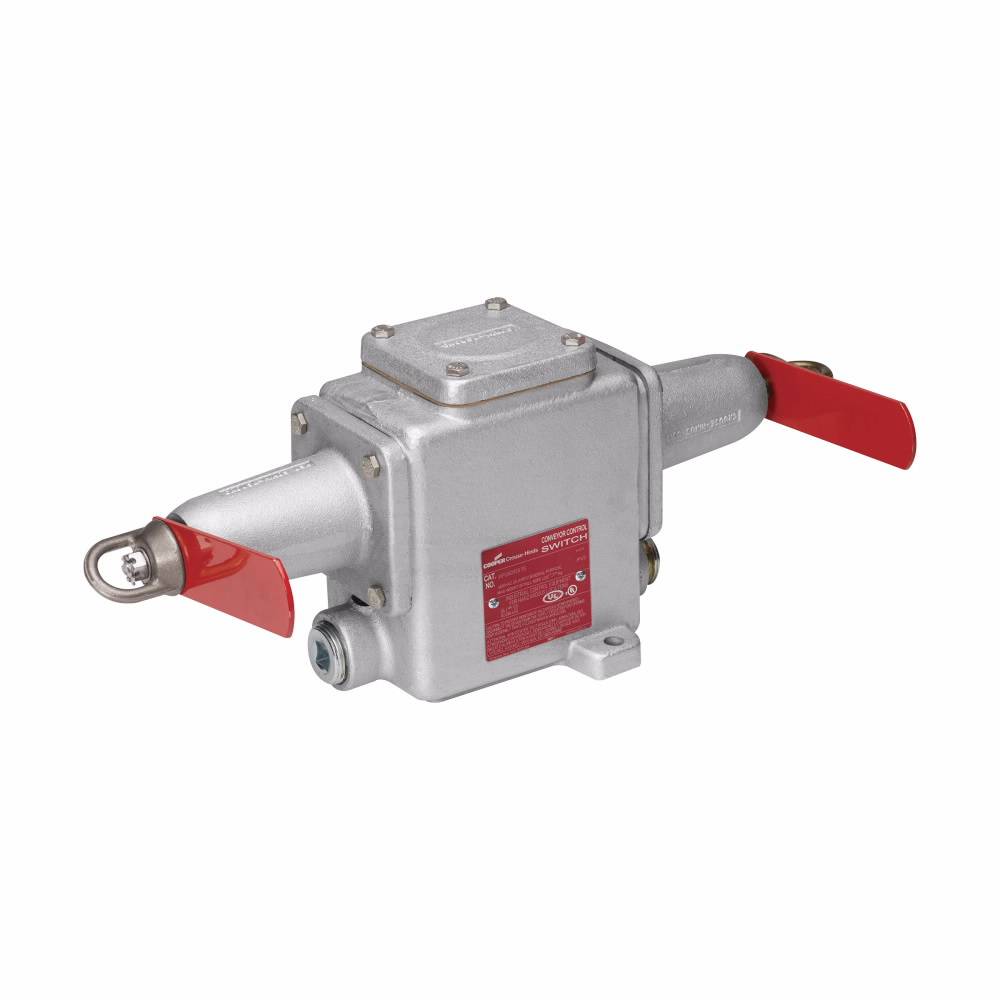

Crouse-Hinds Crouse-Hinds AFU0333 55 Double End Explosionproof Safety Snap action Conveyor Belt Control Switch, 600 VAC, 15 A, 2NO-2NC Contact

NOTICE: This item has been flagged as discontinued. Limited stock may be available. Please note that this item is subject to removal from your order if it is unfulfillable.
Short Description

Crouse-Hinds series AFU and AFUX explosionproof conveyor belt control switches provide an emergency or normal "STOP" switch for conveyor lines, cranes, unloaders and bulk handling systems. They are used in the control circuit of magnetic motor starters to shut down motor-driven conveyors or other machinery when switch is actuated. Common applications include steel mills, mining, ore and coal handling operations, automotive and assembly lines, warehouses and loading docks.

Crouse-Hinds Crouse-Hinds Conveyor Belt Control Switch, Double End Explosionproof Safety Snap action, Series: AFU, 600 VAC, 15 A, 2NO-2NC Contact Form, Plunger Actuator, NEMA 3/4/9/9E/9F/9G/IP66 Enclosure, Lug Mounting, 9.5 in W x 5.68 in H Dimensions, Feraloy® Iron Alloy
MFG #: AFU0333 55

EECO #: CBAFU033355

Brand: Crouse-Hinds
UPC #: 782274047119
Discontinued
Attributes
Features
Documents
Product Information
Attributes
UNSPSC
39122205
Approval
UL 698, CSA C22.2
Material
Feraloy® Iron Alloy
Application
Industrial Facility and Factories, Power Distribution and Controls, Steel Mills, Mining and Ore and Coal Handling Operations, Automotive and Other Assembly Lines, Warehouses, Loading Docks and Various Process Industry
Body Material
Feraloy Iron Alloy
Mounting Type
Lug
Operator Type
Plunger
Current Rating
15 amp
Enclosure Type
NEMA 3/4/9/9E/9F/9G/IP66
Voltage Rating
600
Mounting
(3) 1-1/2 Inch On-Center Lug
Enclosure
Class II Div 1 Group E F G, Class II Div 2 Group F G, Class III, NEMA 3/4/9E/9F/9G, IP66
Contact Configuration
2NO-2NC (Each End)
Type
Double End Explosionproof Safety Snap action
Series
AFU
Dimensions
9.5 in W x 5.68 in H
Body Finish
Electrogalvanized Aluminum Acrylic Painted
Actuator Type
Plunger
Operation Type
Maintained
Amperage Rating
15
Operating Force
25 Pound
Cable/Conduit Entry
(3) 1 Inch Hub
Maximum Unsupported Line Weight
15 Pound
Features
  • As emergency or normal STOP switch for conveyor lines, cranes, unloaders, bulk handling systems and similar equipment
  • 25 lb total operating force
  • In the control circuit of magnetic motor starters to shut down motor driven conveyors or other machinery when switch is actuated
  • Precision switches provide maintained contact switches have a snap action mechanism
  • Multiple conduit hubs cast mounting lugs on 1-1/2 in centers permit attachment to the web of a standard 3 in angle iron
  • In installation, the actuating line or cable is connected from a fixed point to the loop on the end unit
  • A pull on the line of the required operating force and with a total movement of 1/2 in actuates the plunger
  • Returning the indicating arm to its normal position resets the mechanism
  • Depending on the size and length of line, supports at properly spaced intervals may be necessary to ensure that the line or cable weight alone will not actuate switch
  • Explosionproof, dust ignitionproof and raintight
  • Stainless steel plunger
  • Bronze loop
  • Steel indicating arm
  • Electro-galvanized/aluminum acrylic painted
  • 15 lb maximum weight of unsupported line or cable without actuating switch
