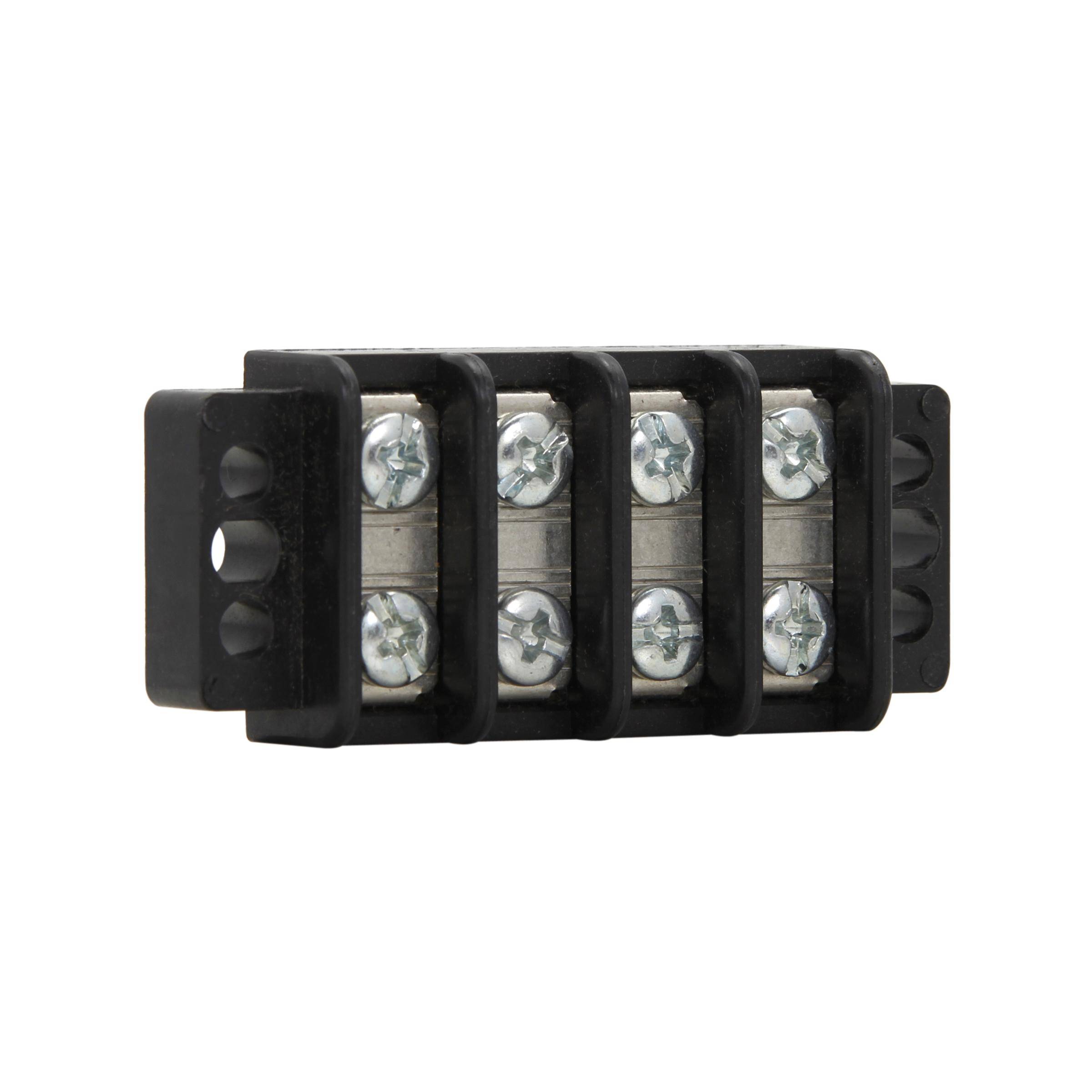

Bussmann TB200-04 4-Pole Double Row Terminal Block, 300 V, 30 A, 22 to 12 AWG Wire, Black

Short Description

Enhance your electrical connections with the Bussmann TB200-04 4-Pole Double Row Terminal Block. Designed for reliability and efficiency, it supports a wide range of wire sizes and is perfect for various applications. Secure your setup with its robust construction and easy panel mounting features! Enhanced by AI

Bussmann Terminal Block, 4-Pole Double Row, Series: TB200, 300 V, 30 A, 22 to 12 AWG Wire, 7/16 in Center Spacing, #6-32 Screw, 9 in-lb, Panel Mount, Screw, -40 to 130 deg C, Thermoplastic, Black, 2.51 in L x 1.12 in W x 0.56 in H

MFG #: TB200-04

EECO #: BUTB20004

Brand: Bussmann
UPC #: 051712810777
Attributes
Features
Documents
Product Information
Attributes
Color
Black
UNSPSC
39121410
Material
Thermoplastic
Wire Size
22 to 12
Application
Stationary Machine Equipment in Factory - Robotics
Mounting Type
Panel
Torque Rating
9
Voltage Rating
300
Connection Type
Screw
Temperature Rating
-40 to 130
Type
4-Pole Double Row
Series
TB200
Dimensions
2.51 in L x 1.12 in W x 0.56 in H
Screw Size
#6-32
Center Spacing
7/16
Amperage Rating
30
Features
  • Type: 4-Pole Double Row Terminal Block
  • Series: TB200
  • Voltage Rating: 300 V
  • Current Rating: 30 A
  • Wire Size Compatibility: 22 to 12 AWG
  • Center Spacing: 7/16 in
  • Screw Type: #6-32 Screw
  • Tightening Torque: 9 in-lb
  • Mounting Type: Panel Mount
  • Operating Temperature Range: -40 to 130 °C
  • Material: Thermoplastic
  • Color: Black
  • Dimensions: 2.51 in L x 1.12 in W x 0.56 in H

Enhanced by AI

Bussmann_TB200_04_Specification_Sheet
IDW_DOCUMENT_2bce636b5cf10a22bf4ec51ac0669186871eca201f2fc9df5dd31b70c450ffc3
Bussmann_15188J_2_J_Catalog
