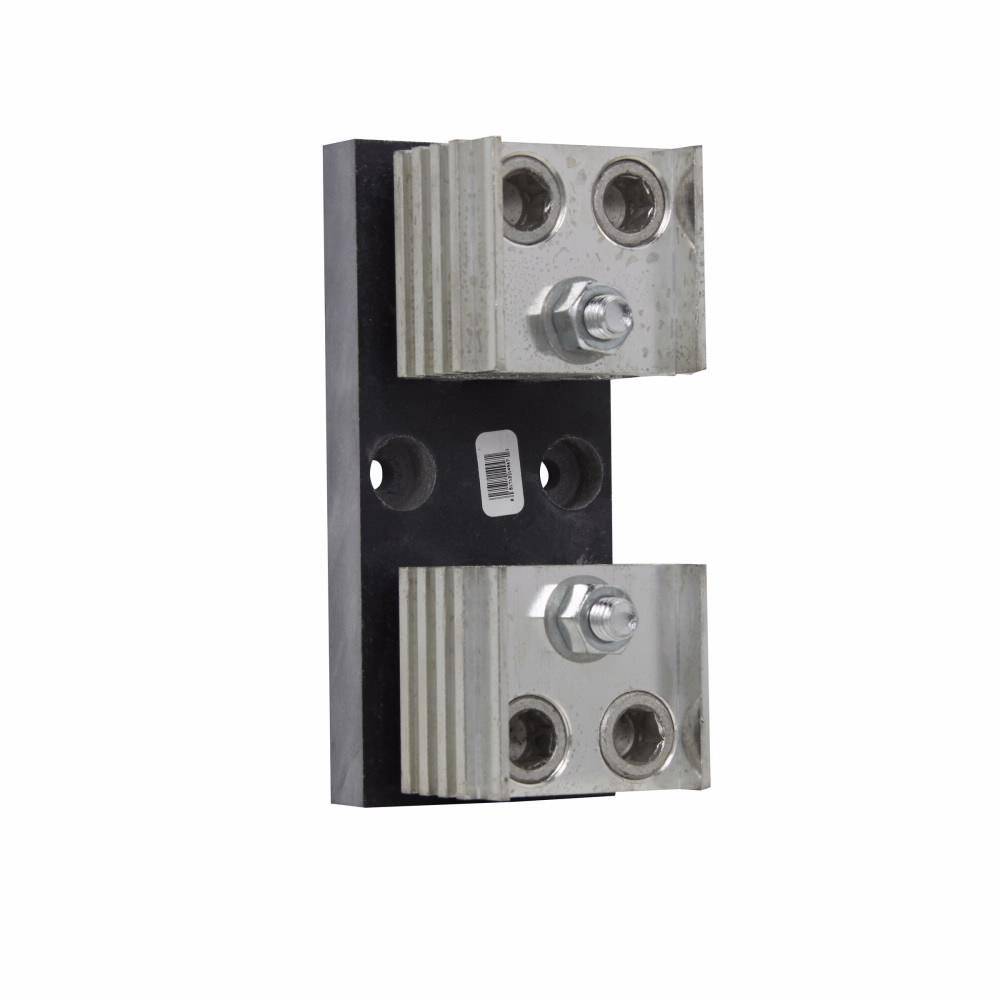

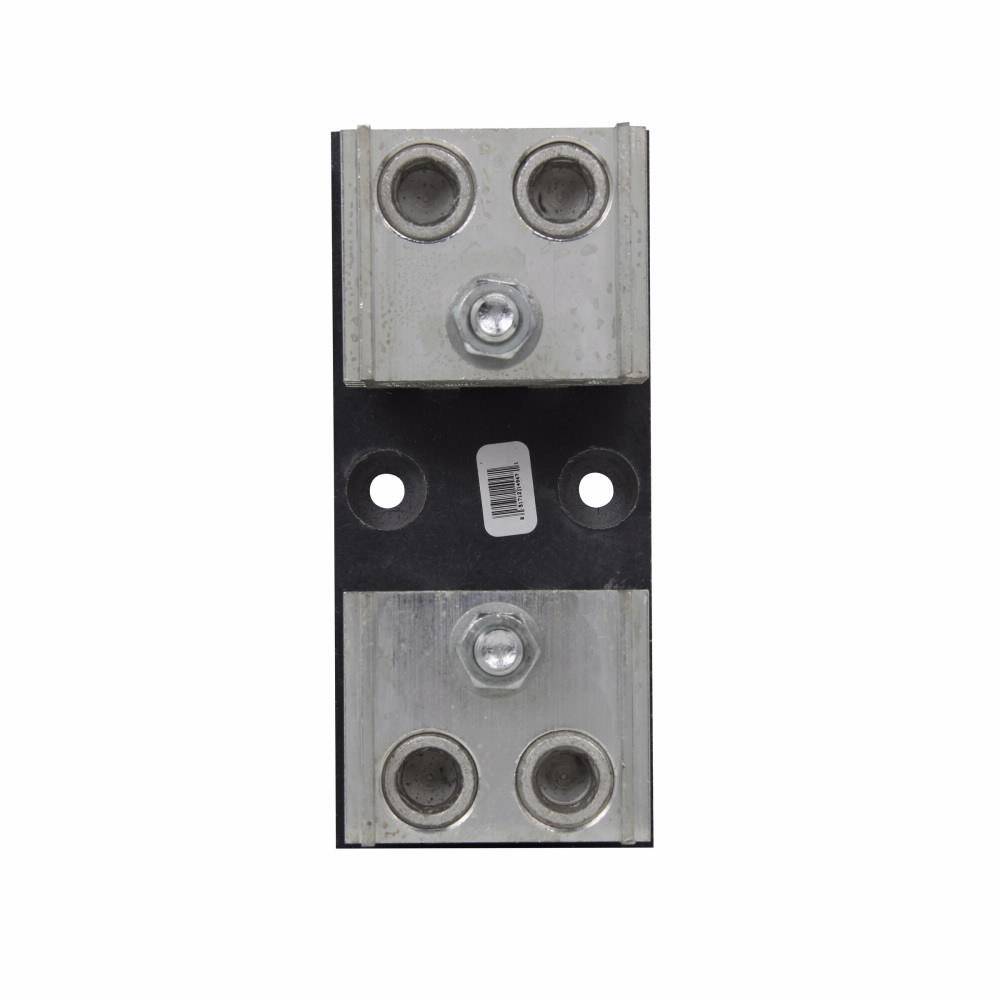

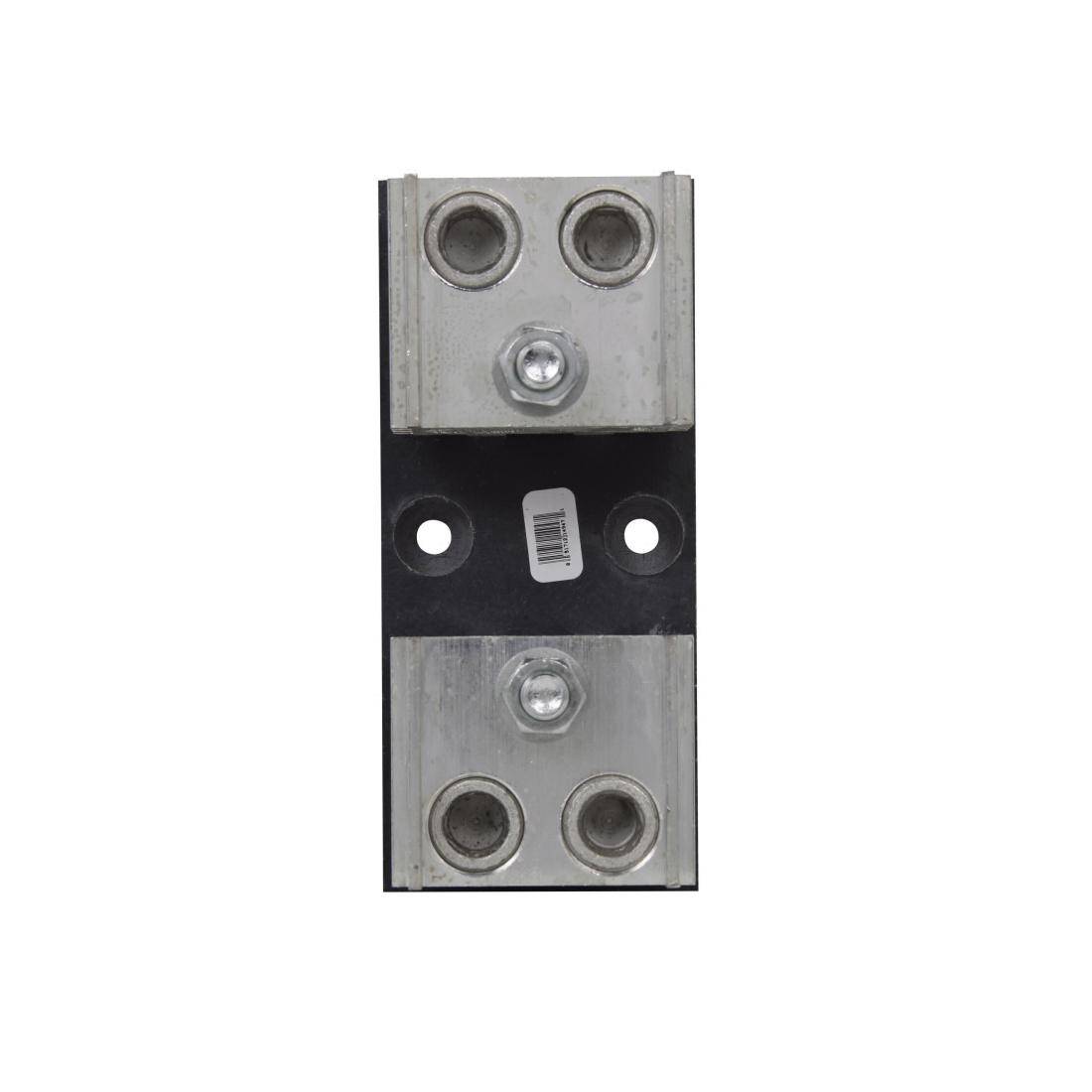

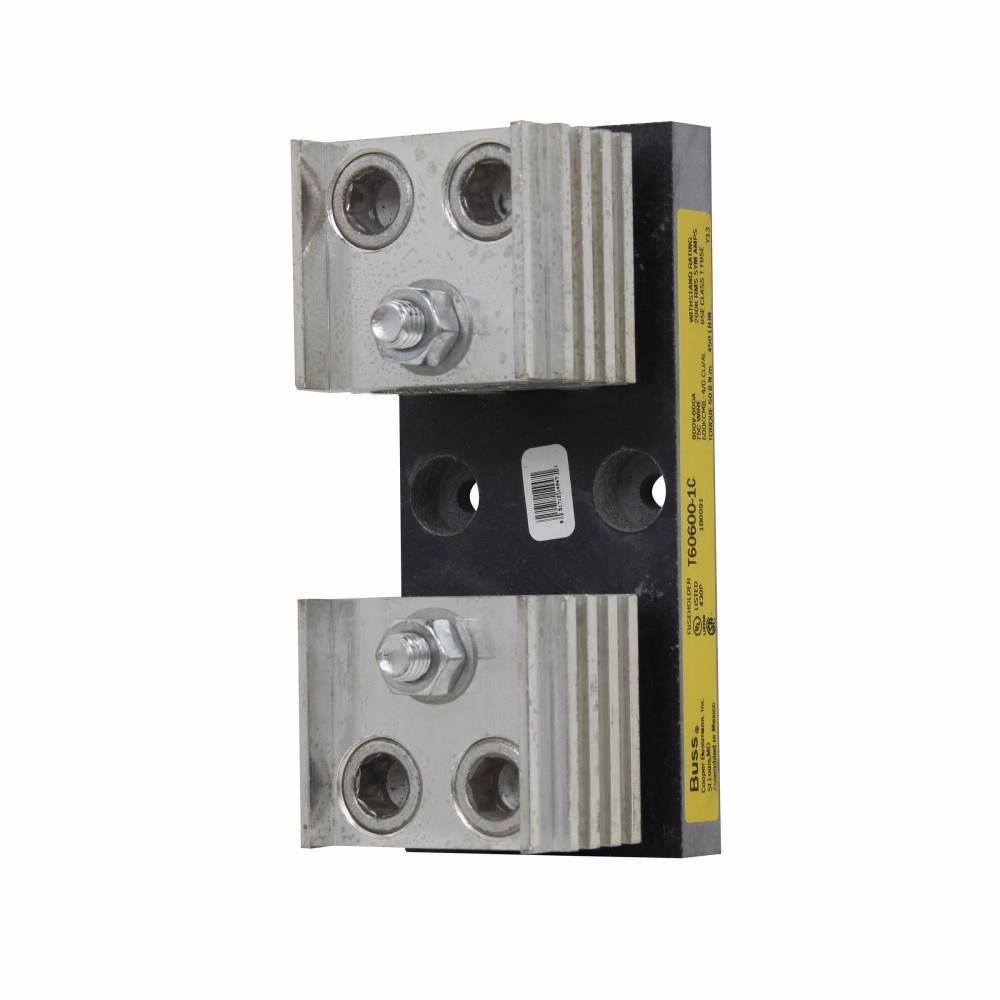

Edison T60600-1C T600 Open Style Fuse Block, 600 VAC/VDC, 401 to 600 A, T Class, 4/0 AWG to 600 kcmil Wire, 1 Pole

Short Description

Bussmann series T600 fuse blocks are open fuse blocks for use with class T fuses up to 600 A in various pole configurations from 1 to 3-pole. T600 blocks use Bussmann series JJS fuses.

Edison Fuse Block, Open Style, Series: T600, 600 VAC/VDC, 401 to 600 A, 1 Poles, Class: T, Box Lug, 4/0 AWG to 600 kcmil Wire, Chassis Mount, 3.98 in Fuse Length, 1-1/4 in Fuse Dia, For Use With: JJS Class T Fuse, Glass Polyester/Phenolic, Black, 6.75 in L x 3 in W x 3.44 in H
MFG #: T60600-1C

EECO #: BUT606001C

Brand: Edison
UPC #: 051712149471
Attributes
Features
Documents
Product Information
Attributes
Class
T
Color
Black
UNSPSC
39121624
Material
Glass Polyester/Phenolic
Wire Size
4/0 AWG to 600 kcmil
Application
For 600 VAC/VDC or less control systems and industrial control circuits
Mounting Type
Chassis
Voltage Rating
600
Connection Type
Box Lug
Type
Open Style
Series
T600
Dimensions
6.75 in L x 3 in W x 3.44 in H
Amperage Rating
401 to 600
Suitable For Use With
JJS Class T Fuse
Features
  • Short circuit current rating of 200 kA rms symmetrical
  • Class T fuse blocks have a small foot print, providing substantial space savings in equipment
  • (2) 4/0 AWG to 600 kcmil copper/aluminum wire
