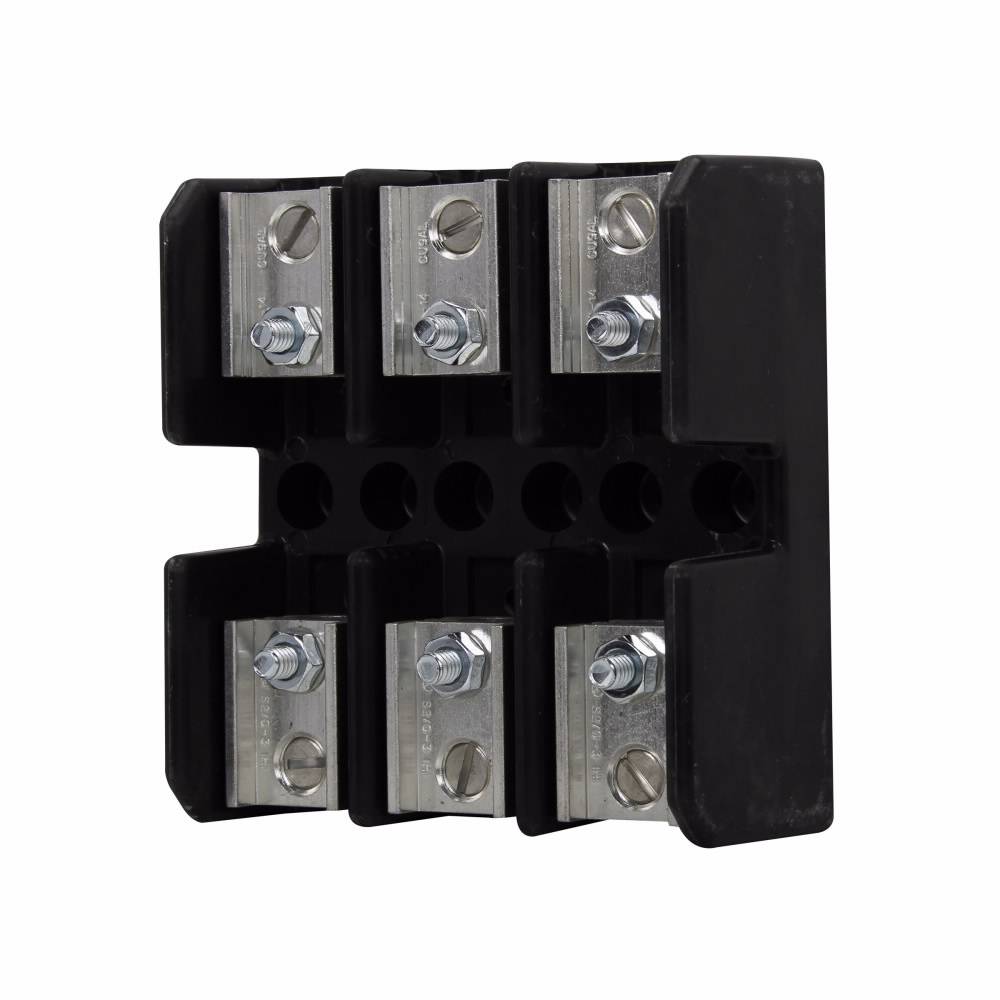

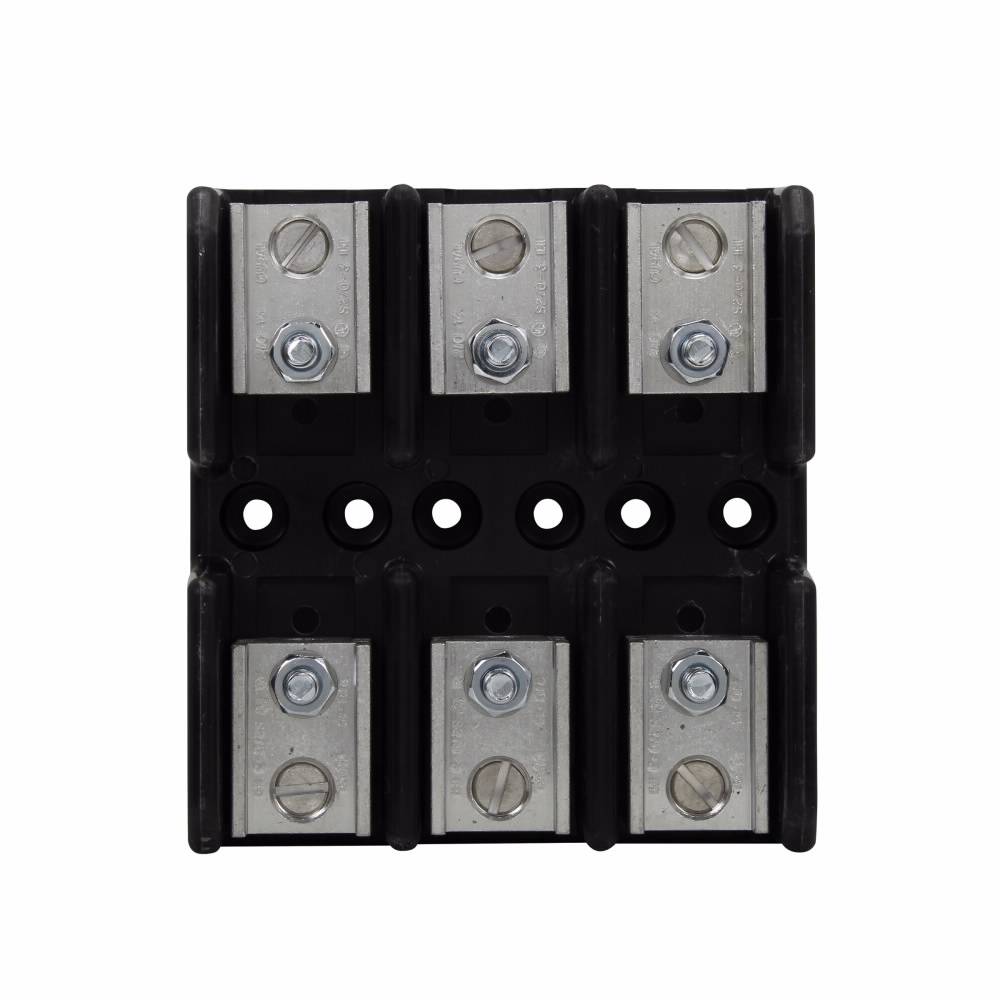

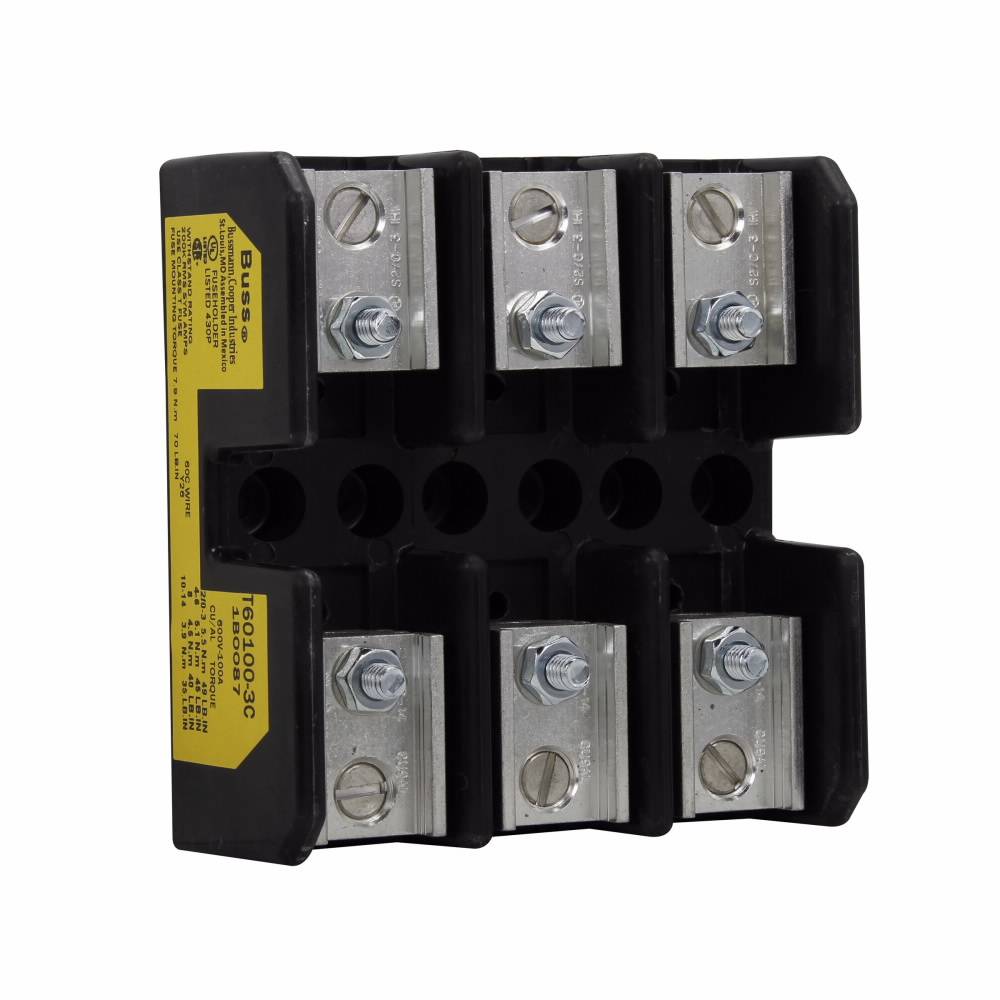

Edison T60100-3C T600 Open Style Fuse Block, 600 VAC/VDC, 61 to 100 A, T Class, 14 to 2/0 AWG Wire, 3 Poles

Short Description

Bussmann series T600 fuse blocks are open fuse blocks for use with class T fuses up to 600 A in various pole configurations from 1 to 3-pole. T600 blocks use Bussmann series JJS fuses.

Edison Fuse Block, Open Style, Series: T600, 600 VAC/VDC, 61 to 100 A, 3 Poles, Class: T, Fuse Holder Code: BN, Box Lug, 14 to 2/0 AWG Wire, Chassis Mount, 2.95 in Fuse Length, 3/4 in Fuse Dia, For Use With: JJS Class T Fuse, Glass Polyester, Black, 4-1/2 in W

MFG #: T60100-3C

EECO #: BUT601003C

Brand: Edison
UPC #: 051712147163
Attributes
Features
Documents
Product Information
Attributes
Class
T
Color
Black
UNSPSC
39121624
Approval
UL 512, CSA C22.2, CE
Material
Glass Polyester
Wire Size
14 to 2/0
Application
For 600 VAC/VDC or less control systems and industrial control circuits
Mounting Type
Chassis
Terminal Type
Box Lug
Voltage Rating
600
Connection Type
Box Lug
Number Of Poles
3
Fuse Voltage Rating
600 Volt AC/DC
Type
Open Style
Series
T600
Fuse Type
Class T
Dimensions
4-1/2 in W
Amperage Rating
61 to 100
Fuse Current Rating
61 to 100 Amp
Suitable For Use With
JJS Class T Fuse
Features
  • Short circuit current rating of 200 kA rms symmetrical
  • Class T fuse blocks have a small foot print, providing substantial space savings in equipment
  • 14 to 2/0 AWG copper/aluminum wire
