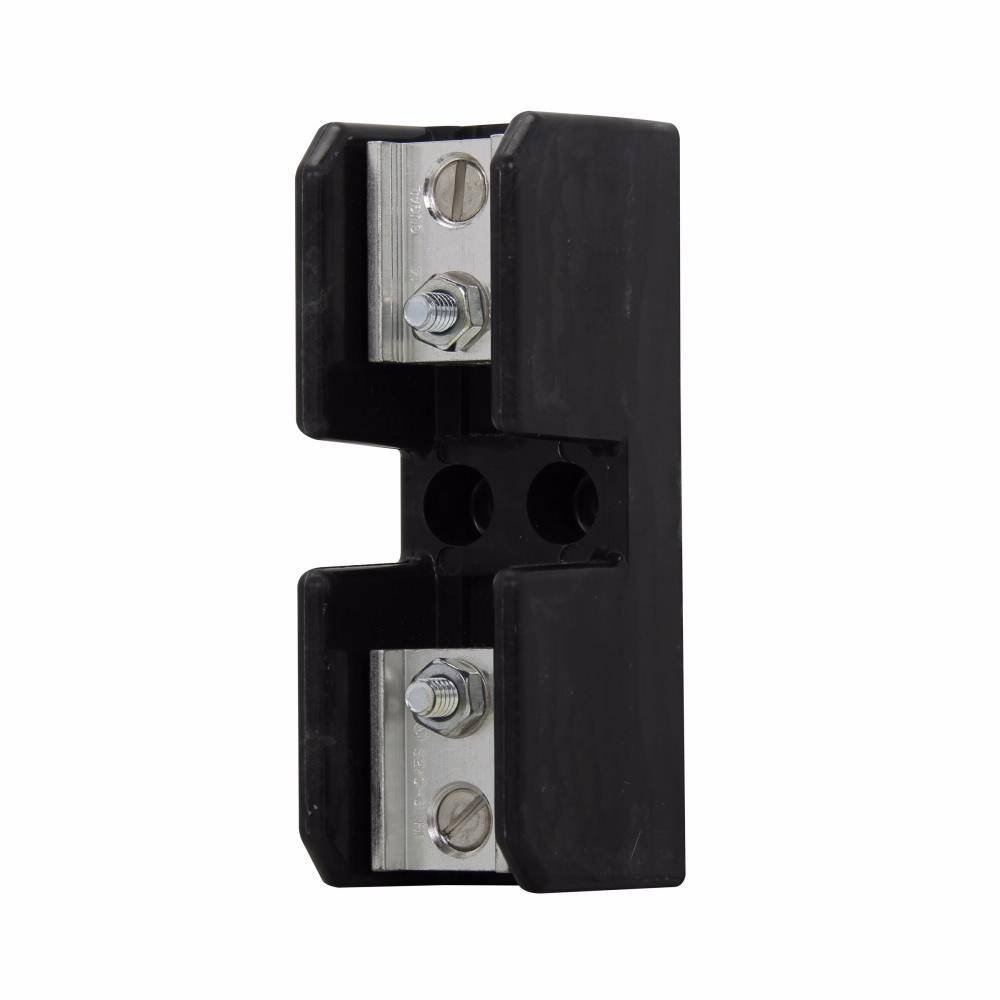

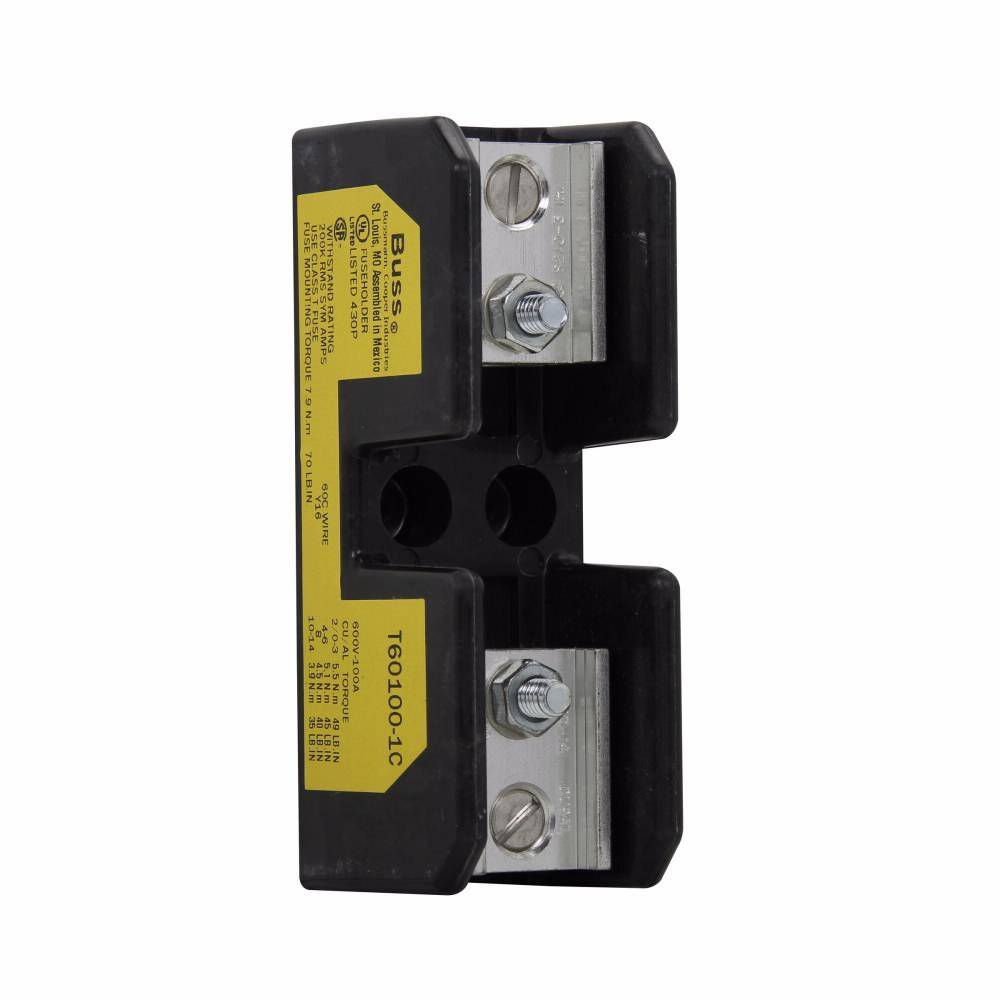

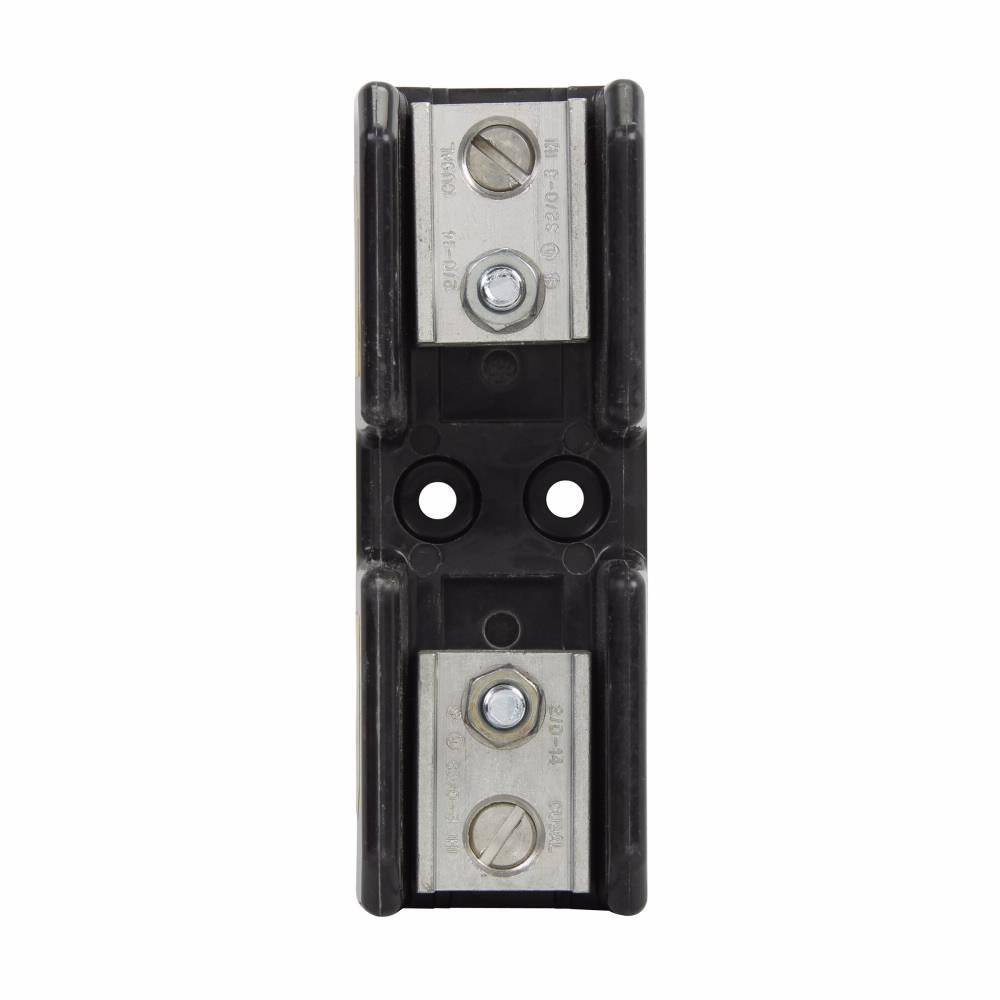

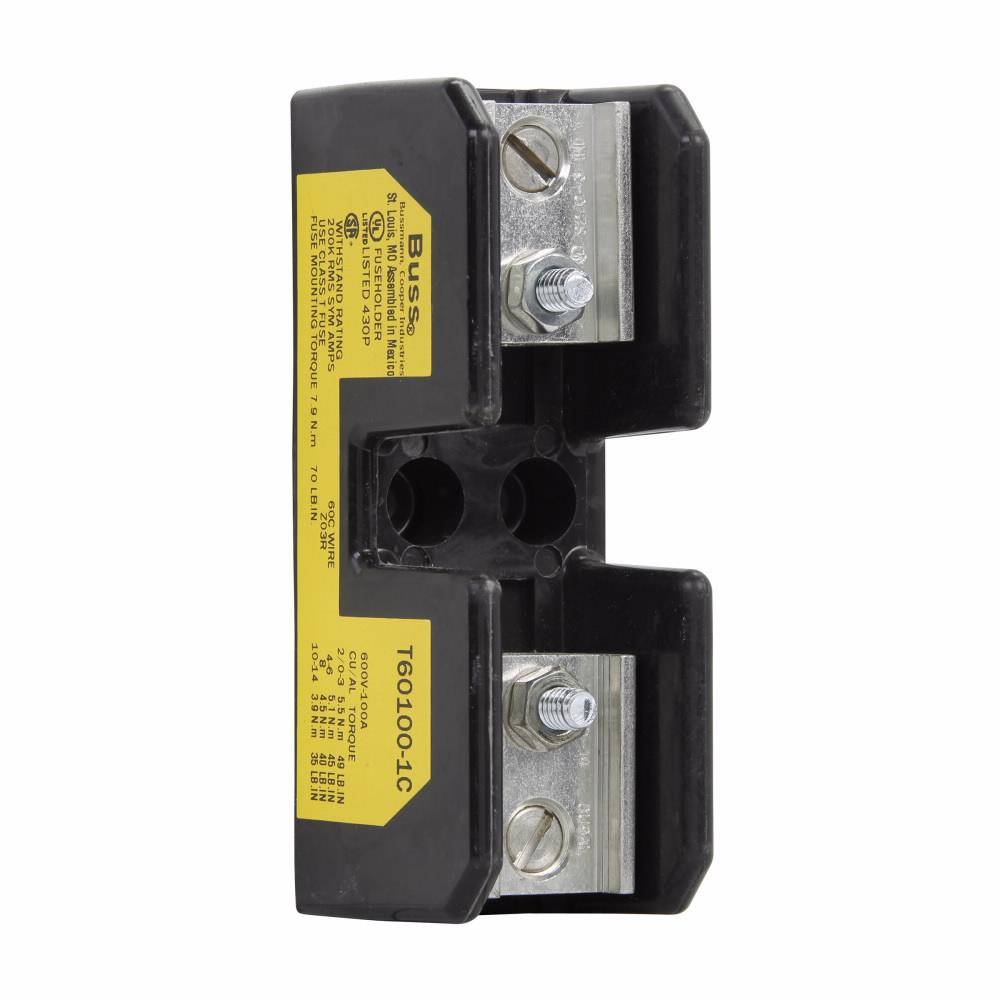

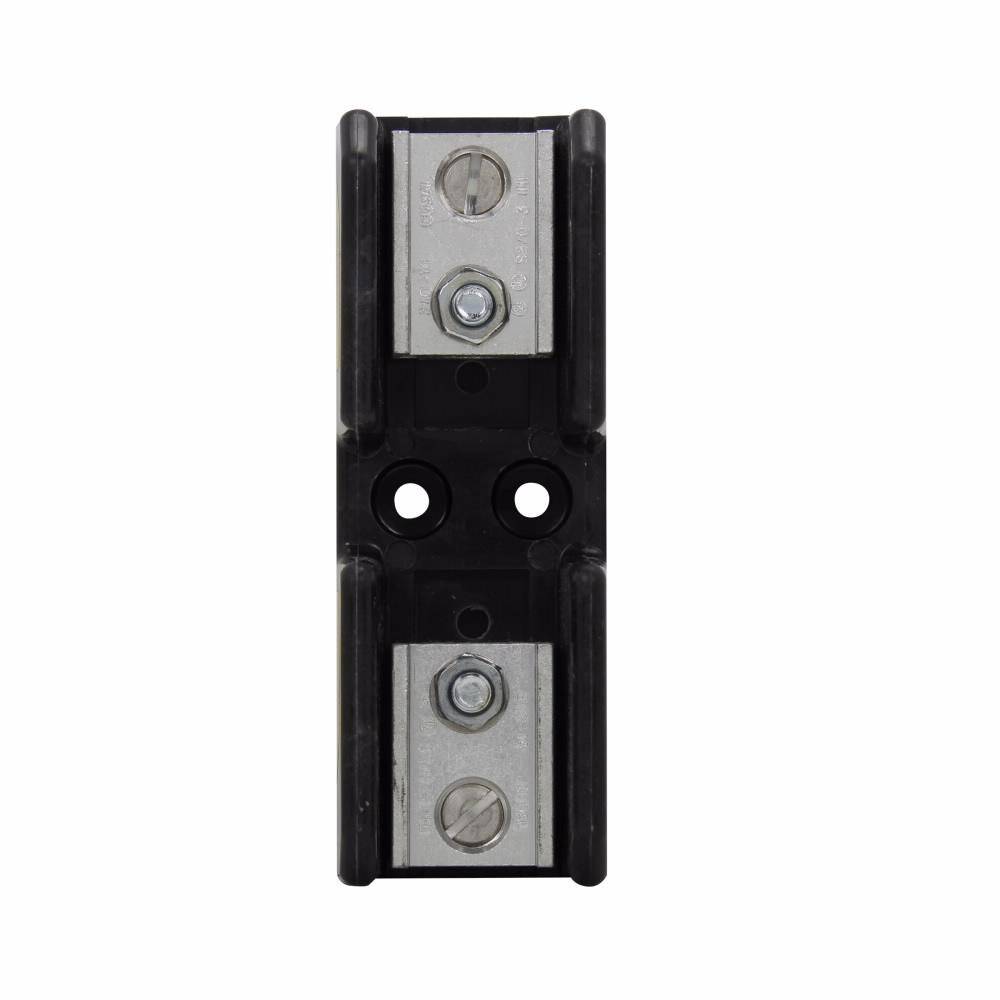

Bussmann T60100-1C T600 Modular Open Fuse Block, 600 VAC/VDC, 61 to 100 A, Class: T, 2/0 AWG Wire, 1 Pole

Short Description

Bussmann series T600 fuse blocks are open fuse blocks for use with class T fuses up to 600 A in various pole configurations from 1 to 3-pole. T600 blocks use Bussmann series JJS fuses.

Bussmann Fuse Block, Modular Open, Series: T600, 600 VAC/VDC, 61 to 100 A, 1 Pole, Class: T, Box Lug, 2/0 AWG Wire, Chassis Mount, 2.95 in Fuse Length, 3/4 in Fuse Dia, For Use With: JJS Series Cartridge Fuse, Glass Polyester, 4.875 in L x 1.69 in W x 2 in H
MFG #: T60100-1C

EECO #: BUT601001C

Brand: Bussmann
UPC #: 051712147149
Attributes
Features
Documents
Product Information
Attributes
Class
T
Color
Black
UNSPSC
39121624
Material
Glass Polyester
Wire Size
2/0
Application
Electrical Assemblies, Panels and EOEMs Applications
Mounting Type
Chassis
Voltage Rating
600
Connection Type
Box Lug
Type
Modular Open
Series
T600
Dimensions
4.875 in L x 1.69 in W x 2 in H
Amperage Rating
61 to 100
Suitable For Use With
JJS Series Cartridge Fuse
Features
  • 200 kA rms symmetrical interrupt rating
  • Class T fuse blocks have a small foot print, providing substantial space savings in equipment
  • 2/0 AWG copper/aluminum
  • For use with 600 VAC/VDC or less control systems and industrial control circuits
