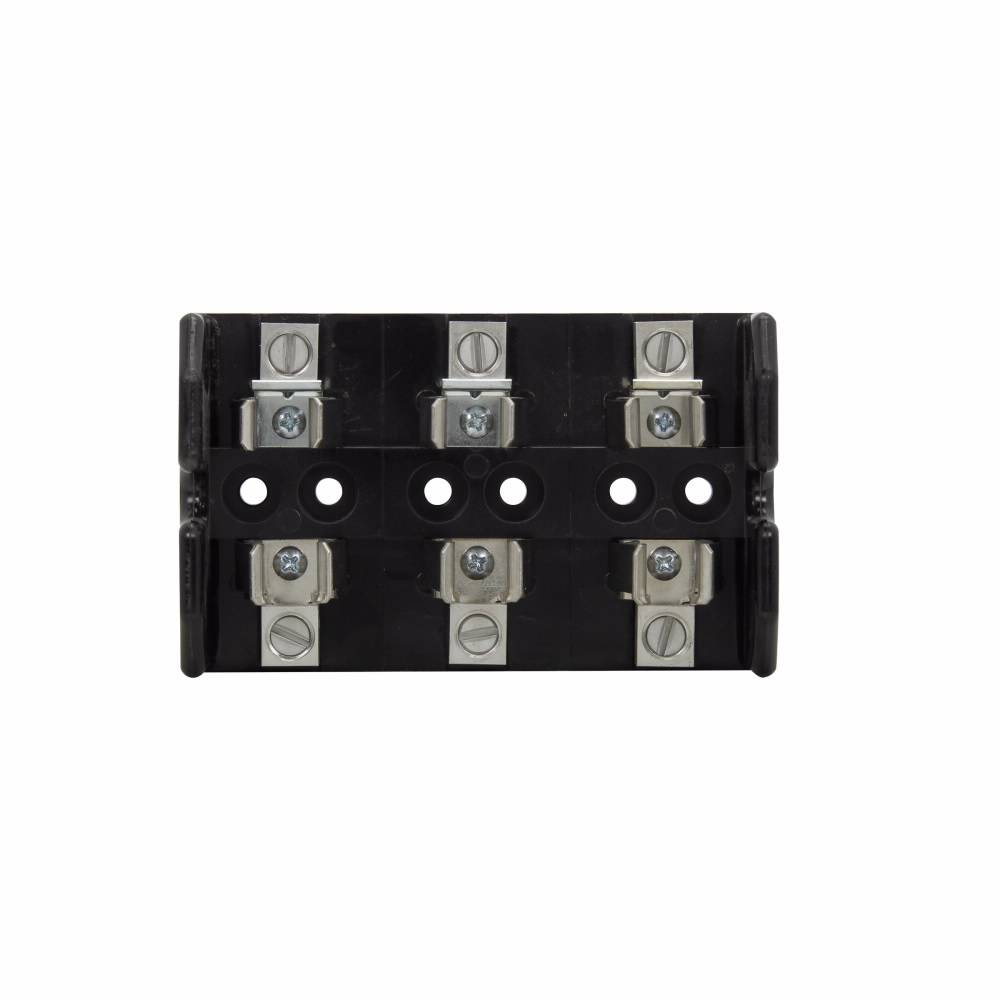

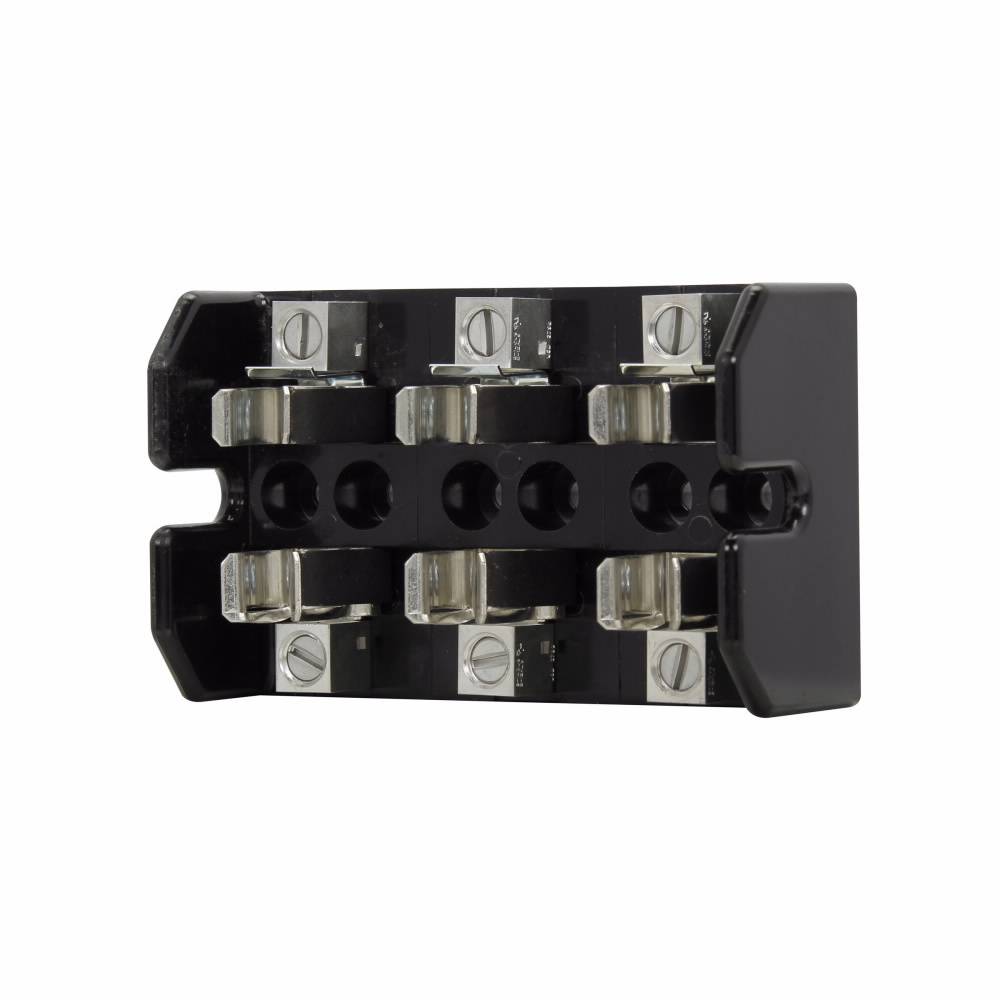

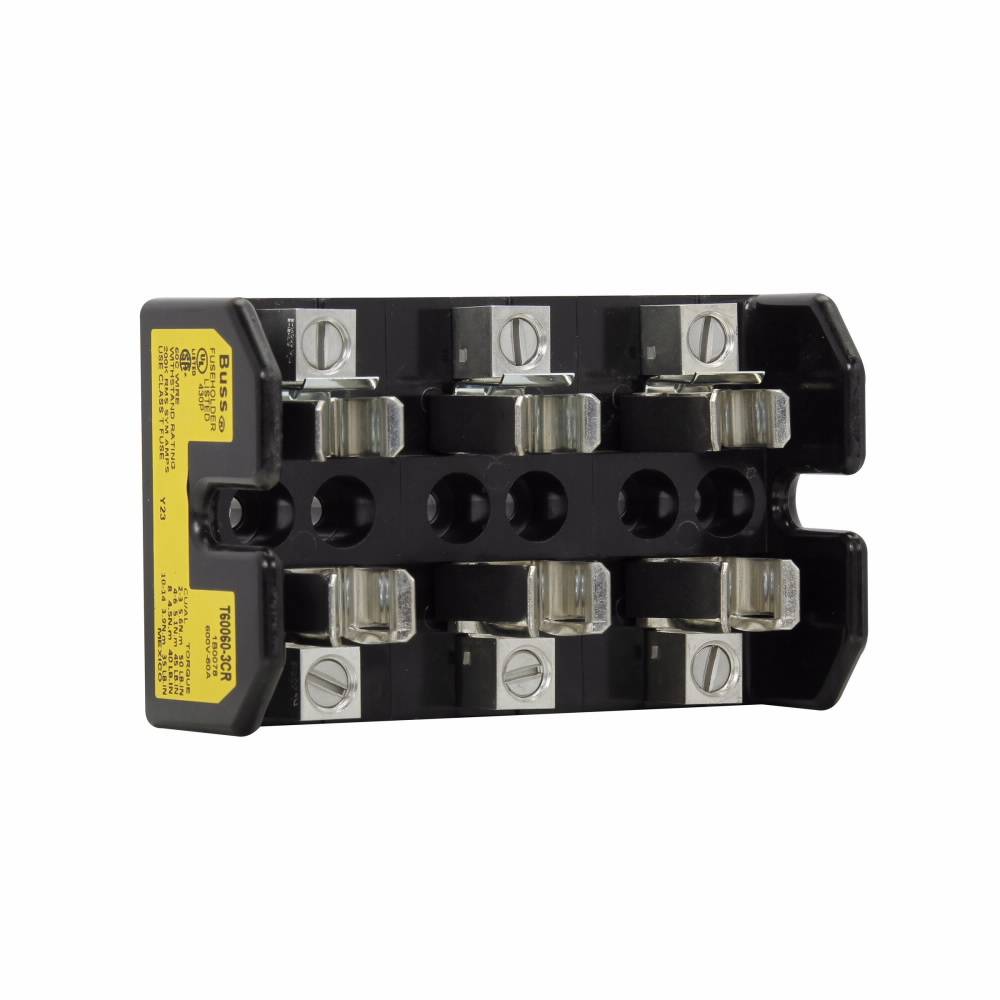

Edison T60060-3CR Open Style Fuse Block, 600 VAC/VDC, 31 to 60 A, T Class, 14 to 2 AWG Wire, 3 Poles

Short Description

World's leading supplier of fuses and fusible protection systems, Bussmann continues its 88 year history of blazing new trails of innovative technologies. Maker of the industry's first truly global product line, each item is backed by an efficient worldwide network of distribution, customer service and technical support. Bussmann products include the most extensive circuit protection solutions approved for use in a variety of major standards UL, CSA, IEC. Not to mention both European (DIN, British Standard) and North American styled fuses for a wide range of applications: industrial motor protection, power conversion, medium voltage, power distribution, telecommunications network equipment, electronics and automotive. Manufacturing operations in the US, Denmark and the United Kingdom have earned ISO 9000 certification. Bussmann customers are assured of only the utmost quality across every product line. Knowledgeable. Responsive. Customer focused. Bussmann continues to set the standard for circuit protection solutions around the world.

Edison Fuse Block, Open Style, Series: T600, 600 VAC/VDC, 31 to 60 A, 3 Poles, Class: T, Fuse Holder Code: BM, Box Lug, 14 to 2 AWG Wire, Chassis Mount, 1.56 in Fuse Length, 1 in Fuse Dia, For Use With: JJS Class T Fuse, Glass Polyester, Black, 2.94 in L x 4.86 in W x 1.75 in H

MFG #: T60060-3CR

EECO #: BUT600603CR

Brand: Edison
UPC #: 051712148139
Attributes
Features
Documents
Product Information
Attributes
Class
T
Color
Black
UNSPSC
39121624
Approval
UL 512, CSA C22.2, CE
Material
Glass Polyester
Wire Size
14 to 2
Application
For 600 VAC/VDC or less control systems and industrial control circuits
Mounting Type
Chassis
Terminal Type
Box Lug
Voltage Rating
600
Connection Type
Box Lug
Number Of Poles
3
Fuse Voltage Rating
600 Volt AC/DC
Type
Open Style
Series
T600
Clip Type
Spring Reinforced
Fuse Type
Class T
Dimensions
2.94 in L x 4.86 in W x 1.75 in H
Amperage Rating
31 to 60
Fuse Current Rating
31 to 60 Amp
Suitable For Use With
JJS Class T Fuse
Features
  • Short circuit current rating of 200 kA rms symmetrical
  • Class T fuse blocks have a small foot print, providing substantial space savings in equipment
  • 14 to 2 AWG copper/aluminum wire
