Eaton

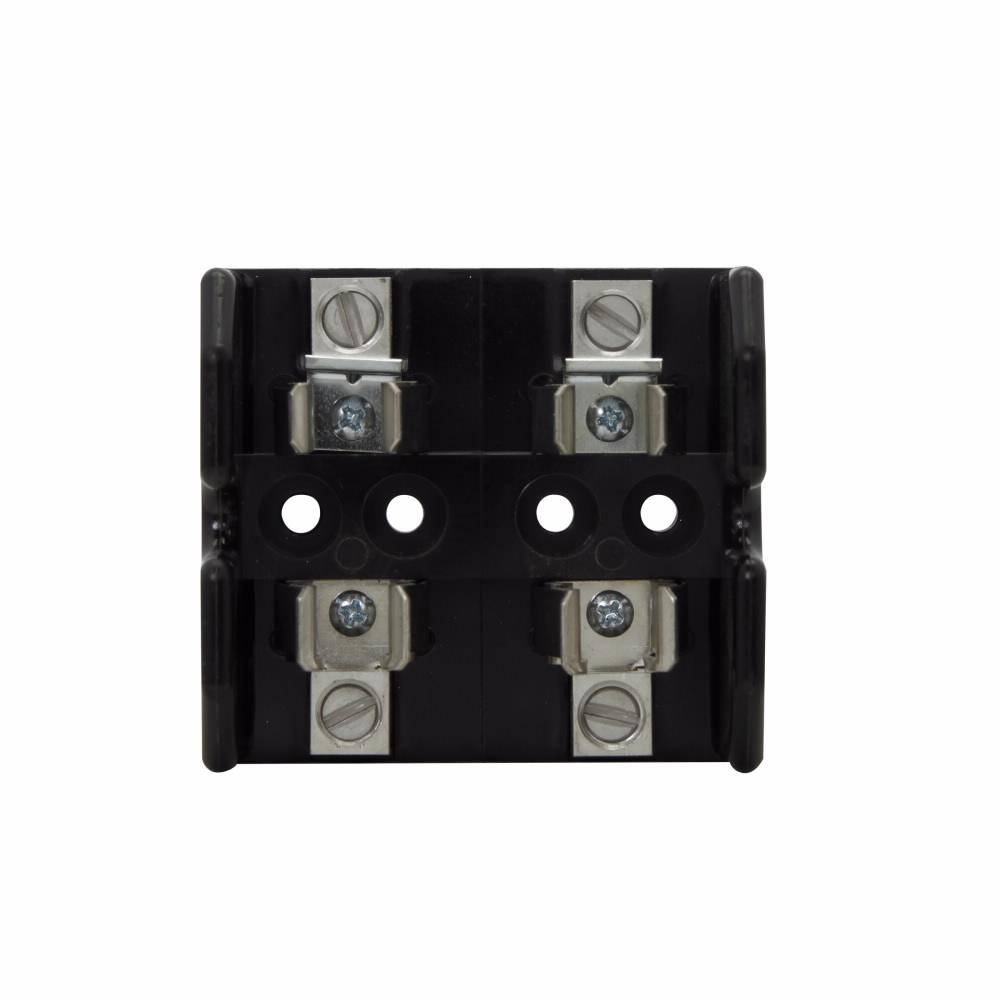

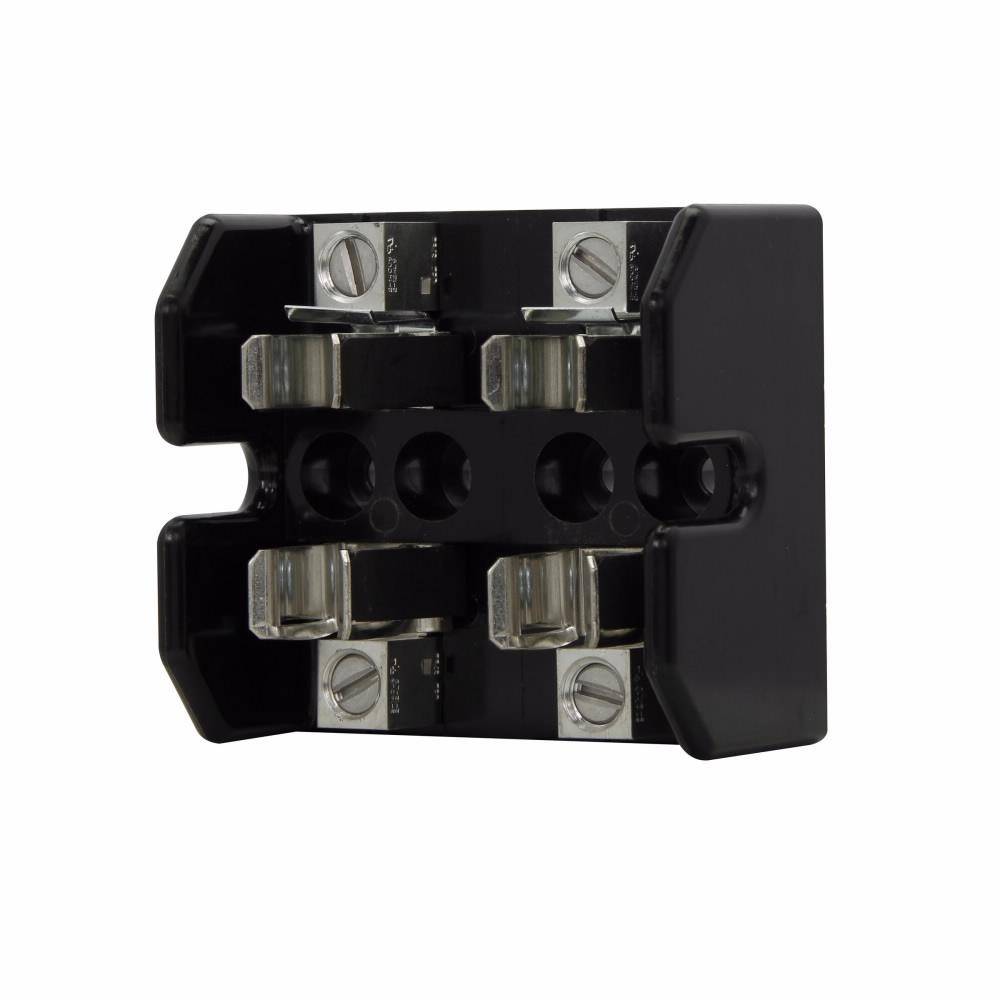

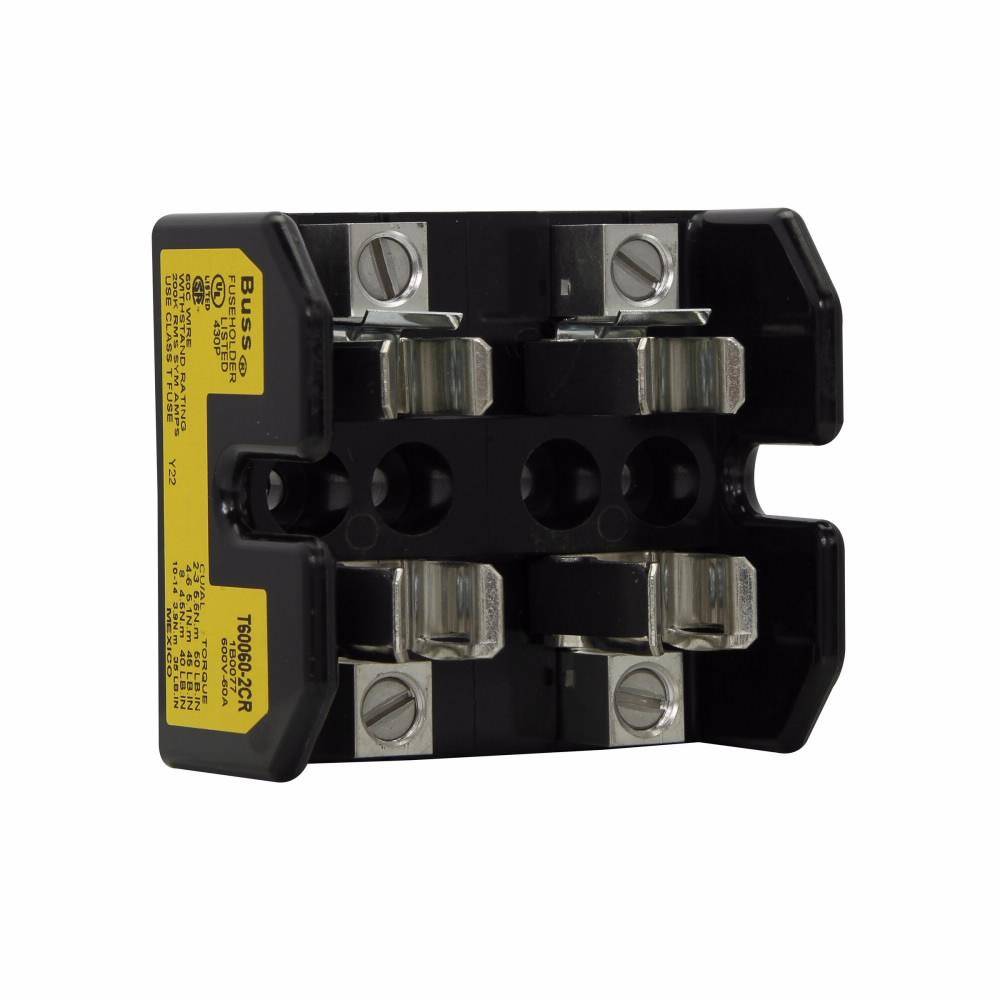

Bussmann T60060-2CR Modular Open Fuse Block With Reinforced Spring, 600 VAC/VDC, 31 to 60 A, Class: T, 2 AWG Wire, 2 Poles

Short Description

Bussmann series T600 fuse blocks are open fuse blocks for use with class T fuses up to 600 A in various pole configurations from 1 to 3-pole. T600 blocks use Bussmann series JJS fuses.

Bussmann Fuse Block, Modular Open, Series: T600, 600 VAC/VDC, 31 to 60 A, 2 Pole, Class: T, Box Lug, 2 AWG Wire, Chassis Mount, 1.56 in Fuse Length, 0.81 in Fuse Dia, For Use With: JJS Series Cartridge Fuse, Glass Polyester, 2.94 in L x 3.34 in W x 1.75 in H
MFG #: T60060-2CR

EECO #: BUT600602CR

Brand: Bussmann
UPC #: 051712148122
Attributes
Features
Documents
Product Information
Attributes
Class
T
Color
Black
UNSPSC
39121624
Material
Glass Polyester
Wire Size
2
Application
Electrical Assemblies, Panels and EOEMs Applications
Mounting Type
Chassis
Voltage Rating
600
Connection Type
Box Lug
Type
Modular Open
Series
T600
Dimensions
2.94 in L x 3.34 in W x 1.75 in H
Amperage Rating
31 to 60
Suitable For Use With
JJS Series Cartridge Fuse
Features
  • 200 kA rms symmetrical interrupt rating
  • Class T fuse blocks have a small foot print, providing substantial space savings in equipment
  • 2 AWG copper/aluminum
  • For use with 600 VAC/VDC or less control systems and industrial control circuits
