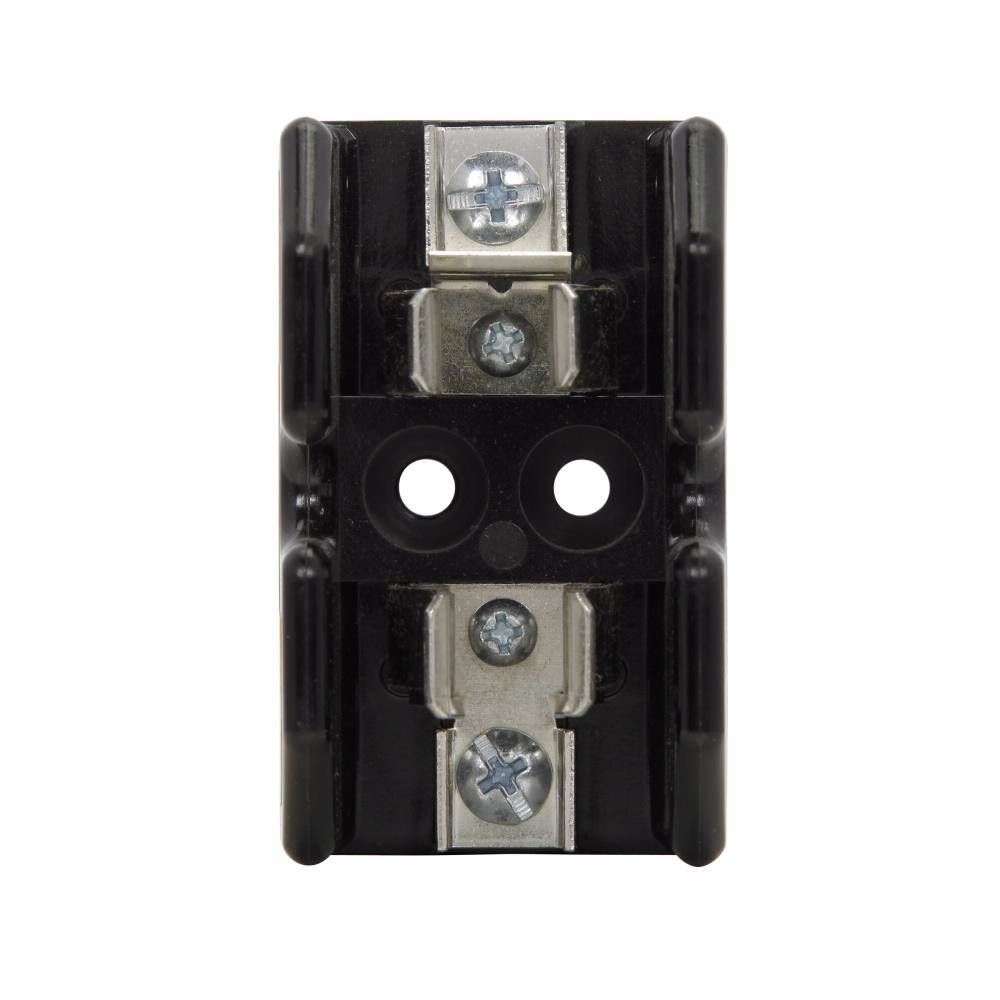

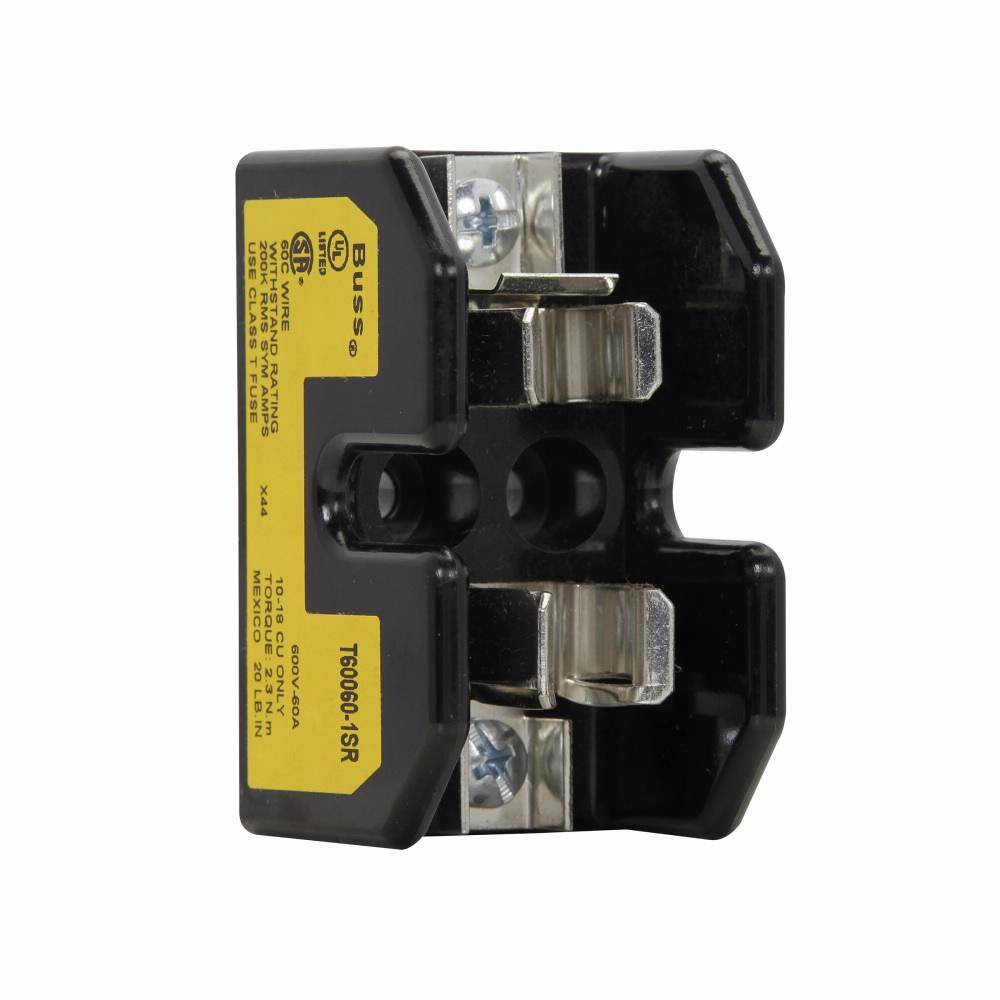

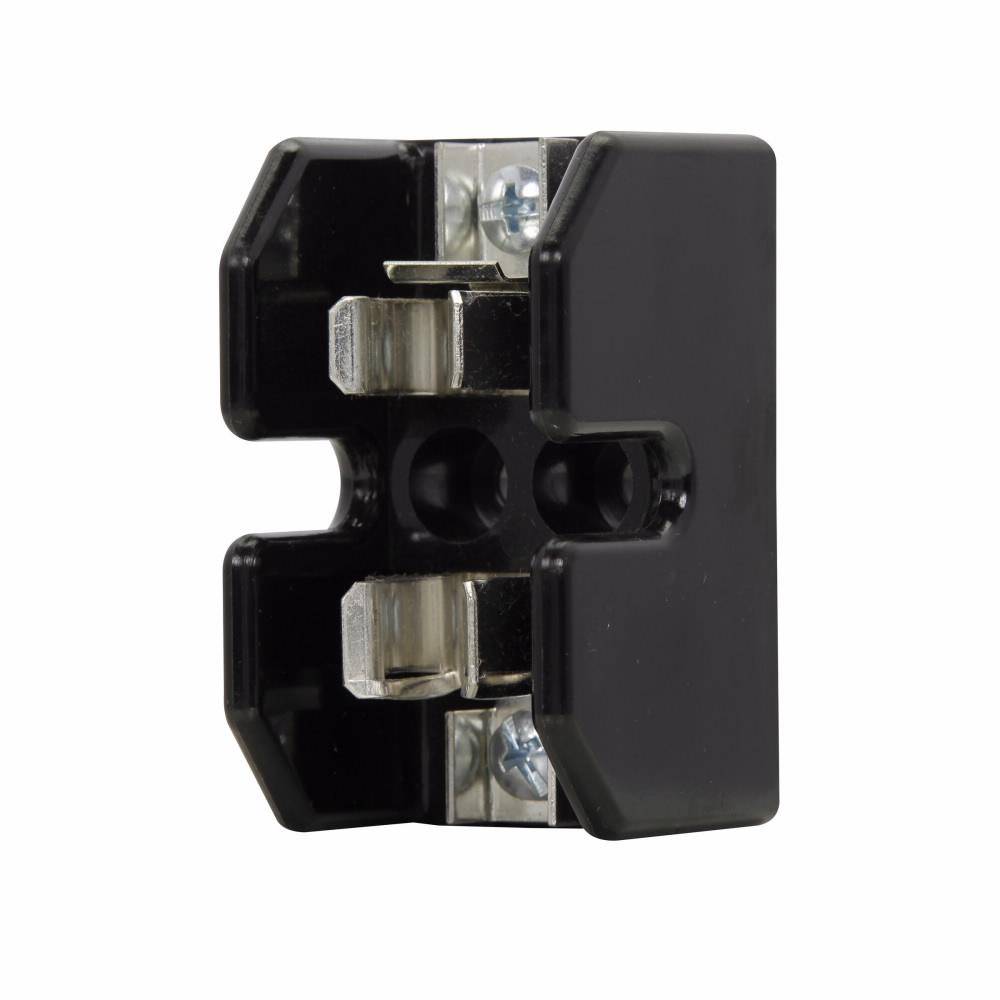

Edison T60060-1SR Open Fuse Block, 600 VAC/VDC, 60 A, Class: T, 18 to 10 AWG Cu Wire, 1 Pole

Short Description

Bussmann series T600 fuse blocks are open fuse blocks for use with Class T fuses up to 600 A in various pole configurations from 1 to 3 poles. T600 blocks use Bussmann series JJS fuses.

Edison Fuse Block, Open, 600 VAC/VDC, 60 A, 1 Pole, Class: T, 18 to 10 AWG Cu Wire, For Use With: Cooper Bussmann® JJS Class T Fuses, 1.81 in L x 1.75 in W x 2.94 in H
MFG #: T60060-1SR

EECO #: BUT600601SR

Brand: Edison
UPC #: 051712149839
Attributes
Features
Documents
Product Information
Attributes
Class
T
Color
Black
UNSPSC
39121624
Material
Glass Polyester
Wire Size
18 to 10 AWG Cu
Application
For used with 600 VAC/VDC or less control systems and 600 VAC/VDC or less individual control circuits
Voltage Rating
600
Connection Type
Screw
Type
Open
Series
T600
Includes
Screw and Reinforced Spring
Dimensions
1.81 in L x 1.75 in W x 2.94 in H
Amperage Rating
60
Suitable For Use With
Cooper Bussmann® JJS Class T Fuses
Features
  • Short-circuit current rating of 200 kA RMS sym
  • Class T fuse blocks have a small foot print, providing substantial space savings in equipment
