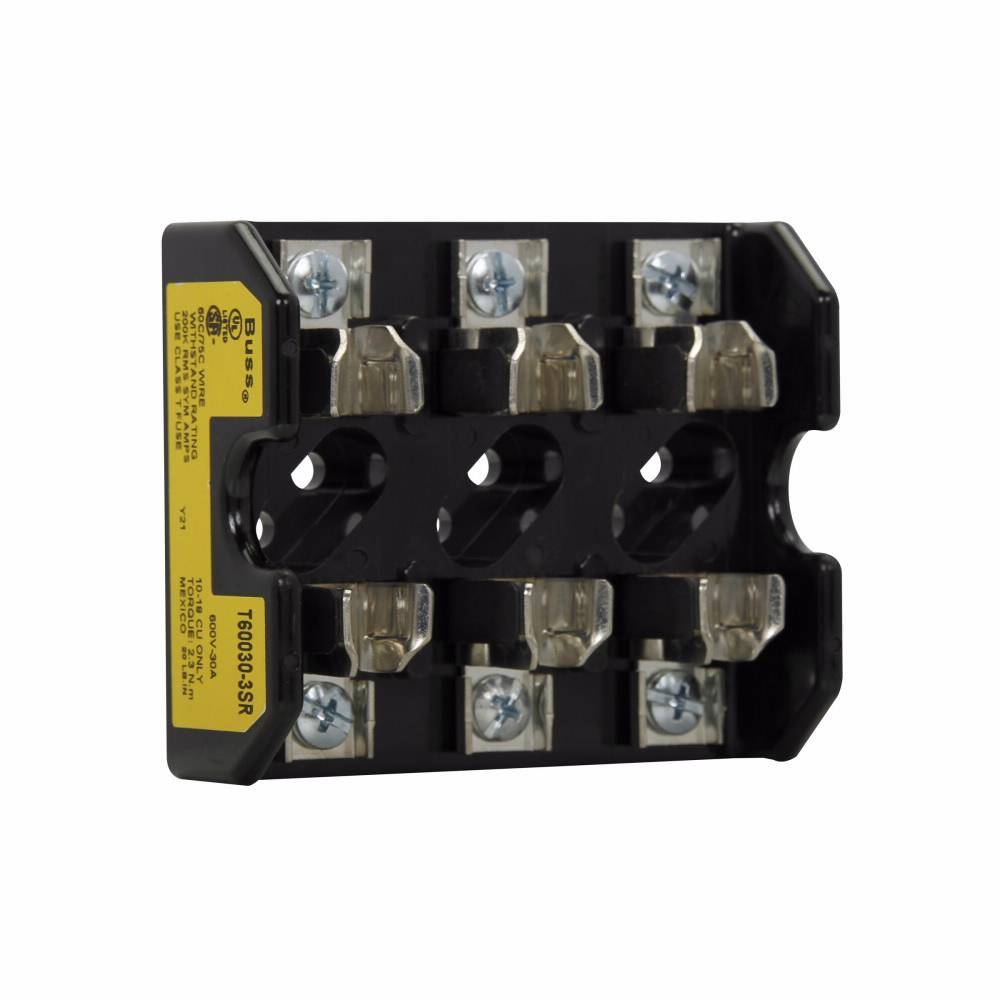

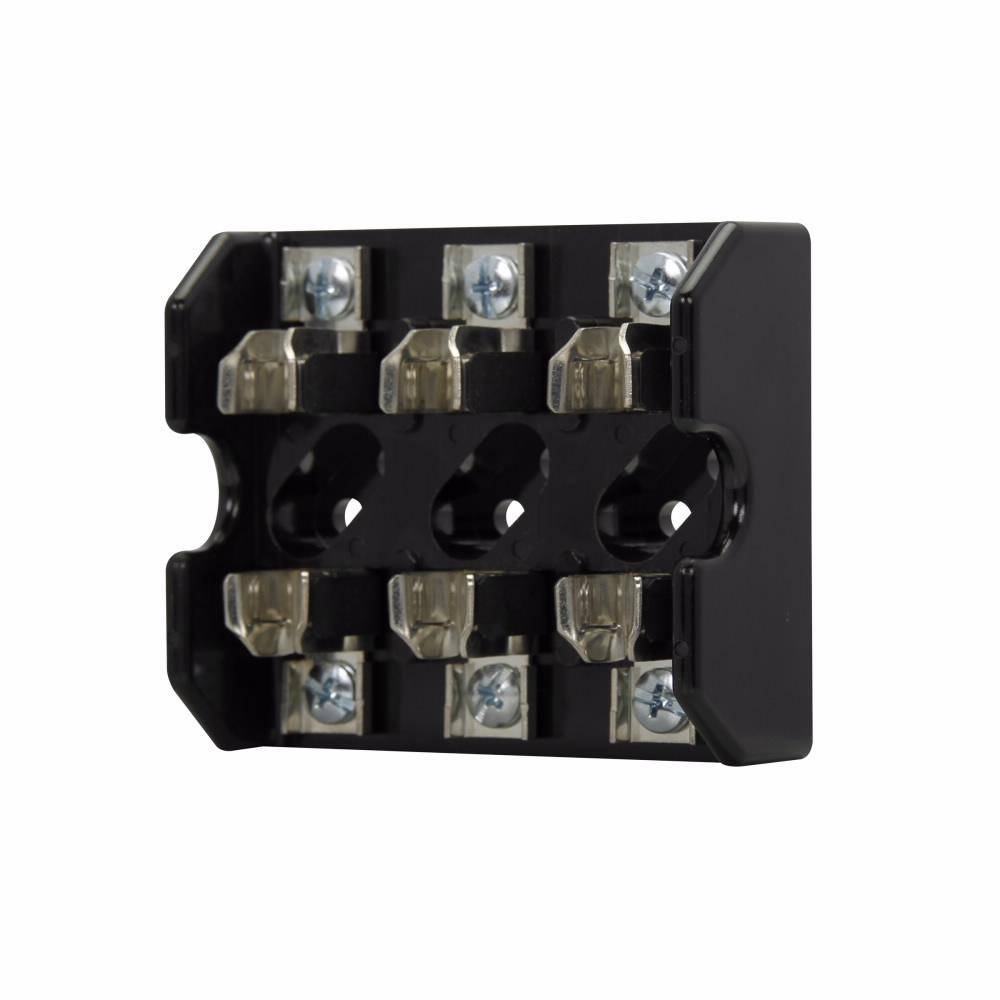

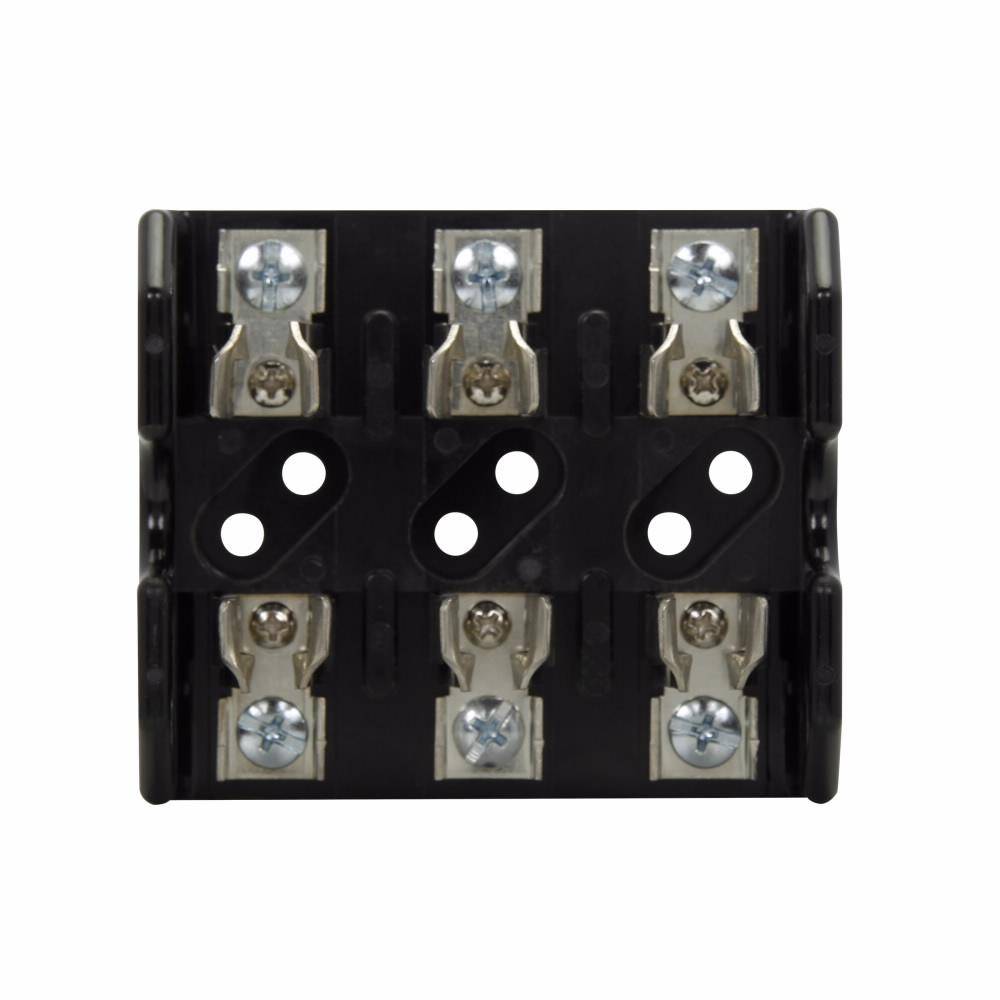

Edison T60030-3SR Open Style Fuse Block, 600 VAC/VDC, 1/2 to 30 A, T Class, 18 to 10 AWG Wire, 3 Poles

Short Description

Bussmann series T600 fuse blocks are open fuse blocks for use with class T fuses up to 600 A in various pole configurations from 1 to 3-pole. T600 blocks use Bussmann series JJS fuses.

Edison Fuse Block, Open Style, Series: T600, 600 VAC/VDC, 1/2 to 30 A, 3 Poles, Class: T, Screw, 18 to 10 AWG Wire, Chassis Mount, 1-1/2 in Fuse Length, 0.56 in Fuse Dia, For Use With: JJS Class T Fuse, Glass Polyester, Black, 3.19 in L x 3.75 in W x 1.44 in H
MFG #: T60030-3SR

EECO #: BUT600303SR

Brand: Edison
UPC #: 051712148108
Attributes
Features
Documents
Product Information
Attributes
Class
T
Color
Black
UNSPSC
39121624
Material
Glass Polyester
Wire Size
18 to 10
Application
For 600 VAC/VDC or less control systems and industrial control circuits
Mounting Type
Chassis
Voltage Rating
600
Connection Type
Screw
Type
Open Style
Series
T600
Dimensions
3.19 in L x 3.75 in W x 1.44 in H
Amperage Rating
1/2 to 30
Suitable For Use With
JJS Class T Fuse
Features
  • Short circuit current rating of 200 kA rms symmetrical
  • Class T fuse blocks have a small foot print, providing substantial space savings in equipment
  • 18 to 10 AWG copper wire
