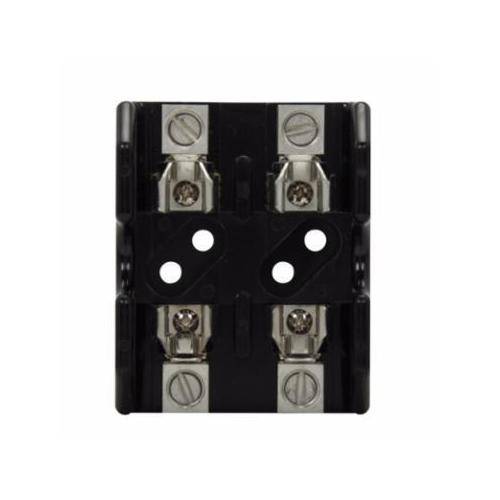

Edison T60030-2CR Open Style Fuse Block, 600 VAC/VDC, 1/2 to 30 A, T Class, 14 to 2 AWG Wire, 2 Poles

Short Description

Bussmann series T600 fuse blocks are open fuse blocks for use with class T fuses up to 600 A in various pole configurations from 1 to 3-pole. T600 blocks use Bussmann series JJS fuses.

Edison Fuse Block, Open Style, Series: T600, 600 VAC/VDC, 1/2 to 30 A, 2 Poles, Class: T, Fuse Holder Code: BF, Box Lug, 14 to 2 AWG Wire, Chassis Mount, 1-1/2 in Fuse Length, 0.56 in Fuse Dia, For Use With: JJS Class T Fuse, Glass Polyester, Black, 3.19 in L x 2.59 in W x 1.44 in H
MFG #: T60030-2CR

EECO #: BUT600302CR

Brand: Edison
UPC #: 051712148078
Attributes
Features
Documents
Product Information
Attributes
Class
T
Color
Black
UNSPSC
39121624
Material
Glass Polyester
Wire Size
14 to 2
Application
For 600 VAC/VDC or less control systems and industrial control circuits
Mounting Type
Chassis
Voltage Rating
600
Connection Type
Box Lug
Type
Open Style
Series
T600
Dimensions
3.19 in L x 2.59 in W x 1.44 in H
Amperage Rating
1/2 to 30
Suitable For Use With
JJS Class T Fuse
Features
  • Short circuit current rating of 200 kA rms symmetrical
  • Class T fuse blocks have a small foot print, providing substantial space savings in equipment
  • 14 to 2 AWG copper/aluminum wire
Bussmann_T60030_2CR_Full_Engineering_Drawing_CA
Bussmann_T60030_2CR_Specification_Sheet_CA
Bussmann_T60030_2CR_User_Manual_CA
