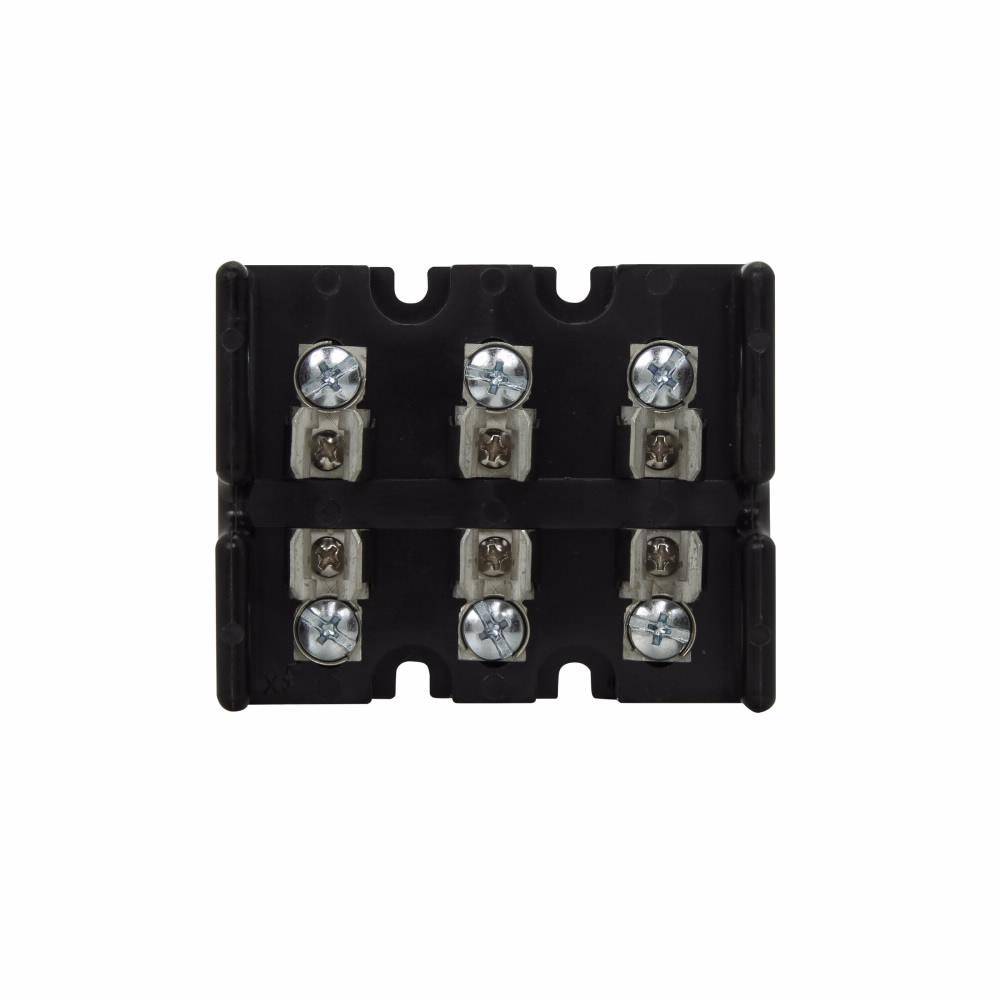

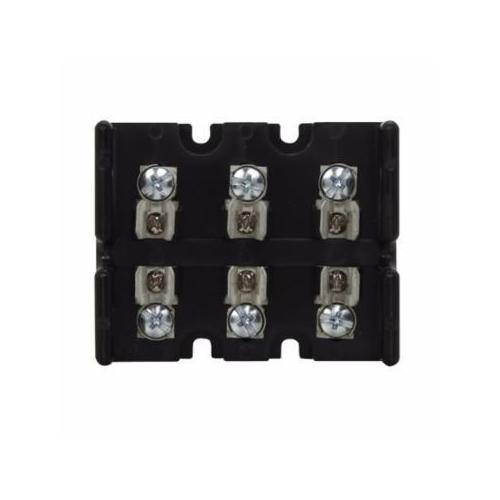

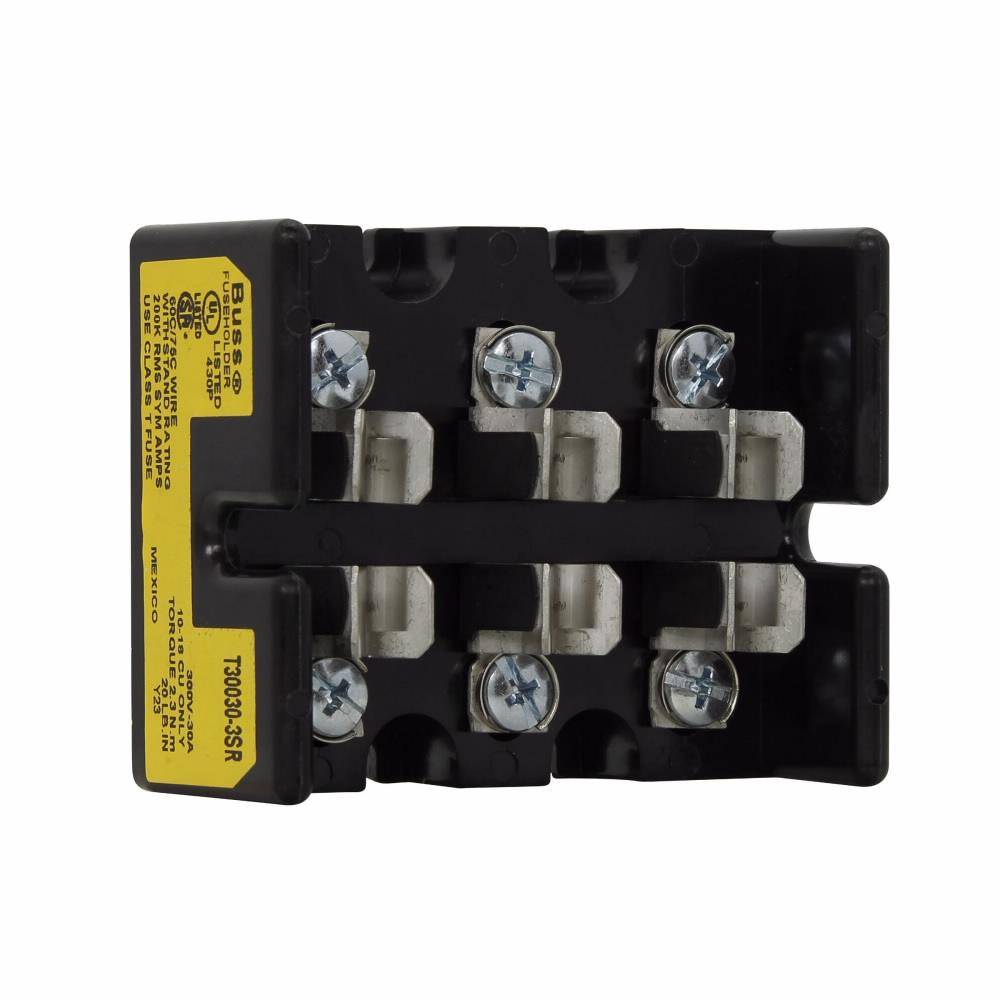

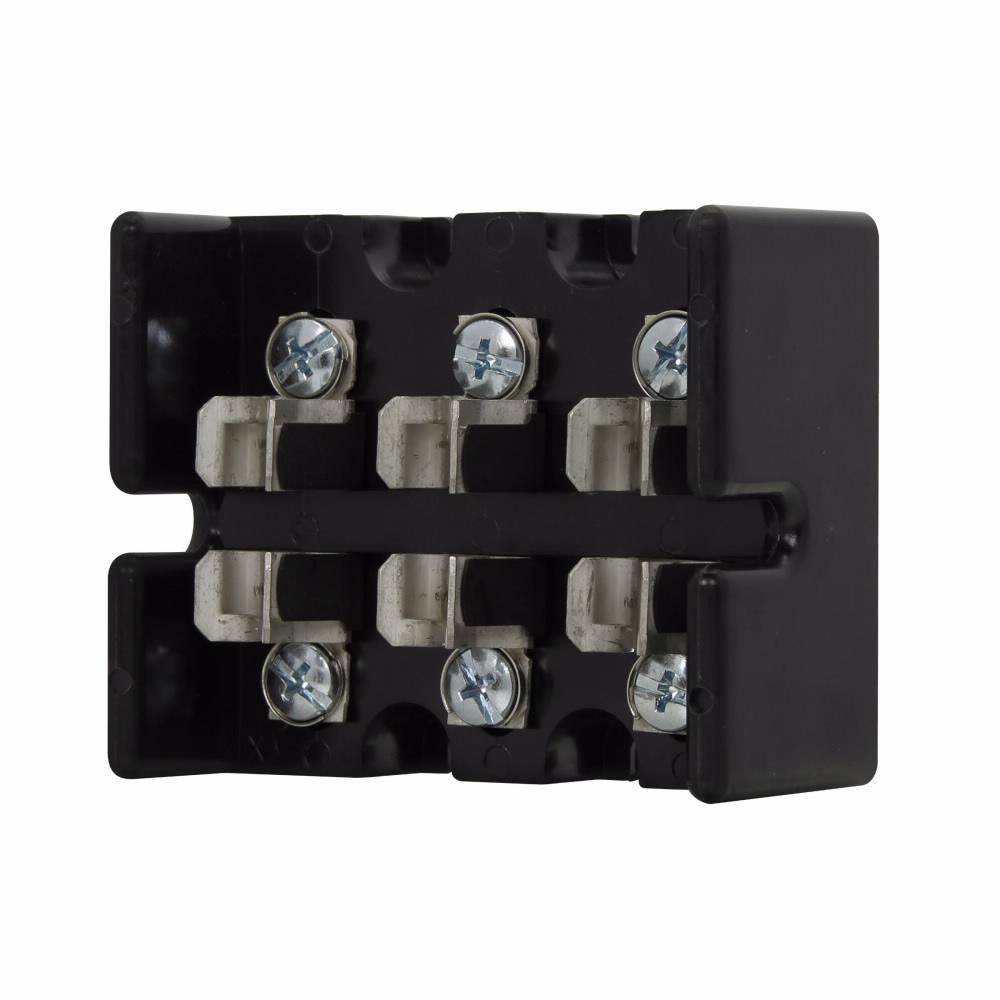

Edison T30030-3SR Open Fuse Block, 300 VAC/VDC, 30 A, Class: T, 10 AWG Cu Wire, 3 Poles

Short Description

Enhance your electrical system with the Edison T30030-3SR Open Fuse Block, designed for reliable performance at 300 VAC/VDC and 30 A. This 3-pole Class T fuse block accommodates 10 AWG copper wire and is compatible with Cooper Bussmann® JJN Class T fuses, ensuring safety and efficiency in your applications.Enhanced by AI

Edison Fuse Block, Open, 300 VAC/VDC, 30 A, 3 Pole, Class: T, 10 AWG Cu Wire, For Use With: Cooper Bussmann® JJN Class T Fuses, Phenolic, 3.44 in L x 1.63 in W x 2.75 in H

MFG #: T30030-3SR

EECO #: BUT300303SR

Brand: Edison
UPC #: 051712147934
Attributes
Features
Documents
Product Information
Attributes
Class
T
Color
Black
UNSPSC
39121624
Material
Phenolic
Wire Size
10 AWG Cu
Application
For used with 300 VAC/VDC or less control systems and 300 VAC/VDC or less individual control circuits
Mounting Type
Threaded
Voltage Rating
300
Connection Type
Screw
Type
Open
Series
T600
Includes
Screw and Reinforced Spring
Dimensions
3.44 in L x 1.63 in W x 2.75 in H
Amperage Rating
30
Suitable For Use With
Cooper Bussmann® JJN Class T Fuses
Features
  • Short-circuit current rating of 200 kA RMS sym
  • Class T fuse blocks have a small foot print, providing substantial space savings in equipment
T30030_3SR_Specification_Sheet
