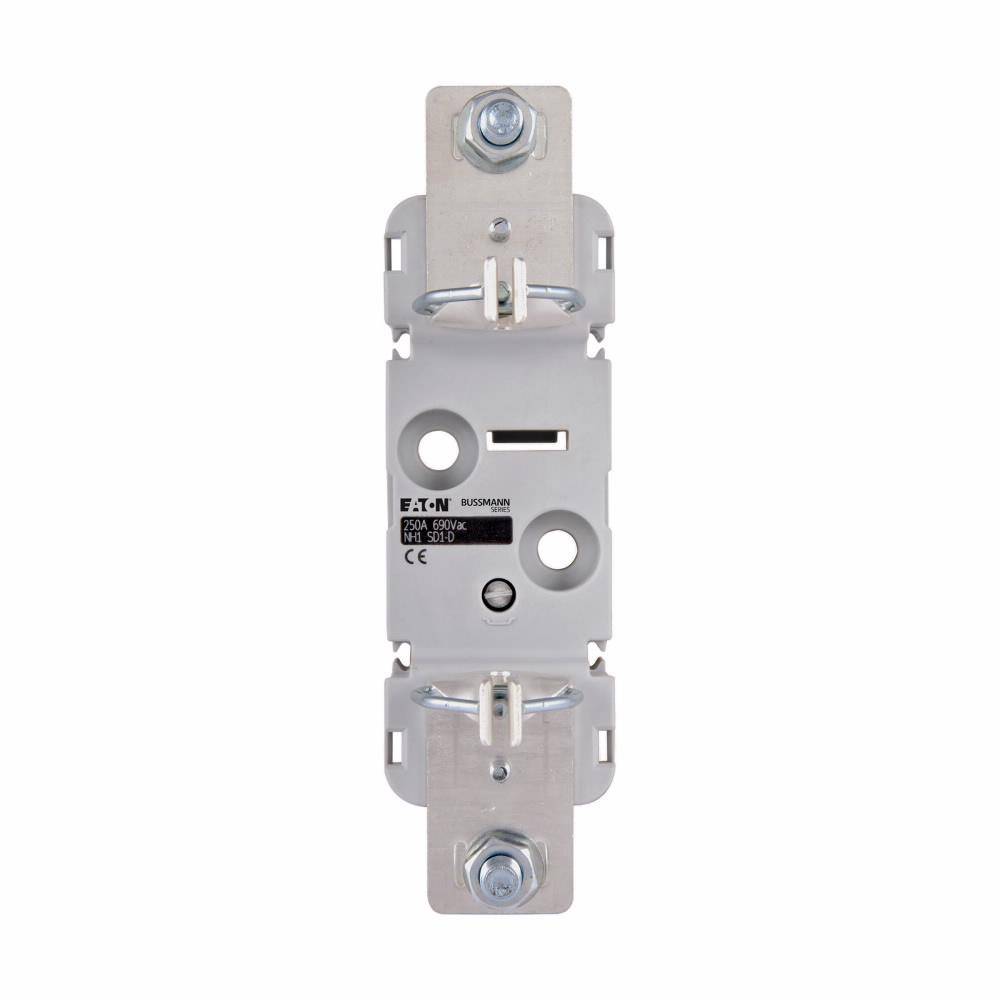

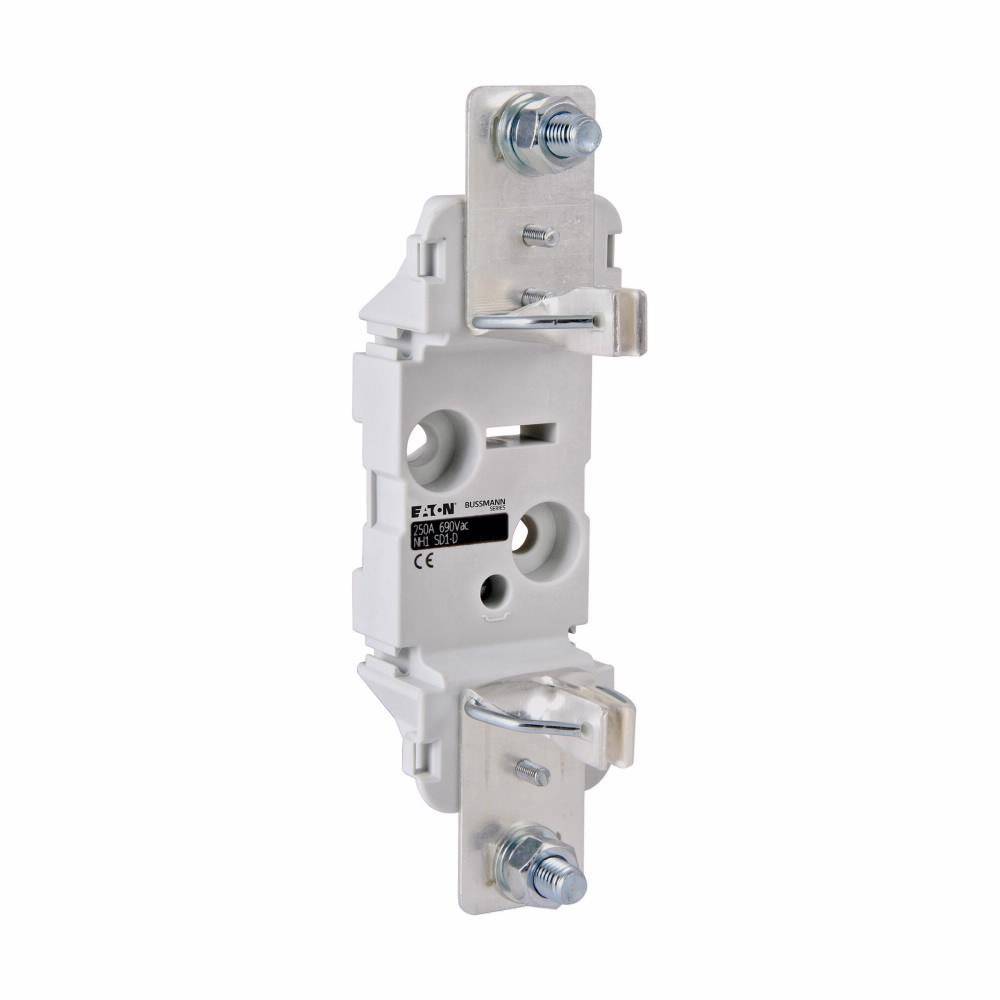

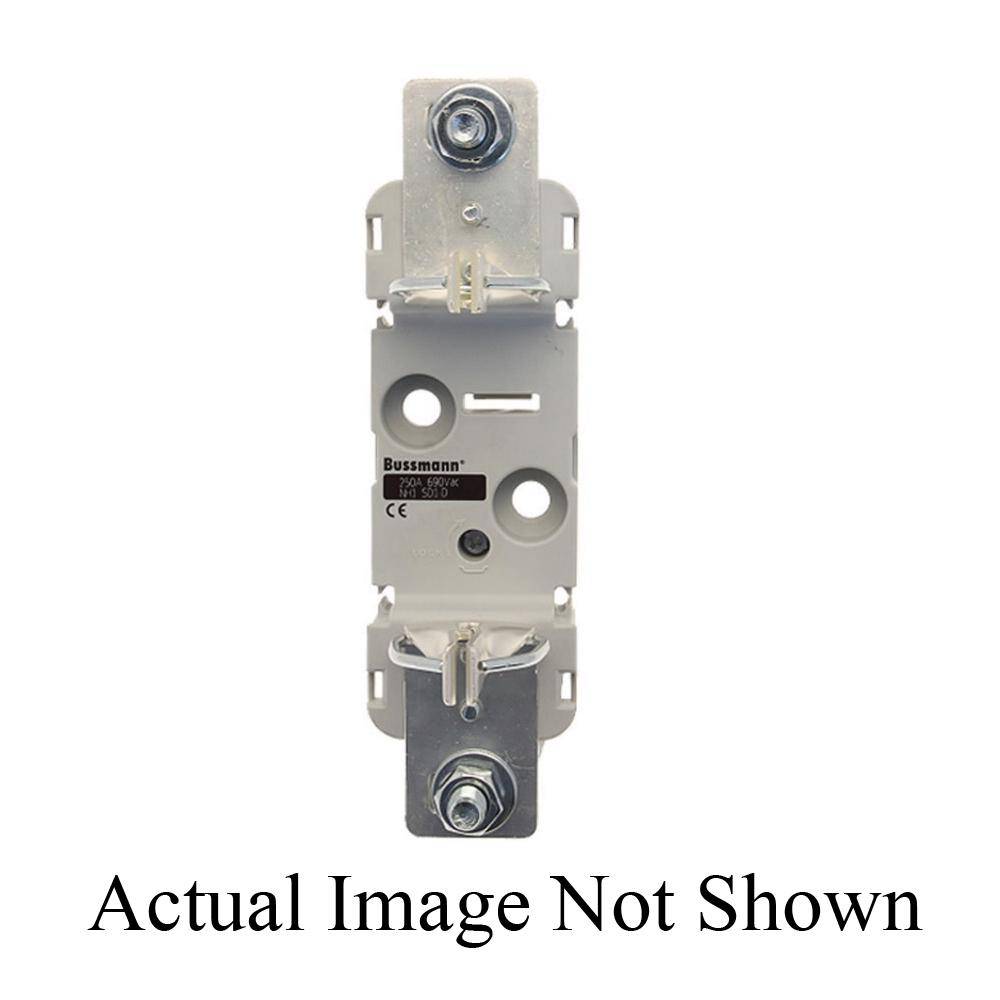

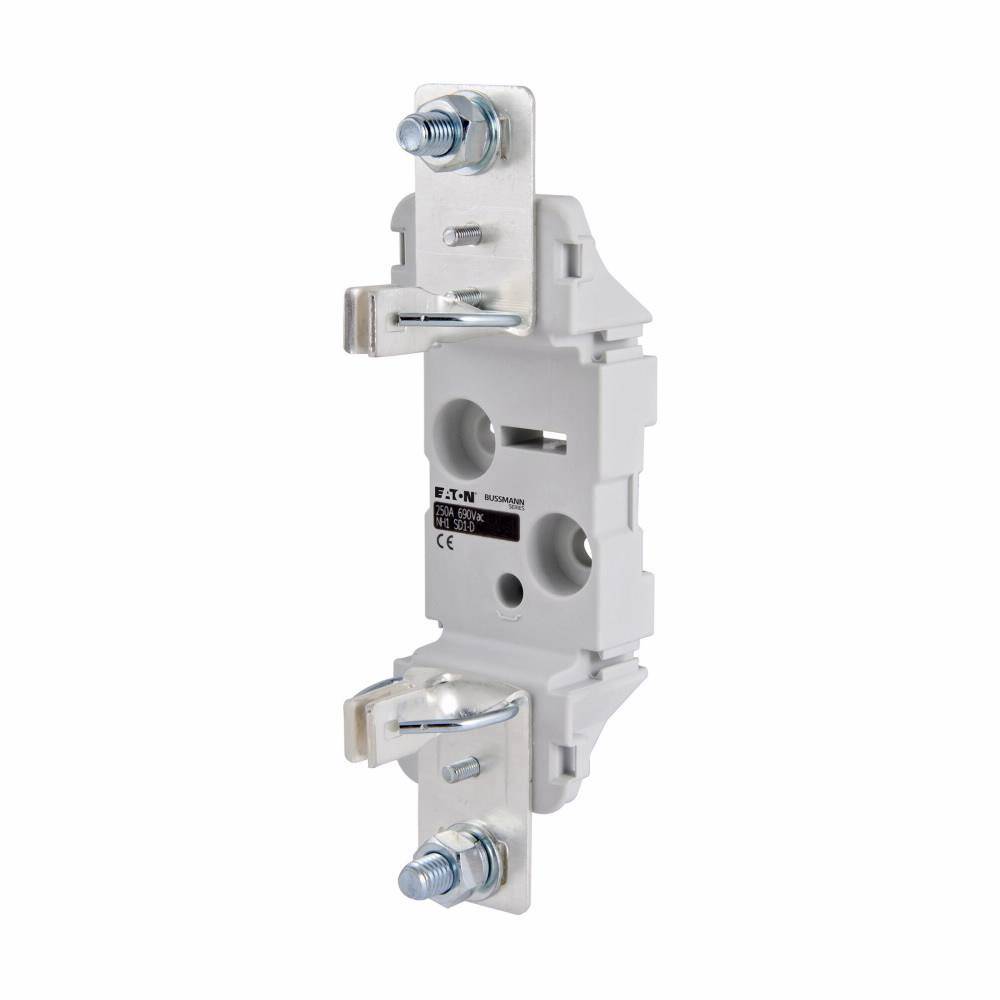

Bussmann SD1-D Screw, For Use With NH Base, NH1 Fuse Link, 400/500/690 VAC NH Series Class gG/aM Low Voltage Fuse, 690 V, 250 A, DIN Rail, Threaded Mount, 1/4 in Screw, Thermoplastic, Silver

Short Description

Eaton's Bussmann series NH fuse bases and gear are specifically designed to be used with NH fuses in a wide range of applications. NH gear is extremely compact in size and safe with all energized parts being fully protected against accidental contacts. The NH bases and gear come with a full range of accessories i.e. microswitches and additional shrouding

Bussmann Screw, For Use With: NH Base, NH1 Fuse Link, 400/500/690 VAC NH Series Class gG/aM Low Voltage Fuse, 690 V, 250 A, DIN Rail, Threaded Mount, 1/4 in Screw, Thermoplastic, Silver, 7.008 in L x 3.307 in W x 8.346 in H
MFG #: SD1-D

EECO #: BUSD1D

Brand: Bussmann
UPC #: 051712371803
Attributes
Features
Documents
Product Information
Attributes
Color
Silver
UNSPSC
39121626
Material
Thermoplastic
Application
Stationary Machine Equipment in Factory and Robotics Applications
Warranty
1 year Limited
Dimensions
7.008 in L x 3.307 in W x 8.346 in H
Specifications
690 V, 250 A, DIN Rail, Threaded Mount, 1/4 in Screw
Suitable For Use With
NH Base, NH1 Fuse Link, 400/500/690 VAC NH Series Class gG/aM Low Voltage Fuse
Features
  • RoHS Compliant
SD1_D_Specification_Sheet_01
SD1_D_RoHS_02
Qty Unit price
Ea
1 $40.35

Slqt
1 $40.35

Stpk
1 $121.05

Unit
1 $40.35
