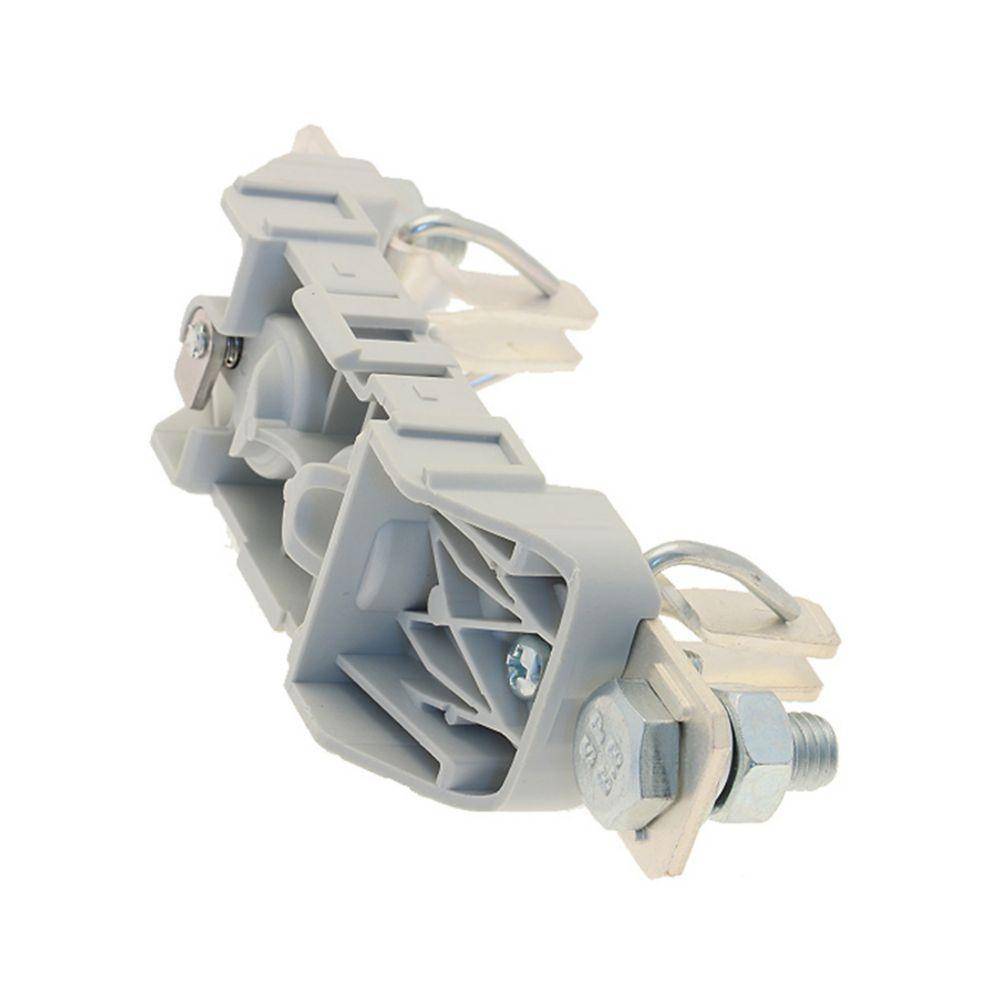

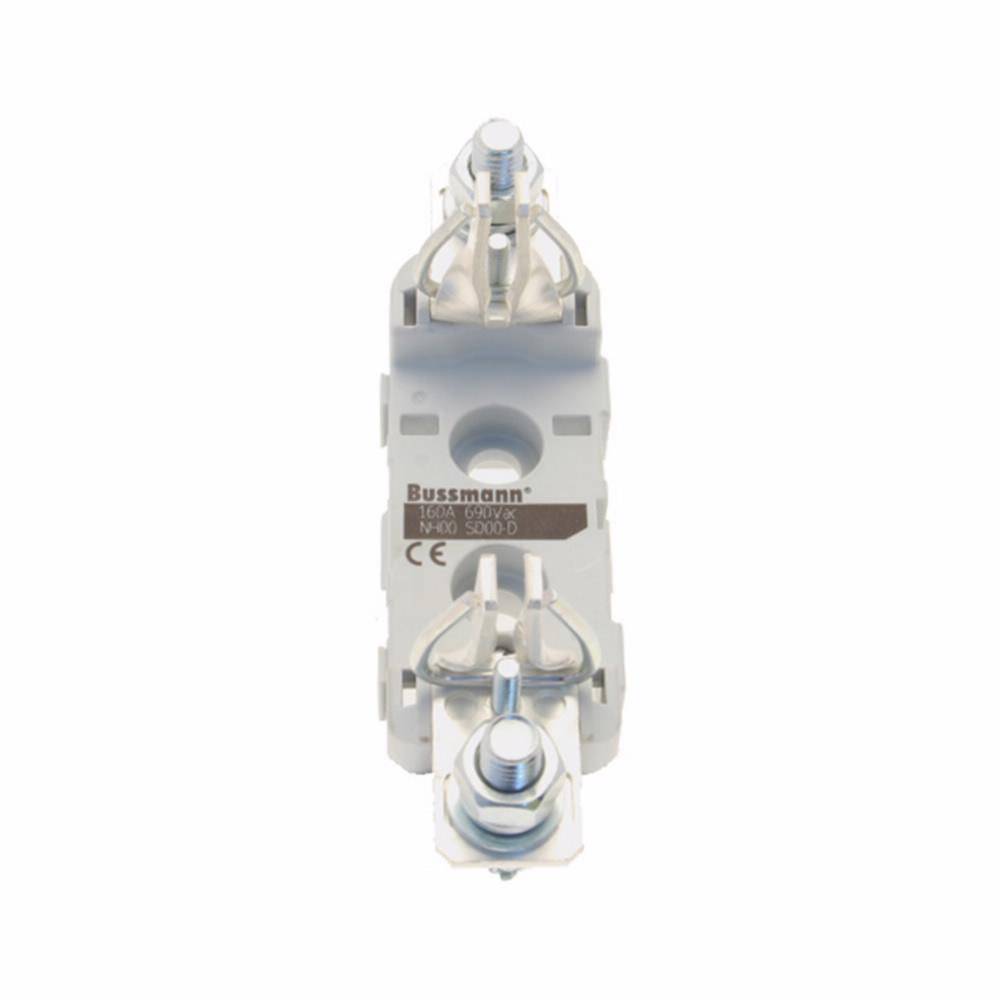

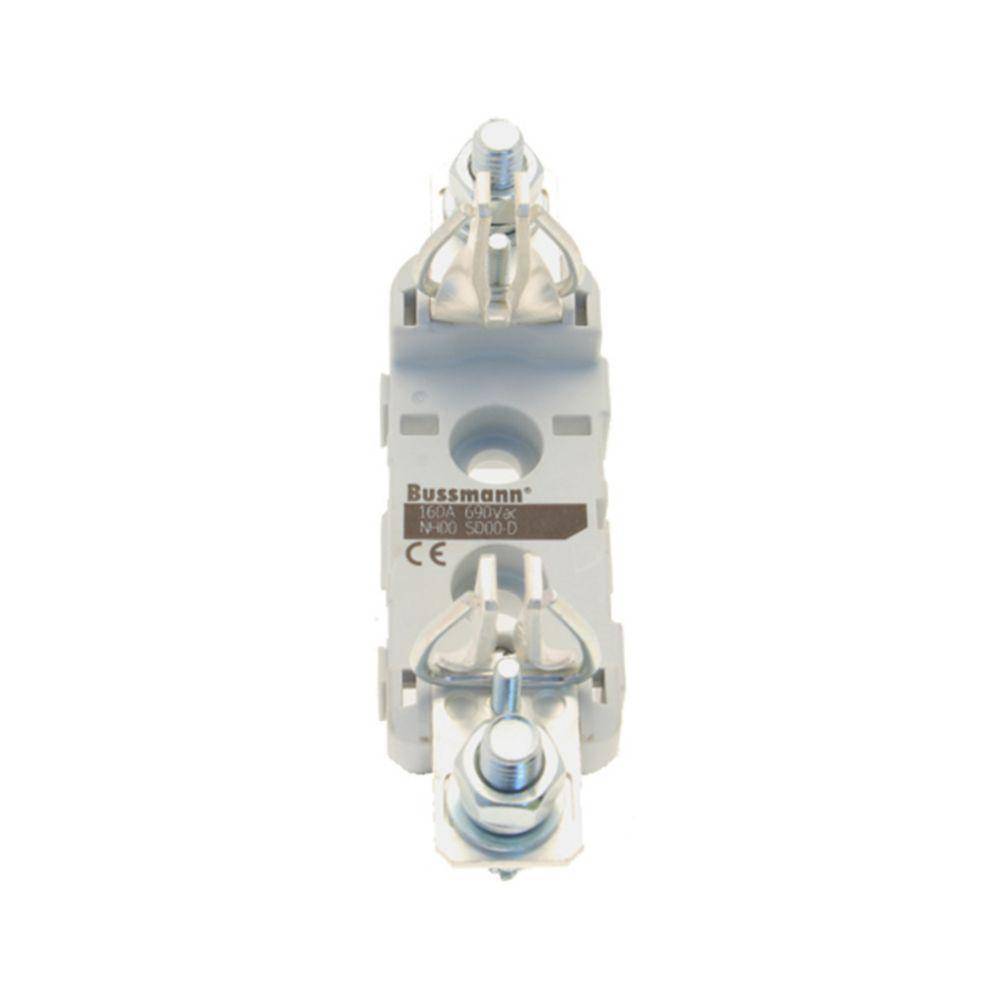

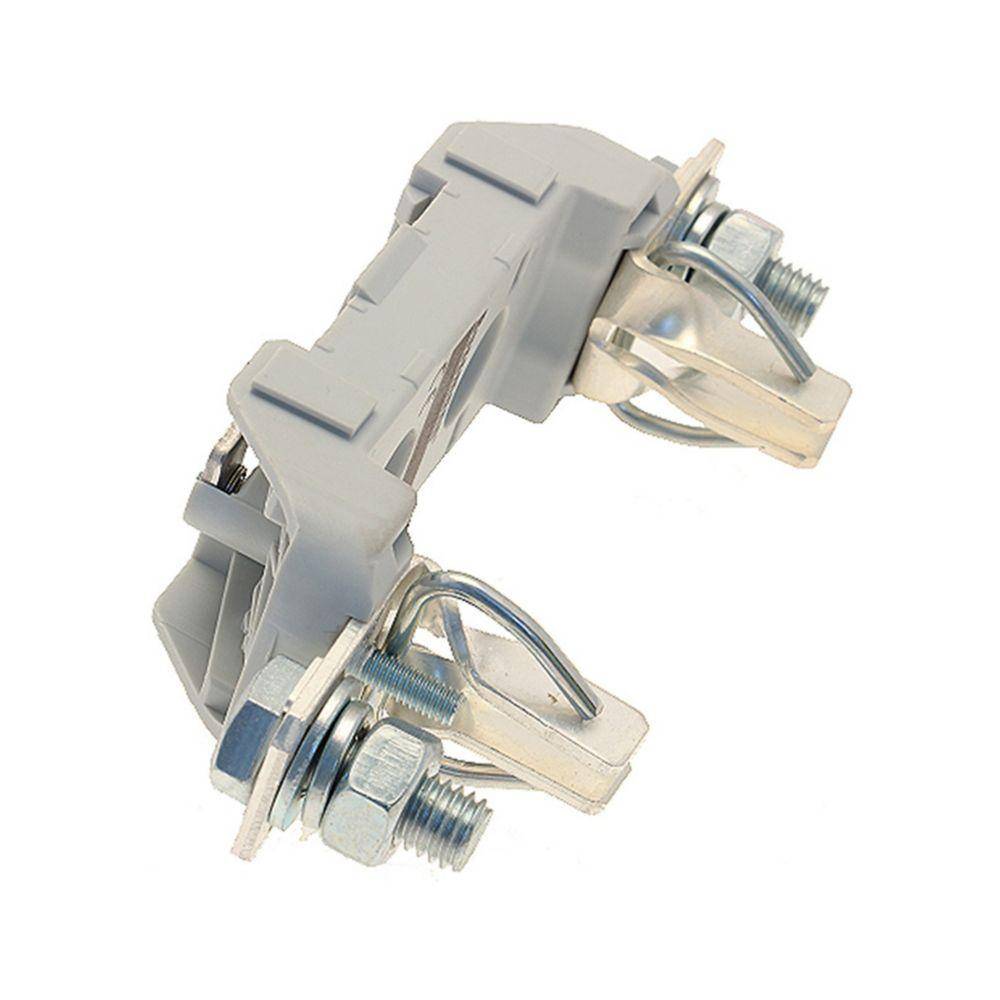

Edison SD00-D Fuse Block, 690 VAC, 160 A, 1 Pole

Short Description

NH fuse bases feature thermoplastic bodies and DIN-Rail and screw mounting (size 4 is screw fix). They are available with a range of protection accessories for live parts for IP20 protection.

Edison Fuse Block, Series: SD Series, 690 VAC, 160 A, 1 Pole, DIN Rail Mount, For Use With: Size 00 IEC and British Standard Fuse
MFG #: SD00-D

EECO #: BUSD00D

Brand: Edison
UPC #: 051712371445
Attributes
Features
Documents
Product Information
Attributes
Color
Silver
UNSPSC
39121626
Material
Thermoplastic
Application
For used with protecting industrial circuits and electrical apparatus
Mounting Type
DIN Rail
Voltage Rating
690
Connection Type
Thread
Type
Low Voltage
Series
SD Series
Warranty
1 year Limited
Dimensions
4.409 in L x 2.165 in W x 5.276 in H
Amperage Rating
160
Suitable For Use With
Size 00 IEC and British Standard Fuse
Features
  • Model: Edison SD00-D Fuse Block
  • Voltage Rating: 690 VAC
  • Current Rating: 160 A
  • Configuration: 1 Pole
  • Mounting Type: DIN Rail Mount
  • Compatibility: Designed for Size 00 IEC and British Standard Fuses
  • Series: SD Series
